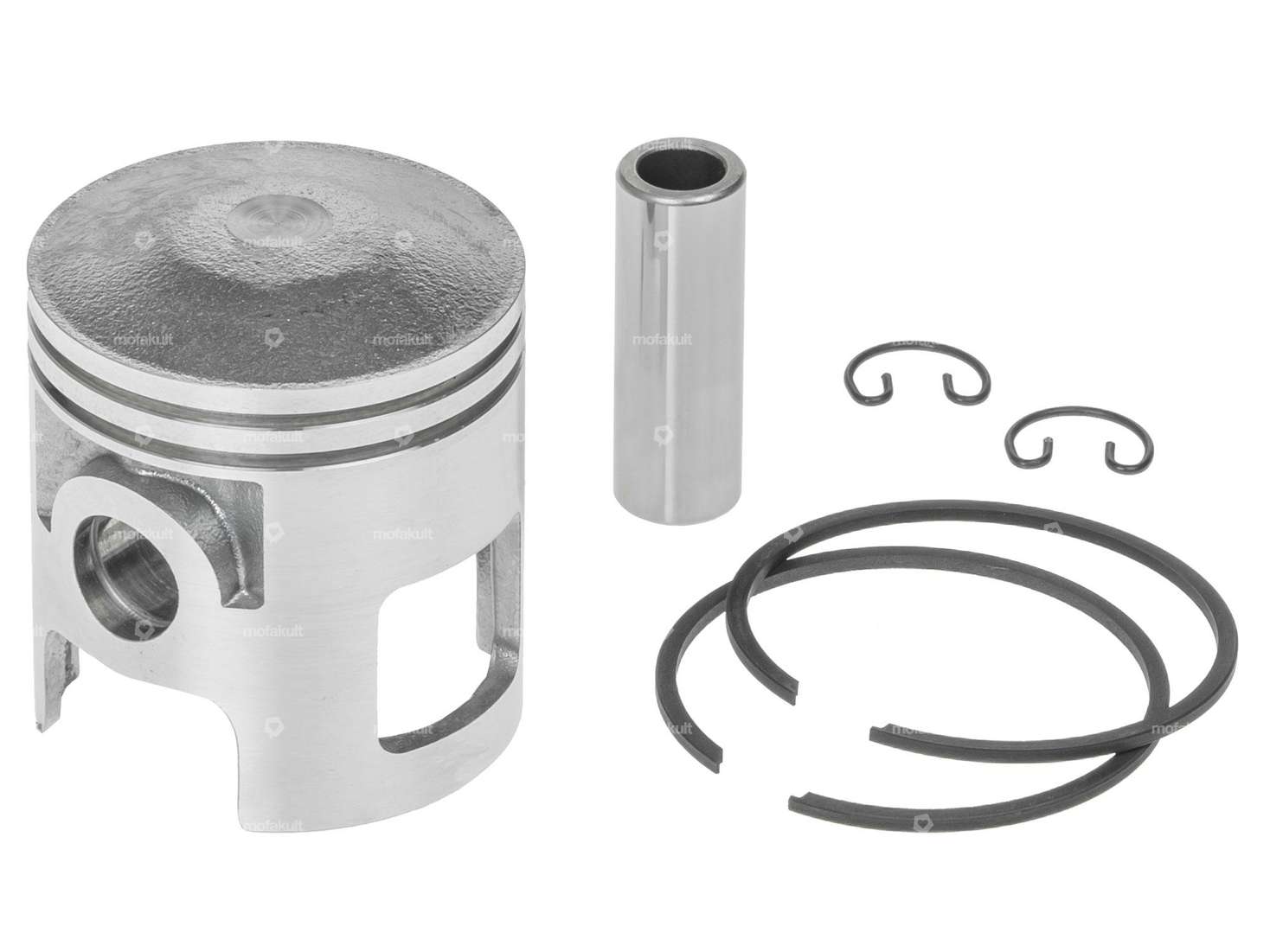

45.0 mm piston kit with two 1.5 mm rectangular piston rings with internal fuse (IS) to fit the 45.00 mm cylinder kit for Tomos A3 / A35 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their positions and locking types on the legend in the images.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tools, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
| Ø outside piston (A) | 44.94 mm |
| Compression height (C) | 22 mm |
| Curvature (D) | 4 mm |
| Total piston height (E) | 49.55 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Nominal diameter | 45 mm |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Weight piston kit | 91 g |
| Tomos |
Ratings
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Number of components: 7 pcs · Manufacturer: GPO · Material: Steel · Area of application: (Dis)assembly tool · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm
EUR 23.30
Explore categories from Piston
Moped fans also bought
Fortune / Merrick 2.00-2.50 x 16" / 17" inner tube
Manufacturer: Fortune · Tire width: 2 - 2.5 " · Tire width: 2.25 - 2.5 " · Tire width: 2.5 " · Tire width [mm]: 50.8 - 63.5 · Width: 2 " · Width: 2 1/4 " · Width: 2 1/2 " · Wheel size: 16 - 17 " · Wheel size: 17 " · Tire height [%]: 100 · Old designation: 20 x 2 " · Old designation: 20 x 2.25 " · Old designation: 20 x 2.5 " · Old designation: 21 x 2 " · Old designation: 21 x 2.25 " · Old designation: 21 x 2.5 " · Valve type: TR4 Auto valve
EUR 11.60
Continental Go 2.25 x 17" tires Semi-Slick
Inventory-managed: No · Manufacturer: Continental · Color: black · Tire width: 2.25 " · Tire width [mm]: 57.15 · Width: 2 1/4 " · Wheel size: 17 " · Old designation: 21 x 2.25 " · Speed index: J = 100 km/h · Load capacity index: 39 = 136 kg · Profile type: ContiGo! · Tire type: Semi-slick · White wall: No · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 67.90
swiing® revival screw set engine galvanized | Puch Maxi
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Drive: Cross recess · Drive: Hexagon socket · Screw head: Countersunk head · Screw head: Cylinder head · Screw head: Lens head · Puch OEM number: 900.1216 · Puch OEM number: 901.1308
EUR 11.60

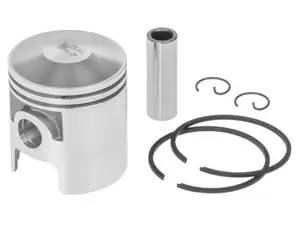

Airsal piston 44 mm (12 mm KoBo) | Tomos A35
