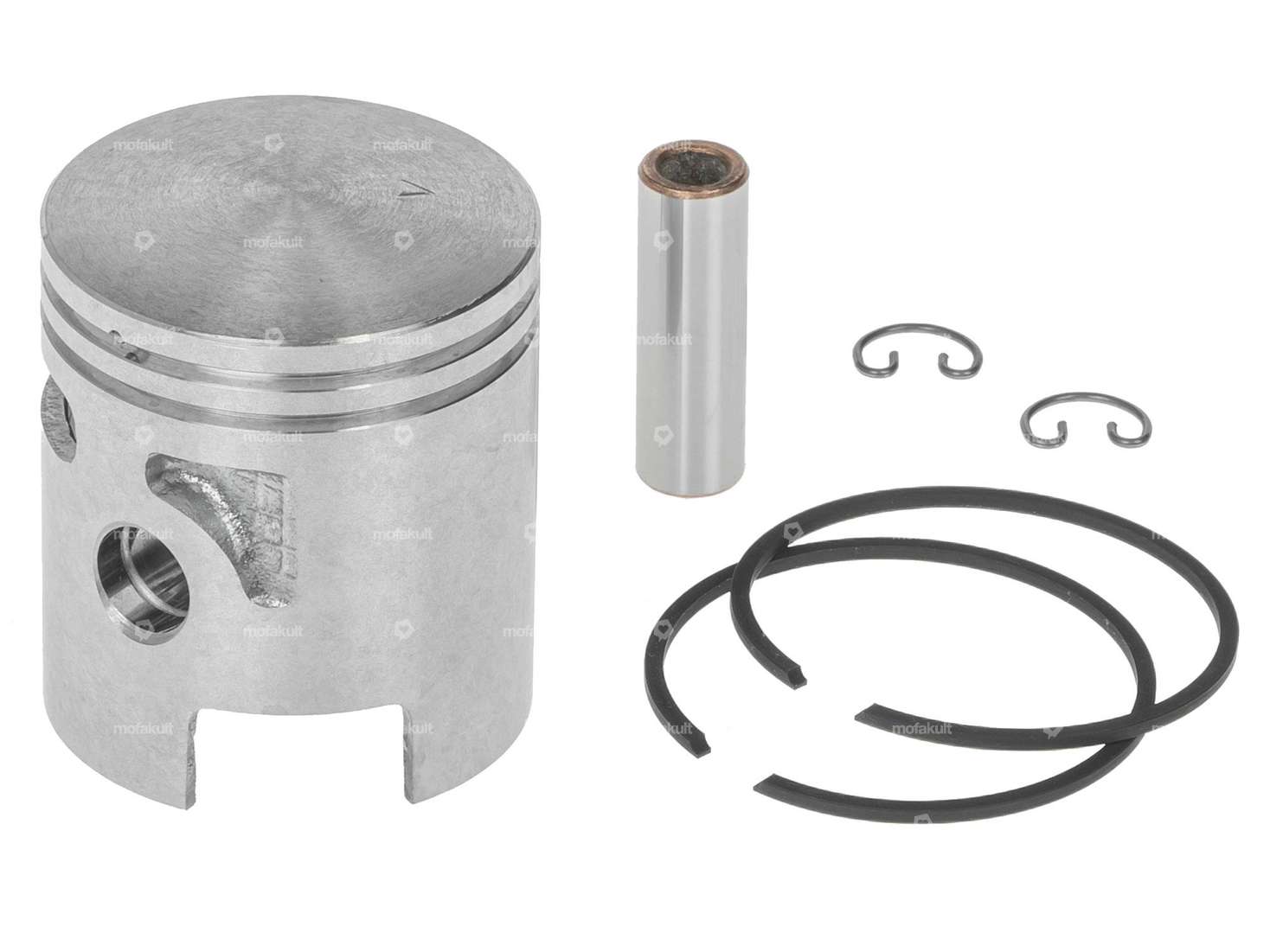

43.0 mm piston kit with two 1.5 mm rectangular piston rings with flank lock (FS) for the Polini racing kit on your Piaggio moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the images.
The piston kit contains piston pins, piston clips and piston rings.
Corresponding assembly tools, piston rings, piston pin retainers etc. can be found under accessories.
Quality product from the Italian manufacturer Polini.
| Nominal diameter | 43 mm |
| Manufacturer | Polini |
| Ø outside piston (A) | 42.94 mm |
| Compression height (C) | 26.4 mm |
| Curvature (D) | 2.55 mm |
| Total piston height (E) | 50.5 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Flank safety device (FS) |
| Ø piston pin (B) | 10 mm |
| Piston ring height | 1.5 mm |
| Weight piston kit | 83 g |
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
