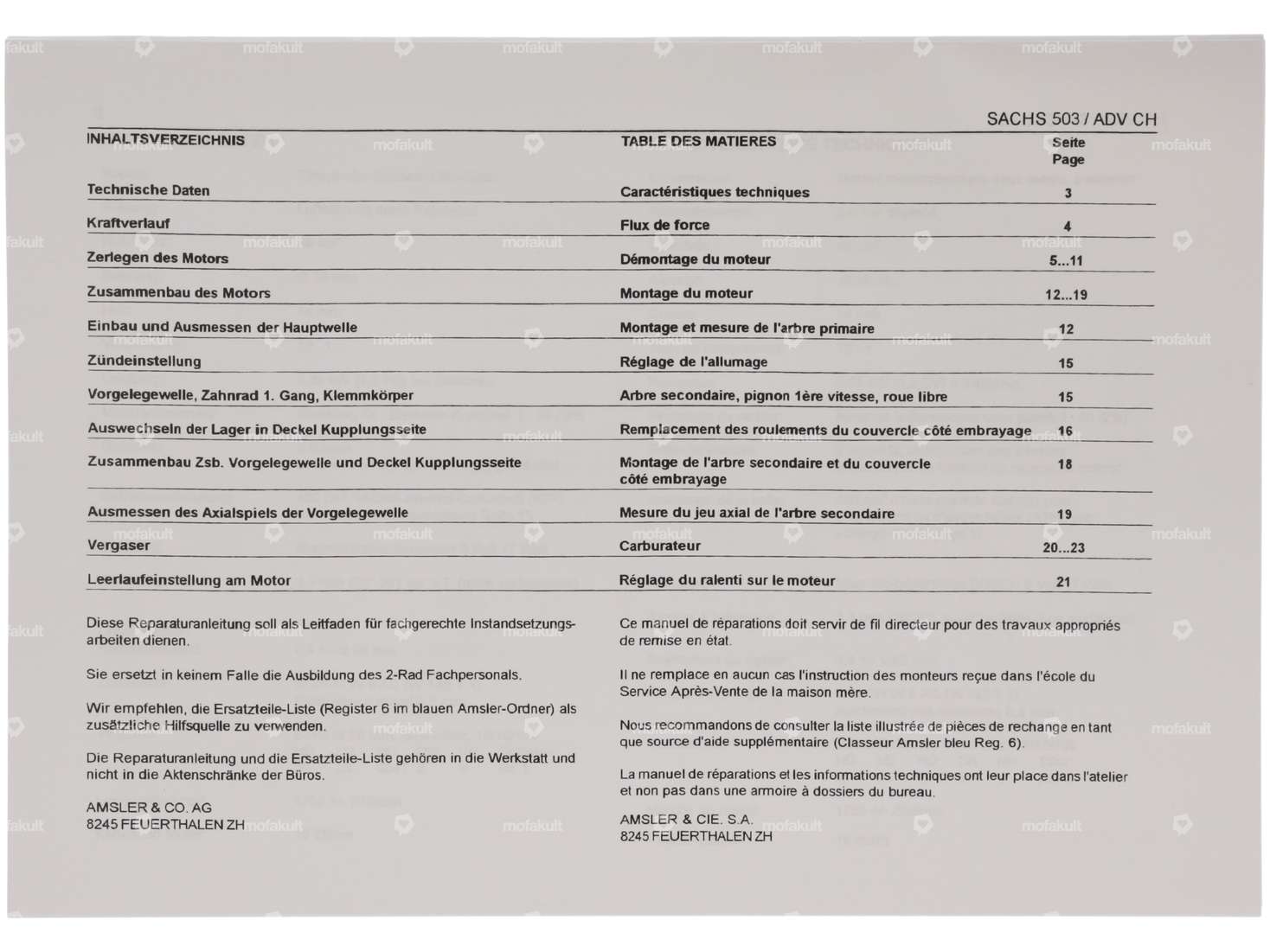

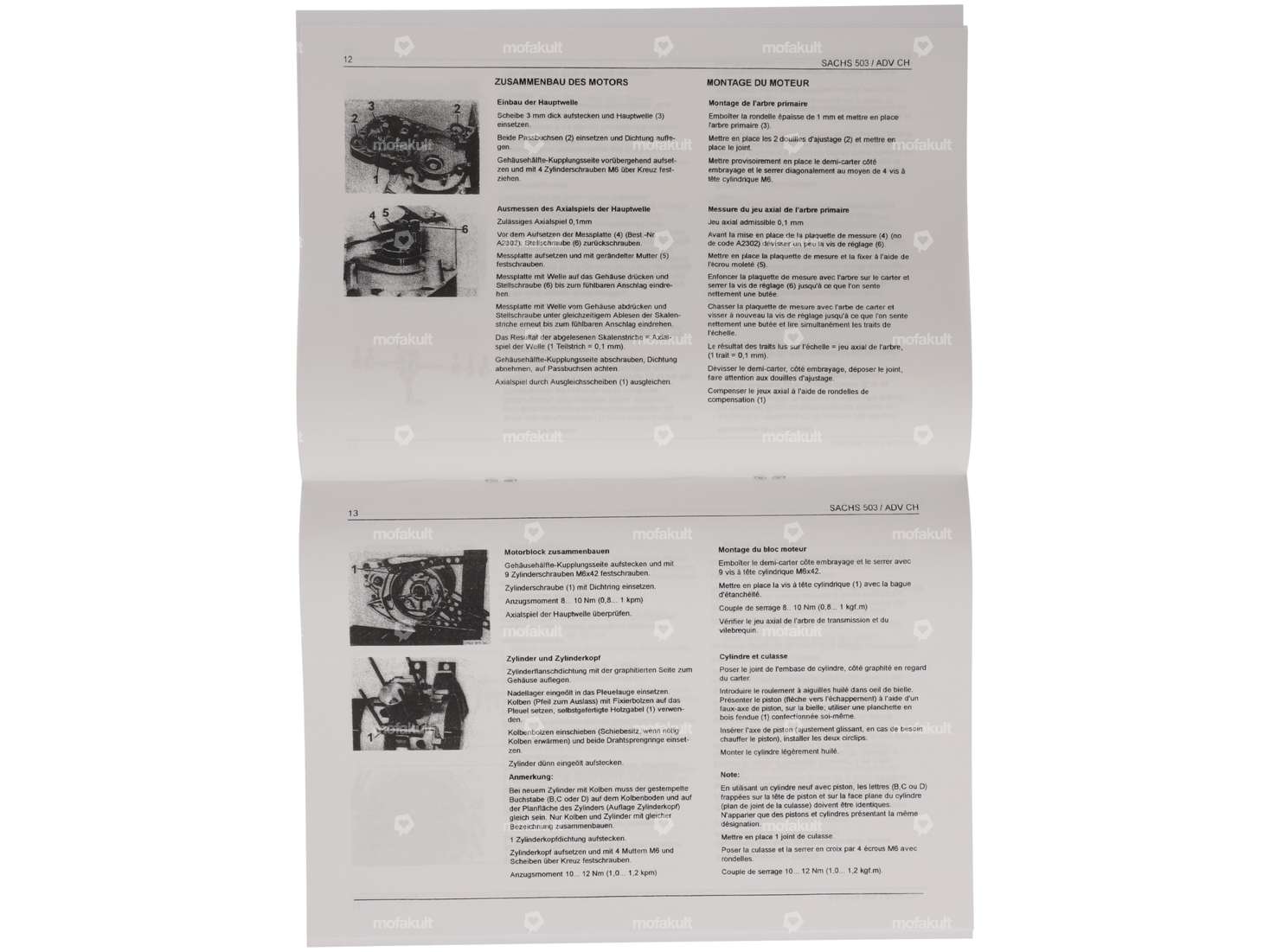

Repair instructions 317.81 ACO D-F | Sachs 503 ADV CH

Spare parts list | Sachs 50/3 LKH, LH engine

Material: Paper · DIN format: A5 · Number of pages: 30 pcs · Language: German

Spare parts list | Sachs 50/3 LF, MLF, 50/4 LK, LF, MLFA, MLKA engines

Material: Paper · DIN format: A5 · Number of pages: 30 pcs · Language: German

Spare parts list | Sachs 50/2 MLC, 50/AMLC engines

Material: Paper · DIN format: A5 · Number of pages: 23 pcs · Language: German

Spare parts and price list 1980 | Sachs 50 S, 50 SW

Material: Paper · DIN format: A4 · Number of pages: 28 pcs · Language: German

Repair instructions | Sachs 503 AB L CH

Material: Paper · DIN format: A4 · Number of pages: 36 pcs · Language: French · Language: German

Repair instructions | Sachs 503/2 AL, AAL CH

Material: Paper · DIN format: A5 · Number of pages: 56 pcs · Language: German

Motorex Automatic Motor Oil (ATF) 450 ml

Manufacturer: Motorex · Contents: 450 ml · Area of application: Gearbox lubrication with clutch · Gearbox type: Automatic machine · Temperature resistance (min.): -45 - 200 °C · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Oil seal NBR 17/33/7 B DUO crankshaft | Sachs 503 AB, ADV

Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Ø outside: 33 mm · Width: 7 mm · Ø inside: 17 mm · Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C

NSK 6201 ball bearing 12/32/10

Stock number: 6201 · Inner ring width: 10 mm · Manufacturer: NSK · Bearing clearance: CM (special/noise-reduced) · Bearing cage: Sheet steel cage ball-guided · Groove ring: No · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Ø outside: 32 mm · Width: 10 mm · Ø inside: 12 mm · Area of application: Standard · Ball bearing closed: No

swiing® revival gearbox cover gasket | Sachs 503 AAL, ABL, AB, AC, ADV, 2AL, 2BL (A1888)

Manufacturer: swiing® revival parts · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Width: 130 mm · Thickness: 0.35 mm · Total length: 200 mm · Number of fixing points: 6 pcs · Pony OEM number: A1888 · Sachs OEM no.: 0250 150 000

Shaft seal NBR 14.96x31.5x3.5 Pinion shaft | Sachs 502, 50/2, 503 (A1134)

Manufacturer: Sachs · Material: NBR · Surface: coated · Ø outside: 31.5 mm · Width: 3.5 mm · Ø inside: 14.96 mm · Place of use: Pinion shaft · Area of application: Standard · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A1134 · Sachs OEM no.: 0230 011 100 · Sachs OEM no.: 0230 011 200

Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)

Shaft seal type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Ø outside: 30 mm · Width: 7 mm · Ø inside: 15 mm · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000

NTN needle roller bearing 8/12/10 | Sachs 50/2, 503 (A1176)

Stock number: HK0810 · Manufacturer: NTN · Bearing type: Needle sleeve · Ø outside: 12 mm · Ø inside: 8 mm · Width: 10 mm · Dimension needle bearing: 8/12 x 10 · Pony OEM number: A1176 · Sachs OEM no.: 0232 137 000

NSK 6000 ball bearing 10/26/8

Stock number: 6000 · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Bearing cage: Sheet steel cage ball-guided · Bearing type: Deep groove ball bearing · Ø outside: 26 mm · Width: 8 mm · Ø inside: 10 mm

swiing® revival gasket set | Sachs 503 ADV wide screen Cat.

Manufacturer: swiing® revival parts · Material: Copper · Material: Fiber · Material: Rubber · Material: Sealing carton · Material: Sealing paper · Number of components: 15 pcs · Ø outlet inside: 23.3 mm · Area of application: Standard · Hole pattern [mm]: 56 x 56 · Decompressor: No · Hole spacing inlet: 38 mm

Engine revision set | Sachs 503 ADV wide screen Cat.

Manufacturer: NSK · Manufacturer: NTN · Area of application: Standard
