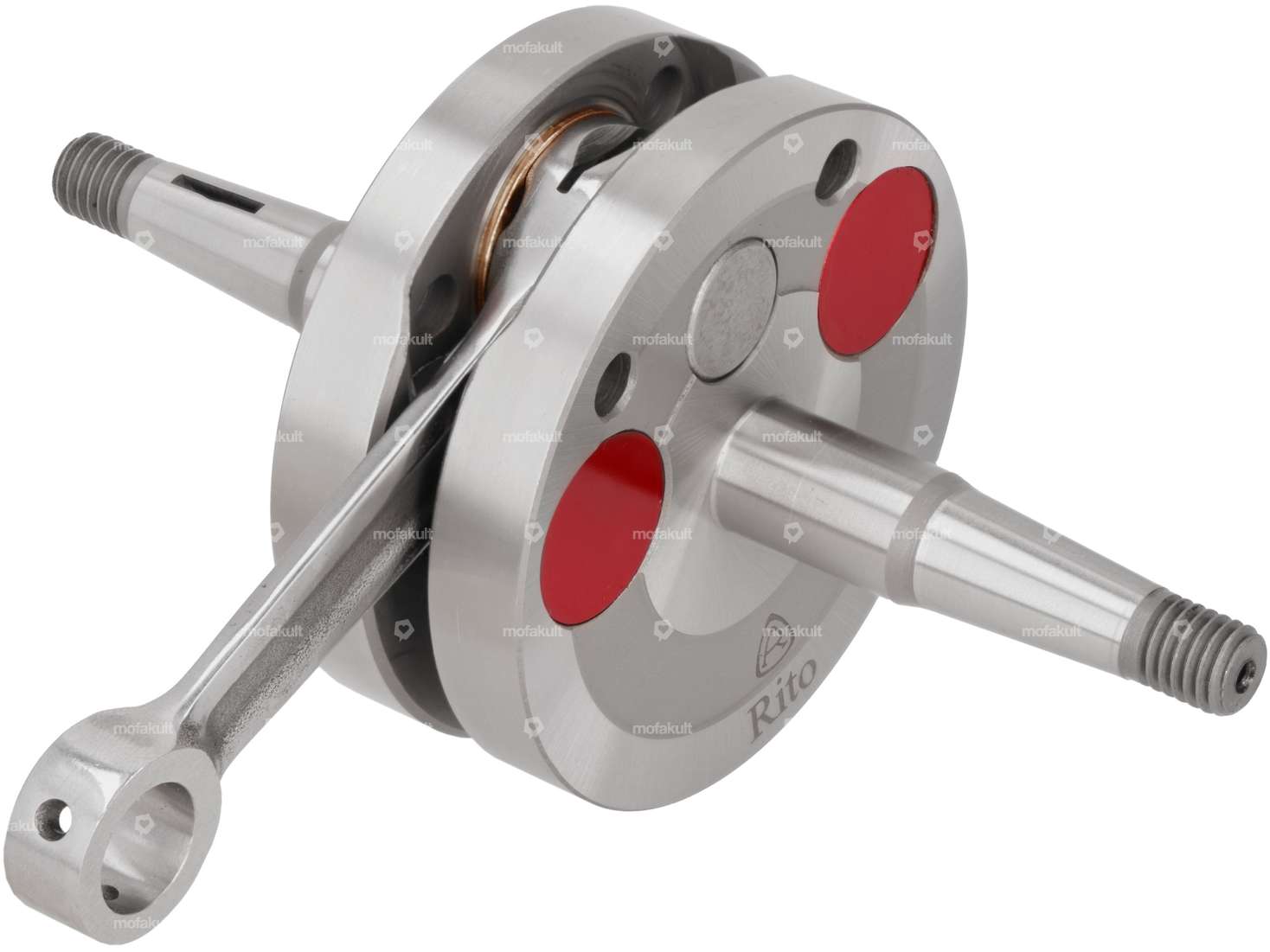

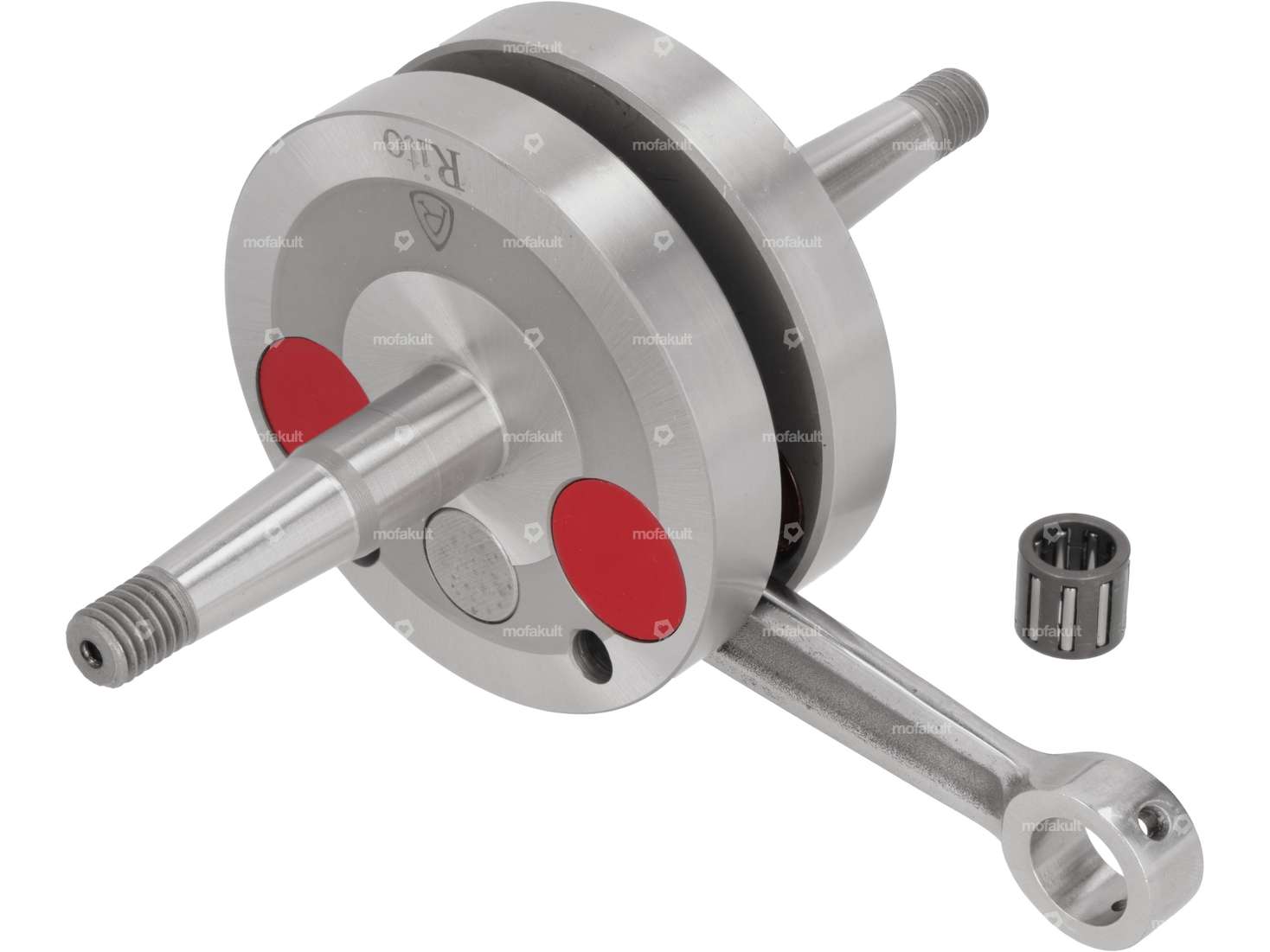

Crankshaft from the Portuguese quality manufacturer "Rito" suitable for ILO / JLO G50 / V50 mopeds.
Total length of clutch-side cheek pin: 61.5 mm
Length of end-side cheek pin: 61.5 mm
Width of cheeks (from bearing support to bearing support): 33.8 mm
Für 10 mm piston pin.
The needle bearing is included in the scope of delivery.
Quality product from the Portuguese manufacturer Rito.
| Manufacturer | Rito |
| Cheek type | Full cheeks |
| Total length of crankpin on clutch side | 61.5 mm |
| Total length crankpin ignition side | 61.5 mm |
| Ø piston pin (B) | 10 mm |
| Area of application | Standard |
| Wide crank webs | 33.8 mm |
| ILO / JLO |
