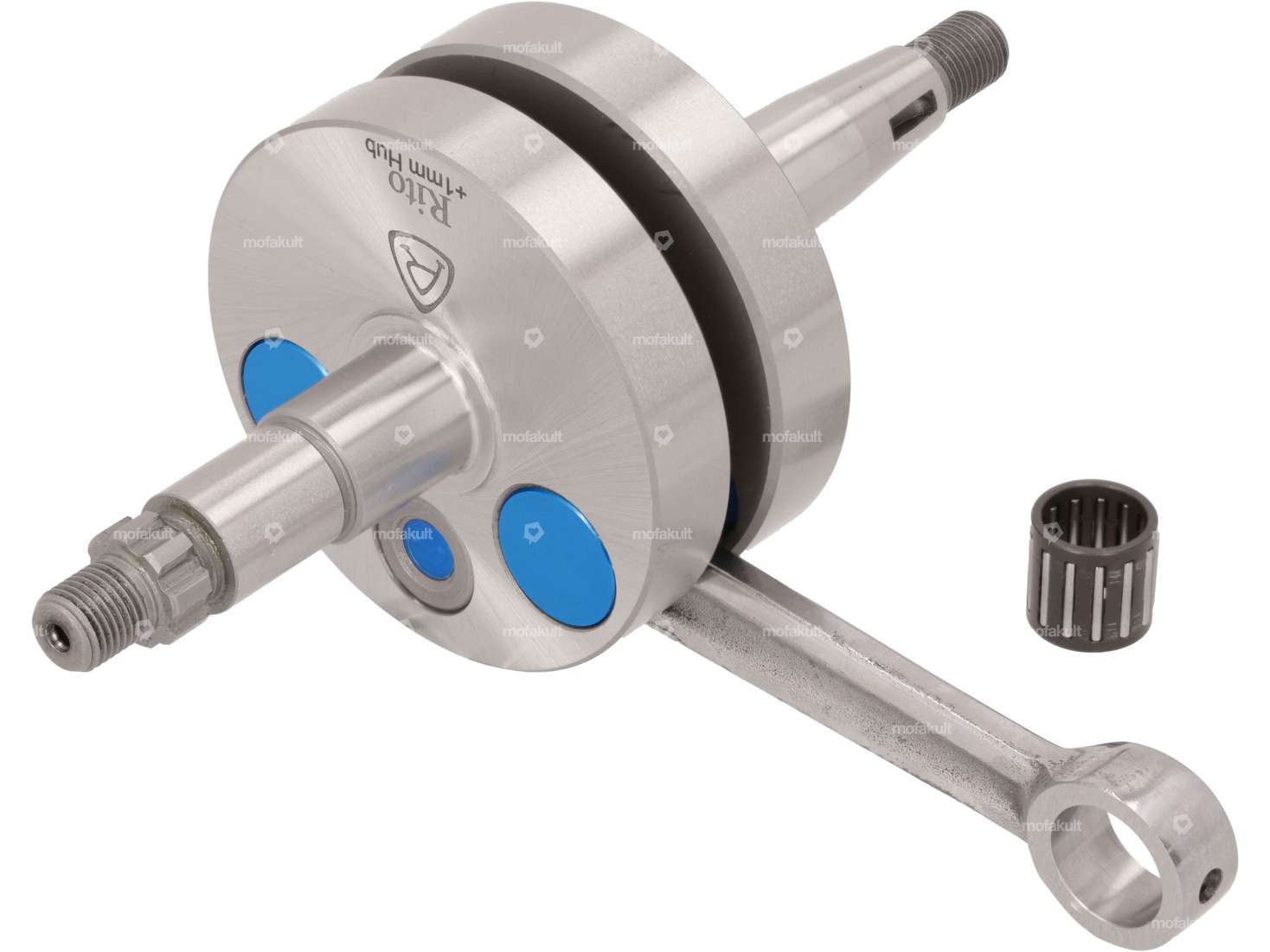

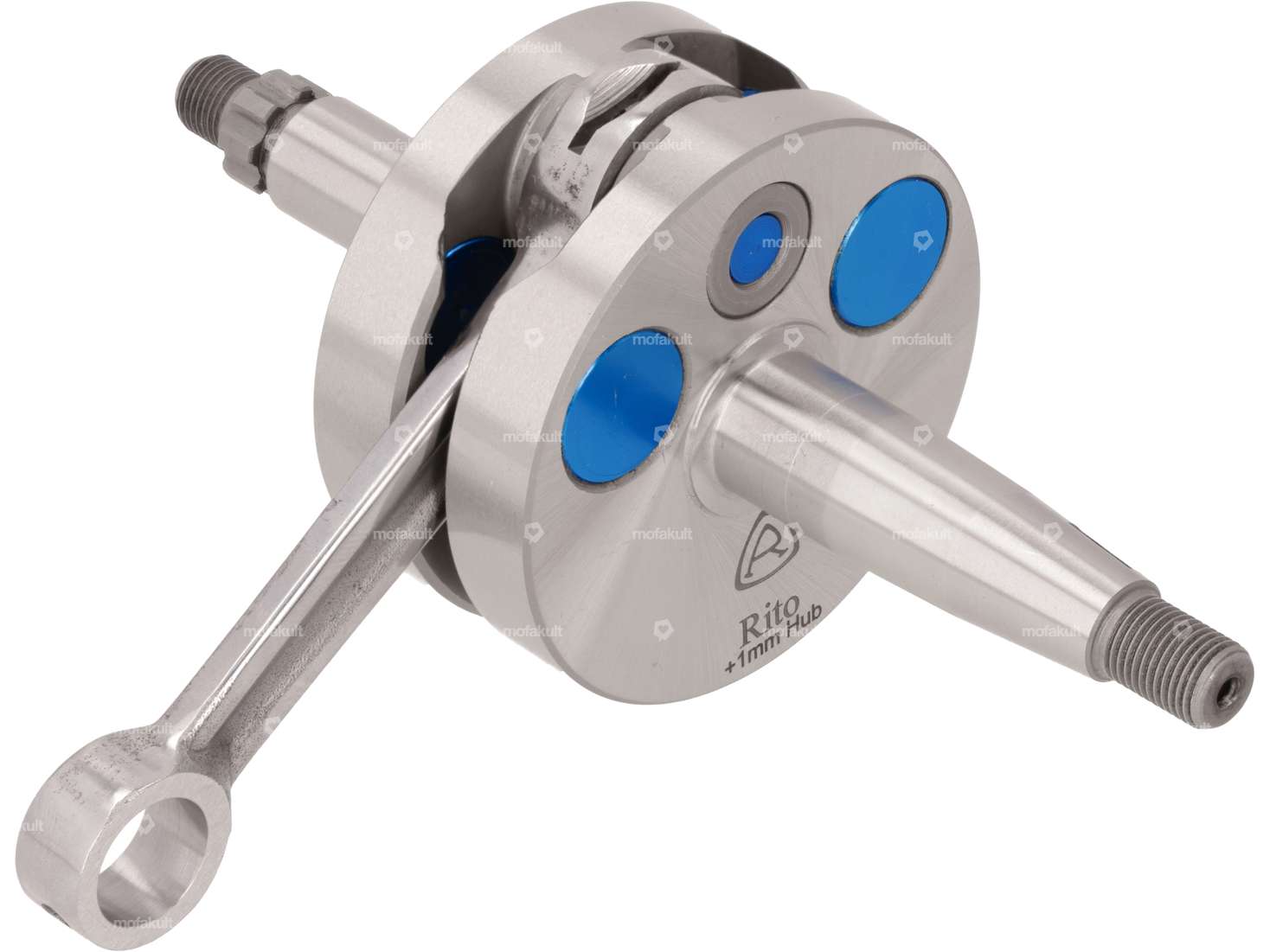

Optimized and lightened full cheek racing crankshaft suitable for manual Puch X30 NS and NL, Velux, MV50, MKII, Maxi HP2 and custom mopeds / mopeds with Z50 engines.
This special crankshaft has 1 mm more stroke and gives your engine more torque and compression to tease the last power reserves out of the cylinder. The precisely fitting, 913 gram full cheek crankshaft has proven itself in our latest test series and delivered uncompromising power.
| Manufacturer | Rito |
| Area of application | High End |
| Material | Steel, Aluminum |
| Cheek type | Full cheeks |
| Crankshaft stroke | 44 mm |
| Connecting rod length center-center | 90 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Weight | 913 g |
| Total length of crankpin on clutch side | 58 mm |
| Total length crankpin ignition side | 67.5 mm |
| Ø crank webs | 69.8 mm |
| Ø Connecting rod eye | 15 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Thread length | 8.5 mm, 12 mm |
| Dimension needle bearing | 12 / 15 x 14.7 mm (axe 12) |
| Wide crank webs | 34.3 mm |
| Length 1st paragraph | 19 mm |
| Length 2nd paragraph | 18.5 mm |
| Ø 1st step (on the coupling side) | 17 mm |
| Ø 2nd shoulder (on the clutch side) | 15 mm |
| Length of shoulder (ignition side) | 18 mm |
| Number of gears | 2 pcs |
| Alternative version of the Puch OEM number | 350.7.10.015.0, 349.1.10.215.0 |
| Puch | Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 |
Accessories & related products
swiing® ingenious puller L17 / BO15 / E15 shoulder bearing
Width across flats trigger: 8 mm · Width across flats trigger: 19 mm · Number of components: 1 pcs · Span: 24 mm · Manufacturer: swiing® ingenious parts · Clamping depth: 10 mm · Peel-off tray: BO15 · Peel-off tray: E15 · Peel-off tray: L17 · Surface: galvanized (blue) · Area of application: (Dis)assembly tool · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Diameter: 24 mm · Diameter: 40.3 mm · Total length: 120 mm
EUR 53.00
swiing® revival spacer set crankshaft L17 | Puch Z50
Manufacturer: swiing® revival parts · Material: Steel · Surface: blank / oiled · Ø inside: 17.1 mm · Nominal diameter inside: 17 mm · Ø outside: 23.8 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm
EUR 10.70
Serrated lock washer M10 galvanized
Material: Steel · Surface: galvanized (blue) · Ø inside: 4.5 mm · Ø inside: 5.5 mm · Ø inside: 6.35 mm · Ø inside: 7.4 mm · Ø inside: 10.8 mm · Ø inside: 12.8 mm · Thread size: M10 · Thread size: M12 · Thread size: M4 · Thread size: M5 · Thread size: M6 · Thread size: M7 · Thread size: M8
EUR 0.35
Elring Dirko HT sealing compound red (silicone) high temp. 70 ml elastic up to 315°C
Manufacturer: Elring · Area of application: Chemistry · Contents: 70 ml · Color: red · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Gap dimension (max.): 2 mm · Temperature resistance (min.): -60 - 300 °C
EUR 27.60
EUR 394.29/l

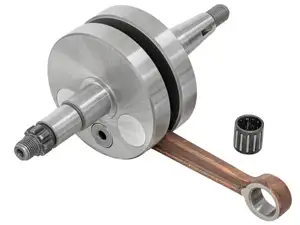

Jasil crankshaft (+2 mm stroke) | Puch X30 NS / NL & Velux (Z50)
Manufacturer: Jasil · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Material: Aluminum · Material: Steel · Cheek type: standard · Crankshaft stroke: 45 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Weight: 915 g · Total length of crankpin on clutch side: 57 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 14 mm · Length 2nd paragraph: 15 mm · Length 3rd paragraph: 10 mm · Alternative version of the Puch OEM number: 350.2.10.115.0 · Alternative version of the Puch OEM number: 350.2.10.215.0
EUR 241.10

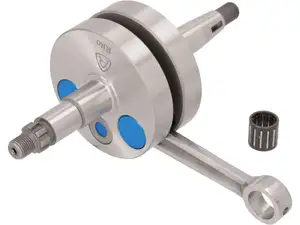

Rito crankshaft Racing (Version 2023) | Puch X30 NS, NL / Velux (Z50)
