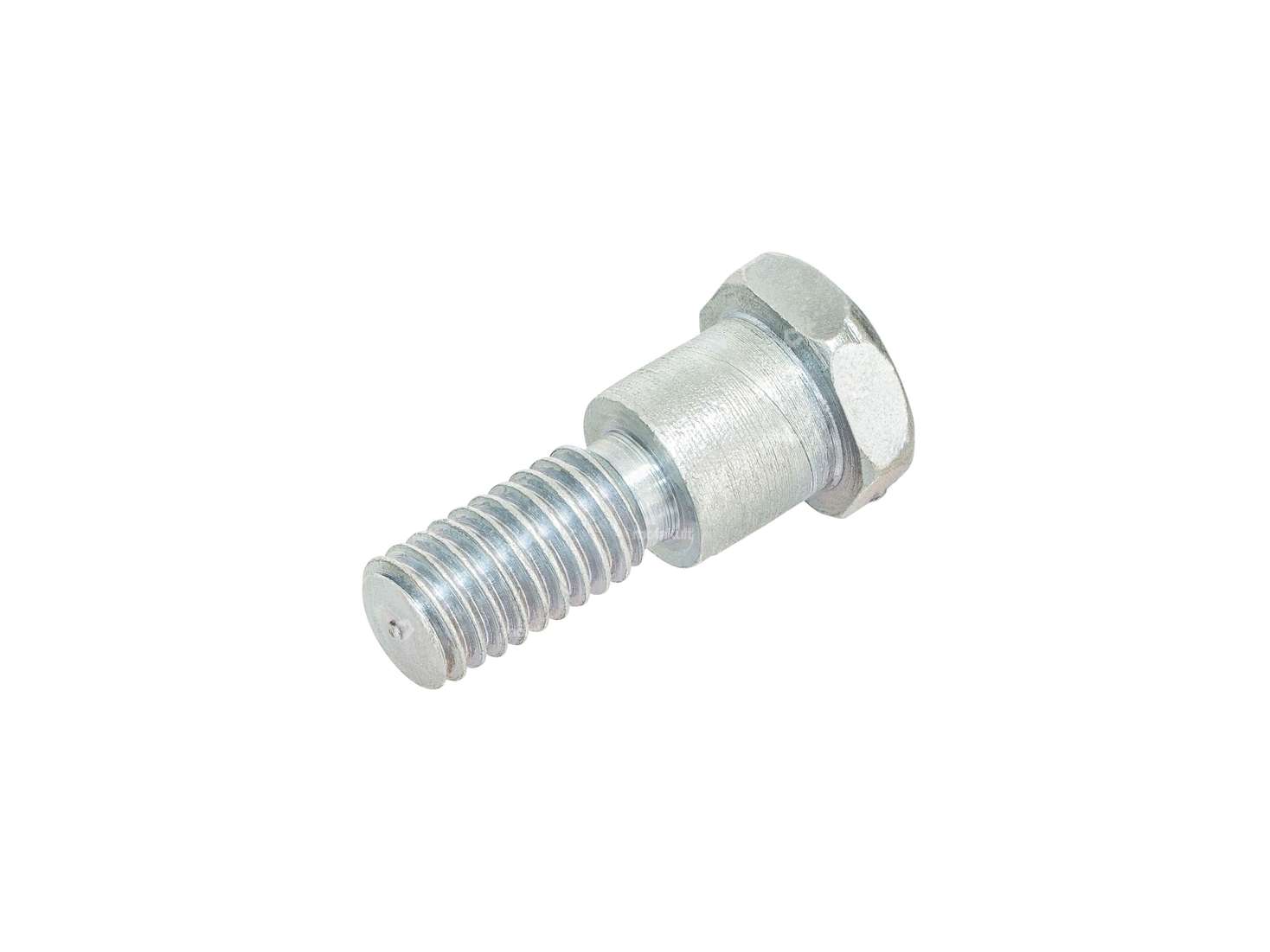

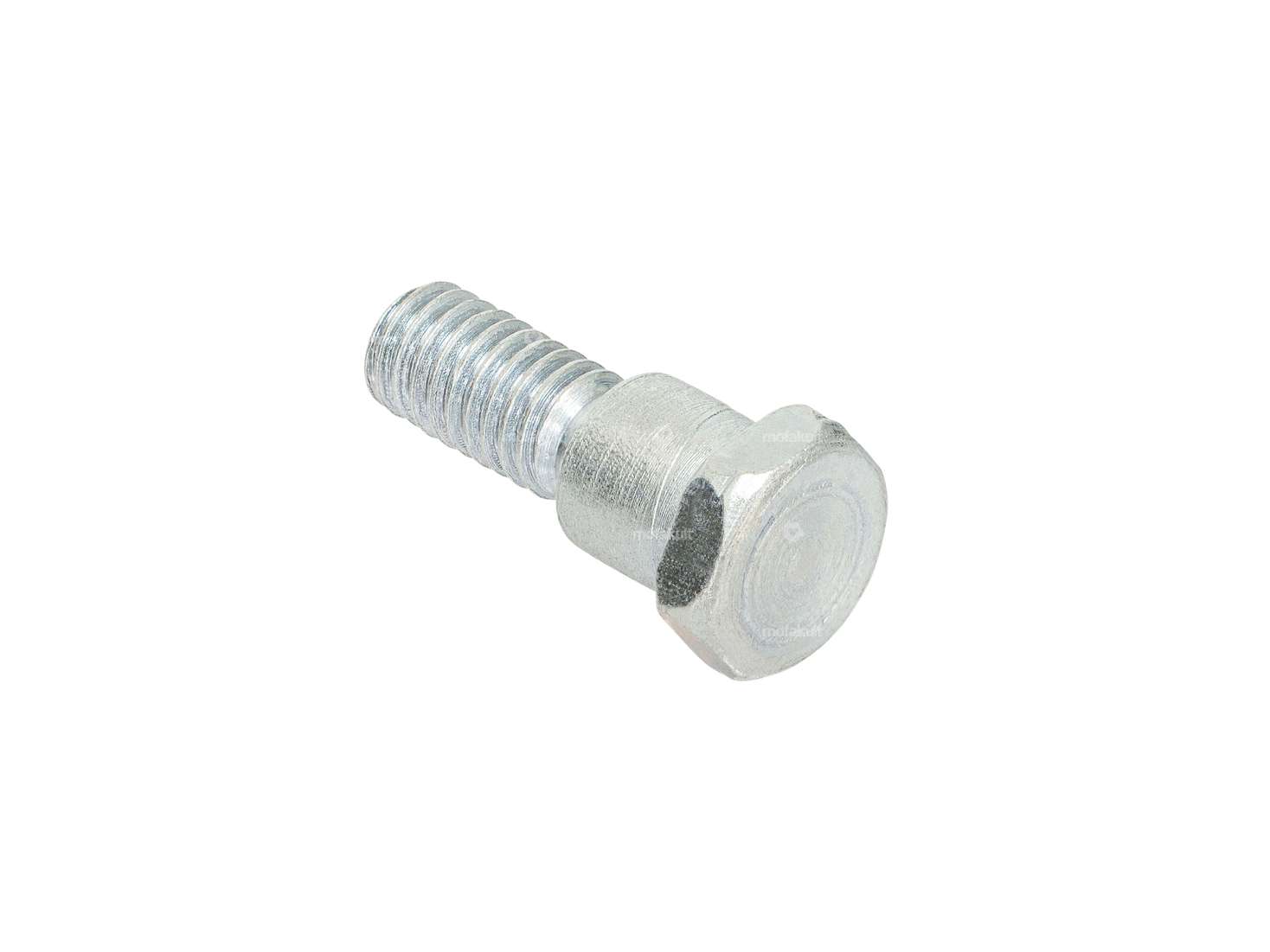

Special screw with shaft for fastening the guide roller and the throttle lever of the carburetor of various Solex moped / moped models.
Total length: 22.3 mm
Thread length: 12 mm
Thread: M 6 x 1 mm
Shaft length: 6.7 mm
Ø shaft: 7.7 mm
Slot width: 10 mm
Material: Steel, galvanized
| Material | Steel |
| Surface | galvanized (blue) |
| Color | silver |
| Ø shaft | 7.7 mm |
| Screw head | Hexagon |
| Thread length | 12 mm |
| Nominal diameter (thread) | 6 mm |
| Thread type | M6x1 (standard thread) |
| Drive | External hexagon |
| Shank | Yes |
| Shank length | 6.7 mm |
| Width across flats | 10 mm |
| Total length | 22.3 mm |
| Area of application | Standard |
| Solex |
