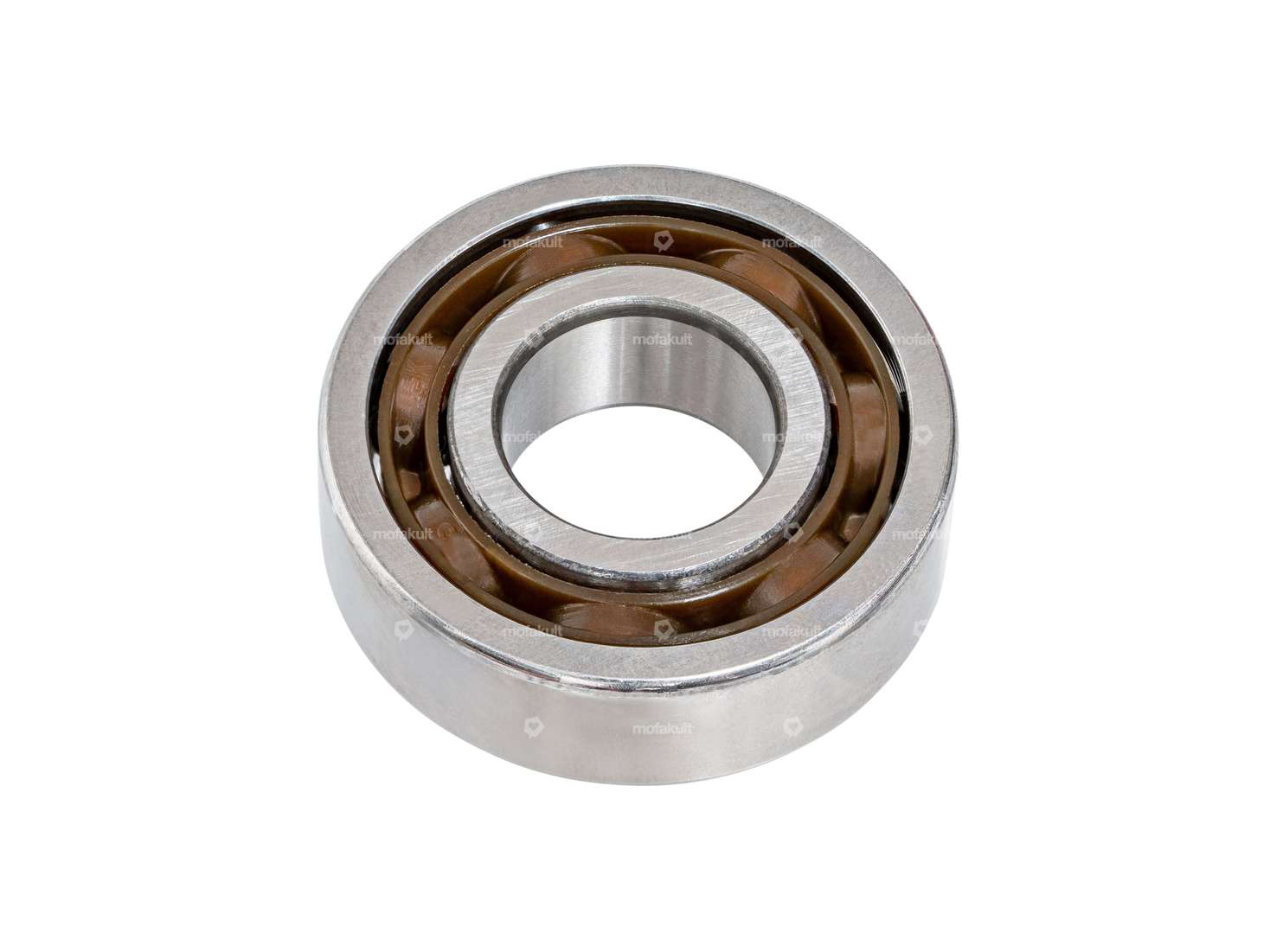

6203 C4 deep groove ball bearing with glass fiber reinforced PA66 polyamide core and increased bearing clearance from the manufacturer SKF for various applications.
The radial bearing with low rolling resistance is designed for motors with increased speed.
Ø outer: 40 mm
Ø inner: 17 mm
Width: 12 mm
Bearing clearance: C4 (larger than standard & C3)
Ball bearings: TN9 glass fiber reinforced polyamide ball bearing, ball bearing "TN9"
Further bearings of various specifications, bearing pullers, grease, etc. can be found in the accessories section. You can find them in the accessories section.
Quality product from the world's leading ball bearing manufacturer SKF.
| Bearing cage | Plastic cage ball-guided |
| Manufacturer | SKF |
| Bearing clearance | C4 |
| Material | Steel |
| Stock number | 6203 |
| Bearing type | Deep groove ball bearing |
| Ø inside | 17 mm |
| Width | 12 mm |
| Ø outside | 40 mm |
| Ball bearing closed | No |
| Area of application | Standard |
| Universal | |
| Puch | |
| Tomos |
