Racing clutch compatible with your Puch Maxi S / N moped equipped with an E50 engine.

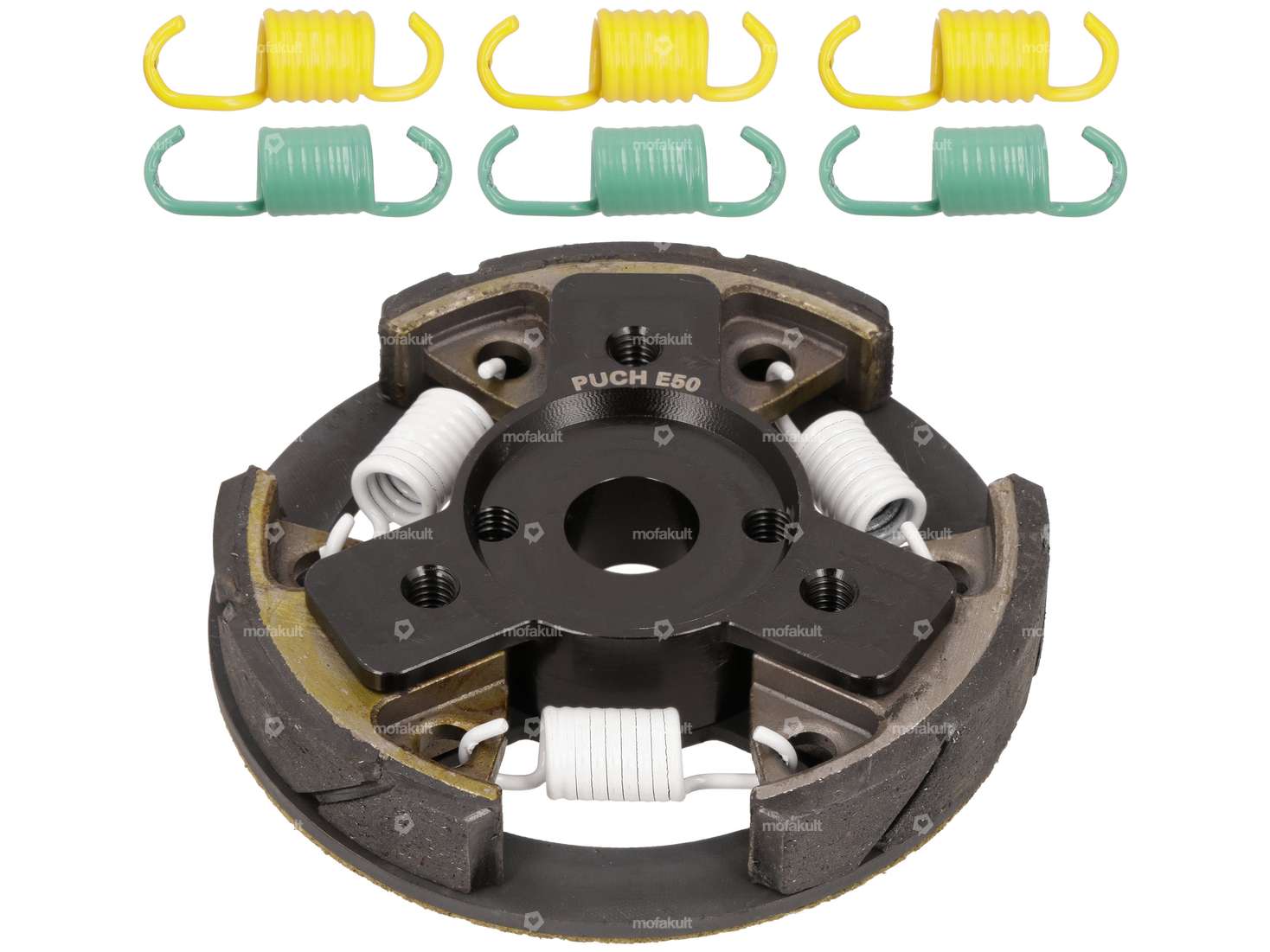

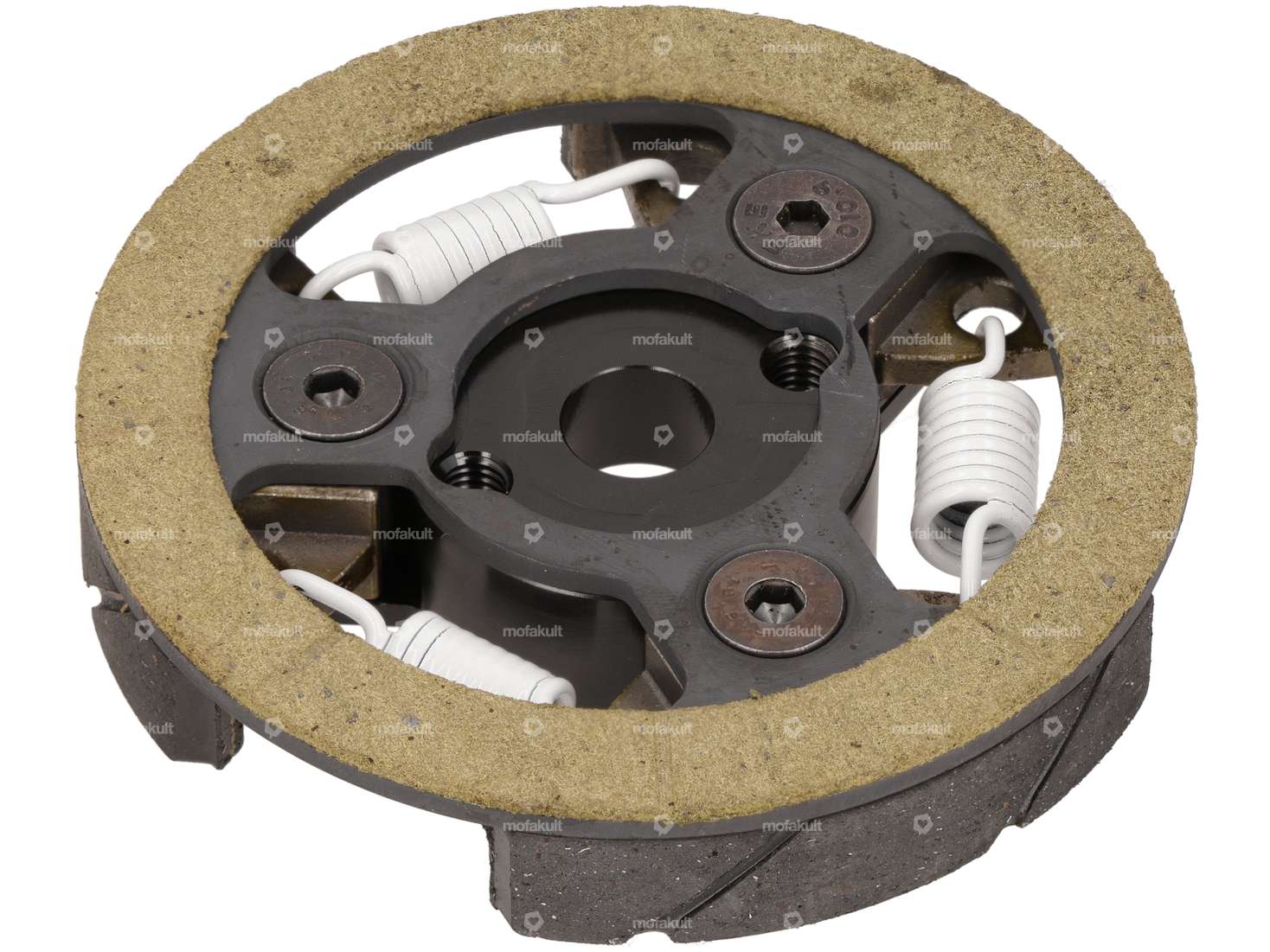

This high-quality centrifugal clutch is suitable for racing and tuning applications. The clutch is constructed with three clutch plates and features a reinforcement plate that significantly increases stability. With the three included spring strengths, the clutch engagement characteristics can be adjusted to suit various engine setups. The weakest springs are already installed.
Package Contents:
• Racing clutch, 409 g•
White clutch spring set with 1.5 mm wire diameter•
Green clutch spring set with 1.6 mm wire diameter•
Yellow clutch spring set with 1.7 mm wire diameter
Notes: The clutch should be soaked in oil for 24 hours before installation so that the friction linings can become saturated with oil. After selecting the appropriate clutch springs for your engine, secure the M6 countersunk screws on the racing clutch with medium-strength threadlocker and tighten them to 6 Nm.
You can find the appropriate oil and threadlocker among the accessories.
A quality product from the American manufacturer Jammer Clutches.
Alternative to the original Puch part number: 349.1.12.504.0
| Ø inside | 12.5 mm, 13.9 mm |
| Thickness | 19.75 mm |
| Manufacturer | Jammer |
| Material | Steel |
| Material addition | Composite materials |
| Recording type | Cone mounting |
| Ø outside | 92 mm |
| Surface | burnished |
| Number of jaws | 3 pcs |
| Number of springs | 3 pcs |
| Area of application | Tuning |
| Alternative version of the Puch OEM number | 349.1.12.504.0 |
| Puch | E50 |
