Spare parts catalog for the Puch Maxi models S and N.

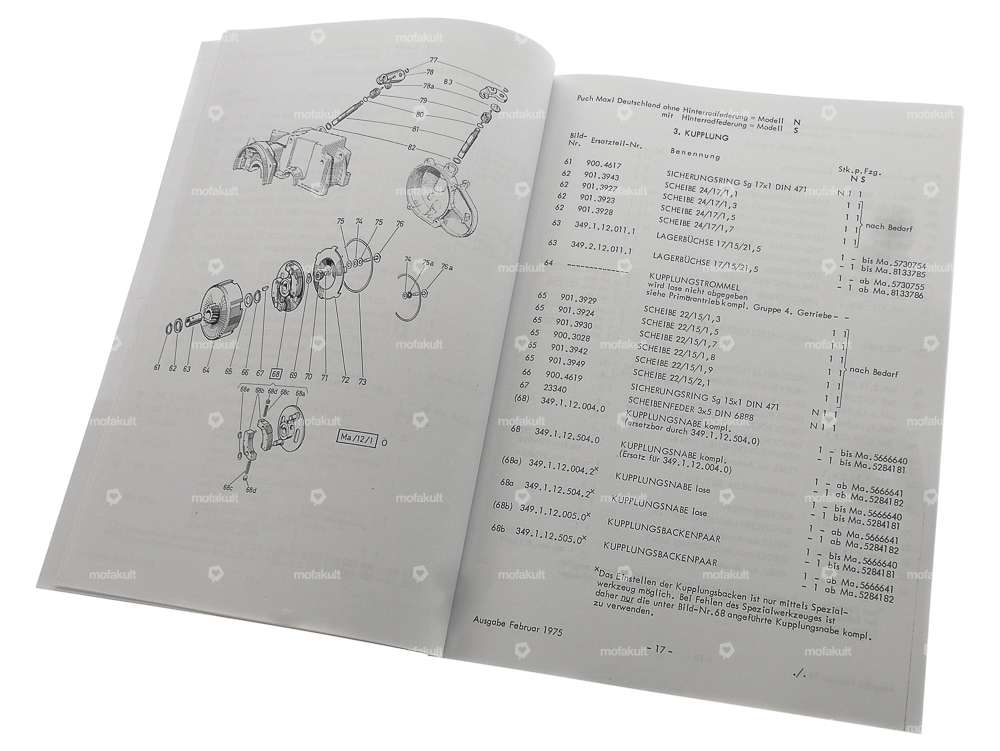

The complete moped was recorded in exploded drawings. Each individual component is provided with part number, spare part number and assembly location.

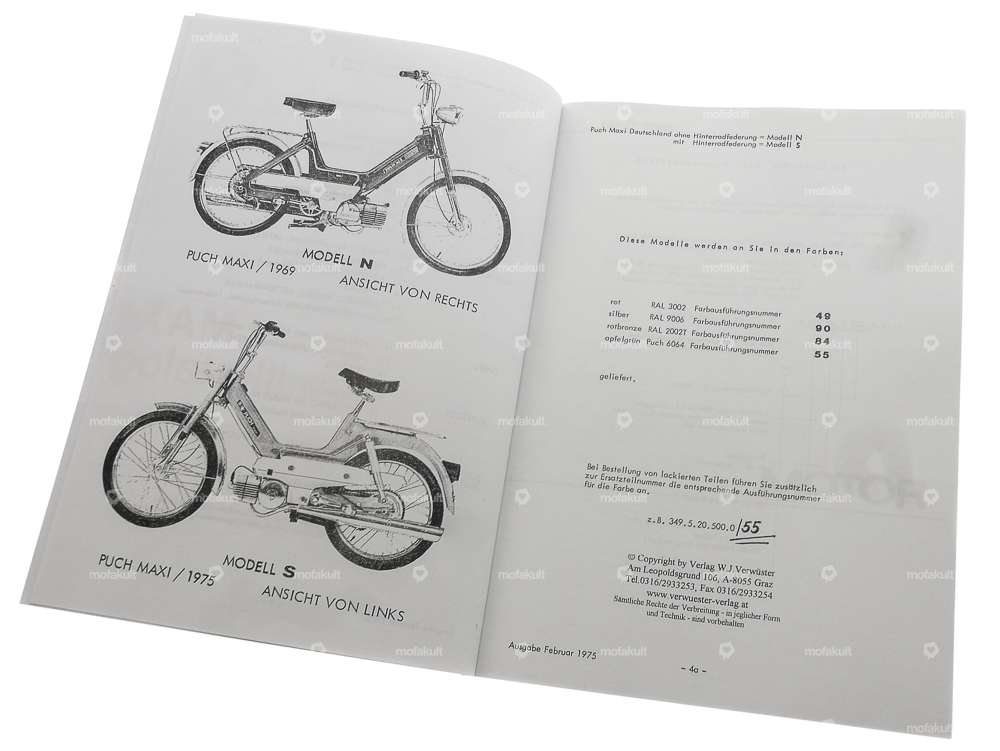

Super German catalog from 1975 with 55 interesting pages. Original Puch book, not a reprint.
| Material | Paper |
| Number of pages | 55 pcs |
| Language | German |
| Puch | E50 |
