Spare parts catalog for the Puch Maxi models N, S and S-2A.

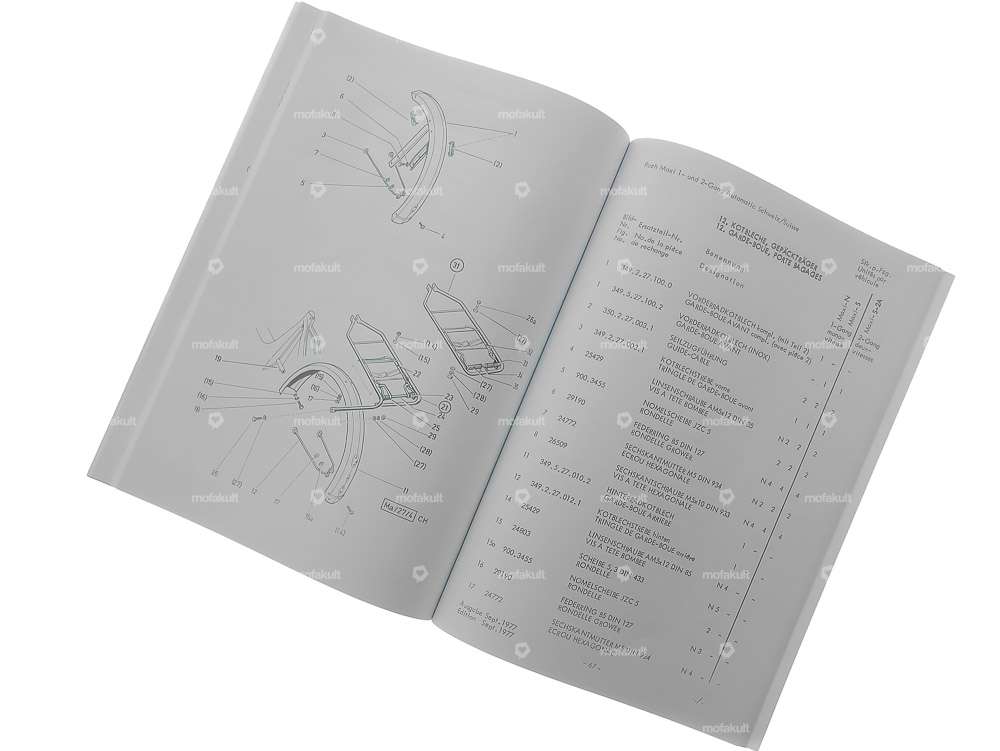

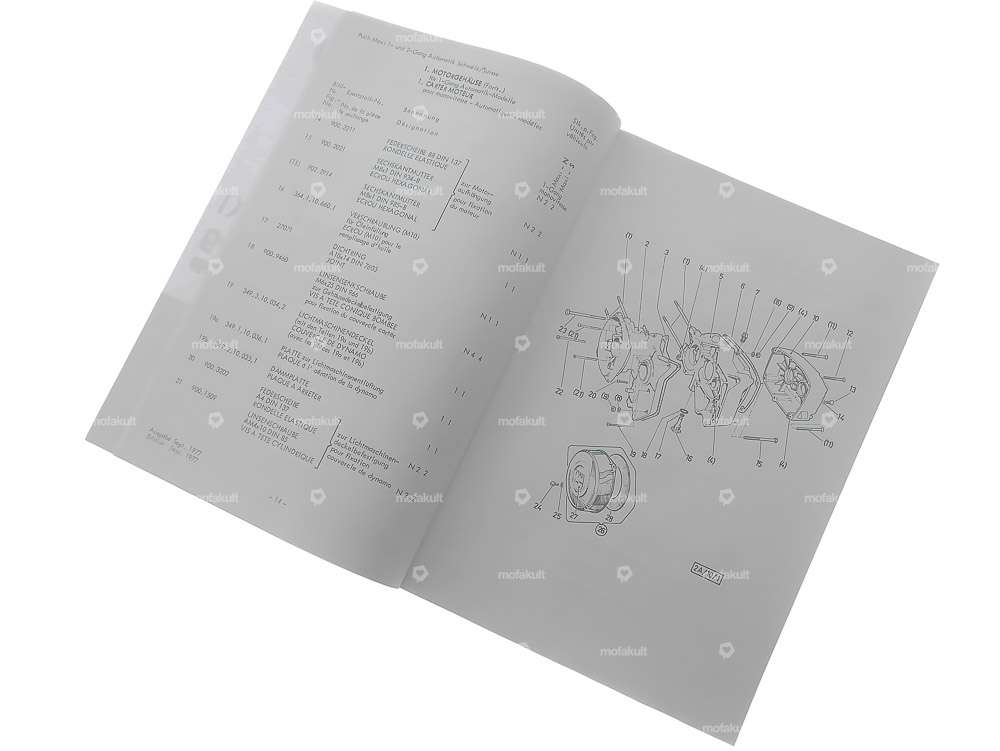

The complete moped was recorded in exploded drawings. Each individual component is provided with the quantity, spare part number and assembly location.
Super Swiss catalog from 1977 with 116 interesting pages.
| Material | Paper |
| DIN format | A4 |
| Number of pages | 116 pcs |
| Language | German, French |
| Puch | E50 ZA50 (air-cooled) |
