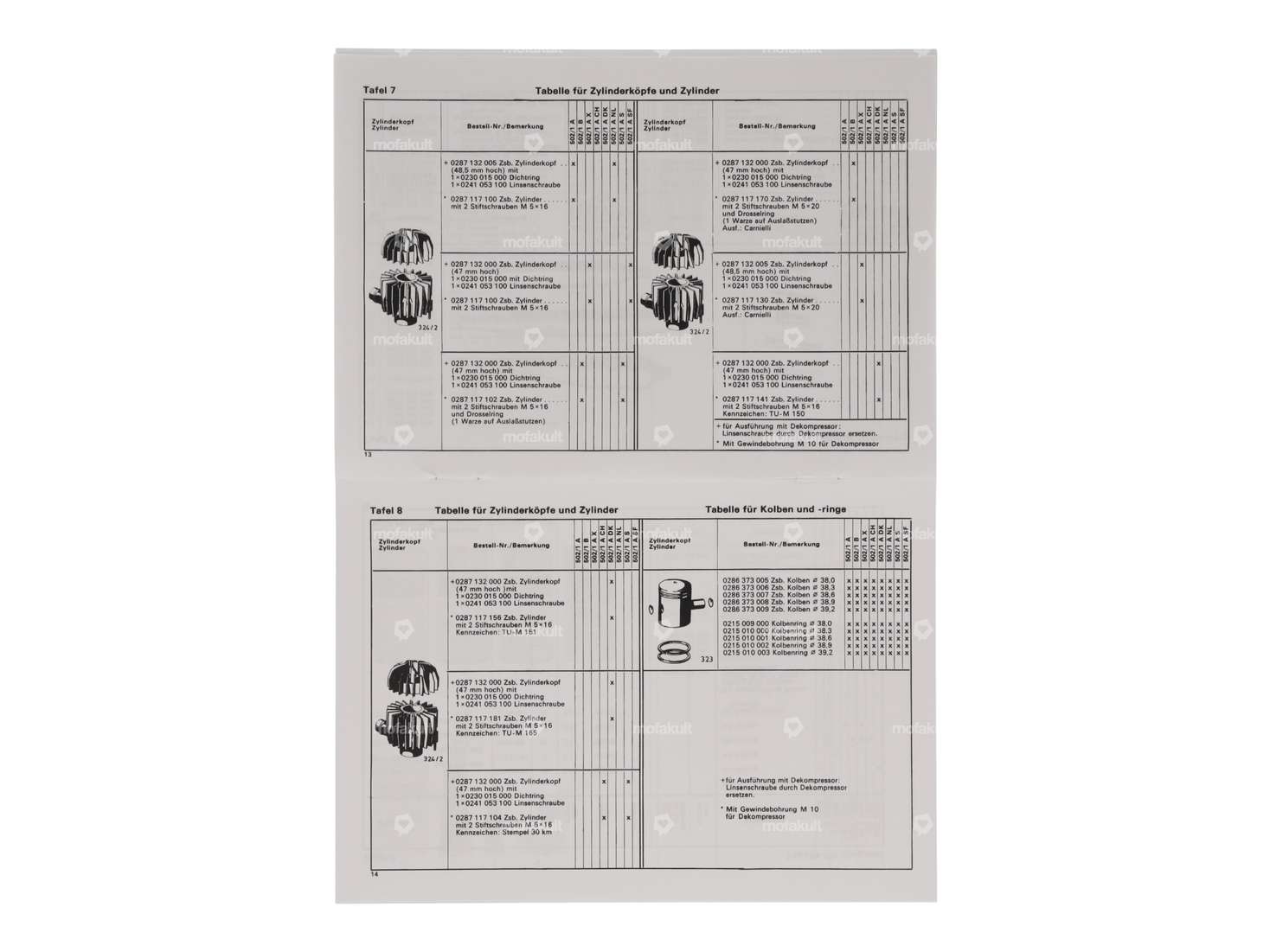

Spare parts list no. 3029.6/3 | Sachs 502/1 A, B

Repair instructions | Sachs 502 (50/2 MLC, 50/AMLC)

Material: Paper · DIN format: A5 · Number of pages: 70 pcs · Language: German

Repair instructions | Sachs 50 three-speed

Material: Paper · DIN format: A5 · Number of pages: 32 pcs · Language: German

Repair instructions | Sachs 50 Zweigang (50/2)

Material: Paper · DIN format: A5 · Number of pages: 32 pcs · Language: German

Repair instructions | Sachs 50/3 LFH, MLFB, 50/4 LKH, LKS, MLFB, MLKAX

Material: Paper · DIN format: A5 · Number of pages: 63 pcs · Language: German

Repair instructions | Sachs 501/4 A KF, 501/3 B KF, 501/4 KF

Material: Paper · DIN format: A5 · Number of pages: 57 pcs · Language: German

Ignition cable Ø 5 x 450 (original)

Material: Copper · Material: Plastic · Color: black · Total length: 450 mm · Suppressed: No · Subcategory: Ignition cable · Ø cable: 5 mm

Motorex engine oil (gear oil) manual 450 ml

Manufacturer: Motorex · Viscosity (SAE): 80W · Oil type: GL4 · Contents: 450 ml · Area of application: Gearbox lubrication with clutch · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C

swiing® ingenious puller L17 / BO15 / E15 shoulder bearing

Width across flats trigger: 8 mm · Width across flats trigger: 19 mm · Span: 24 mm · Manufacturer: swiing® ingenious parts · Clamping depth: 10 mm · Number of components: 1 pcs · Peel-off tray: BO15 · Peel-off tray: E15 · Peel-off tray: L17 · Area of application: (Dis)assembly tool · Diameter: 24 mm · Diameter: 40.3 mm · Total length: 120 mm · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread)

Manual | Sachs 502 Saxonette

Material: Paper · DIN format: A6 · Number of pages: 24 pcs · Language: German

GPO bearing puller set inside

Width across flats Screw: 14 mm · Span: 8 mm · Span: 25 mm · Manufacturer: GPO · Clamping depth: 10 mm · Clamping depth: 20 mm · Number of components: 11 pcs · Material: Steel · Area of application: (Dis)assembly tool · Total length: 140 mm · Surface: burnished

NSK E15 shoulder ball bearing 15/35/8 (A1149)

Stock number: E15 · Inner ring width: 8 mm · Manufacturer: NSK · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Groove ring: No · Material: Brass · Material: Steel · Surface: blank · Bearing type: Shoulder bearing · Ø outside: 35 mm · Width: 8 mm · Ø inside: 15 mm · Area of application: Standard · Ball bearing closed: No · Pony OEM number: A1149 · Sachs OEM no.: 0232 017 006

swiing® revival clutch spring | Sachs 50/2 & 503 (A1325)

Spring design: Pressure spring · Manufacturer: swiing® revival parts · Pony OEM number: A1325 · Sachs OEM no.: 0239 015 000

swiing® revival oil drain plug M10x1 | Sachs 50/2, 503 2AL/2BL, 504/2 (A1470)

Width across flats Screw: 14 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: burnished · Drive: External hexagon · Screw head: Hexagon · Thread type: MF10x1 (fine pitch thread) · Pony OEM number: A1470 · Sachs OEM no.: 0241 029 000

Outer ring 23.5/31.5/6 Main shaft left | Sachs 502, 50/2, 50/3, 50/4, 503 (A1157)

Ø inside: 23.5 mm · Ø outside: 31.5 mm · Material: Steel · Width: 6 mm · Surface: hardened & ground · Pony OEM number: A1157 · Sachs OEM no.: 0232 049 000

GPO inlet gasket nozzle | Sachs 502, 50/2

Manufacturer: GPO · Place of use: Admission · Material: Polyamide (PA) · Material: Sealing paper · Ø inside: 11.8 mm · Hole spacing inlet: 31 mm · Thickness: 5 mm · Pony OEM number: A1823 · Sachs OEM no.: 0250 085 000
