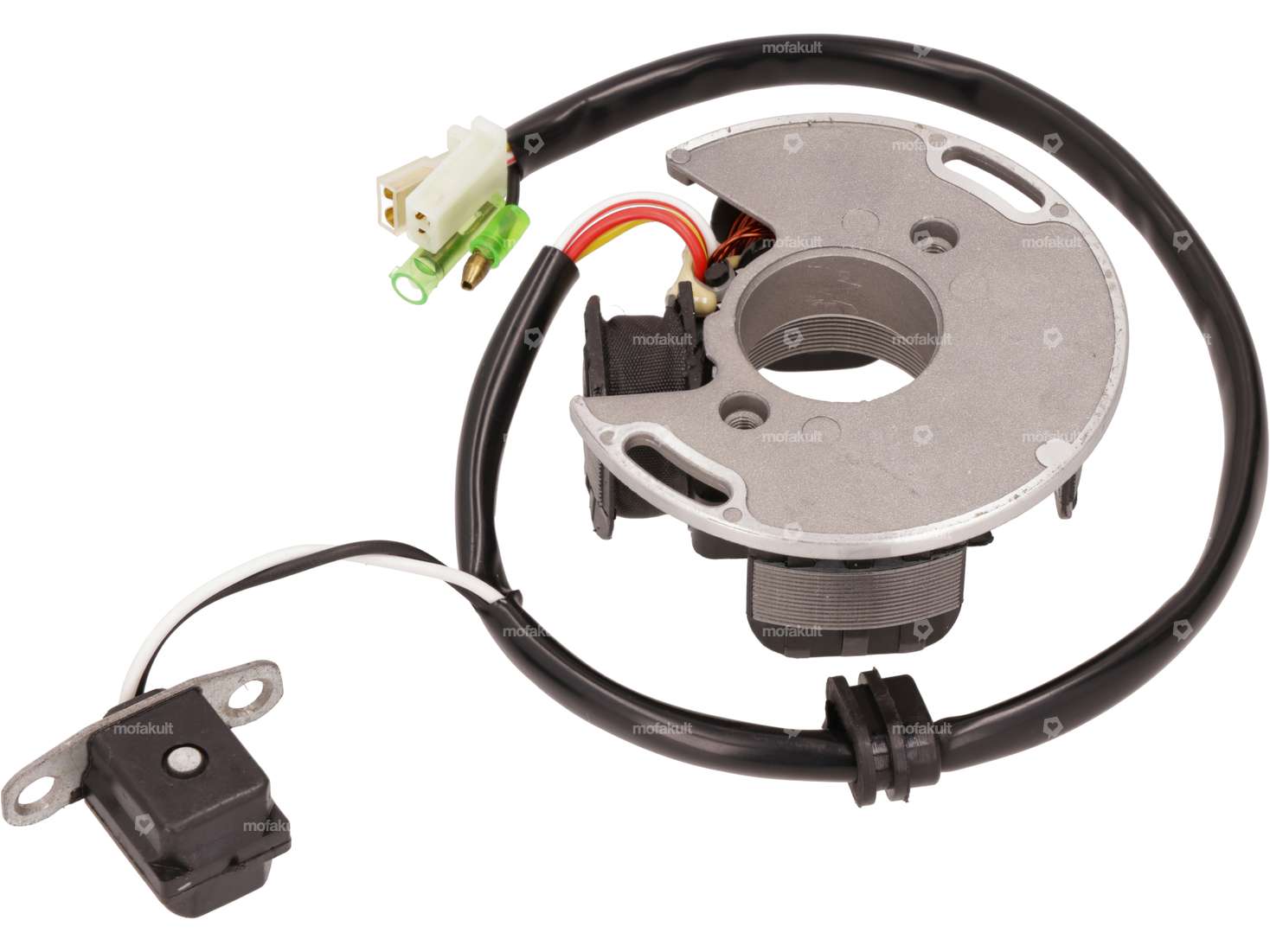

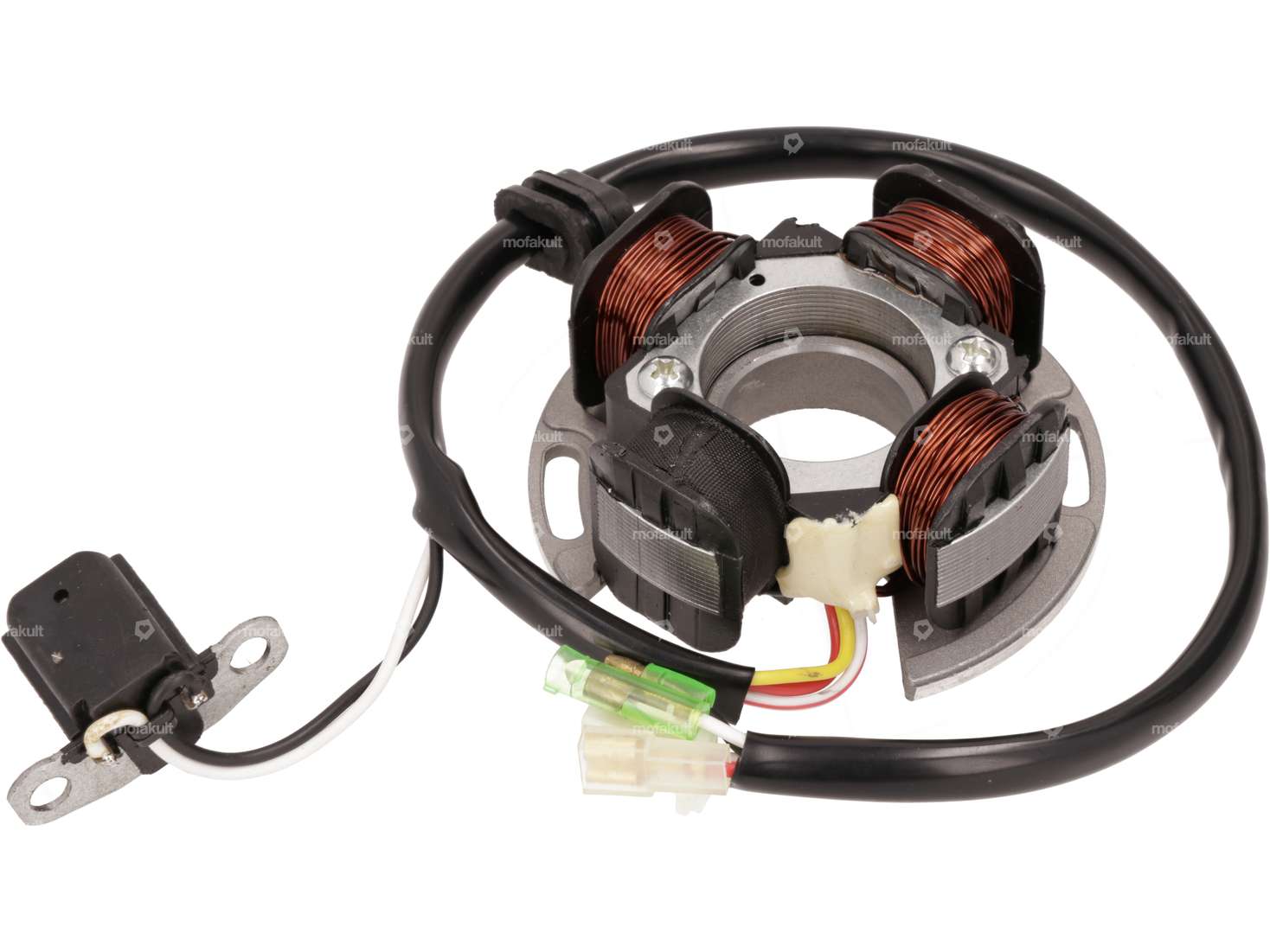

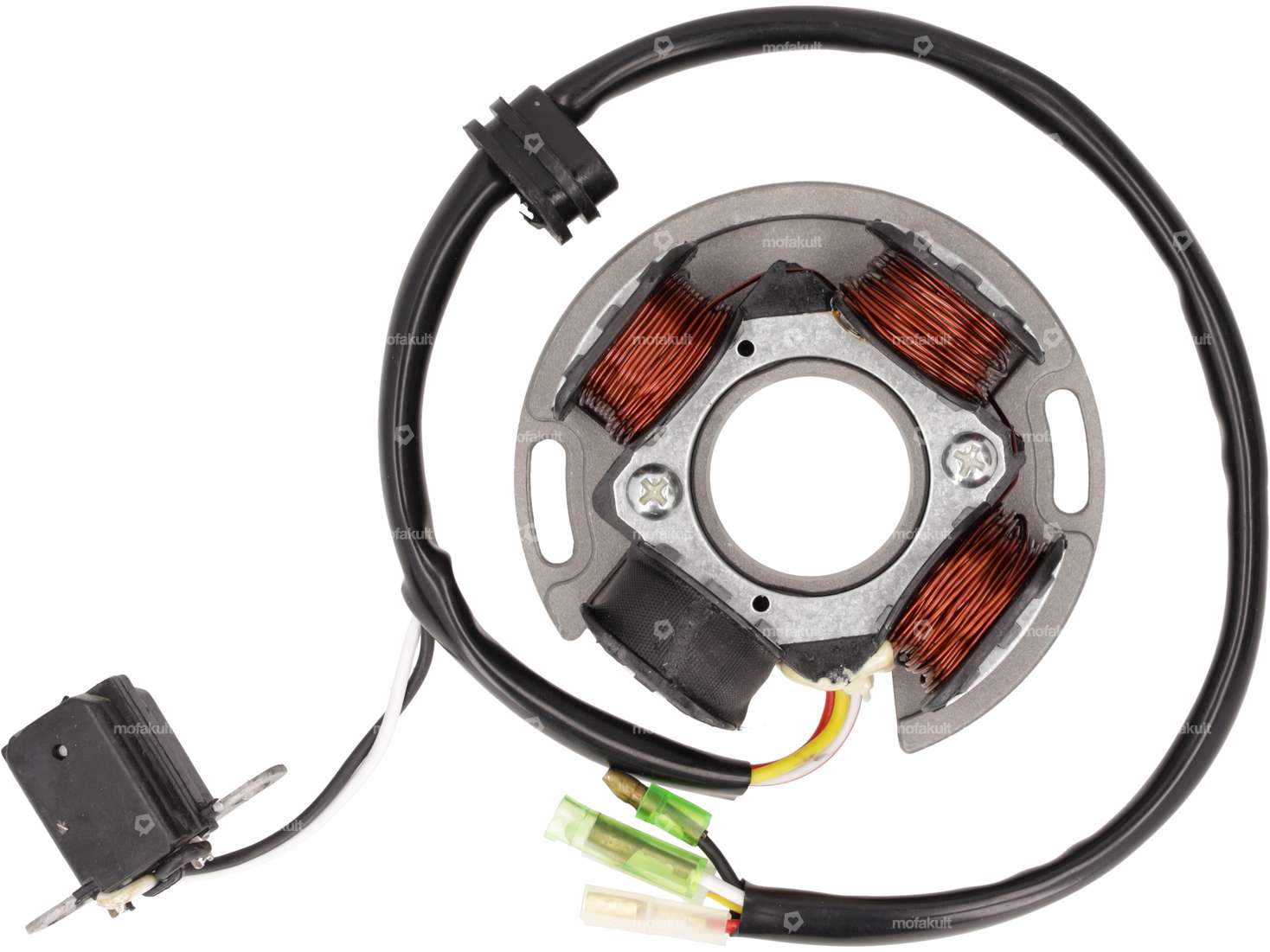

Complete ignition plate (armature plate) consisting of an ignition switch, ignition coil, and pickup.
The stator is compatible with Tomos Quadro, Sprint, Classic, and FunSport mopeds with electric or kick starters manufactured in 2008 or later.
Base plate Ø: 90
mm; Coil Ø: 79 mm
The stator is delivered ready for installation, including the pickup (screws not included).
Original Tomos part number: 243100
| Ø inside | 30.4 mm |
| Cable length | 400 mm |
| Ø Internal flywheel | 80 mm |
| Ø bolt circle | 80 mm |
| Tension | 12 V |
| Ø outside | 90 mm |
| Performance | 80 W |
| Number of fixing points | 2 pcs |
| Number of cables | 5 pcs |
| Tomos OEM number | 243100 |
| Tomos |
Accessories & related products
Ignition box CDI / E-Start (4 connections) | Tomos Classic, Sprint, Fun Sport'R
Width: 40 mm · Height: 54 mm · Ø cable holder: 7 mm · Hole spacing: 33.5 mm · Hole spacing: 40 mm · Material: Plastic · Color: black · Surface: raw · Number of fixing points: 2 pcs · Ø mounting hole: 5 mm · Area of application: Original · Total length: 71.5 mm · Tomos OEM number: 233729
EUR 95.20
Not in stock

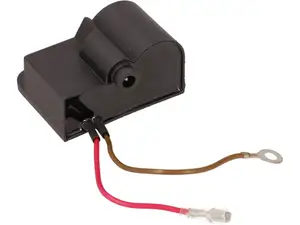

Ignition box CDI with 2 connections | Tomos
