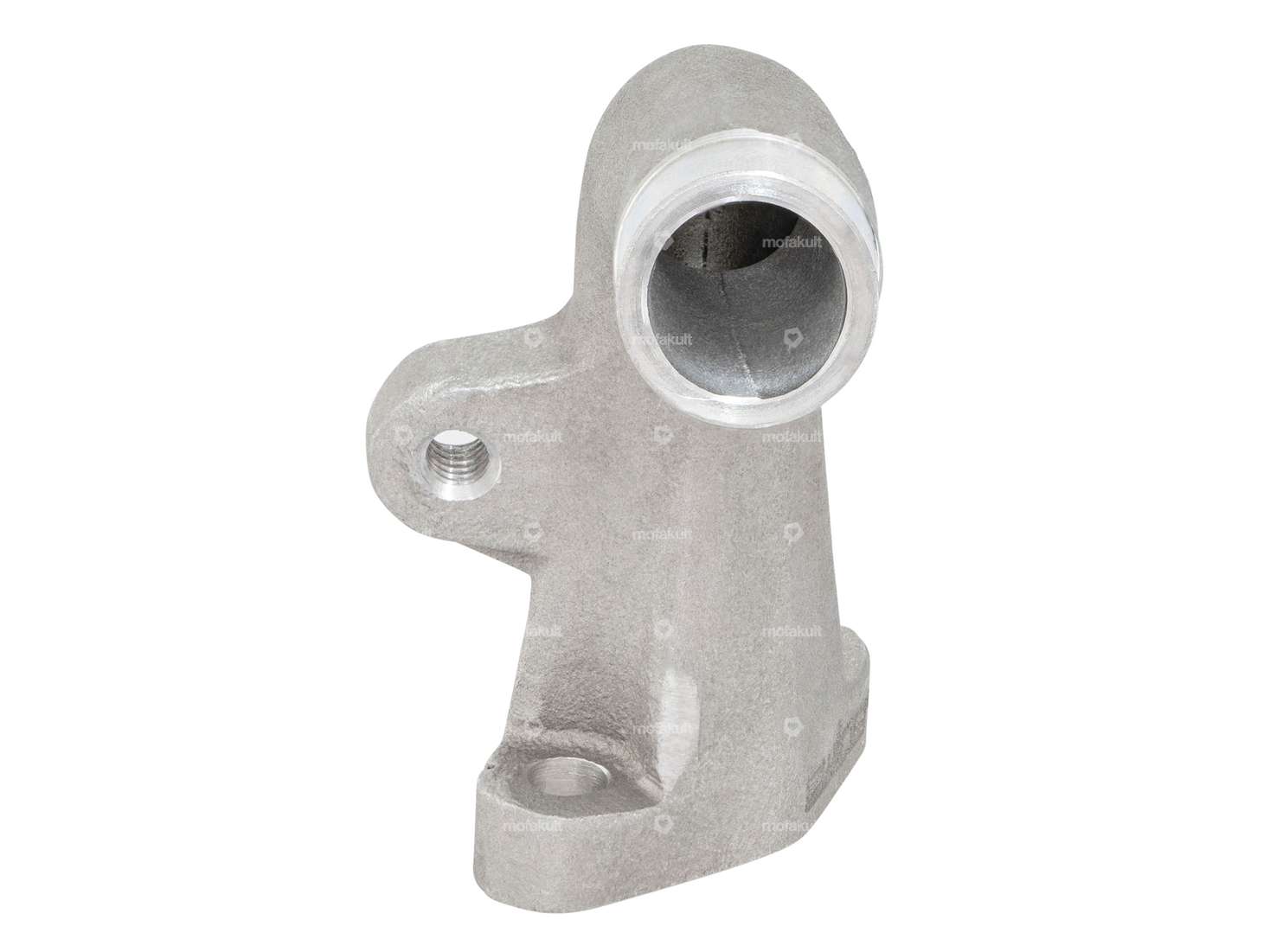

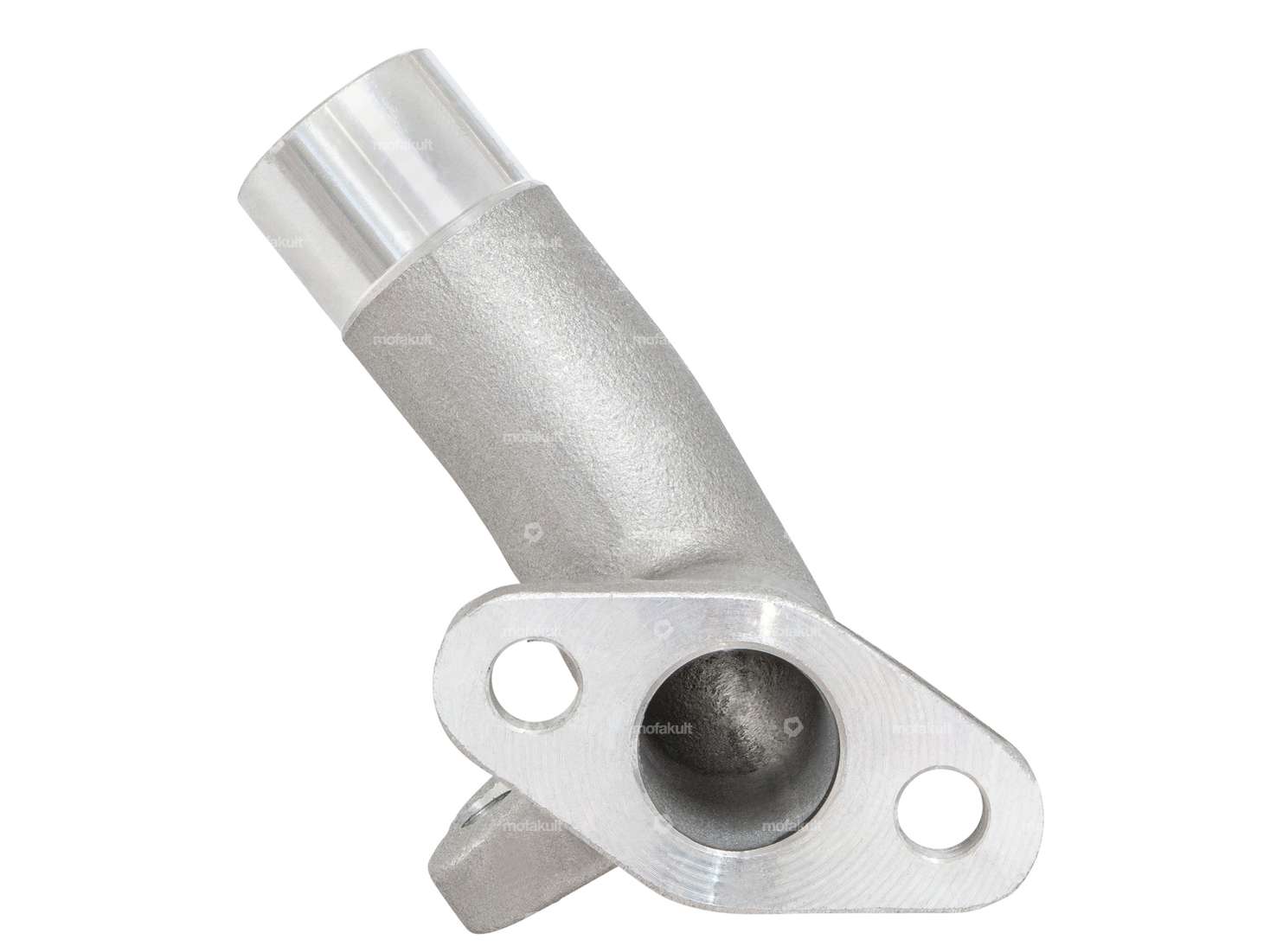

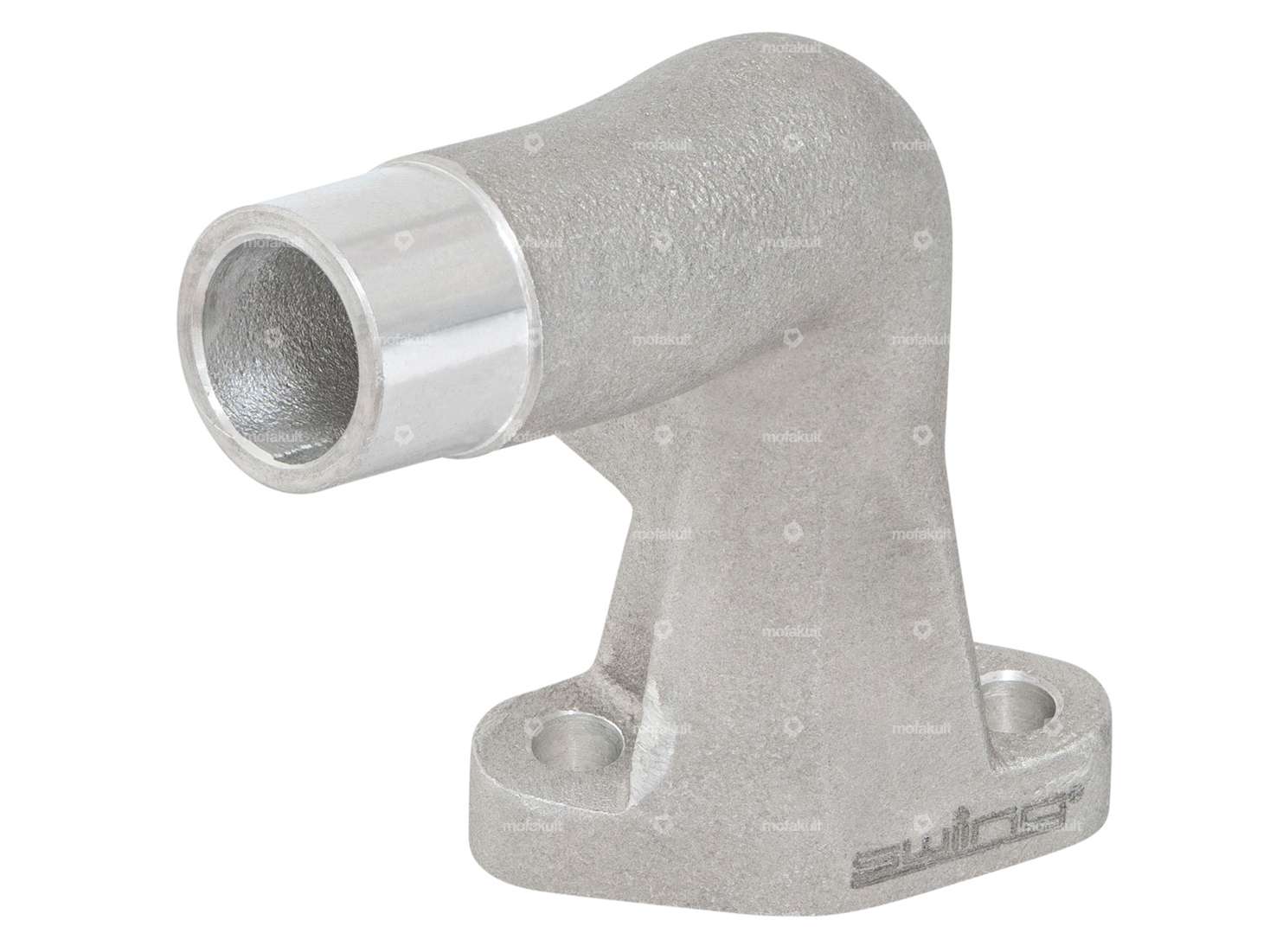

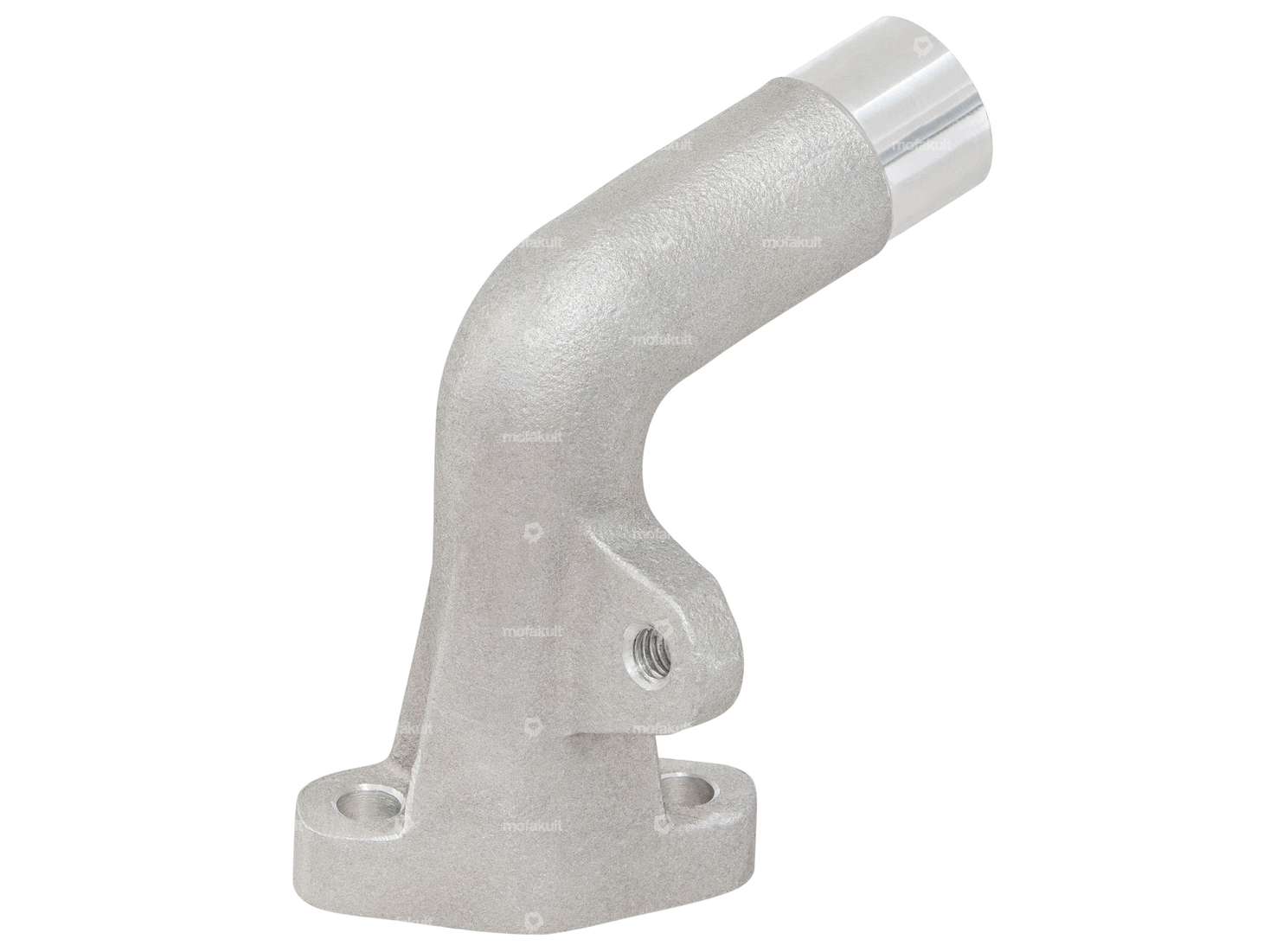

swiing® ingenious 15 mm intake manifold long version | Sachs 503 2AL, 2BL

Magura Adjustment Screw M6x34 Locknut SW8

Total length: 34 mm · Slotted: No · Ø Receptacle: 7.05 mm · Manufacturer: Magura · Ø cable holder: 3.05 mm · Width across flats nut: 8 mm · Width across flats Screw: 8 mm · Material: Brass · Material: Steel · Surface: galvanized (blue) · Surface: nickel-plated · Thread type: M6x1 (standard thread) · Thread length: 24 mm

swiing® revival special nut M6 SW8 (sprocket ref. back pedal / intake manifold)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Thread type: M6x1 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 6 mm · Height: 6 mm · Width across flats: 8 mm

swiing® ingenious 15 mm carburetor camouflaged | Sachs 503

Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Nozzle block: 2.17 · Total length: 66 mm · Width: 50 mm · Nozzle size: 62 · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Area of application: Tuning · Ø Output inside: 15 mm · Height: 95 mm · Nozzle thread: M3.5x0.6 (standard thread) · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Mounting type: Plug connection clamped · Camouflaged: Yes · Clamping screw torque (max.): 4 N/m

NGK B8HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No

swiing® Revival Exhaust Clamp 26–28 mm Solid (Grade 12.9)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø inside: 26 - 28 mm · Ø outside: 39 mm · Mounting type: Nuts & bolts · Width: 42 mm · Material thickness: 1.5 mm

Exhaust clamp 70 mm chrome wide version.

Surface: chrome-plated · Nominal diameter: 70 mm · Manufacturer: Made in Portugal · Material: Steel · Color: Chrome · Thickness: 2 mm · Ø mounting hole: 8.2 mm · Number of fixing points: 1 pcs · Width: 28 mm · Clamping diameter: 67 - 71 mm

swiing® ingenious 15 mm carburetor camouflaged | Sachs 503

Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Nozzle block: 2.17 · Total length: 66 mm · Width: 50 mm · Nozzle size: 62 · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Area of application: Tuning · Ø Output inside: 15 mm · Height: 95 mm · Nozzle thread: M3.5x0.6 (standard thread) · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Mounting type: Plug connection clamped · Camouflaged: Yes · Clamping screw torque (max.): 4 N/m

swiing® revival air filter Racing | Sachs 503

Manufacturer: swiing® revival parts · Width: 68 mm · Camouflaged: No · Material: Plastic · Color: black · Filter type: Racing screen · Total length: 165 mm · Area of application: Tuning · Ø Internal connection: 20 mm · Height: 52 mm · Mounting type: Plug connection clamped

swiing® ingenious exhaust manifold 28 mm chrome | Sachs 503

Total length: 410 mm · Manufacturer: swiing® ingenious parts · Ø inside: 26 mm · Material: Steel · Color: Chrome · Surface: chrome-plated · Ø outside: 28 mm · Mounting type: Bride · Flame tube attachment: inserted

swiing® ingenious 15mm carburetor set HG long | Sachs 503

Manufacturer: swiing® ingenious parts · Camouflaged: No · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Nozzle size: 62 · Mounting type: Flange · Mounting type: Plug connection clamped · Hole spacing inlet: 32 mm · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Total length: 165 mm · Width: 50 mm · Width: 68 mm · Height: 52 mm · Height: 95 mm · Area of application: Tuning

GPO 43 mm "Pomodoro" Cylinder | Sachs 503 2AL, AAL, 2BL, ABL

Manufacturer: GPO · Material: Gray cast iron · Area of application: Racing · Area of application: Tuning · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45 mm · Ø Outlet outside: 26 mm · Hole spacing inlet: 32 mm · Hole spacing for cylinder mounting: 44 mm · Outlet type: clamped · Camouflaged: No · Number of fixing points: 4 pcs

GPO piston 43 mm | Sachs 50/2, 50/3, 50/4

Manufacturer: GPO · Nominal diameter: 43 mm · Ø outside piston (A): 42.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 27.7 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.2 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm

AKOA 41 mm cylinder head | Sachs 503 2AL, AAL, 2BL, ABL

Manufacturer: AKOA · Material: Aluminum · Ø cylinder: 41 mm · Number of fixing points: 4 pcs · Hole pattern [mm]: 37 x 37 · Candle thread: short · Decompressor: No · Height: 30 mm · Area of application: Tuning

GPO gasket set 43 mm "Pomodoro" | Sachs 503

Manufacturer: GPO · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Number of components: 3 pcs · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 1 mm · Ø cylinder: 43 mm · Hole spacing inlet: 0 - 32 mm
