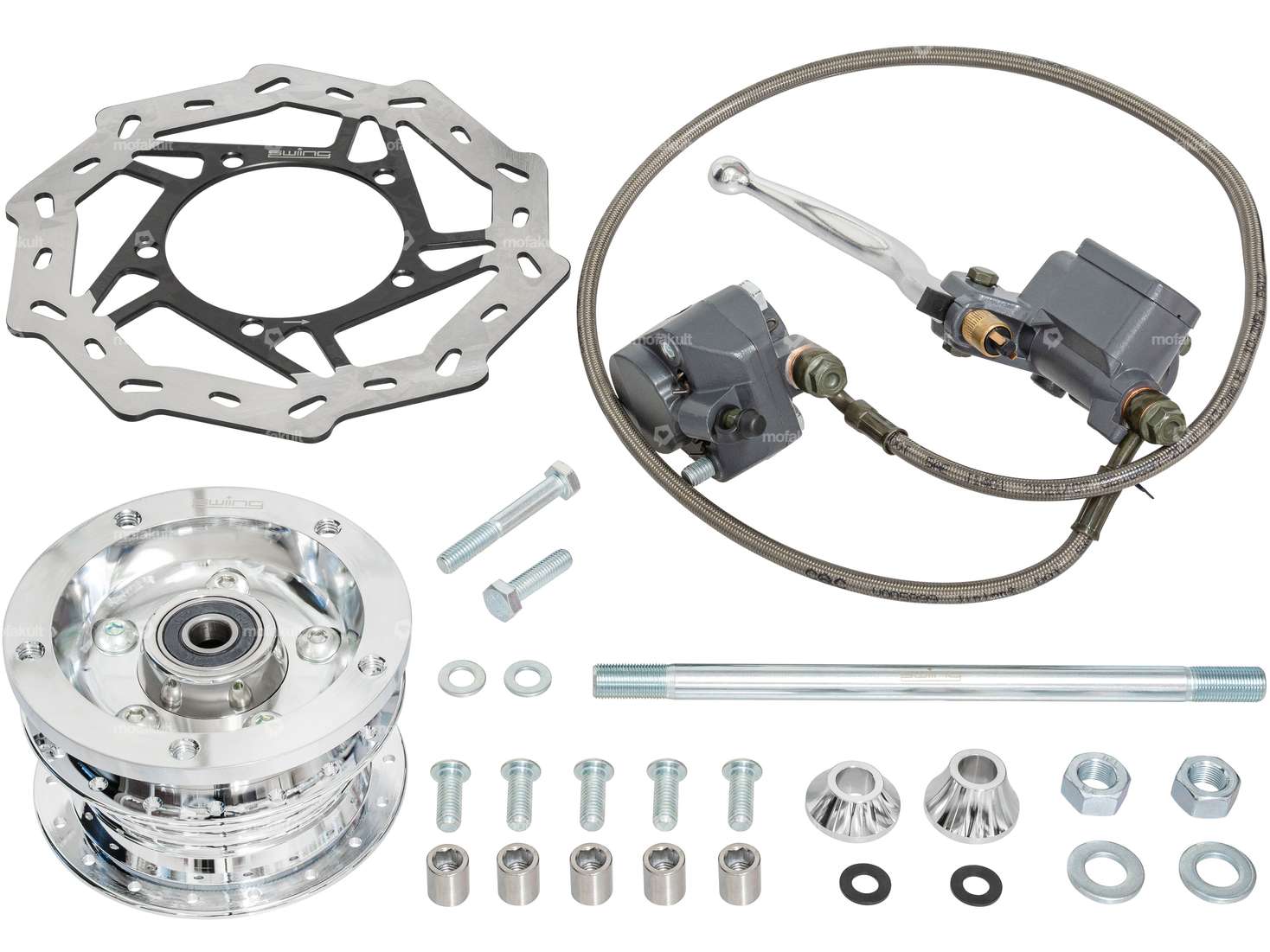

swiing® ingenious disc brake set spoked rim EBR Harry chrome

EBR telescopic fork aluminum (Harry) silver | Puch

Manufacturer: EWC · Material: Aluminum · Material: Steel · Color: Chrome · Surface: chrome-plated · Color: silver · Surface: varnished · Thread type: MF26x1 (fine pitch thread) · Ø spars: 30 mm · Adjustable: Yes · Spar end distance (center-center): 150 mm · Ø head tube inside: 22 mm · Thread length: 57 mm · Ø outer head tube: 26 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 458 mm · Total length: 705 mm

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Contents: 10 ml · Color: blue · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Area of application: Chemistry · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

Racing handlebar fork plate 8 cm / wide aluminum silver

Material: Aluminum · Surface: anodized · Color: silver · Ø outside: 22 mm · Width: 810 mm · Height: 80 mm · Fork plate holder length: 150 mm · Clamping diameter: 22 mm · Mounting type: Fork plate · Length handlebar ends: 215 mm · Crossbar: Yes · Ø Strut: 12 mm · Strut length: 260 mm

GPO handlebar fork plate 13 cm cross black

Manufacturer: GPO · Material: Steel · Color: black · Surface: varnished · Ø outside: 22 mm · Width: 665 mm · Fork plate holder length: 100 mm · Height: 130 mm · Clamping diameter: 22 mm · Mounting type: Fork plate · Length handlebar ends: 180 mm · Crossbar: Yes · Ø Strut: 12.5 mm · Strut length: 230 mm

EBR telescopic fork aluminum (Harry) black | Puch

Manufacturer: EWC · Material: Aluminum · Material: Steel · Color: Chrome · Color: black · Surface: chrome-plated · Surface: varnished · Thread type: MF26x1 (fine pitch thread) · Ø spars: 30 mm · Adjustable: Yes · Spar end distance (center-center): 150 mm · Ø head tube inside: 22.3 mm · Thread length: 58 mm · Ø outer head tube: 26 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 450 mm · Total length: 680 mm

EBR telescopic fork Harry aluminum black | Sachs

Manufacturer: EWC · Material: Aluminum · Material: Steel · Color: Chrome · Color: black · Surface: chrome-plated · Surface: varnished · Thread type: MF26x1 (fine pitch thread) · Ø spars: 30 mm · Adjustable: Yes · Spar end distance (center-center): 150 mm · Ø head tube inside: 22.1 mm · Thread length: 58 mm · Ø outer head tube: 26.1 mm · Head tube length: 220 mm · Fork bridge - center wheel axle: 435 mm · Total length: 705 mm

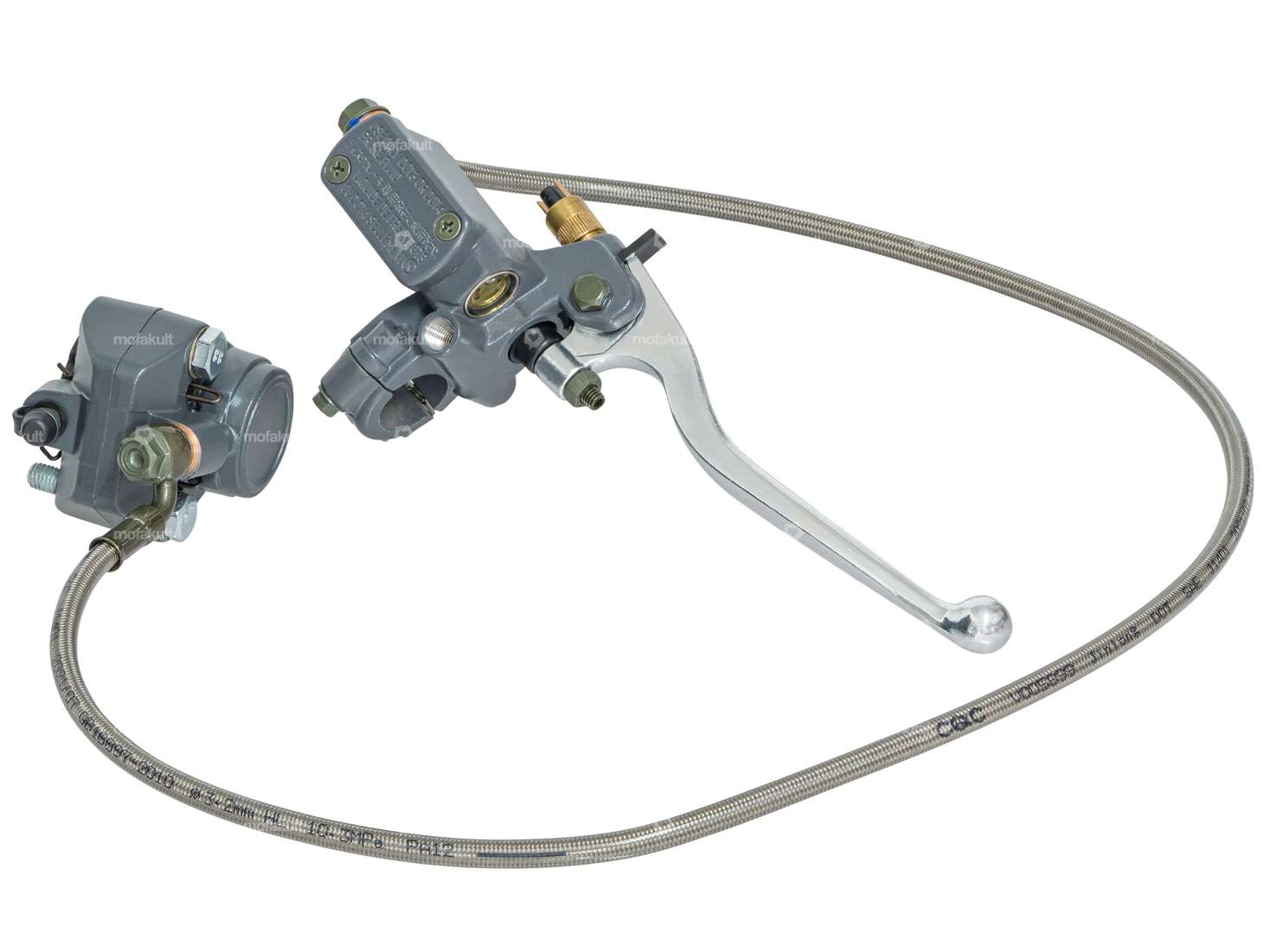

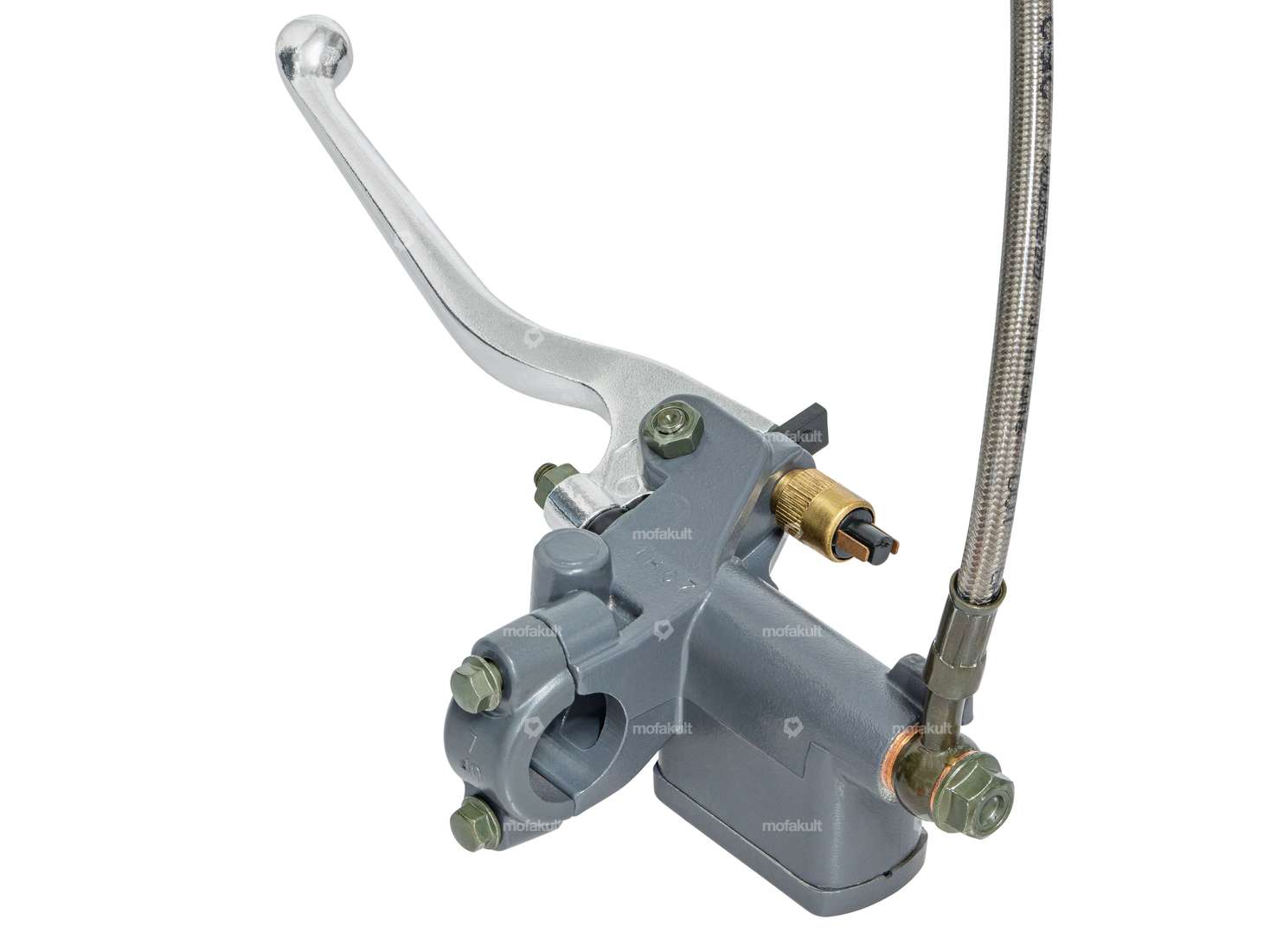

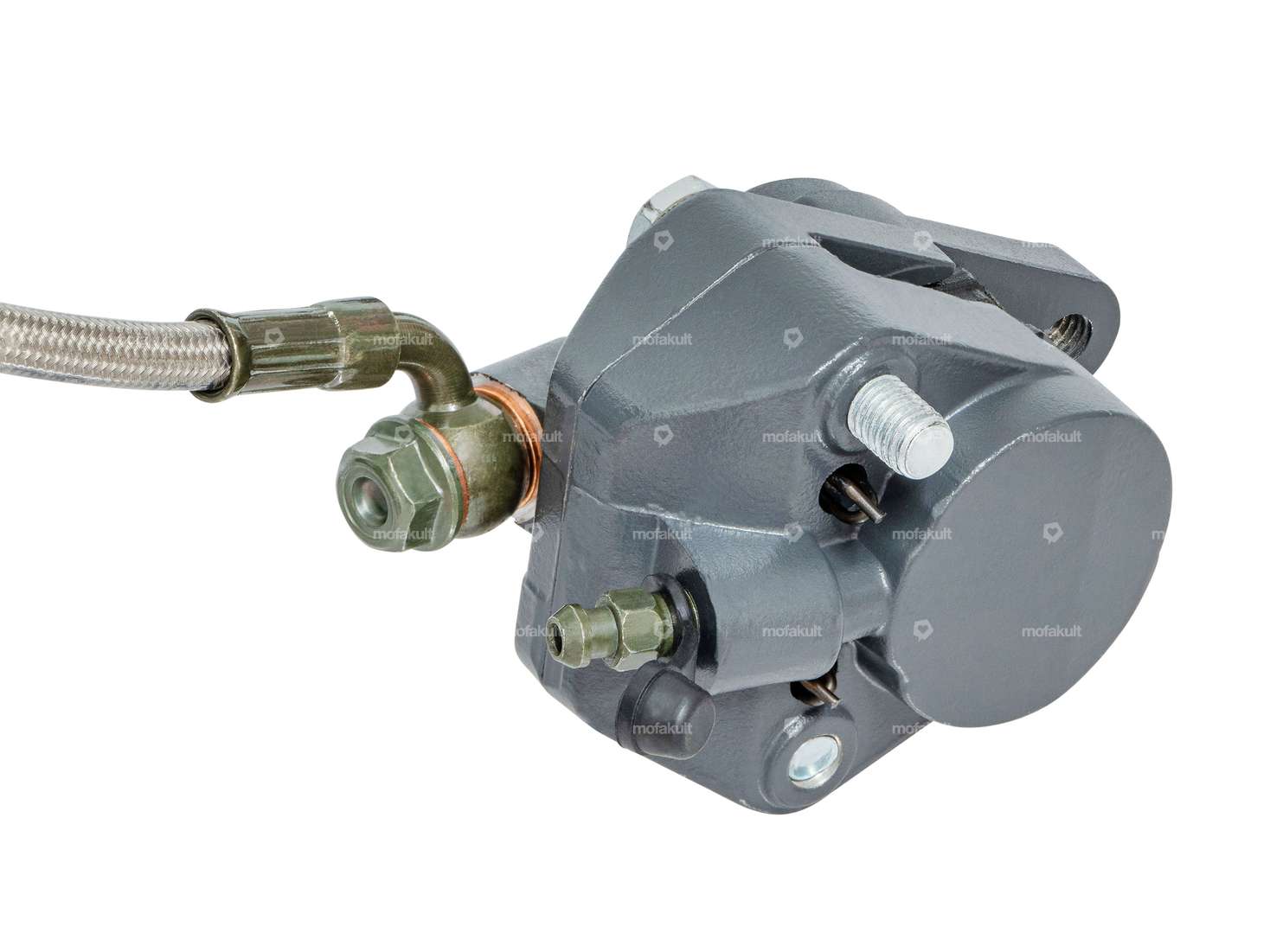

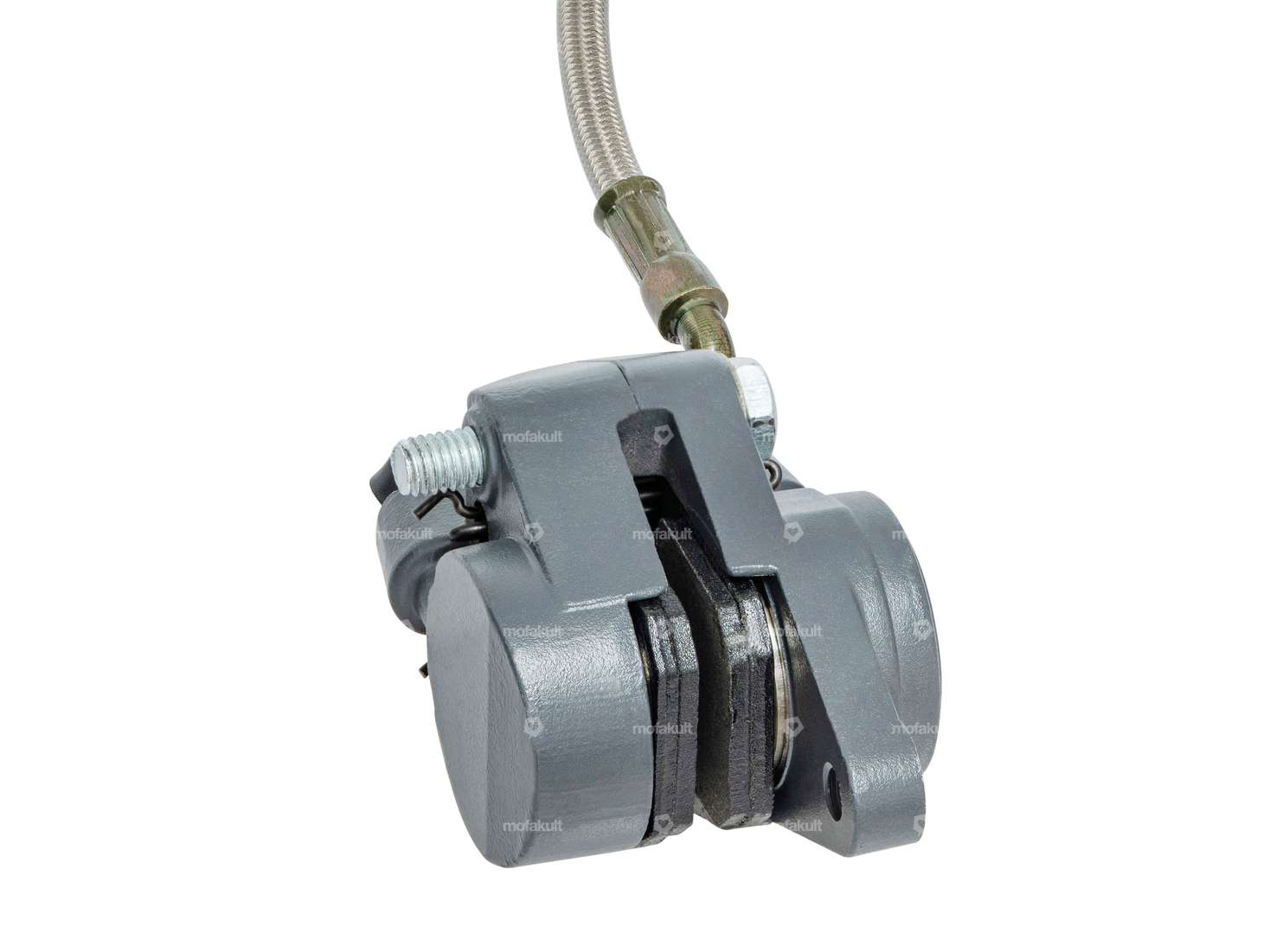

Brake caliper, brake line, and brake lever for EBR forks

Material: Cast aluminum · Surface: varnished · Number of fixing points: 4 pcs · Hole spacing: 32 mm · Hole spacing: 60 mm · Color: gray · Mounting type: Nuts & bolts · Cable length: 900 mm · Brake lever length (lever length): 162 mm · Thread type: M8x1.25 (standard thread) · Ø Handlebars: 22 mm

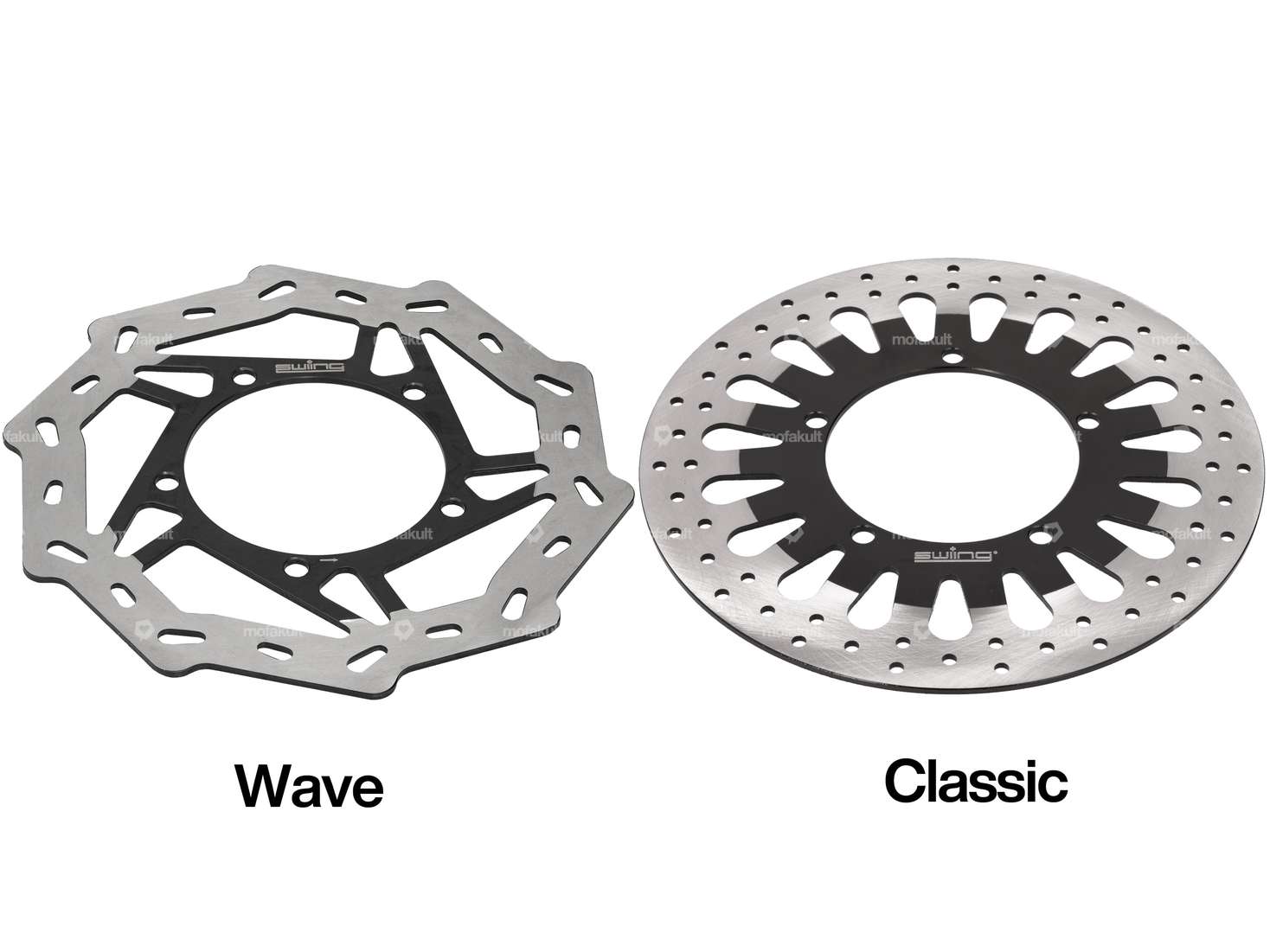

swiing® ingenious brake disk "Wave"

Manufacturer: swiing® ingenious parts · Material: Steel · Ø mounting hole: 8.3 mm · Ø inside: 92 mm · Ø outside: 225 mm · Thickness: 3 mm · Mounting type: Screws · Number of fixing points: 5 pcs · Ø bolt circle: 105.5 mm

swiing® revival wheel axle M12x1 x 220 thru axle EBR Harry galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: MF12x1 (fine pitch thread) · Thread length: 25 mm · Total length: 220 mm · Ø shaft: 11.95 mm

NewFren brake pads disc brake

Manufacturer: NewFren · Area of application: Standard · Quantity: 2 pcs · Ø mounting hole: 5.3 mm · Width: 36 mm · Height: 45 mm · Thickness: 6 mm · Number of fixing points: 2 pcs · Hole spacing: 25 mm

NewFren brake pads Racing disc brake

Manufacturer: NewFren · Area of application: Performance · Quantity: 2 pcs · Width: 36 mm · Height: 45 mm · Thickness: 6 mm · Ø mounting hole: 5.3 mm · Number of fixing points: 2 pcs · Hole spacing: 25 mm

swiing® ingenious control bearing M26x1, 31 mm High End | Puch

Bearing type: Bearing ring · Thread type: MF26x1 (fine pitch thread) · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: gas nitrided · Ø mounting frame: 21.15 mm · Color: black · Ø inside: 26.8 mm · Ø outside: 43.3 mm

swiing® ingenious steering bearing M26x1 (for Ø 30 mm steering head tube) High End

Manufacturer: swiing® ingenious parts · Material: Steel · Surface: gas nitrided · Color: black · Bearing type: Bearing ring · Ø mounting frame: 30.3 mm · Ø outside: 43 mm · Ø inside: 26.8 mm · Thread type: MF26x1 (fine pitch thread)

swiing® ingenious brake disk "Classic"

Manufacturer: swiing® ingenious parts · Material: Steel · Ø mounting hole: 8.3 mm · Ø inside: 92 mm · Ø outside: 225 mm · Thickness: 3 mm · Mounting type: Screws · Number of fixing points: 5 pcs · Ø bolt circle: 105.5 mm

Brake line 0.9 - 1.9 m (selection) black 28 / 90° incl. banjo bolts

Material: Rubber · Material: Steel · Thread type: MF10x1.25 (fine pitch thread) · Color: black · Cable length: 900 mm · Cable length: 1000 mm · Cable length: 1150 mm · Cable length: 1400 mm · Cable length: 1600 mm · Cable length: 1700 mm · Cable length: 1900 mm · Mounting type: Screws

Rim tape blue 17" (protection for inner tube)

Manufacturer: Made in Germany · Material: Rubber · Wheel size: 17 " · Total length: 1280 mm · Width: 23 mm · Color: blue

GPO 17" spoke set incl. nipple (2.9 x 188 mm) Inox

Manufacturer: GPO · Material: Chrome steel (colloquially known as stainless steel) · Quantity: 36 pcs · Color: silver · Surface: raw · Length from hook: 188 mm · Ø spoke: 2.9 mm · Nominal diameter (thread): 3.15 mm · Ø spoke head: 5.35 mm · Thread length: 11 mm · Nipple length: 14 mm · Ø nipple head: 7.9 mm · Ø Nipple neck: 5 mm · Hook length: 9 mm · Hook angle: 95 °

EBR telescopic fork aluminum (Harry) black | Puch

Manufacturer: EWC · Material: Aluminum · Material: Steel · Color: Chrome · Color: black · Surface: chrome-plated · Surface: varnished · Thread type: MF26x1 (fine pitch thread) · Ø spars: 30 mm · Adjustable: Yes · Spar end distance (center-center): 150 mm · Ø head tube inside: 22.3 mm · Thread length: 58 mm · Ø outer head tube: 26 mm · Head tube length: 200 mm · Fork bridge - center wheel axle: 450 mm · Total length: 680 mm

EBR telescopic fork Harry aluminum black | Sachs

Manufacturer: EWC · Material: Aluminum · Material: Steel · Color: Chrome · Color: black · Surface: chrome-plated · Surface: varnished · Thread type: MF26x1 (fine pitch thread) · Ø spars: 30 mm · Adjustable: Yes · Spar end distance (center-center): 150 mm · Ø head tube inside: 22.1 mm · Thread length: 58 mm · Ø outer head tube: 26.1 mm · Head tube length: 220 mm · Fork bridge - center wheel axle: 435 mm · Total length: 705 mm

Brake caliper, brake line, and brake lever for EBR forks

Material: Cast aluminum · Surface: varnished · Number of fixing points: 4 pcs · Hole spacing: 32 mm · Hole spacing: 60 mm · Color: gray · Mounting type: Nuts & bolts · Cable length: 900 mm · Brake lever length (lever length): 162 mm · Thread type: M8x1.25 (standard thread) · Ø Handlebars: 22 mm

swiing® ingenious brake disk "Wave"

Manufacturer: swiing® ingenious parts · Material: Steel · Ø mounting hole: 8.3 mm · Ø inside: 92 mm · Ø outside: 225 mm · Thickness: 3 mm · Mounting type: Screws · Number of fixing points: 5 pcs · Ø bolt circle: 105.5 mm

swiing® revival wheel axle M12x1 x 220 thru axle EBR Harry galvanized

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: MF12x1 (fine pitch thread) · Thread length: 25 mm · Total length: 220 mm · Ø shaft: 11.95 mm

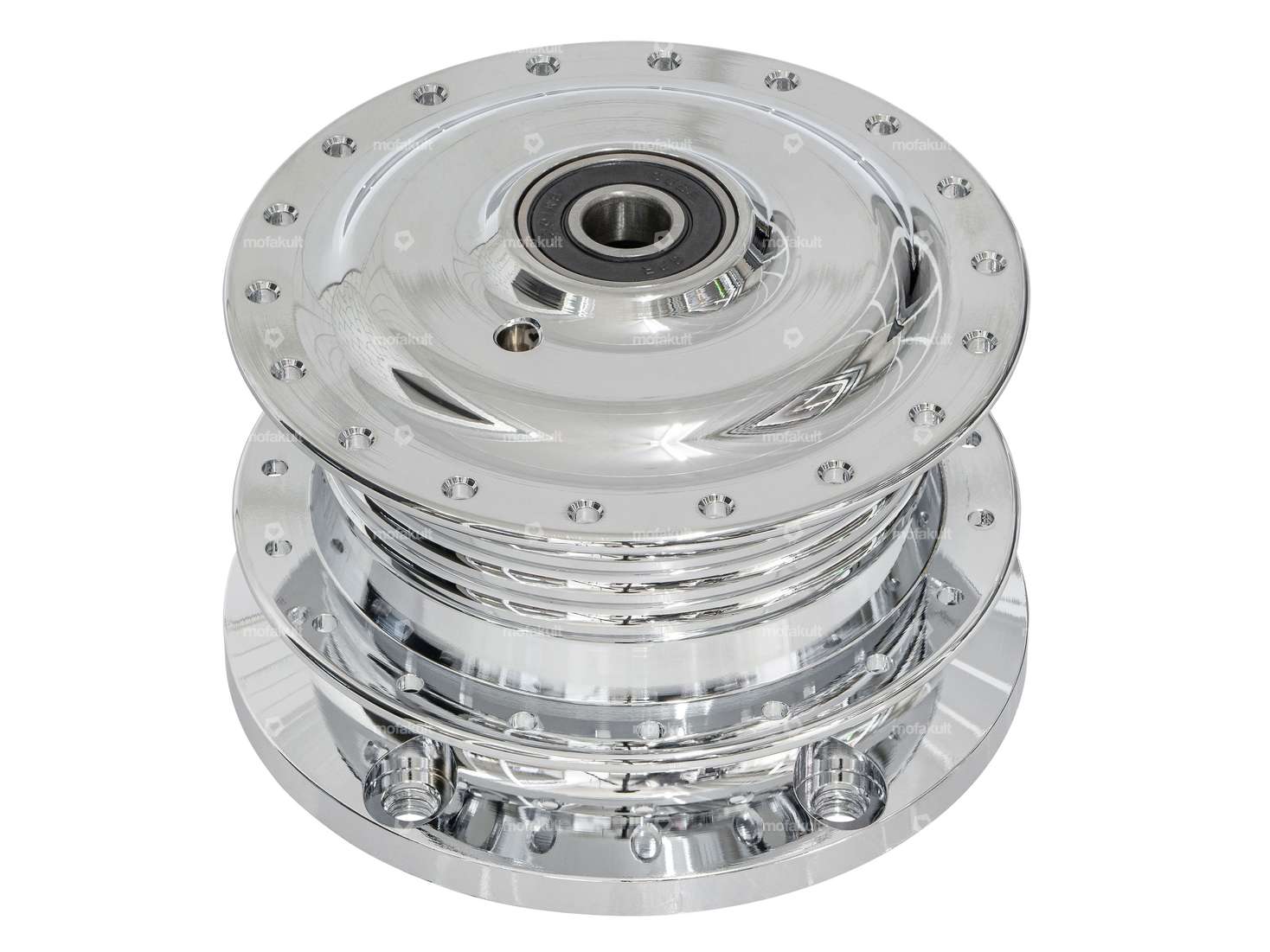

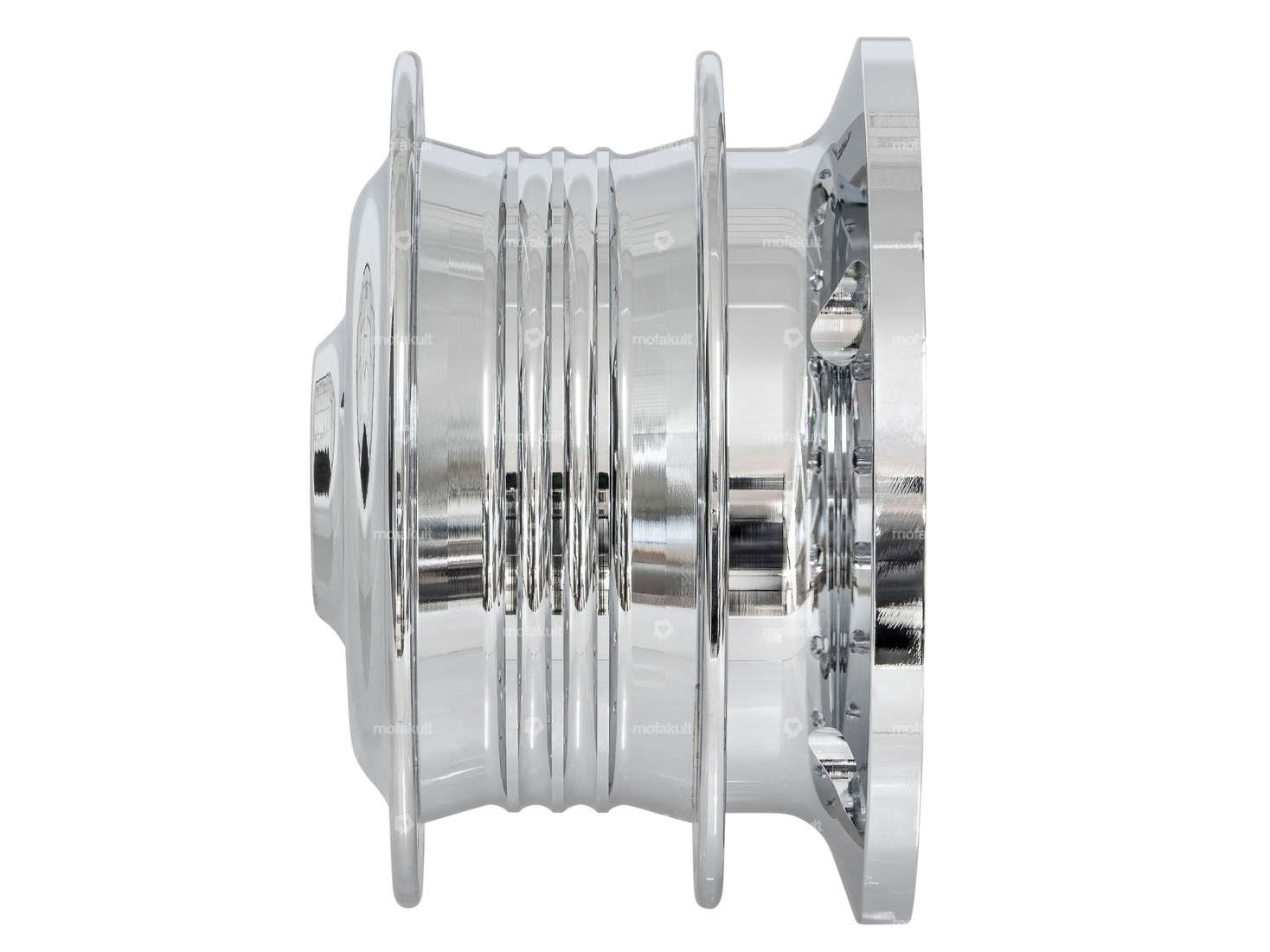

swiing® ingenious wheel hub spoke rim with disc brake chrome

Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Cross · Area of application: MX · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Color: Chrome · Surface: chrome-plated · Thread type: M8x1.25 (standard thread) · Width: 77 mm · Ø outside: 120 mm · Ø axle: 12 mm · Ø Receptacle: 12 mm · Number of fixing points: 5 pcs · Ø bolt circle: 104.5 mm · Number of spoke holes: 36 pcs · Ø spoke hole: 3.7 mm

swiing® ingenious spacer set spoke rim EBR Harry chrome

Manufacturer: swiing® ingenious parts
