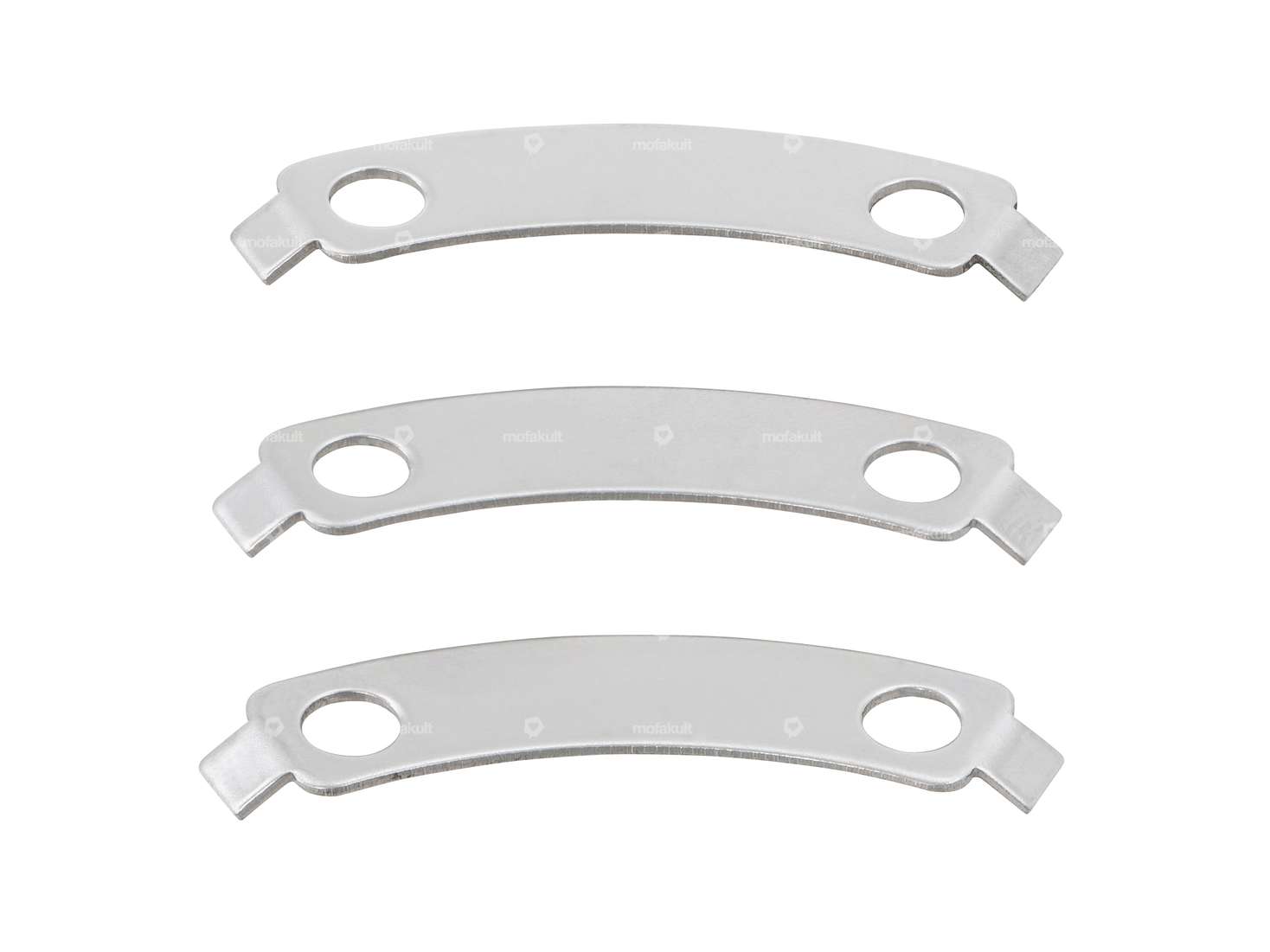

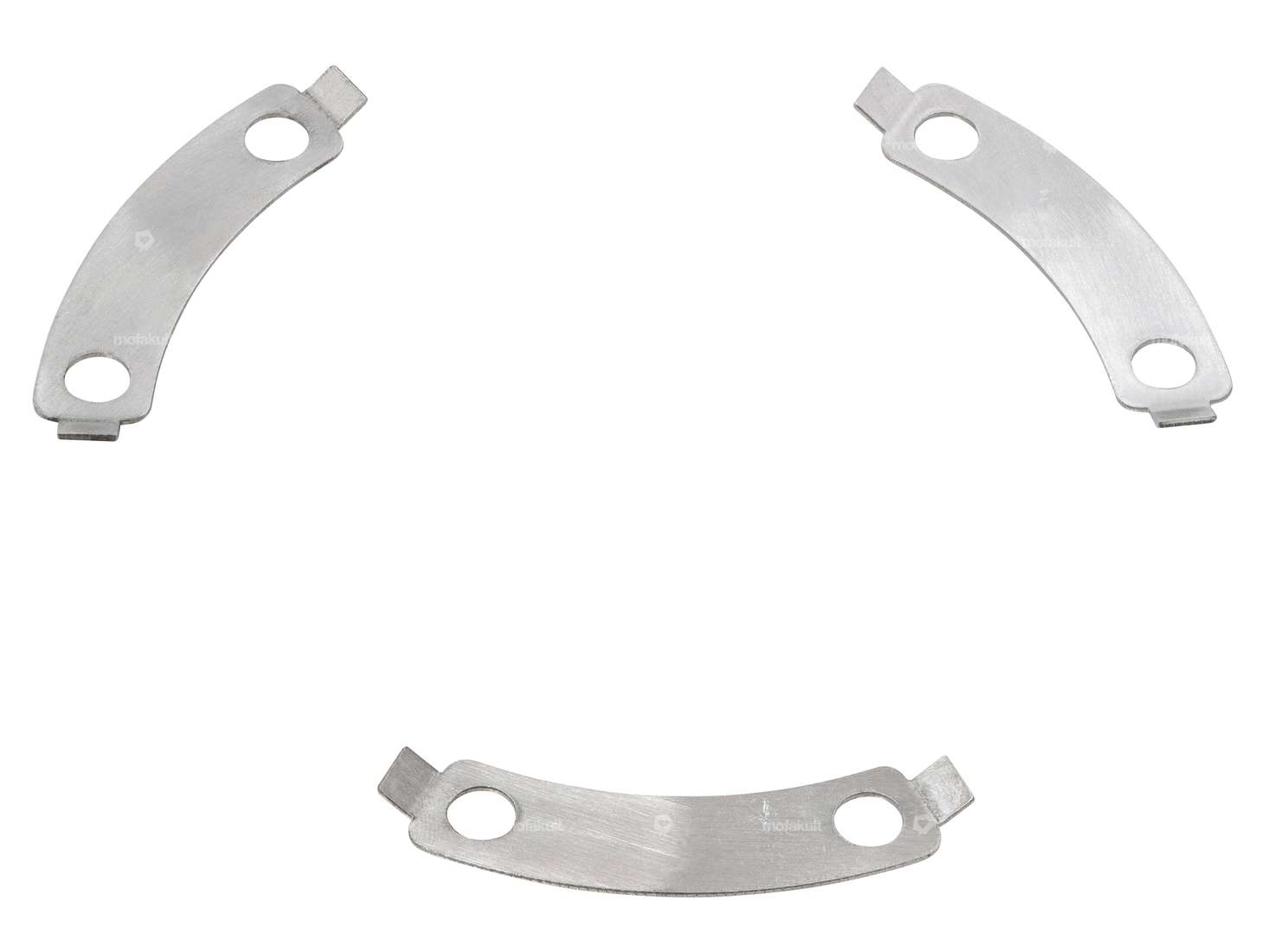

swiing® revival lock washers sprocket 6-hole Inox | Puch Maxi

swiing® revival screw set sprocket mounting galvanized | Puch Maxi

Manufacturer: swiing® revival parts · Number of components: 24 pcs · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: M6x1 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Shank: No · Thread length: 22 mm · Width across flats SW: 10 mm · Strength class: 8.8

swiing® revival screw set sprocket mounting Inox | Puch Maxi

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Drive: External hexagon · Thread type: M6x1 (standard thread) · Screw head: Hexagon · Shank: No · Width across flats SW: 10 mm · Number of components: 24 pcs · Thread length: 22 mm · Color: gray

Loctite 243 medium-strength threadlocker 10 ml

Temperature resistance (min.): -75 - 200 °C · Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Contents [ml]: 10 ml · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Area of application: Chemistry · Adhesion: medium strength · Gap dimension (max.): 0.01 mm · Type of application: 1K · Alignment time: 600 sec · Color: blue · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

GPO sprocket 45 teeth chrome | Puch Maxi, X30 NG-2AH

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Ø inside: 94 mm · Color: silver · Number of teeth: 45 pcs · Ø bolt circle: 106 mm · Ø mounting hole: 6.7 mm · Hole spacing 2: 68 mm · Hole spacing: 36.5 mm · Number of fixing points: 6 pcs · Cranking (offset): 8 mm

Cast wheel hub | Puch Maxi, X30 NG-2AH

Material: Aluminum · Thread type: FG34.8 (1.37" 24G) · Ø drum: 80 mm · Surface: blank · Surface: raw · Color: silver · Total length: 105 mm · Ø axle: 12 mm · Ø inside: 27.9 mm · Thread length: 12 mm · Number of fixing points: 12 pcs · Ø outside: 114.7 mm · Ø mounting hole: 6.1 mm · Area of application: Tuning · Ø bolt circle: 105 mm

swiing® revival lock washer sprocket mounting coaster wheel Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Number of lobes: 2 pcs

ESJOT sprocket 40 teeth (4/5/6 hole) Ø 98 mm cranked black

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: ESJOT · Material: Steel · Surface: powder-coated · Ø inside: 98 mm · Color: black · Thickness: 4.5 mm · Number of teeth: 40 pcs · Ø bolt circle: 115 mm · Number of fixing points: 4 pcs · Cranking (offset): 12 mm · Ø mounting hole: 7 mm

GPO sprocket 57 teeth black | Puch Maxi, Puch X30 NG-2AH

Manufacturer: GPO · Material: Steel · Surface: powder-coated · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Number of teeth: 57 pcs · Ø bolt circle: 106 mm · Ø inside: 94 mm · Ø mounting hole: 6.5 mm · Hole spacing: 36.5 mm · Hole spacing 2: 68 mm · Cranking (offset): 8 mm · Number of fixing points: 6 pcs · Color: black

GPO sprocket 45 teeth black | Puch Maxi, Puch X30 NG-2AH

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: GPO · Material: Steel · Surface: powder-coated · Color: black · Number of teeth: 45 pcs · Ø bolt circle: 105.5 mm · Ø inside: 94 mm · Thickness: 4.5 mm · Ø mounting hole: 6.7 mm · Hole spacing: 36.5 mm · Hole spacing 2: 68 mm · Cranking (offset): 8 mm · Number of fixing points: 6 pcs

Tank sticker "PUCH maxi S" 204 x 29 mm | Puch Maxi S

Material: Polyvinyl chloride (PVC) · Color: Chrome · Color: black · Color: green · Color: white · Width: 204 mm · Rear side texture: Adhesive · Consistency: UV-resistant · Consistency: petrol resistant · Place of use: Tank (+ frame) · Border: Chrome surround · Height: 29 mm · Puch OEM number: 349.2.20.537.0

OMG fuel filter metal 6 mm (removable)

Manufacturer: OMG · Material: Glass · Material: Metal · Filter type: Plastic net · Color: gray · Color: transparent · Color: white · demountable: Yes · Ø fuel hose connection: 5.6 mm · Ø fuel hose connection: 6 mm · Ø inside: 3.45 mm · Ø outside: 22 mm · Total length: 40 mm · Total length: 63 mm

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Mounting type: Union nut · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm · Thread type: MF12x1 (fine pitch thread)

swiing® revival bellows Ø 23/30 x 100 mm | Puch

Manufacturer: swiing® revival parts · Material: Rubber · Color: black · Ø inside 2: 30 mm · Ø inside: 23 mm · Total length: 103 mm · Ø outside: 35 mm · Ø outside: 45 mm

Chrome bell

Material: Sheet metal (steel) · Color: Chrome · Surface: chrome-plated · Surface: galvanized (blue) · Width: 58 mm · Height: 28 mm · Ø External head: 58 mm · Clamping diameter: 18 mm · Clamping diameter: 22 mm · Thread size: M5

swiing® revival screw set sprocket mounting galvanized | Puch Maxi

Manufacturer: swiing® revival parts · Number of components: 24 pcs · Material: Steel · Surface: galvanized (blue) · Color: silver · Thread type: M6x1 (standard thread) · Drive: External hexagon · Screw head: Hexagon · Shank: No · Thread length: 22 mm · Width across flats SW: 10 mm · Strength class: 8.8

swiing® revival screw set sprocket mounting Inox | Puch Maxi

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Drive: External hexagon · Thread type: M6x1 (standard thread) · Screw head: Hexagon · Shank: No · Width across flats SW: 10 mm · Number of components: 24 pcs · Thread length: 22 mm · Color: gray

swiing® revival wheel axle set M12x1 x 165 mm cast & spoke hub | Puch

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: MF12x1 (fine pitch thread) · Diameter: 12 mm · Ø shaft: 11.95 mm · Thread length: 40 mm · Thread length: 50 mm · Total length: 165 mm · Shank length: 75 mm · Width across flats SW: 19 mm
