Name: swiing® revival pedal axle set (bushing Ø 20 mm) | Sachs
Brand: swiing® revival parts
SKU: 23486
Price: 72.10 EUR
Availability: InStock

Inox

Set

Description

Complete pedal shaft made of chrome steel, suitable for äolder mopeds / mopeds.

Fits the following 50/2 models: Alpa Kristall, Alpa Oltenia, Alpa Sport, Alpa Tornado, Caravelle (type S25H / S25HA), Comet, Eiger, Goericke, Hercules Prior, Pony Junior, Rico, Rixe, Walco, among others.

Size of pedal shaft:
Material: stainless steel (Nirosta)
Total length: 182 mm
Distance of circlips: 89.5 mm
Ø center: 18 mm
Ø outer pedal arm mount: 15.9 mm

Dimension bearing bushes
Material: brass
Ø outer: 20 mm
Ø inner: 18 mm
Length: 18 mm

The set includes three thrust washers with thicknesses of 0.3 / 0.5 / 1 mm.
Depending on the axial play, the corresponding washers can be used to achieve the best performance.

Pedals, cranks and wedges can be found under accessories.

Nostalgic product for the highest demands of the quality brand swiing®.

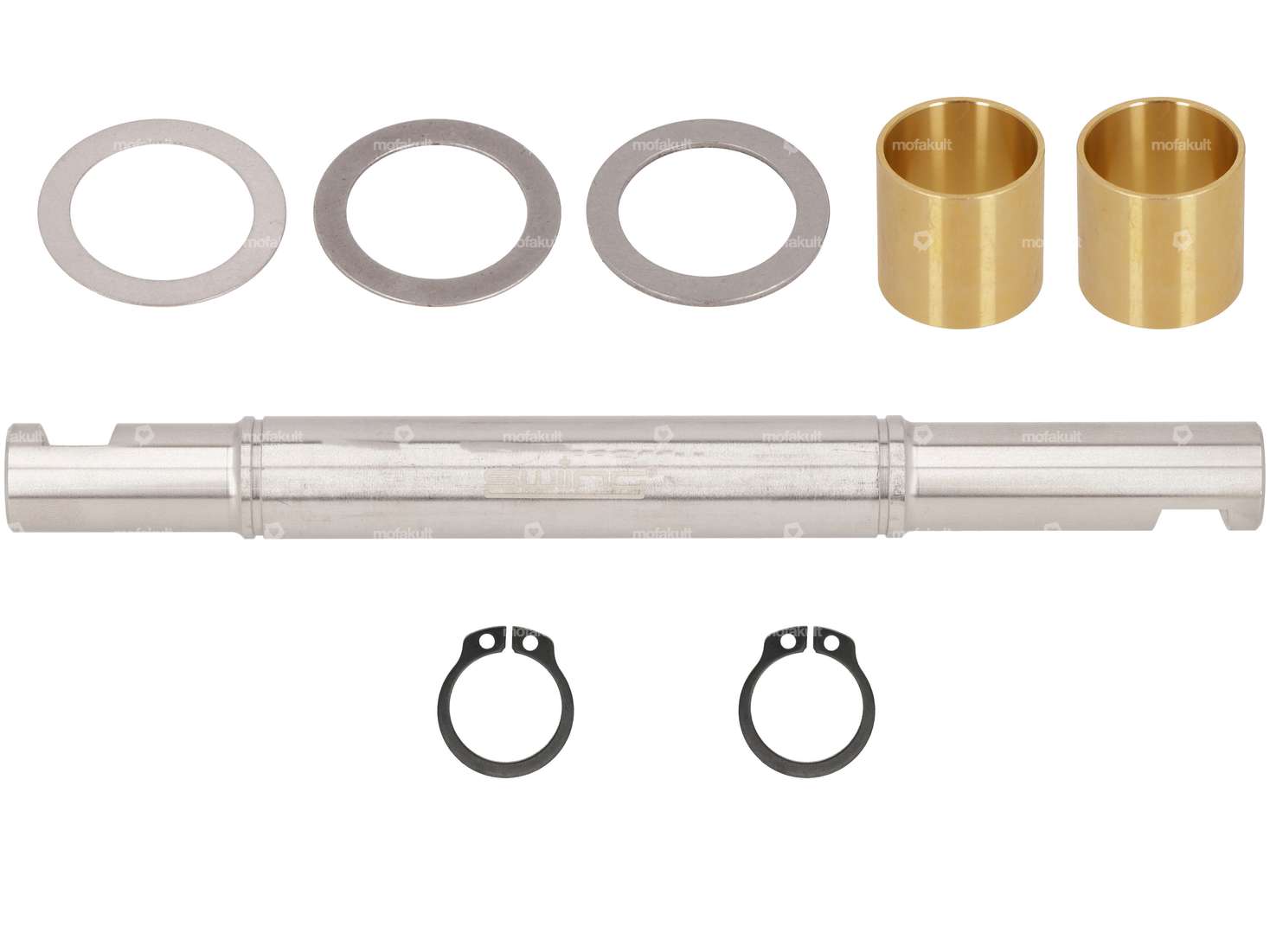

Parts included in the set

swiing® revival pedal axle Inox | Sachs 50/2 Caravelle

23482

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel)

For: Sachs

Thrust washer 0.3 mm pedal axle | Sachs 50/2 Caravelle

23483

Manufacturer: Sachs · Material: Steel · Surface: hardened & ground · Ø inside: 18 mm · Ø outside: 25 mm · Thickness: 0.3 mm

For: Sachs

Thrust washer 0.5 mm pedal axle | Sachs 50/2 Caravelle

23484

Manufacturer: Sachs · Material: Steel · Surface: hardened & ground · Ø inside: 18 mm · Ø outside: 25 mm · Thickness: 0.5 mm

For: Sachs

swiing® revival plain bearing 18/20/20 pedal axle | Sachs 50/2 Caravelle

23470

Manufacturer: swiing® revival parts · Material: Brass · Ø inside: 18 mm · Ø outside: 20 mm · Total height: 20 mm · Nominal diameter inside: 18 mm

Quantity: 2

For: Universal · Sachs

Circlip 18 mm pedal axle | Sachs 50/2 Caravelle

23469

Manufacturer: Sachs · Material: Spring steel · Fuse type: Outside · Nominal diameter: 18 mm

Quantity: 2

For: Sachs

Thrust washer 1 mm pedal axle | Sachs 50/2 Caravelle

23485

Manufacturer: Sachs · Material: Steel · Surface: hardened & ground · Ø inside: 18 mm · Ø outside: 25 mm · Thickness: 1 mm

Details

Manufacturer	swiing® revival parts
Material	Chrome steel (colloquially known as stainless steel)
Ø outside	18 mm
Total length	182 mm
Ø Pedal arm holder	15.9 mm

Suitable for the following models

Sachs
