swiing revival parts transparent

For: Puch

15777

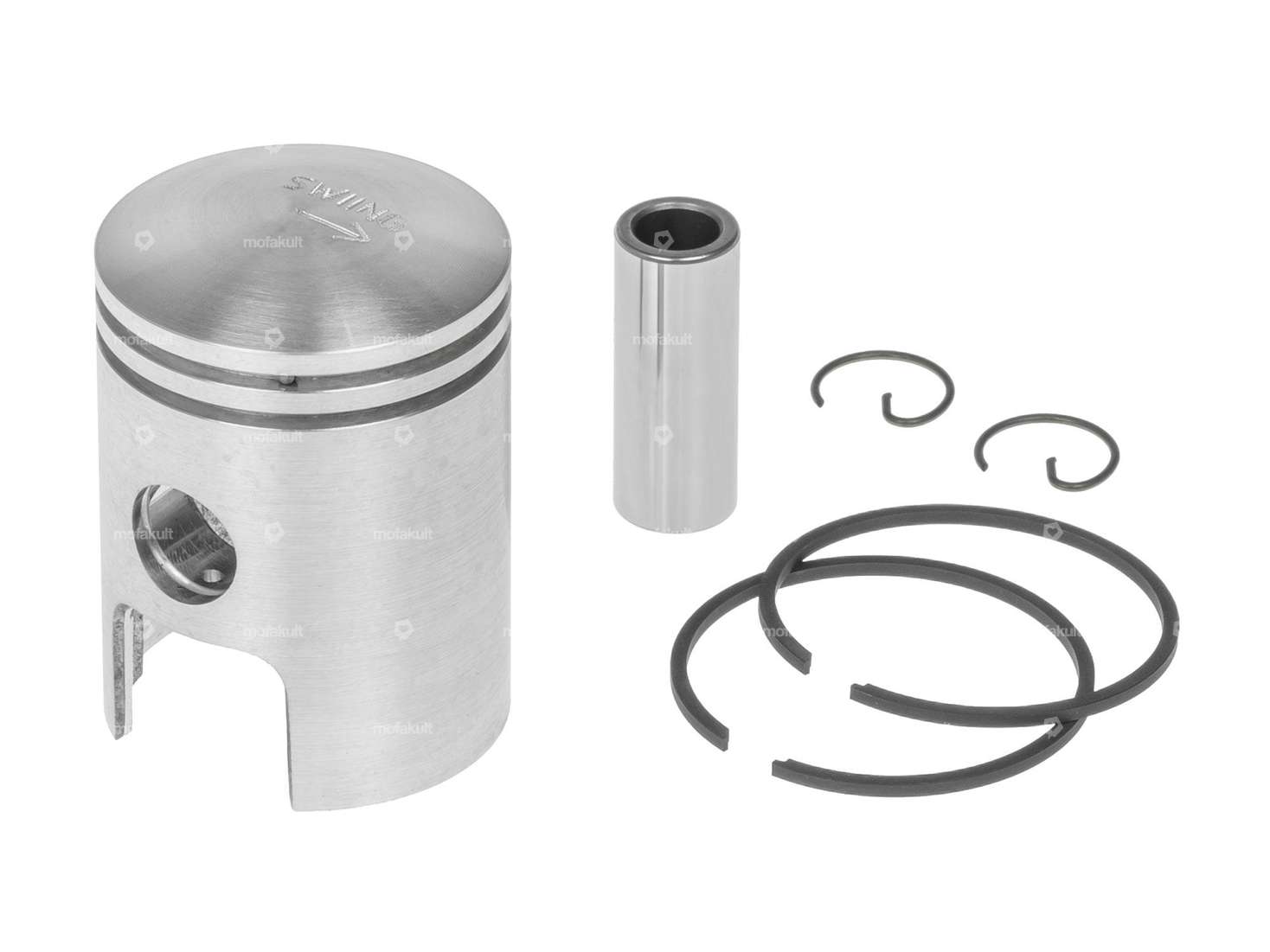

swiing® revival piston 38 mm | Puch

EUR 54.20

Incl. 23% VAT.

Description

38.0 mm replacement piston with two 1.5 mm rectangular piston rings with internal fuse (IS) for the corresponding Puch cylinder kit for various Puch mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter38 mm
Manufacturerswiing® revival parts
Ø outside piston (A)37.95 mm
Compression height (C)22.45 mm
Curvature (D)3.8 mm
Total piston height (E)52.7 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Ø piston pin (B)12 mm
Weight piston kit77 g
Puch

E50

ZA50 (air-cooled)

Z50 (X30 Sport)
