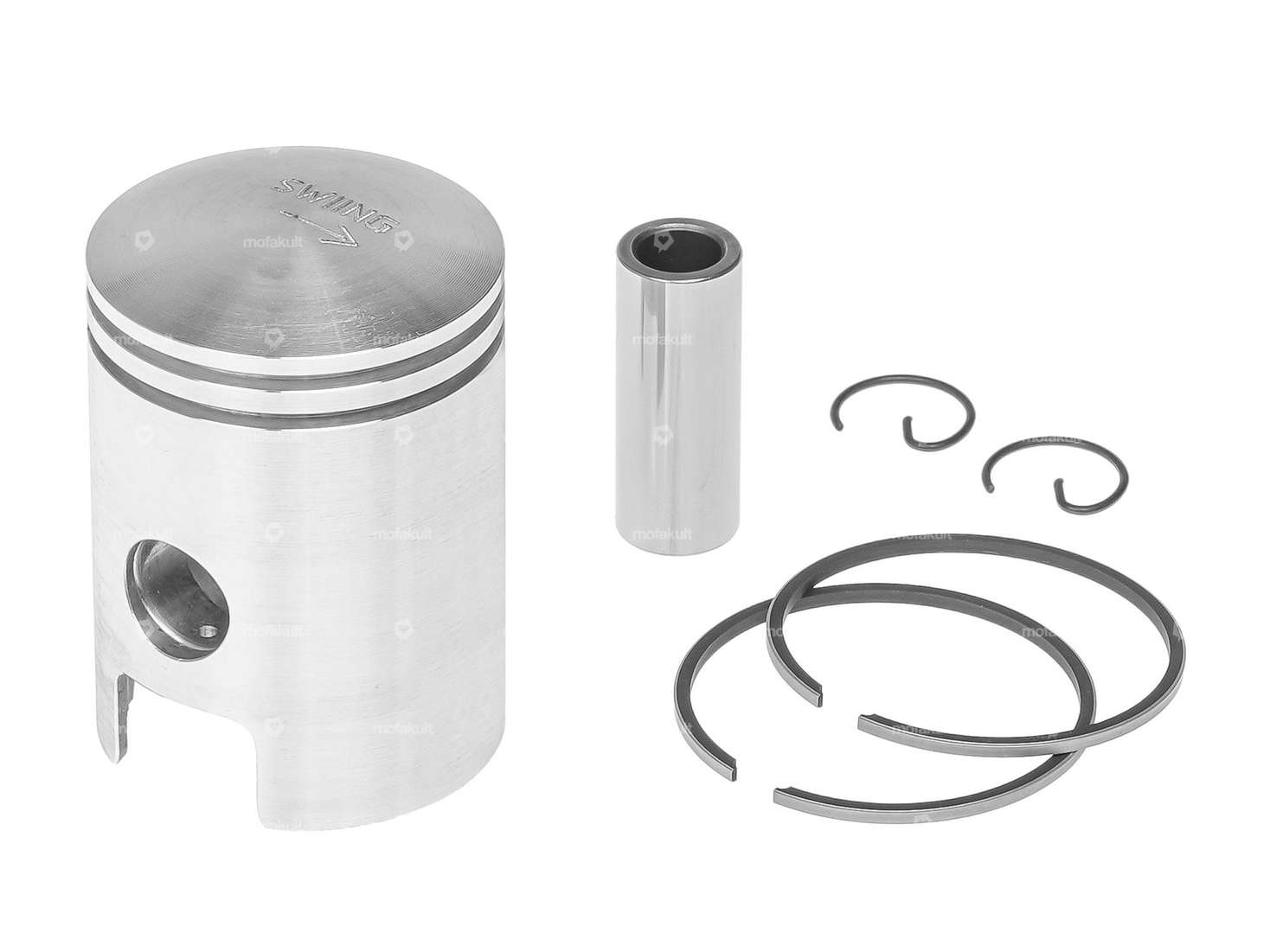

swiing® revival piston 38 mm | Sachs 503

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 66.20

Incl. 23% VAT.

Description

38.0 mm piston kit with two 1.5 mm rectangular piston rings with internal fuse (IS) for swiing aluminum cylinder for Sachs 503 mopeds / mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Manufacturerswiing® revival parts
Nominal diameter38 mm
Ø outside piston (A)37.97 mm
Ø piston pin (B)12 mm
Compression height (C)28 mm
Curvature (D)3.6 mm
Total piston height (E)54.1 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactInternal fuse (IS)
Piston ring height1.5 mm
Weight piston kit73 g
Sachs

503 - AAL , ABL , 2AL / 2BL
