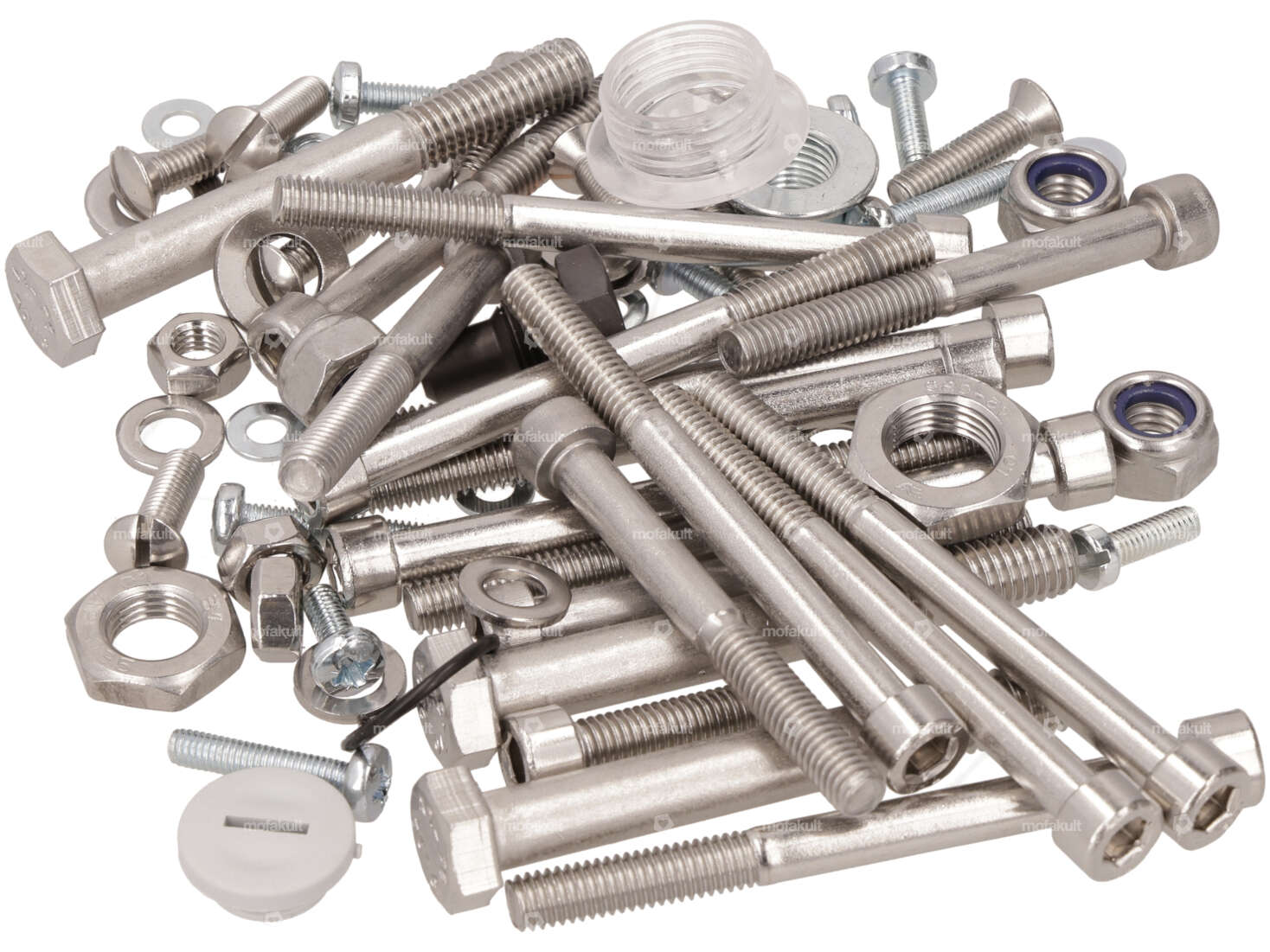

Complete screw set suitable for your moped / moped with Sachs 505/1, 505/2, 505/3 or 535/1 engine. The screw set covers all four versions.
The set is suitable for Hercules Prima and Optima models which were equipped with a Sachs 505 engine.
The screw set includes all screws, washers, lock washers, nuts, stud bolts etc. which are required for a professional engine overhaul.
With a few exceptions, all components are made of stainless steel.
A list with the corresponding mounting points is included in the scope of delivery.
You will find the galvanized steel version together with the matching gasket set and bearing set in the accessories section.
Nostalgic product for the highest demands of the quality brand swiing®.
| Number of components | 75 pcs |
| Manufacturer | swiing® revival parts |
| Material | Chrome steel (colloquially known as stainless steel) |
| Surface | stainless |
| Sachs | 505 (with pedal shaft) - 1A (AT), 2A (HG) 535 |
| Hercules | Great - 2, 3, 4, 5, Optima |
Ratings
Accessories & related products

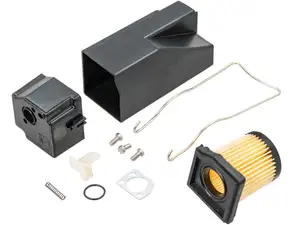

Air filter box set "Racing" | Sachs 504, 505, 535 (A4209)
Area of application: Tuning · Color: black · Material: Paper · Material: Plastic · Filter type: Box · Filter type: Filter paper · Total length: 173 mm · Width: 57 mm · Ø Internal connection: 14.5 mm · Height: 57 mm · Mounting type: Screws · Camouflaged: Yes · Pony OEM number: A4209
EUR 64.30

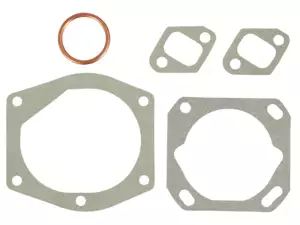

Gasket set (1A quality) | Sachs 504, 505, 535
