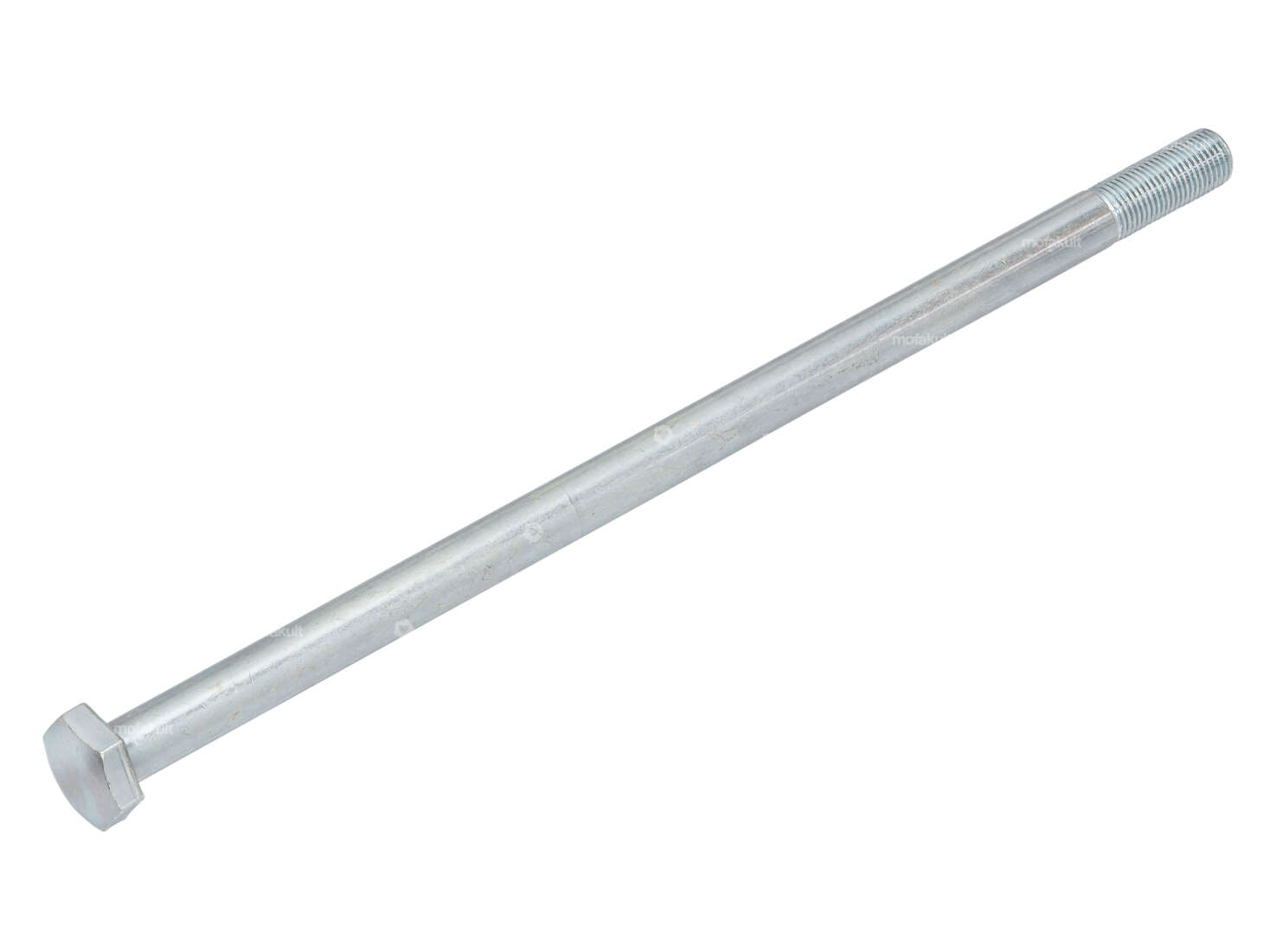

Axle for the rear swing arm on your Puch DS50 and Zündapp 510 / 515 / 517 moped & small motorcycle.
Thread: M10 x 1
Total length: 215 mm
Wrench width: 17 mm
Material: Steel, galvanized
The thru axle has a hexagon socket head (SW17) on one side.
| Material | Steel |
| Surface | galvanized (blue) |
| Drive | External hexagon |
| Ø axle | 10 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Total length | 215 mm |
| Color | silver |
| Puch |
