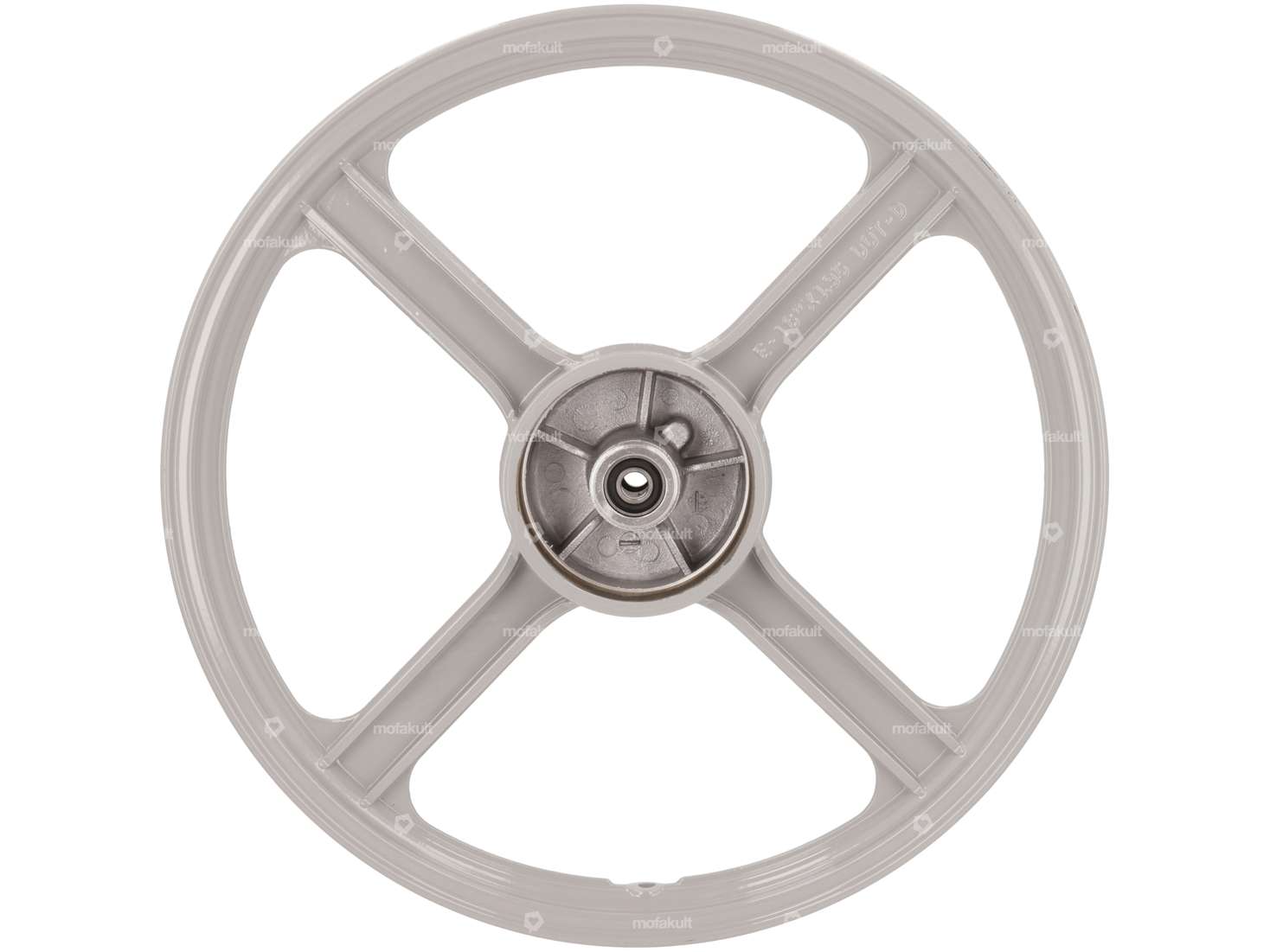

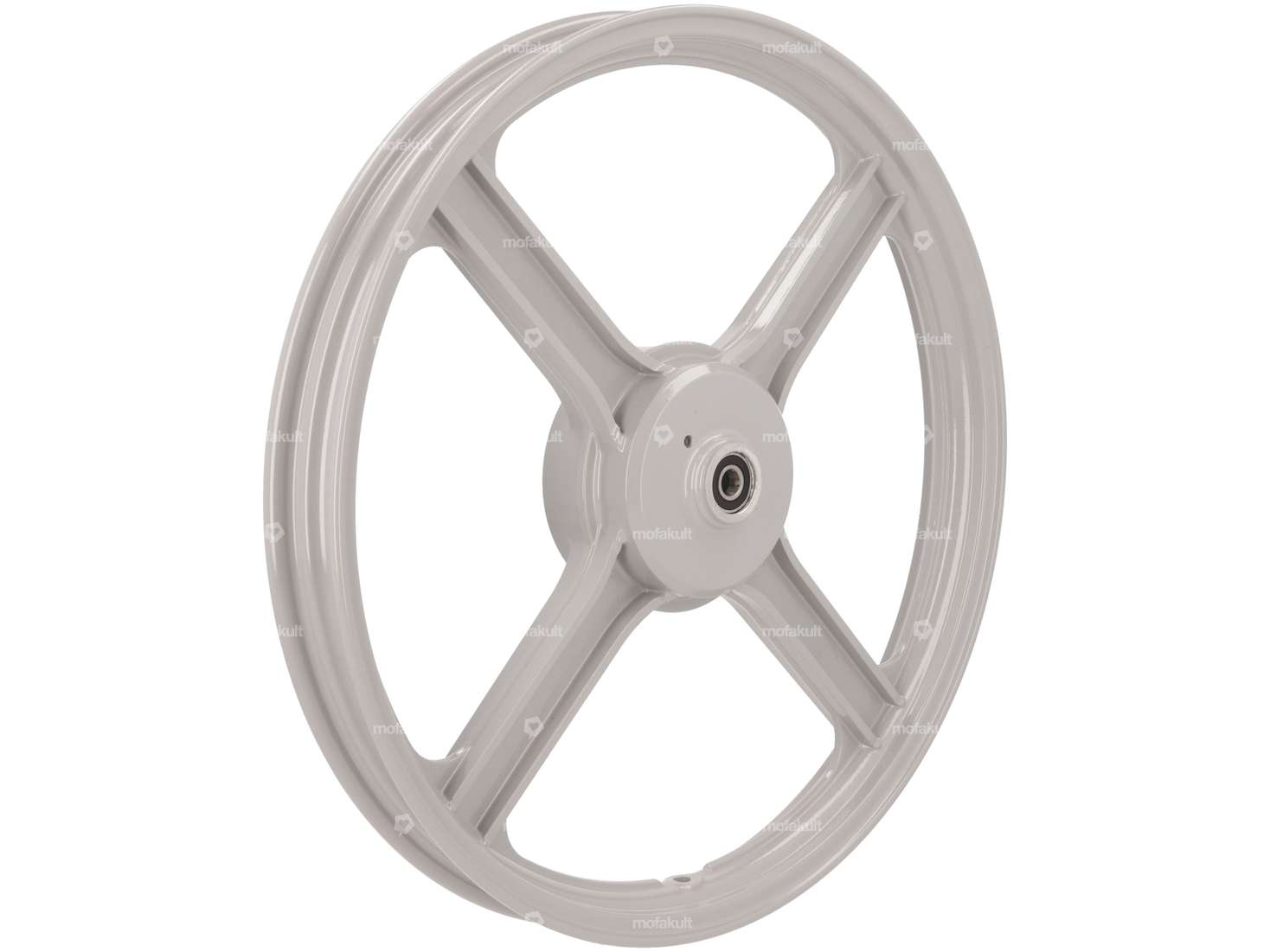

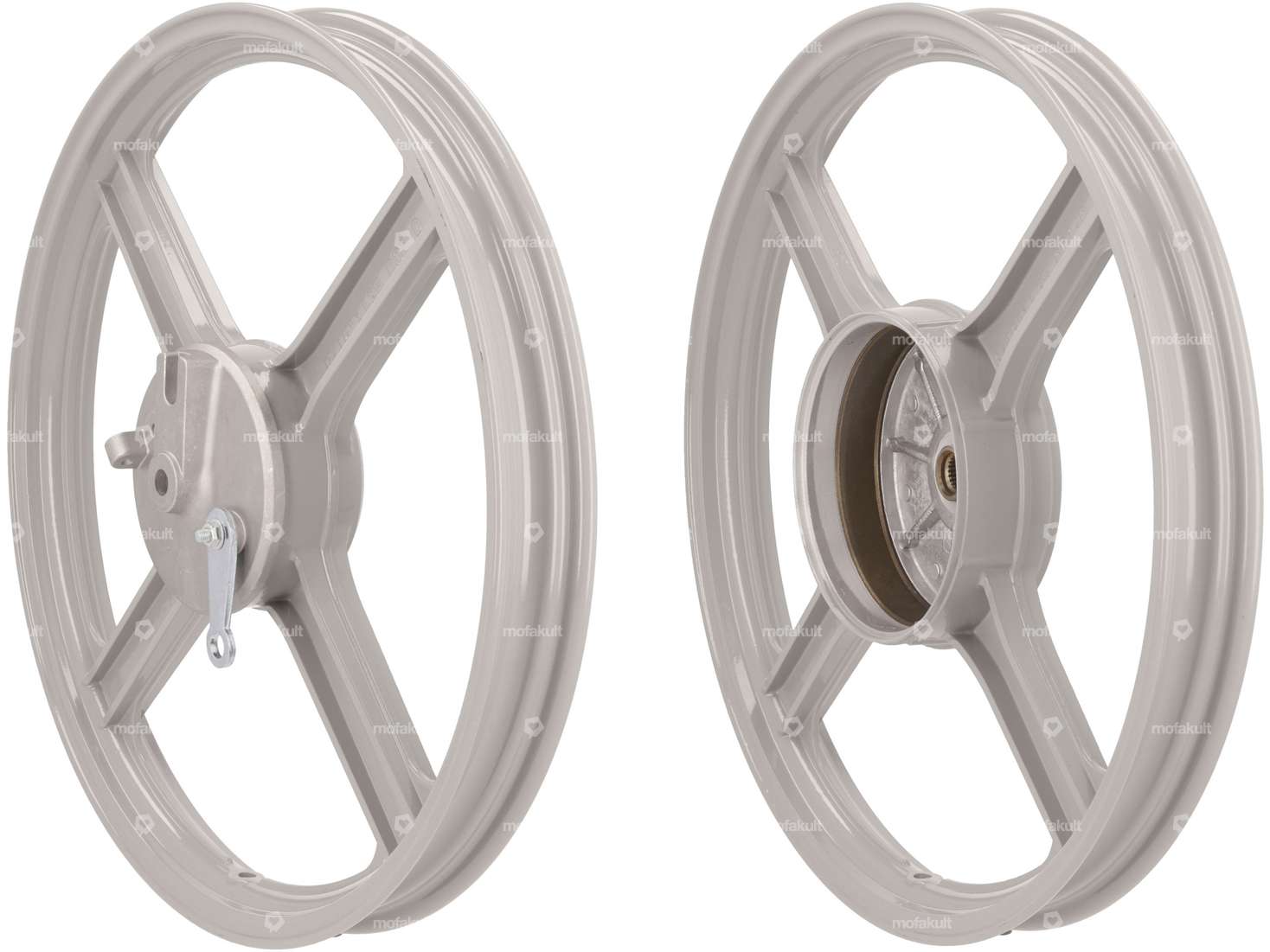

Silver-colored 4-spoke rims with a diameter of 16 inches for your Piaggio Bravo moped / moped.
This rim set is a replica which, in contrast to the original Piaggio rims, has a more angular design. Gearbox and brake pads can be taken over 1:1. The bearings on the front wheel rim are already pressed in.
Note: The brake anchor plate included in the scope of delivery is only suitable for Piaggio Bravo models. To be able to use the wheel set on Piaggio, Ciao, SI, Grillo or Boxer mopeds, it must be taken from the original rims.
Matching tires, hoses and other wheel parts can be found in the accessories section.
| Nominal diameter | 426 mm |
| Material | Cast aluminum |
| Surface | powder-coated |
| Color | silver |
| Ø axle | 12 mm |
| Rim well depth | 9.9 mm |
| Overall width outside | 50.4 mm |
| Wheel size [inch] | 16 " |
| Ø Brake drum | 105 mm, 135 mm |
| Piaggio | Bravo / Super Bravo |
Accessories & related products
swiing® ingenious rear brake shoe Ø 135 x 16 Racing slotted | Piaggio Ciao, SI, Bravo, Boxer
Width: 16 mm · Slotted: Yes · Manufacturer: swiing® ingenious parts · Area of application: Racing · Color: graphite colors · Color: gray · Springs included: No · Ø locating bolt: 8 mm · Number of springs: 1 pcs · Ø drum: 135 mm
EUR 22.70
VeeRubber 2.25 x 16" tires VRM087 (V087) Allround
Manufacturer: Vee Rubber · Tire width [inch]: 2.25 " · Color: black · Width [inch]: 2 1/4 · Speed index: J = 100 km/h · Load capacity index: 38 = 132 kg · Profile type: VRM-087 / V087 · Tire type: Allround · Old designation: 20 x 2.25 · White wall: No · Wheel size [inch]: 16 " · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 32.30

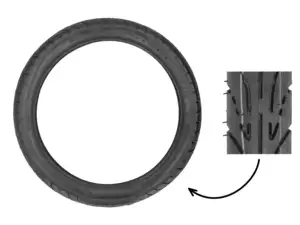

VeeRubber 2.25 x 16" tires VRM093M (V093) Semi-Slick
Manufacturer: Vee Rubber · Tire width [inch]: 2.25 " · Color: black · Width [inch]: 2 1/4 · Speed index: J = 100 km/h · Load capacity index: 38 = 132 kg · Profile type: VRM-093M / V093 · Tire type: Semi-slick · Old designation: 20 x 2.25 · White wall: No · Wheel size [inch]: 16 " · Tubeless (yes/no): Tubetype TT (requires hose)
EUR 38.30

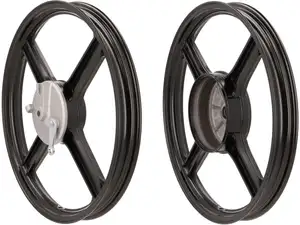

Wheel set 16" cast black (4 spokes) reproduction | Piaggio Bravo
