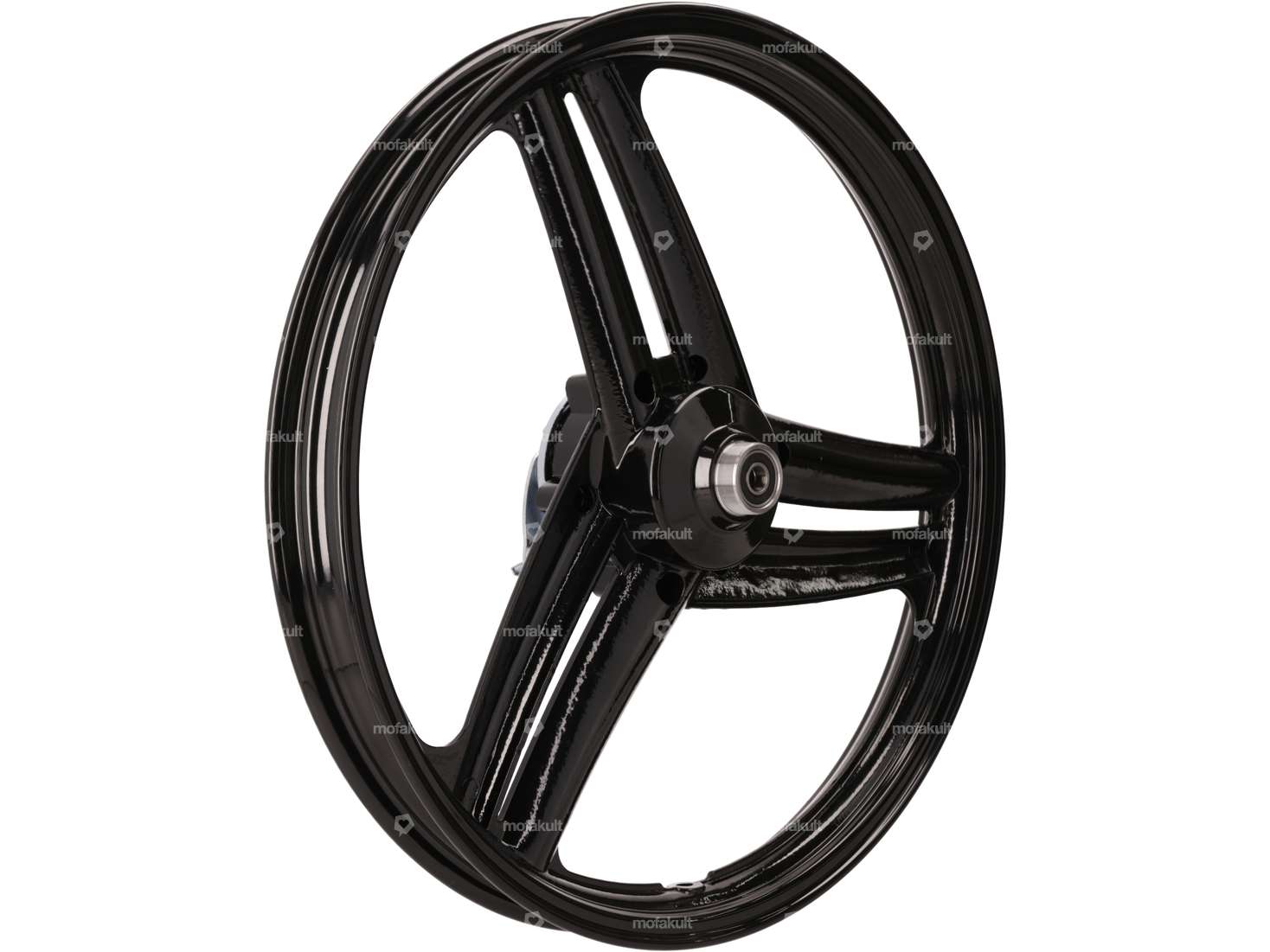

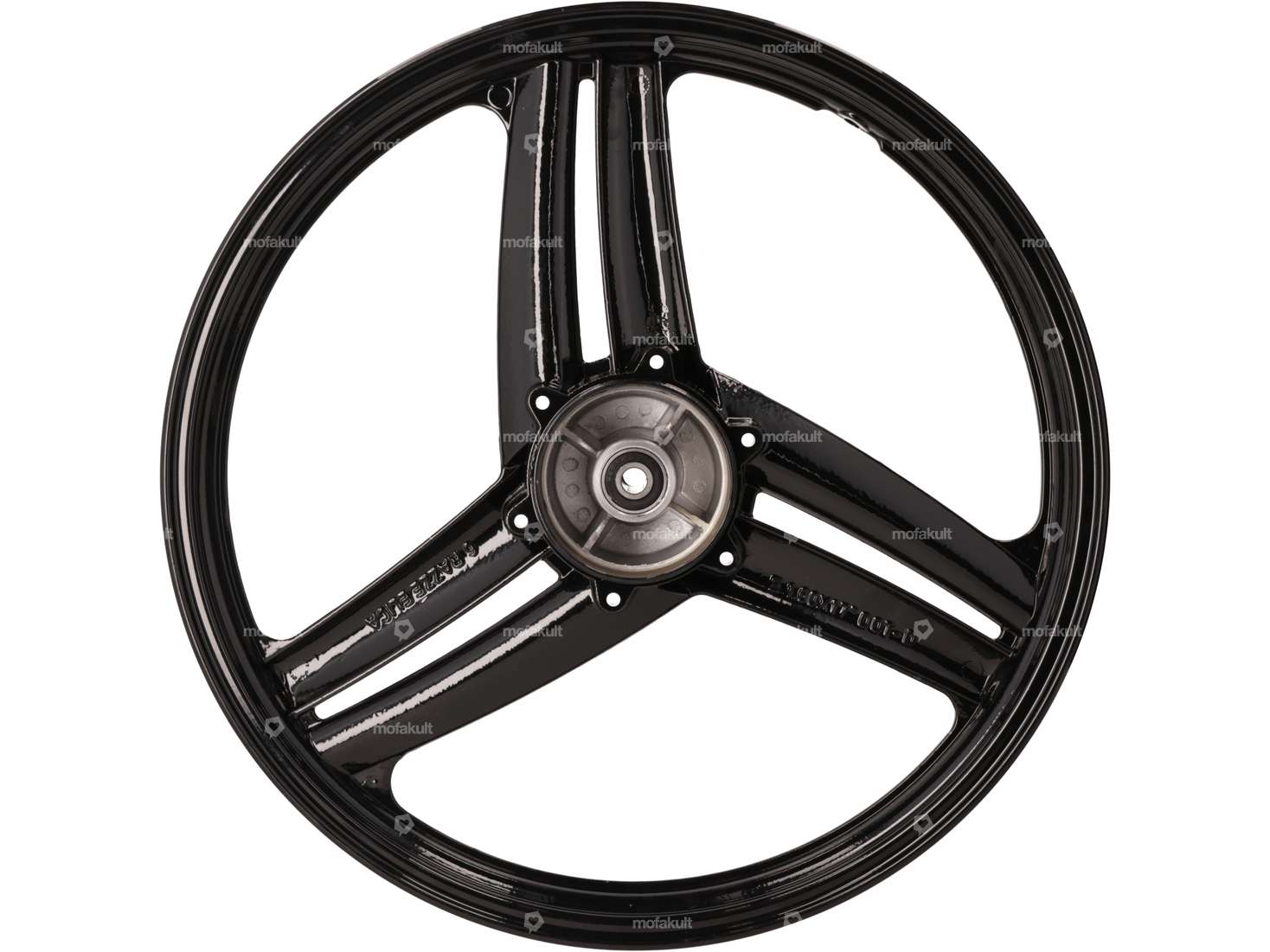

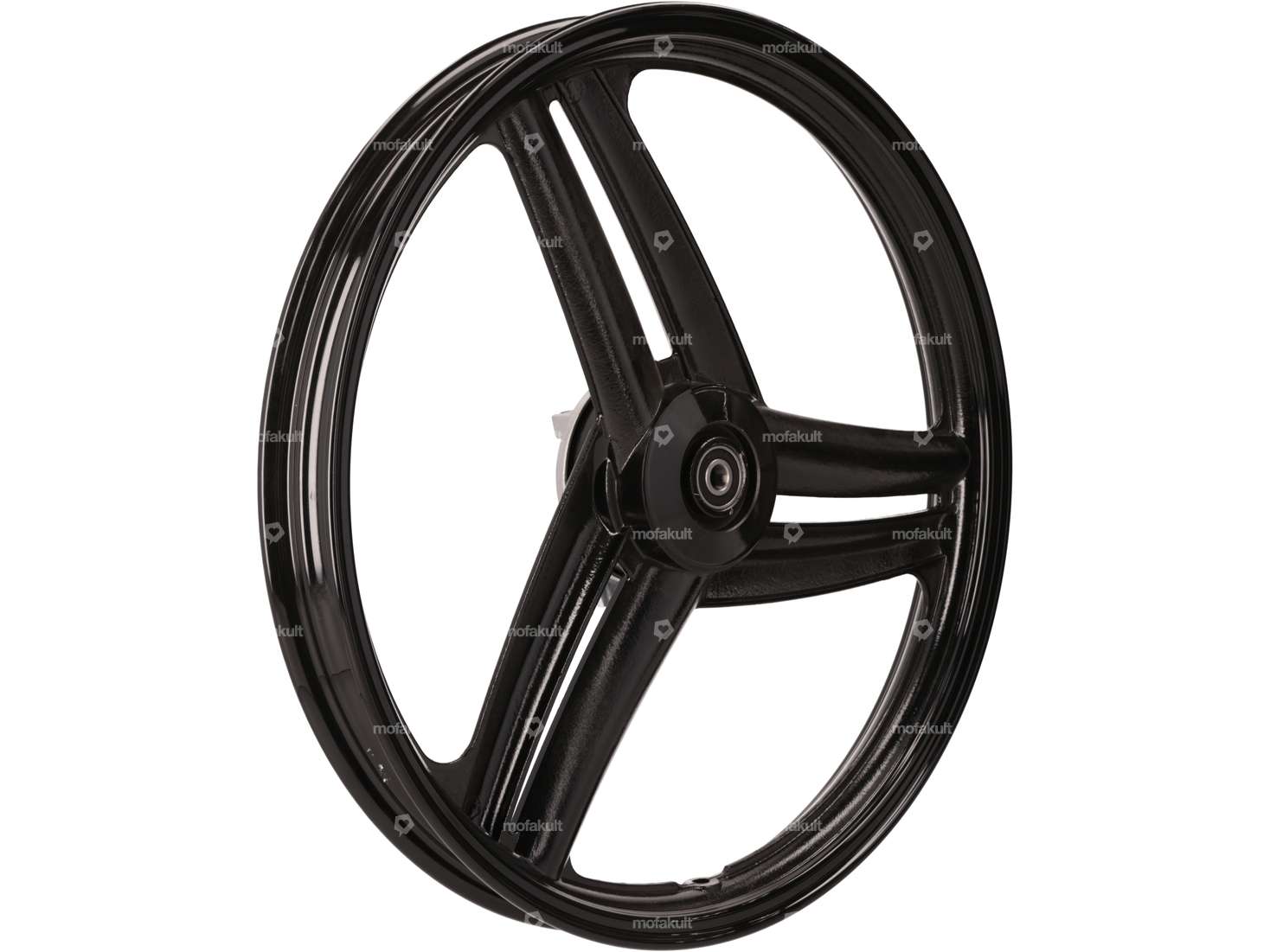

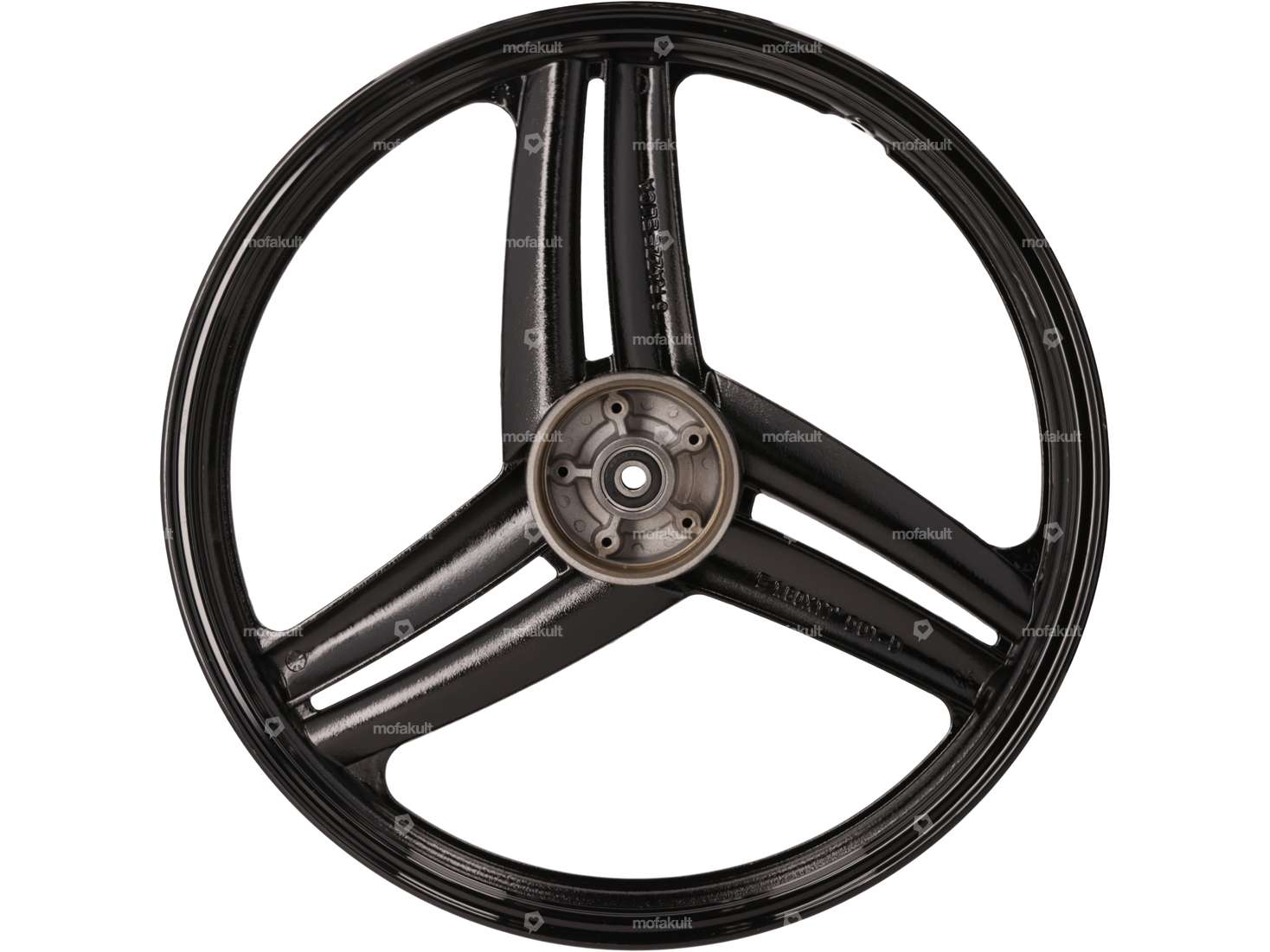

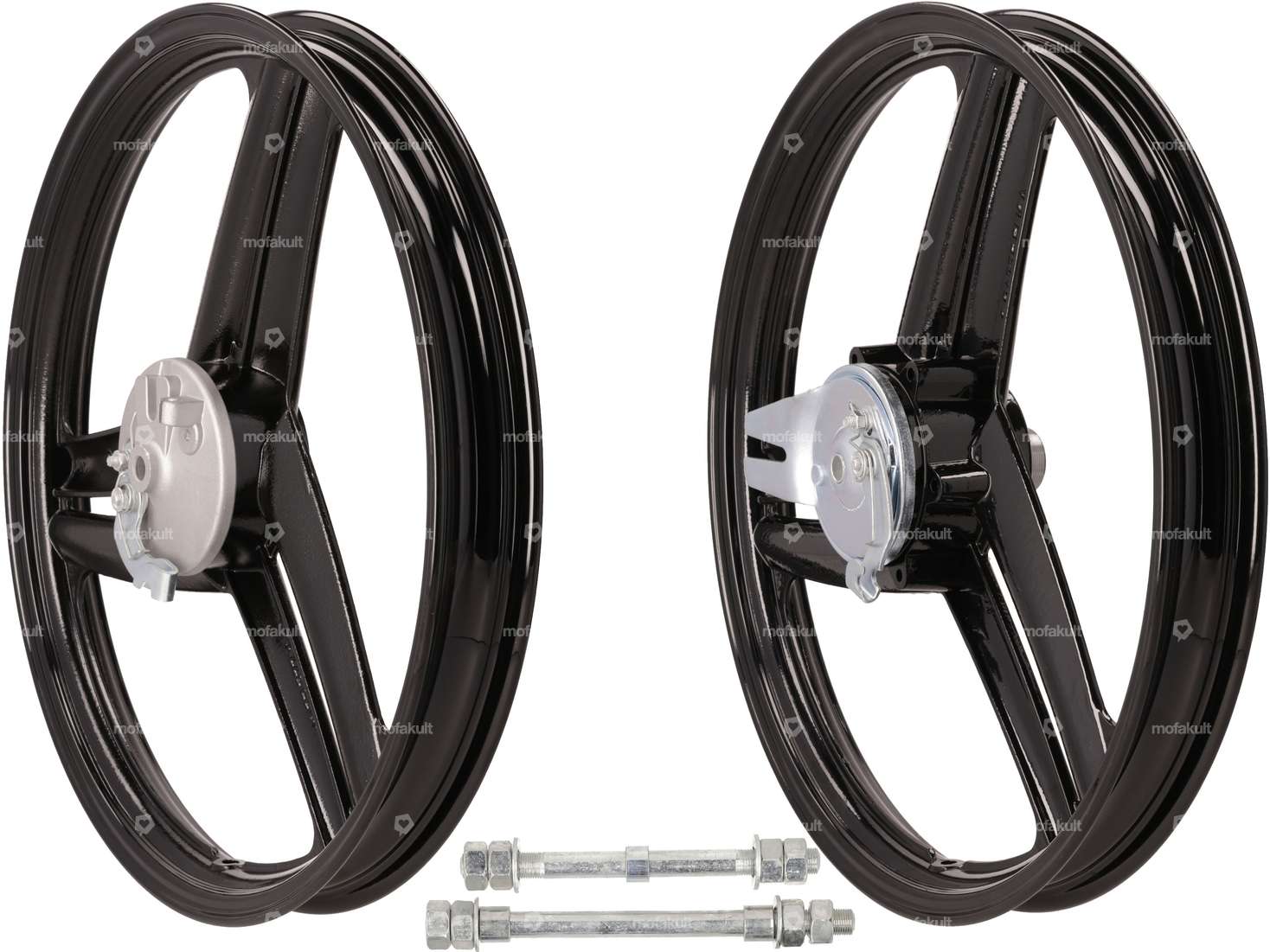

17 inch cast wheels front and rear with brake plate.
The aluminum rims are made to fit your Peugeot 103; fit with minor adjustments also under various other mopeds / mopeds / small motorcycles. Compare the dimensions listed below.
Ø outside: 457 mm

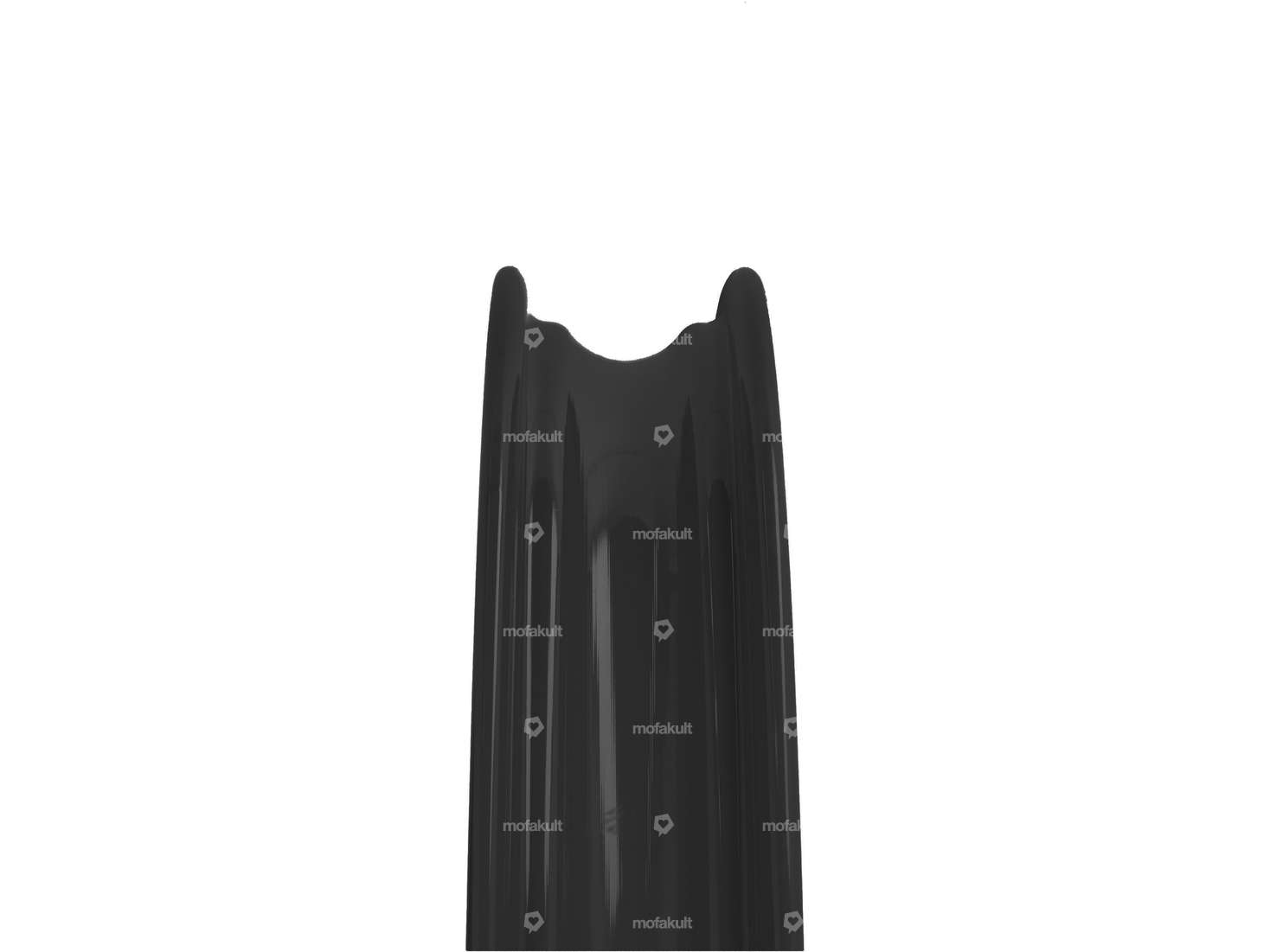

Rim width outside: 56 mm
Rim width inside: 40.6 mm (1.6”)
Ø inner bearing: 12 mm
Pitch circle sprocket mounting: 115 mm
Ø thread for freehub: 34.75 mm
Ø sprocket mount: 97.2 mm
Width of slot for brake cam: 8.25 mm

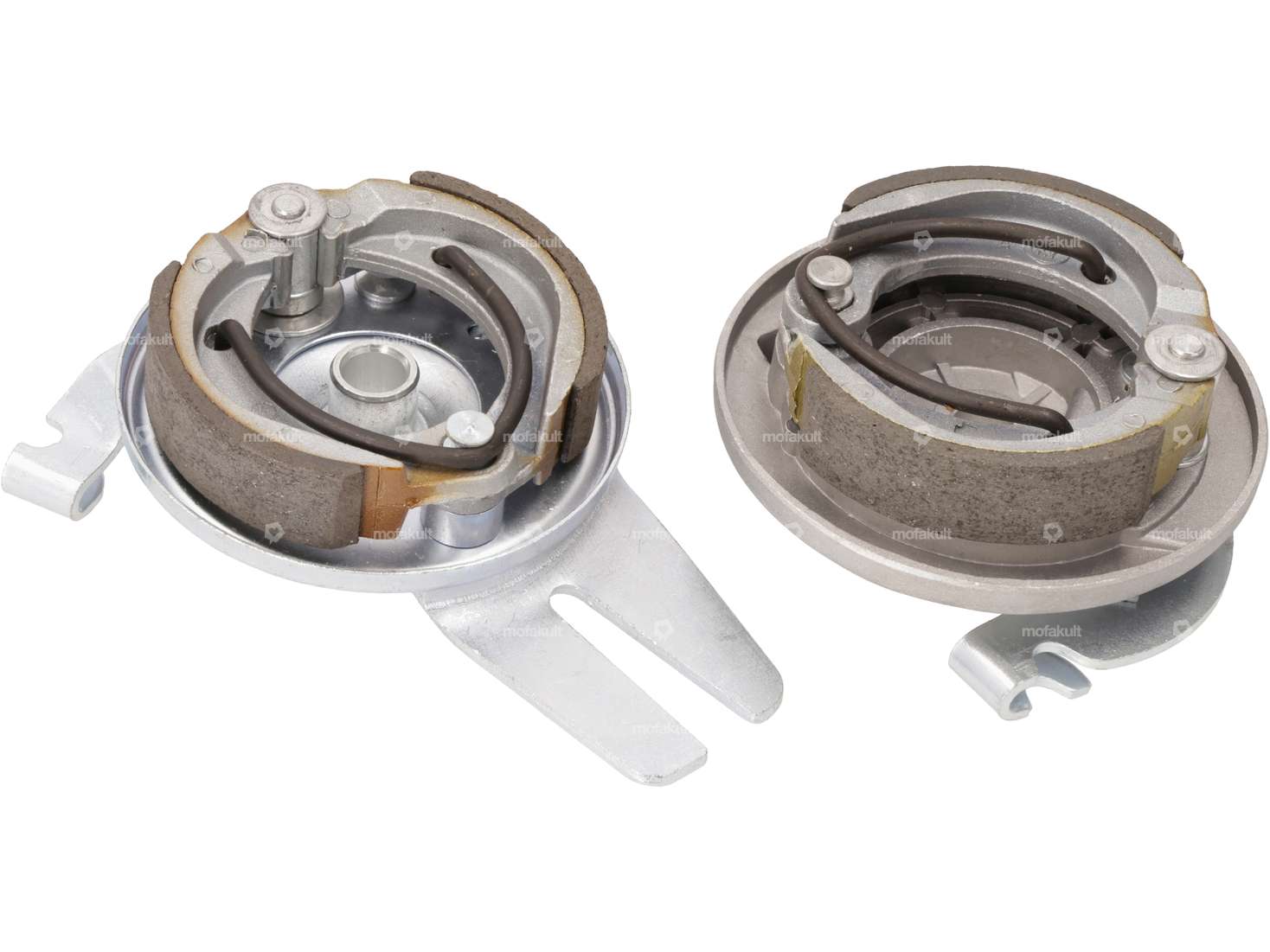

Ø brake drum f. / h.: 90 mm
Wheel axle length front: 155 mm
Wheel axle length rear: 185 mm
Note: The option to use a speedometer drive is unfortunately only possible with this rim combination with your technical skills.

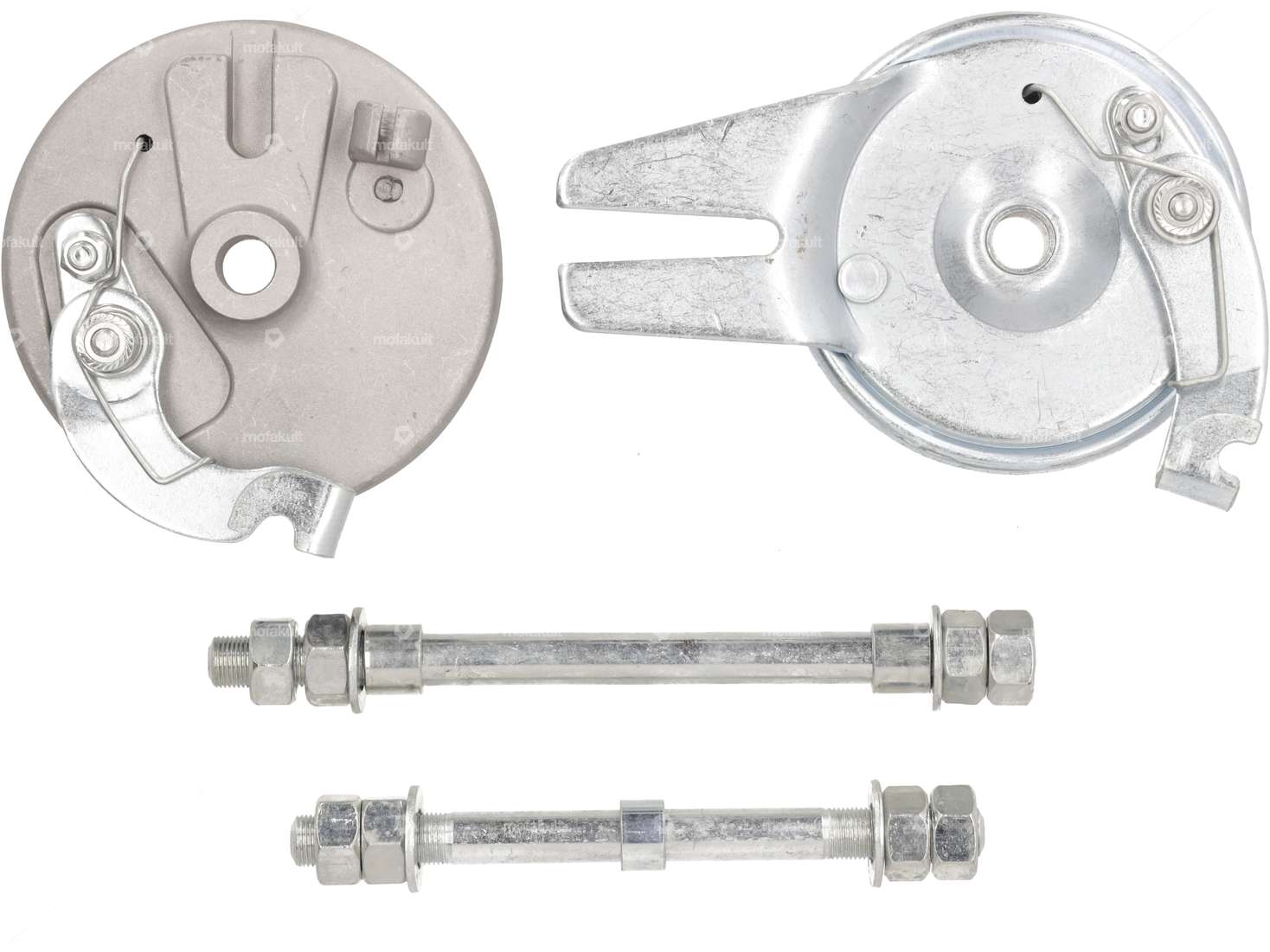

The wheel axle is also included in the scope of delivery and the ball bearings are already pressed in.
Sprockets, tires and hoses can be found under accessories.
| Material | Cast aluminum |
| Surface | powder-coated |
| Nominal diameter | 457 mm |
| Color | black |
| Rim well depth | 11.5 mm |
| Jaw width [inch] | 1.6 " |
| Ø Brake drum | 90 mm |
| Jaw width [mm] | 40.64 mm |
| Ø axle | 11.8 mm |
| Wheel size | 17 " |
| Overall width outside | 56 mm |
| Peugeot |
