Description

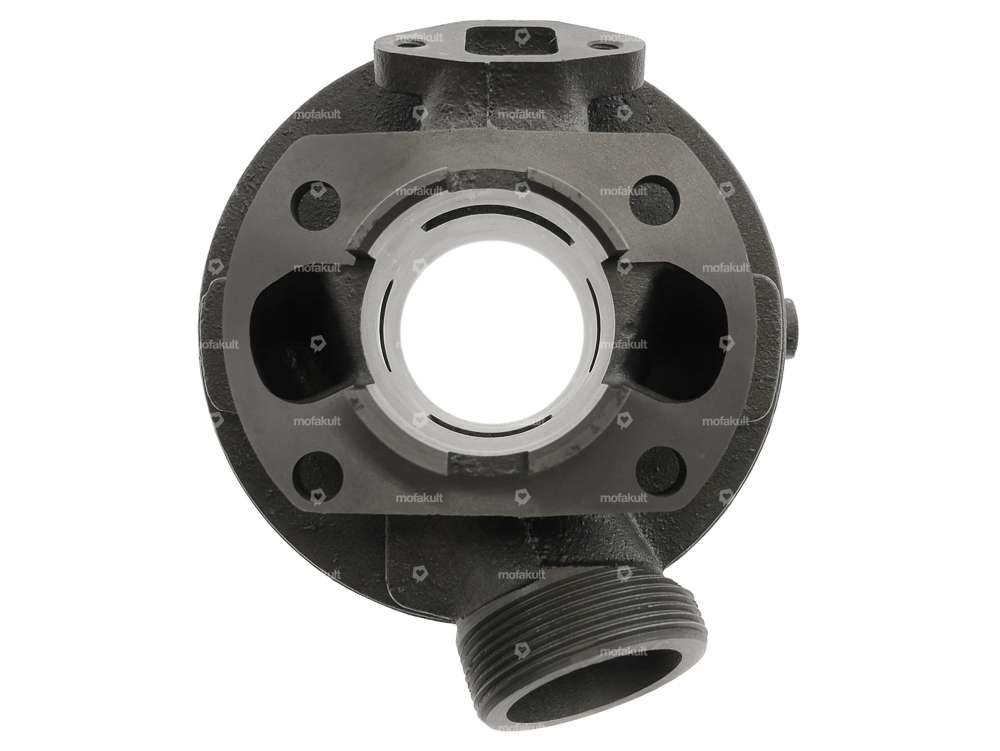

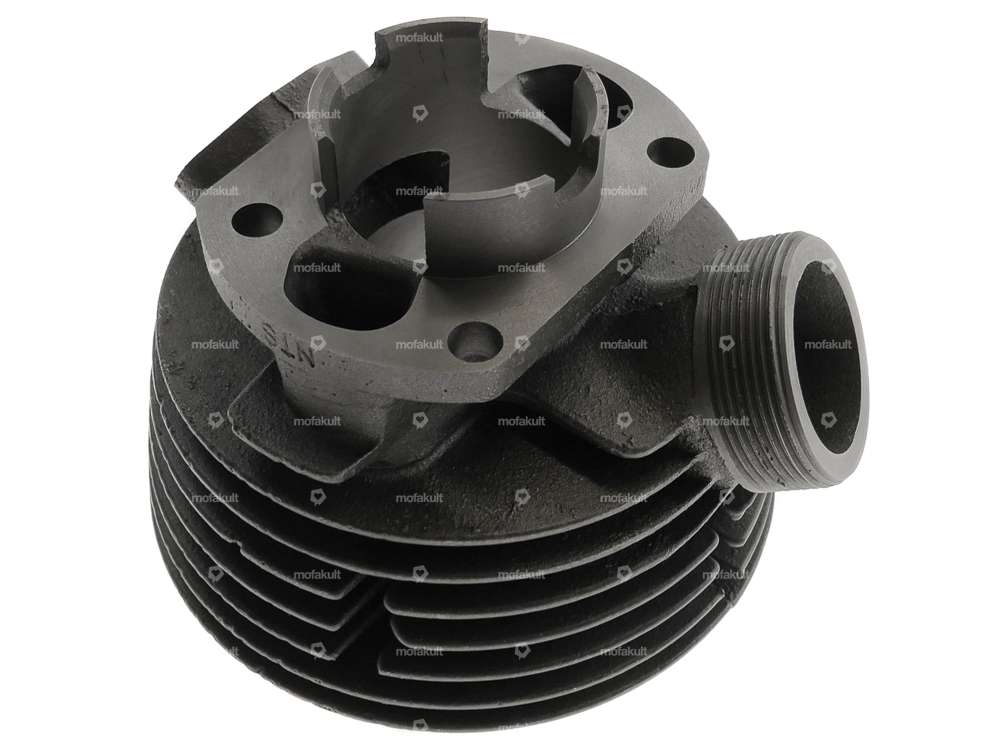

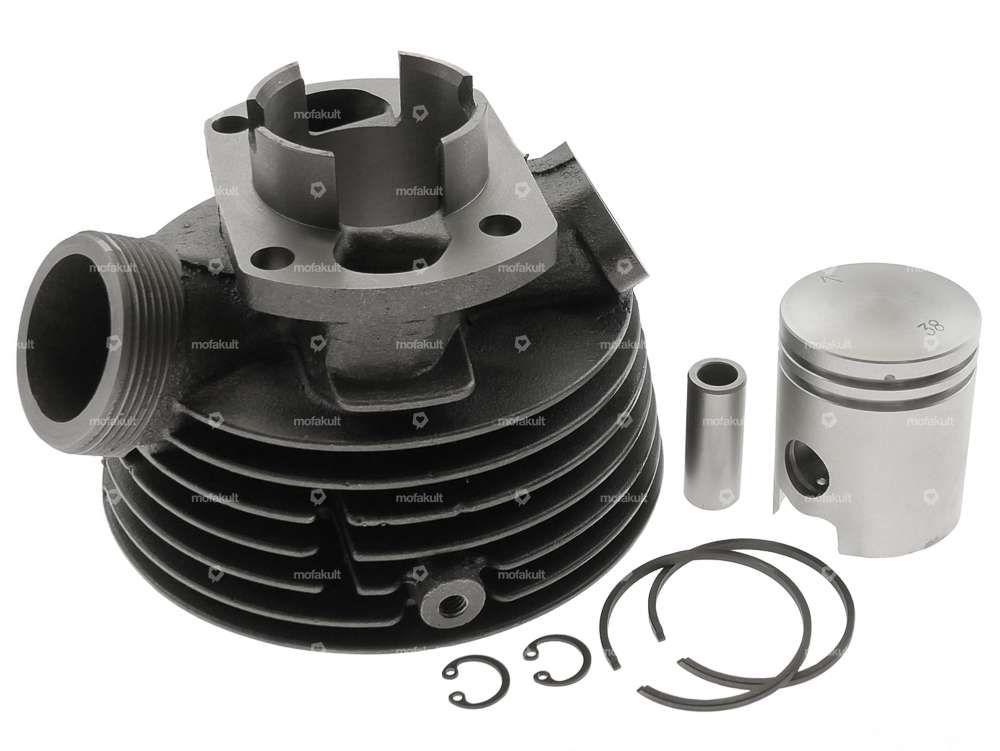

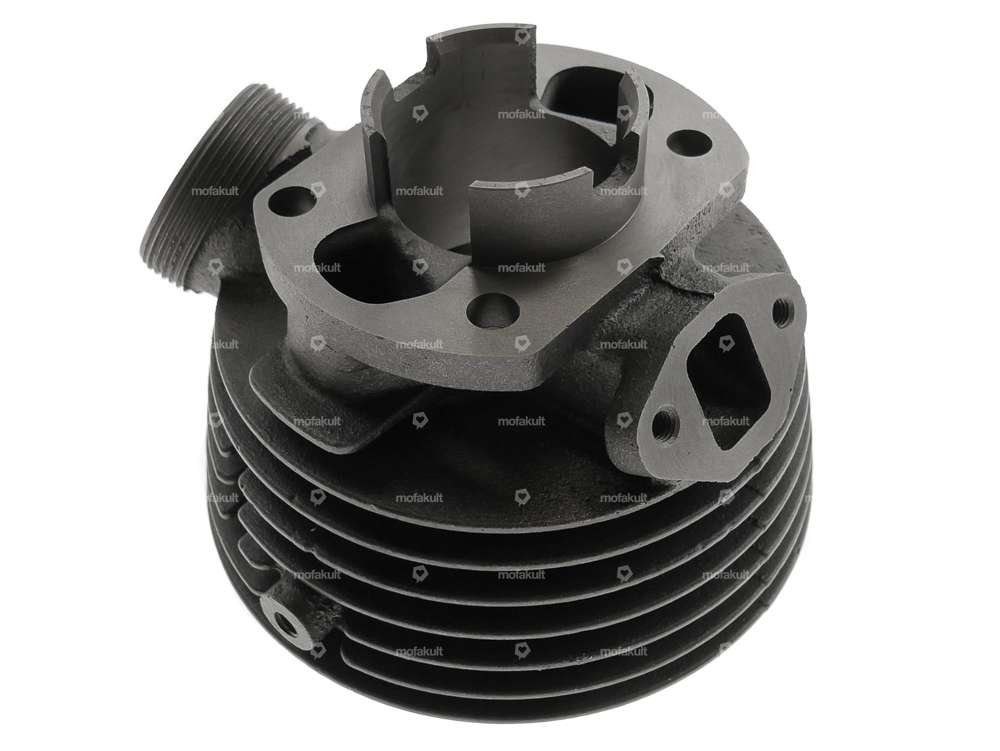

Complete cylinder kit for Sachs 3- and 4-speed engines with foot shift

Für 32 mm flame tubes with a M40x1.5 fixing nut.
Ø outside: 119 mm

Should be driven with a 17 mm Bing carburetor.

Note: Please note the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.

Details

Material	Gray cast iron
Camouflaged	No
Displacement	50 ccm
Area of application	Tuning
Crankshaft stroke	42 mm
Surface	sandblasted
Nominal diameter	38 mm
Thread inlet	M5x0.8 (standard thread)
Hole spacing inlet	31 mm
Ø piston pin (B)	12 mm

Number of fixing points	4 pcs
Outlet type	Union nut
Thread outlet	M35x2 (standard thread)
Hole pattern [mm]	51 x 40

Suitable for the following models

Sachs

50 (Fahrtwind, 1.25 / 1.5 hp, DE)

50/3

50/4 - MLFB (2.6 PS) , LKH (4.5 PS)
