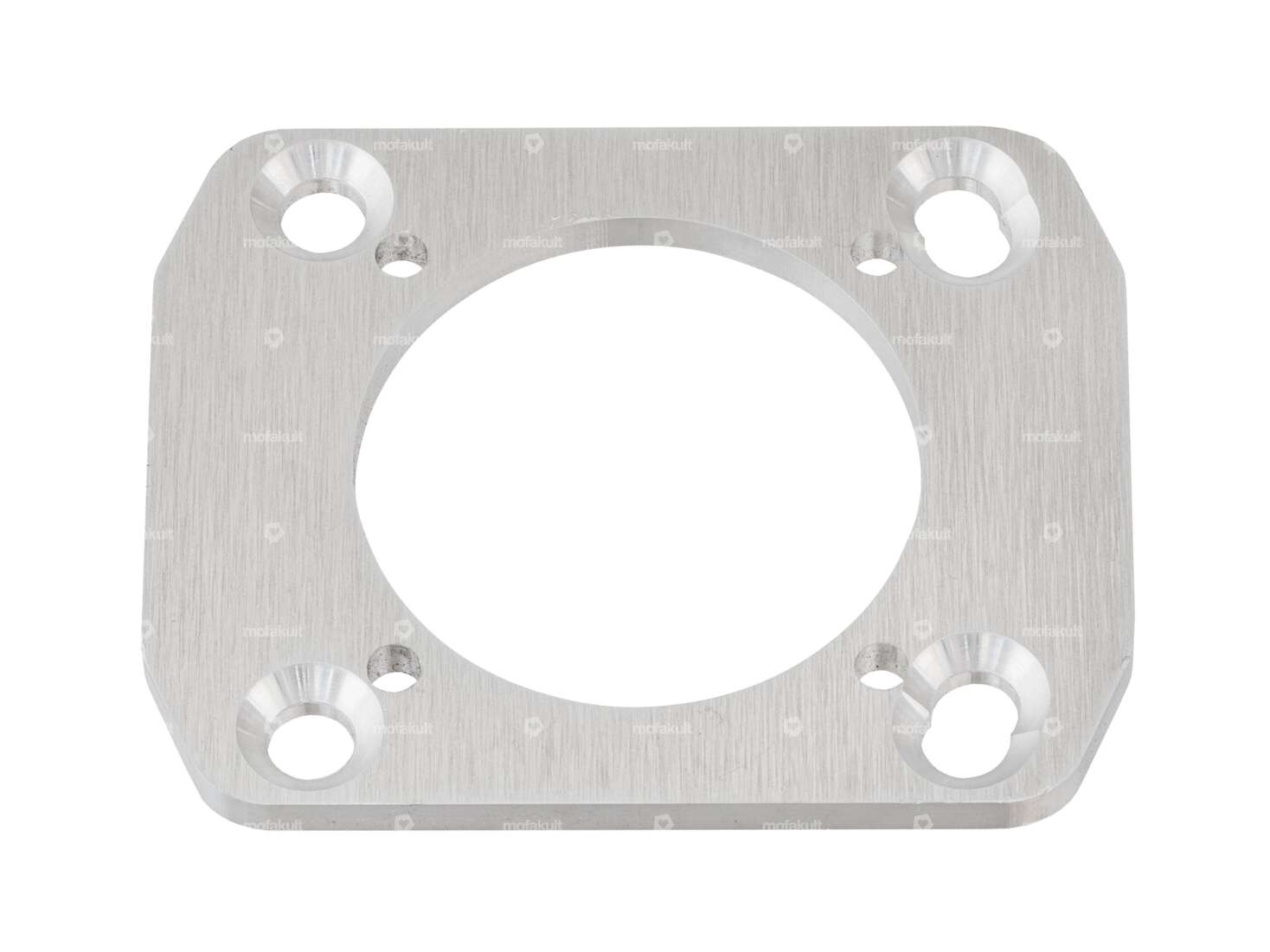

Aluminum adapter plate for Sachs 508, 535 engines to mount Puch cylinders on these engines.
The 5 mm thick spacer is screwed onto the old stud bolts.
In place of the holes, threads are cut for the stud bolts of the Puch cylinders. We recommend using helicoil threaded inserts.
The cut-outs for the overriders still need to be cut out.
Pin hole pattern Sachs: 59 x 56 mm / 59 x 56/49 mm
Puch pin hole pattern: 44 x 44 mm
Attention: This lifting plate is only suitable for skilled screwdrivers. Depending on the model, further adjustments may be necessary on the engine.
| Thickness | 5 mm |
| Material | Aluminum |
| Hole pattern [mm] | Sachs 59 x 56 / 59 x 56 / 49, Puch 44 x 44 |
| Sachs | 508 - 1 A 535 |
