For: Piaggio

20269

Athena piston 43mm (10 mm KoBo) #A | Piaggio Ciao, SI, Bravo, Boxer

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 77.10

Incl. 23% VAT.

Description

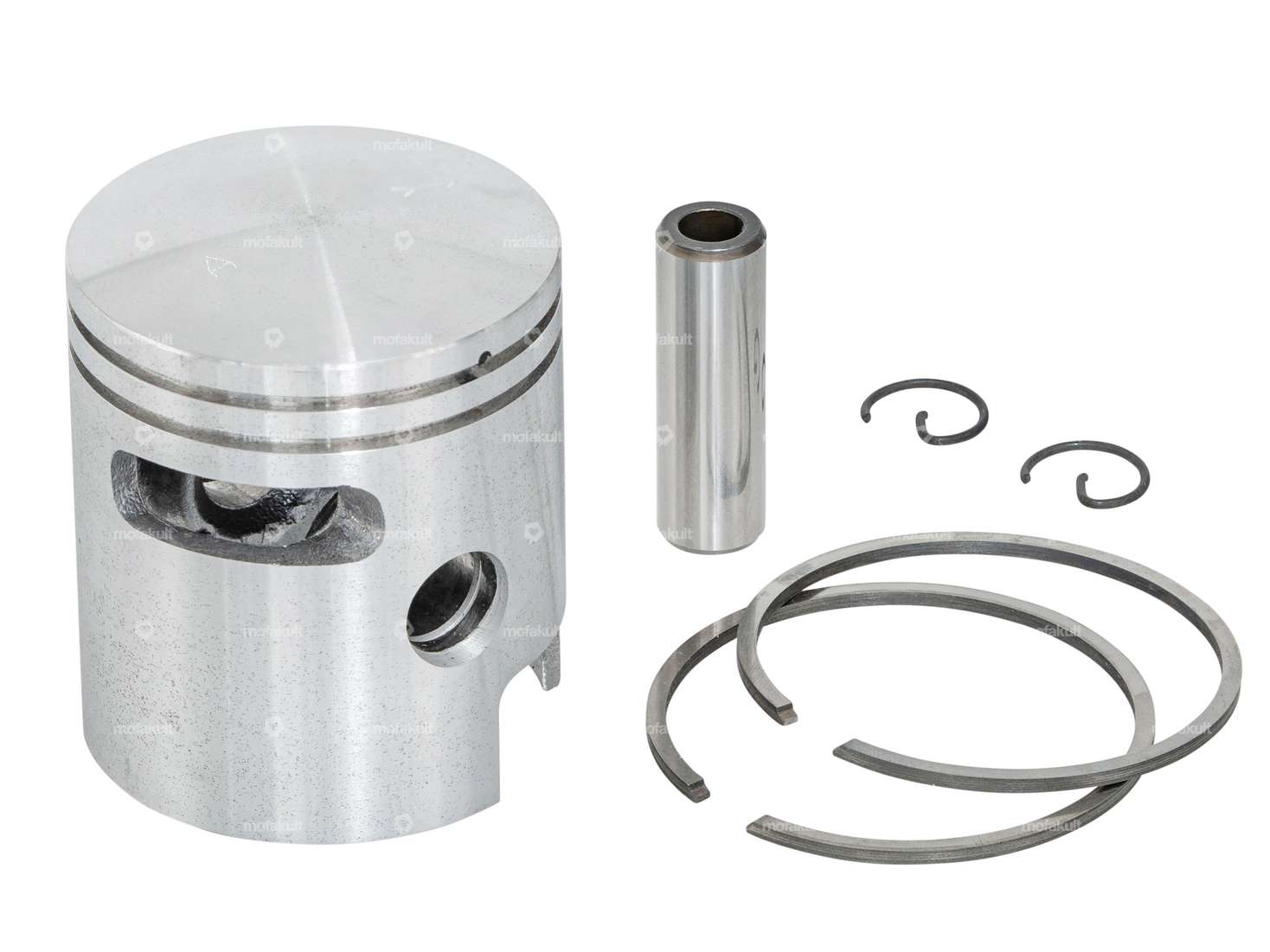

43 mm replacement piston with two 1.5 mm rectangular piston rings with flank lock (FS) for Piaggio Ciao, Si, Bravo and Boxer mopeds / mopeds with 43 mm Athena cylinder kit.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter43 mm
ManufacturerAthena
Ø outside piston (A)42.9 mm
Ø piston pin (B)10 mm
Compression height (C)26.52 mm
Curvature (D)2.4 mm
Total piston height (E)50.4 mm
Number of piston rings (F)2 pcs
Piston ring moldRectangular ring
Piston ring impactFlank safety device (FS)
Piston ring height1.5 mm
Tolerance groupA
Weight piston kit87 g
Piaggio

Ciao - P , SC , PX , C24

Si

Bravo / Super Bravo

Boxer

Grillo
