For: Piaggio

20270

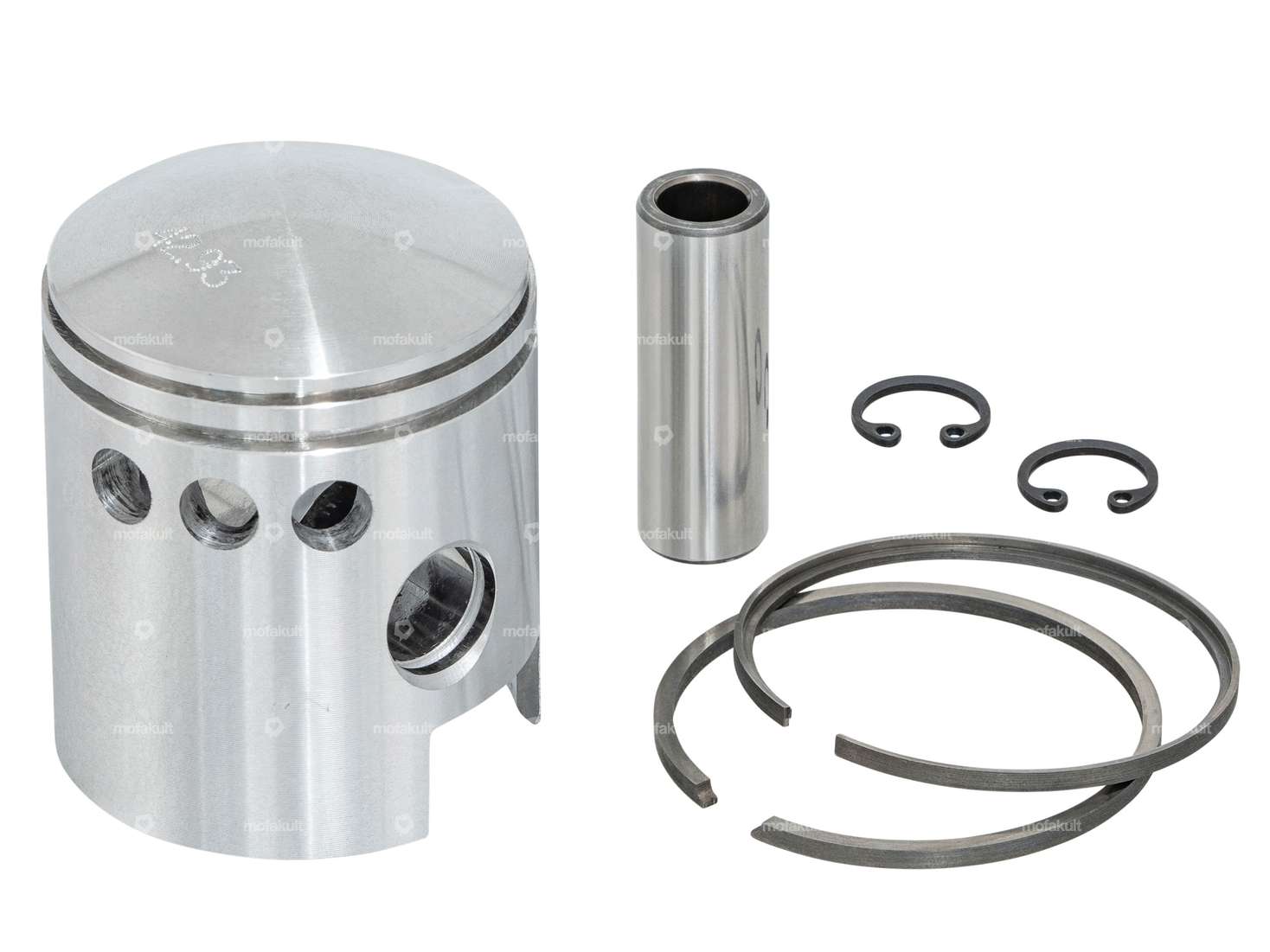

Athena piston 43 mm (12 mm KoBo) #A | Piaggio Ciao, SI, Bravo, Boxer

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 77.10

Incl. 23% VAT.

Description

43 mm replacement piston with one 2 mm L-shaped piston ring with internal circlip (IS) and one rectangular piston ring with flank circlip (FS) for Piaggio Ciao, SI, Bravo, Boxer mopeds / mopeds with 43 mm Athena cylinder kit.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.

Nominal diameter43 mm
ManufacturerAthena
Ø outside piston (A)42.93 mm
Compression height (C)26.25 mm
Curvature (D)4 mm
Total piston height (E)52.6 mm
Number of piston rings (F)2 pcs
Piston ring moldL-ring, Rectangular ring
Piston ring impactInternal fuse (IS), Flank safety device (FS)
Piston ring height2 mm
Ø piston pin (B)12 mm
Tolerance groupA
Piaggio

Ciao - P , SC , PX , C24

Si

Bravo / Super Bravo

Boxer

Grillo
