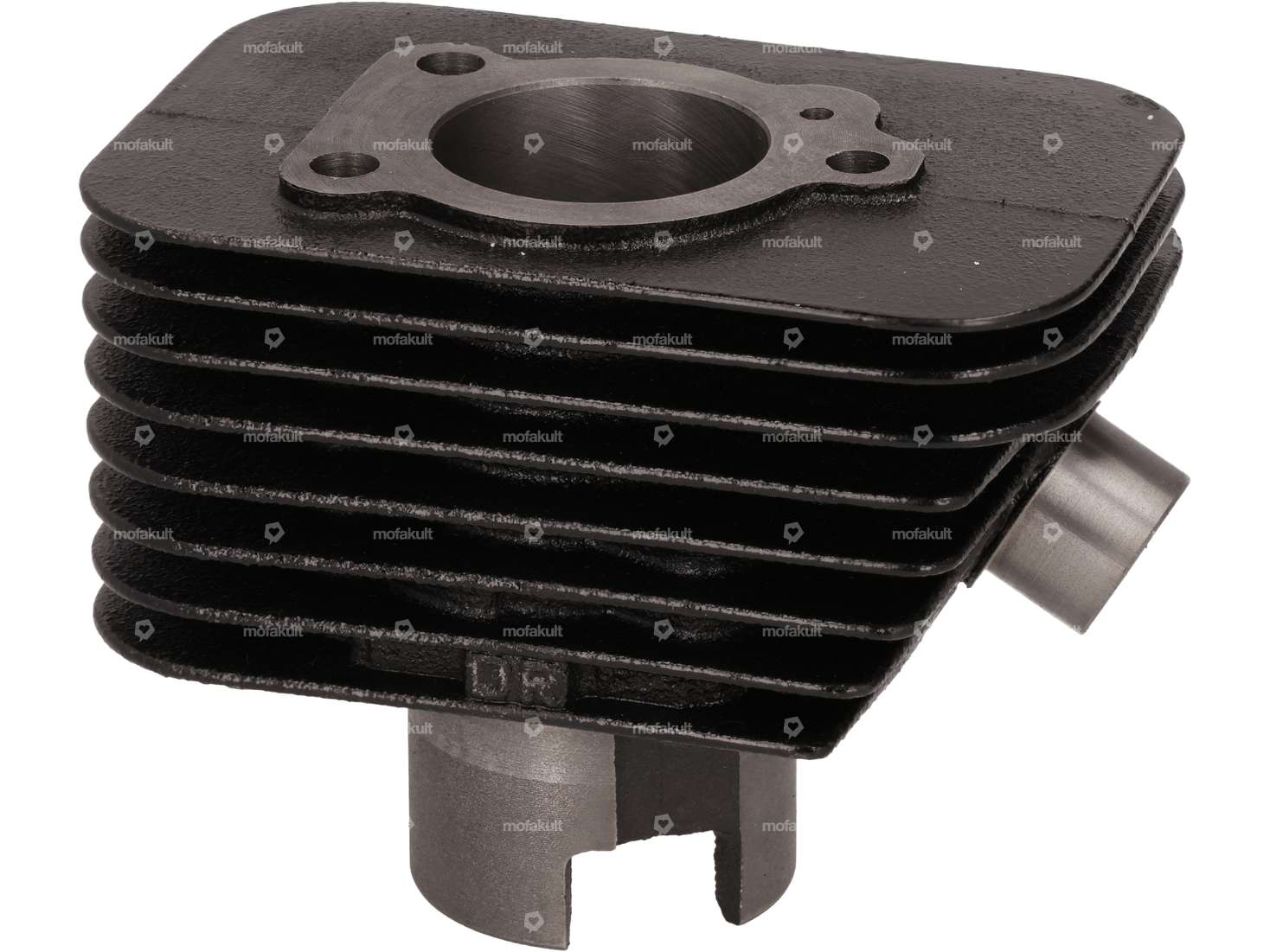

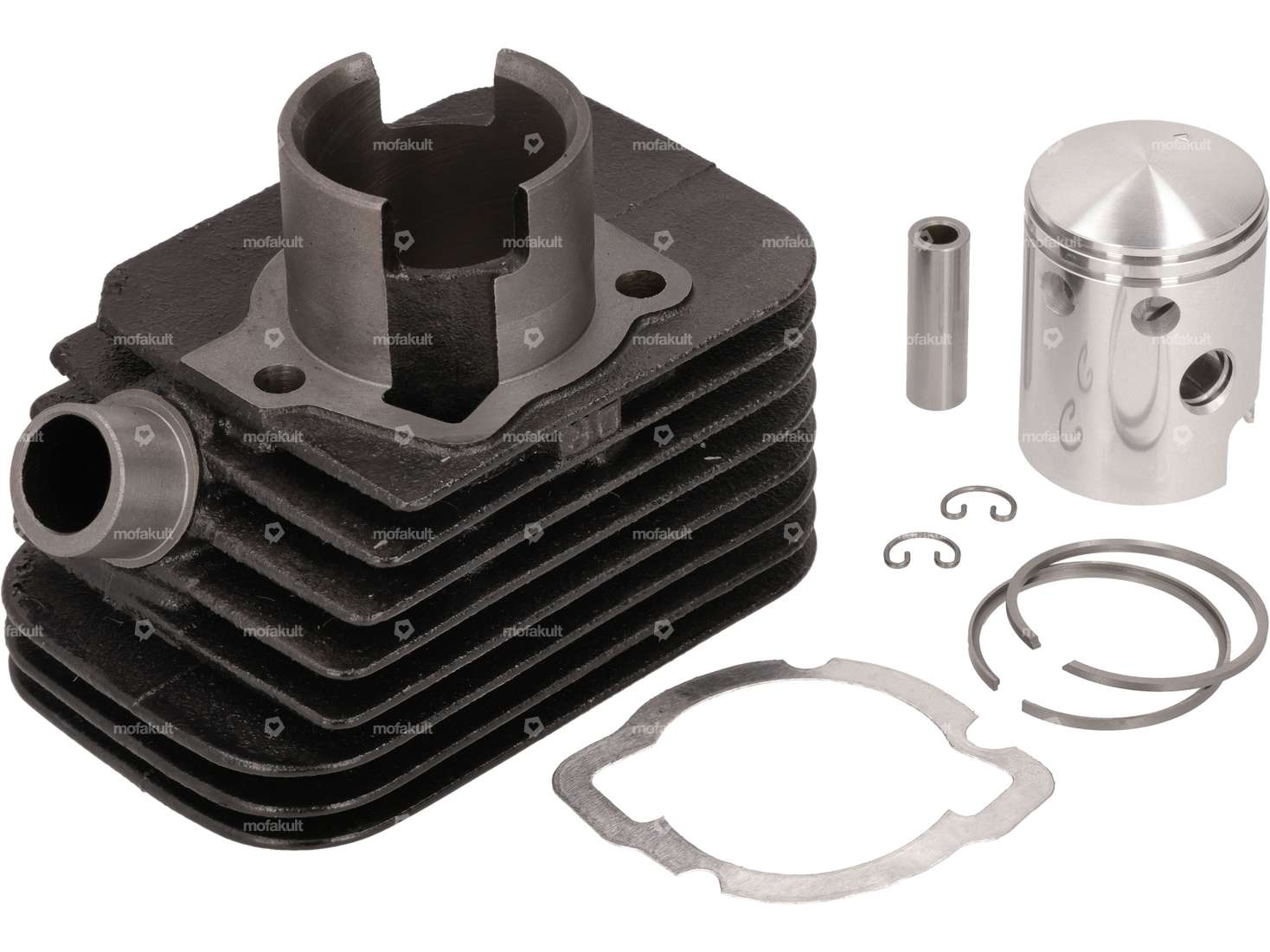

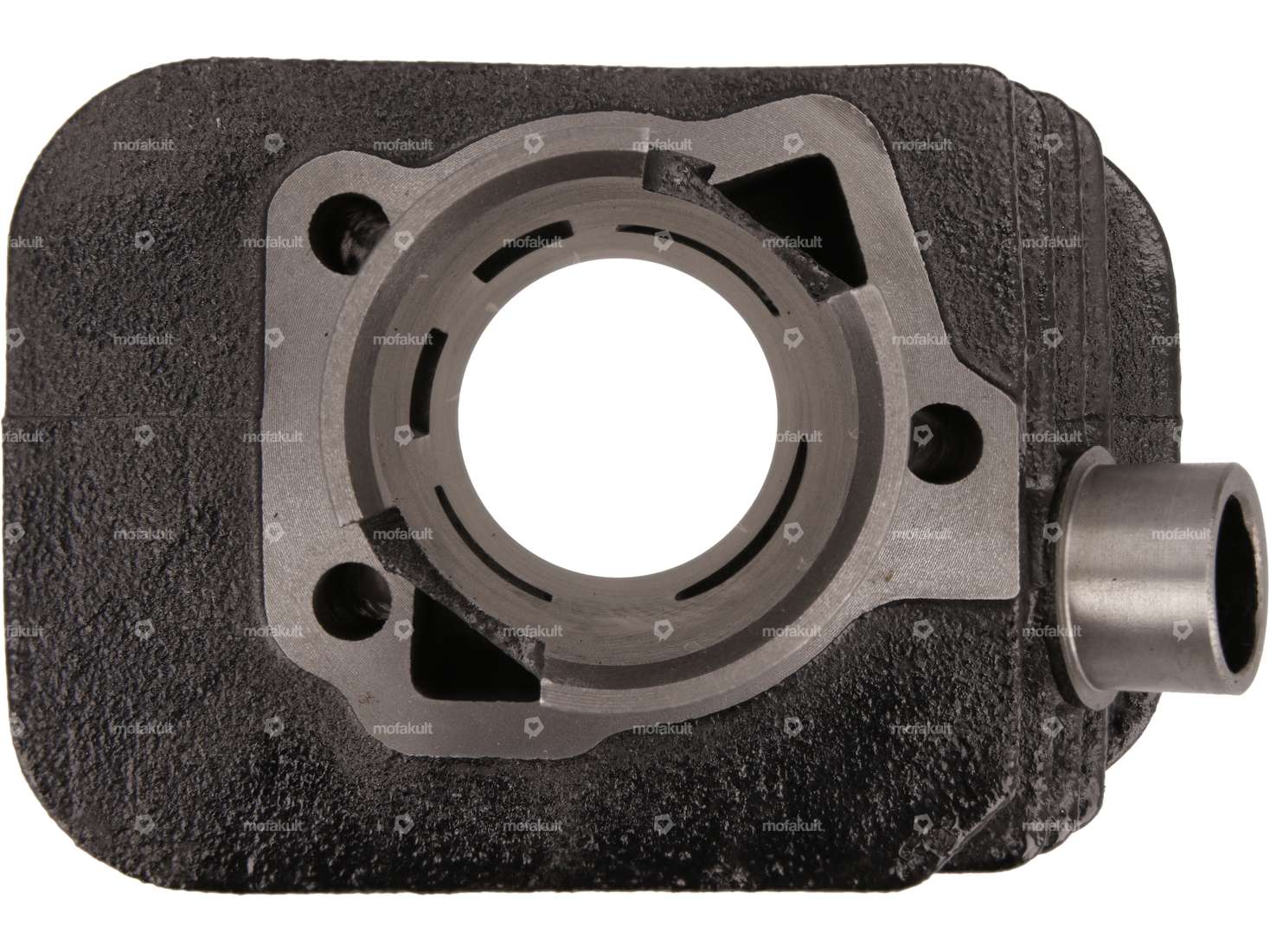

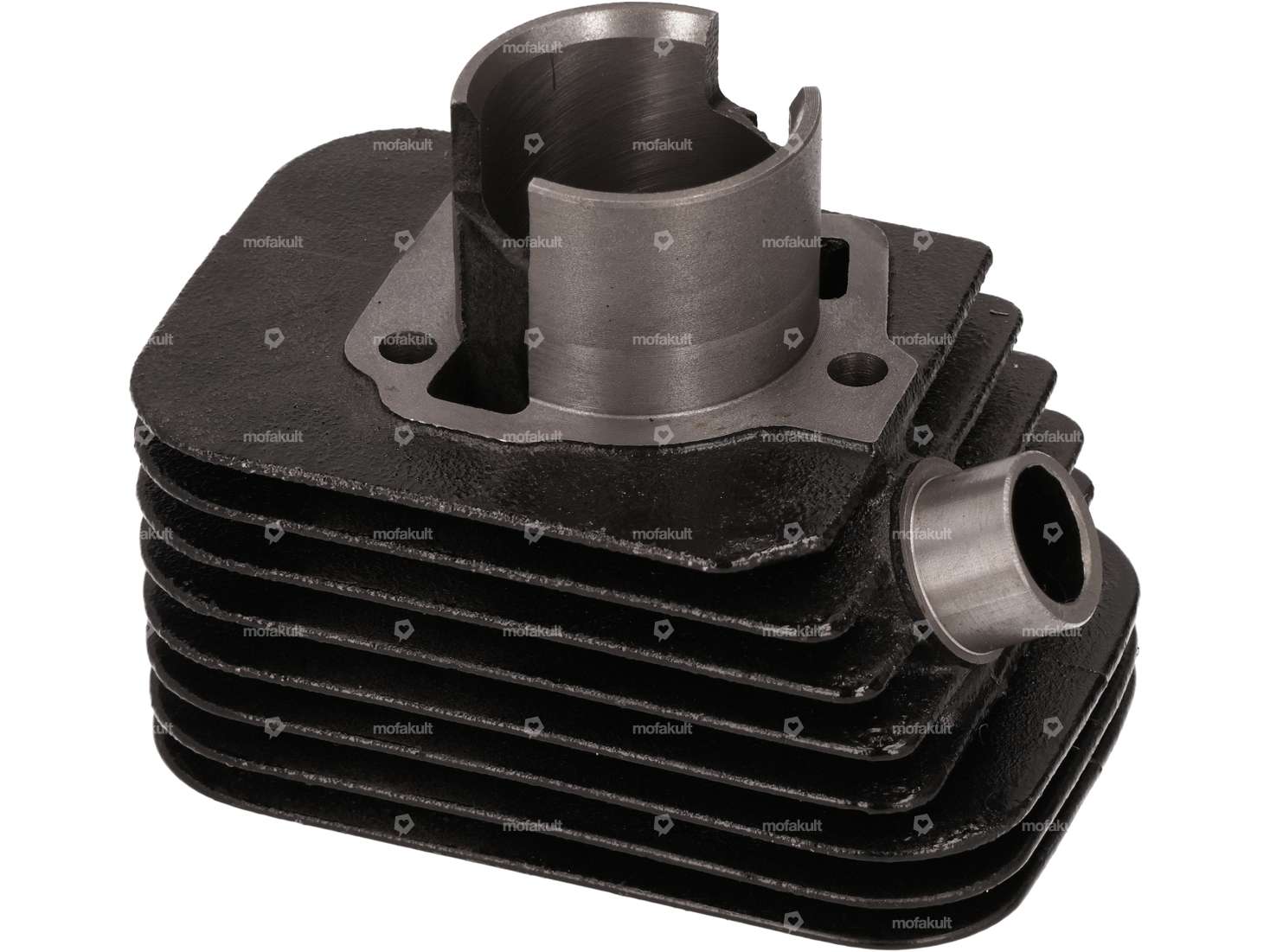

DR 38.4 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nut M7 Inox

Material: Chrome steel (colloquially known as stainless steel) · Nut type: Hexagon nut · Drive: External hexagon · Thread type: M7x1 (standard thread) · Height: 5.5 mm · Width across flats: 11 mm · Piaggio OEM number: 020107, 1107, 226745

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Contents: 1000 ml · Color: green

Stud bolt M7 x 120 (budget)

Material: Steel · Surface: galvanized (blue) · Total length: 120 mm · Thread type: M7x1 (standard thread) · Thread length: 25 mm

38 mm cylinder head (reproduction) | Piaggio Ciao, Bravo, Boxer

Ø cylinder: 38 mm · Total length: 120 mm · Width: 78 mm · Height: 62 mm · Decompressor: Yes

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Bearing cage: Sheet steel cage · Ø inside: 13 mm · Manufacturer: Malossi · Ø outside: 1 mm · Bearing type: Needle roller and cage assembly · Width: 14.5 mm · Dimension needle bearing: 10/13 x 14.5

Gasket cylinder base aluminum original | Piaggio Ciao, SI, Bravo, Boxer

Thickness: 0.25 mm · Material: Aluminum · Area of application: Original · Place of use: Cylinder base

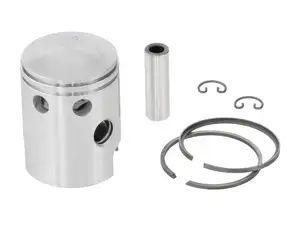

DR piston Ø 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 38.4 mm · Manufacturer: DR Racing Parts · Ø outside piston (A): 38.33 mm · Compression height (C): 26.4 mm · Curvature (D): 3.8 mm · Total piston height (E): 52.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 10 mm · Weight piston kit: 78 g

NGK B5HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Thread type: MF14x1.25 (fine pitch thread) · Width across flats: 21 mm

swiing® revival 0.3 mm cylinder base gasket | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Place of use: Cylinder base · Material: Oiled paper · Ø cylinder: 38 - 43 mm · Ø inside: 46 mm · Thickness: 0.3 mm · Piaggio OEM number: 182519

swiing® revival nozzle set M5 (50 - 70) Dell'Orto SHA, PHBG

Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Total length: 8 mm · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 50 · Nozzle size: 52 · Nozzle size: 55 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70

EFFE breaker without cable | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: EFFE · Ø axle: 5 mm · Number of fixing points: 1 pcs · Material: Steel · Area of application: Original · Area of application: Standard · Cable available: No · Ø mounting hole: 4.5 mm · Piaggio OEM number: 103133

SITO exhaust Ø 20 mm | Piaggio Ciao, Bravo

Manufacturer: SITO · Material: Steel · Surface: varnished · Color: black · Ø Silencer: 65 mm · Ø Internal connection: 22.5 mm · Mounting type: Welded lug · Ø Flame tube outside: 20 mm · Exhaust type: Cylindrical · Total length: 605 mm · Flame tube attachment: Plug connection clamped · Number of fixing points: 1 pcs

38 mm cylinder head (reproduction) | Piaggio Ciao, Bravo, Boxer

Ø cylinder: 38 mm · Total length: 120 mm · Width: 78 mm · Height: 62 mm · Decompressor: Yes

Wedge 12.1x4.9x3 mm

Material: Steel · Width: 3 mm · Height: 4.9 mm · Total length: 12.5 mm

Air filter 2 hp replica | Piaggio Ciao, SI, Bravo, Boxer

Material: Plastic · Area of application: Standard · Camouflaged: Yes · Color: black · Width: 98 mm · Height: 93 mm · Filter type: Grille · Ø Internal connection: 49.5 mm · Mounting type: Plug connection clamped · Ø outside: 52 mm

Dell'Orto 12/12 SHA carburetor hand choke | Piaggio Ciao PX, C24

Nominal diameter: 12 mm · Manufacturer: Dell'Orto · Material: Aluminum · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: SHA (Piaggio) · Ø fuel hose connection: 5.1 mm · Ø fuel hose connection: 6 mm · Width: 60 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 12 mm · Ø Internal connection: 16 mm · Ø Output inside: 12 mm · Mounting type: Plug connection clamped · Ø Air filter connection: 50.6 mm · Total length: 55 mm · Mixed oil connection: No · Vacuum connection: No · Height: 110 mm · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Camouflaged: No · Nozzle size: 48 · Area of application: Tuning

SITO Exhaust Plus Ø 22 mm | Piaggio SI, KS, FL2, Boss

Manufacturer: SITO · Material: Steel · Color: black · Number of fixing points: 1 pcs · Mounting type: Welded lug · Ø Flame tube outside: 22 mm · Exhaust type: Cylindrical · Flame tube attachment: Plug connection clamped

DR 38 mm everyday tuning set | Piaggio Ciao, SI

Manufacturer: DR Racing Parts · Manufacturer: Dell'Orto · Manufacturer: NGK · Manufacturer: SITO · Material: Gray cast iron · Displacement: 50 ccm · Nominal diameter: 38 mm
