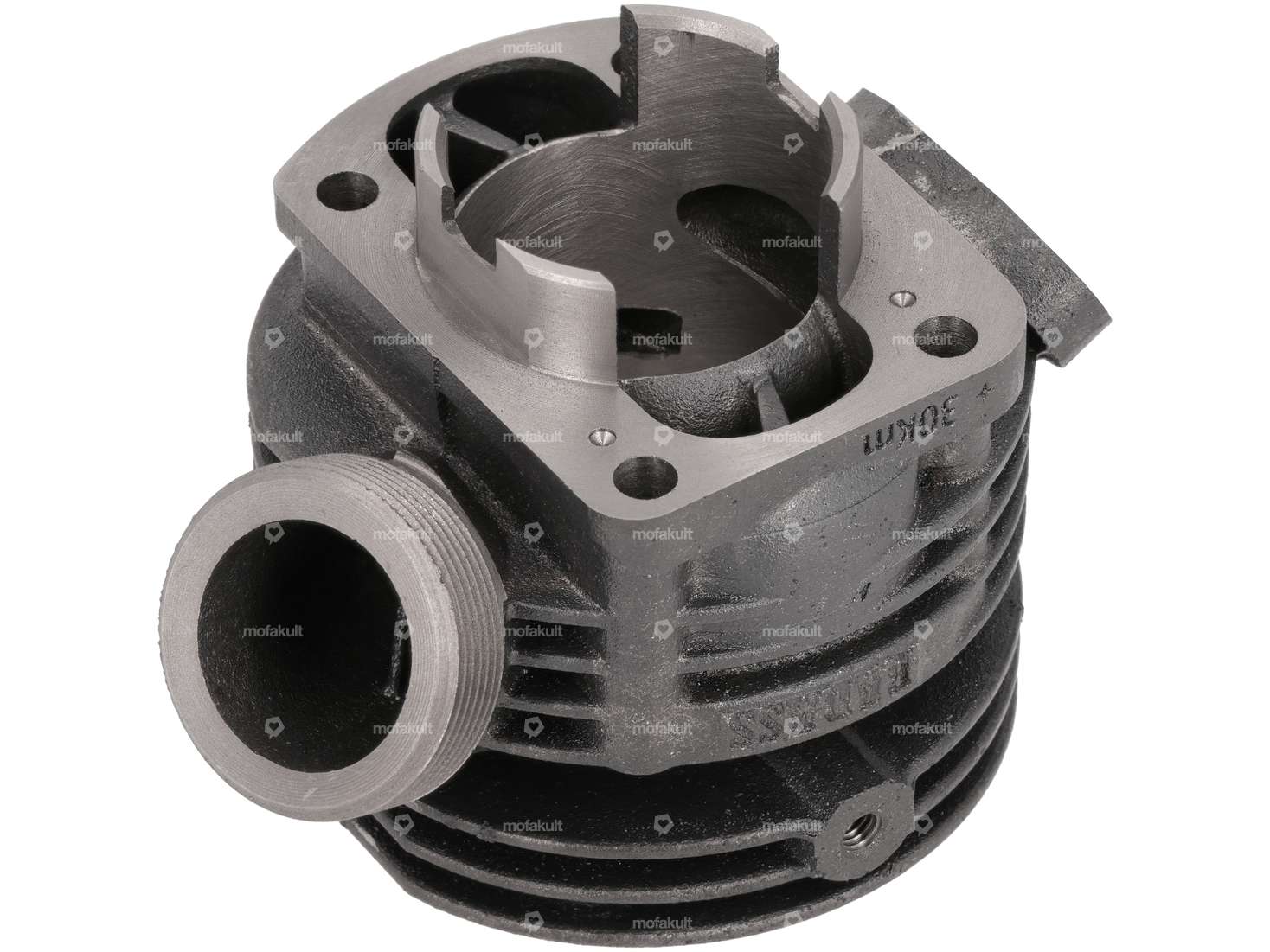

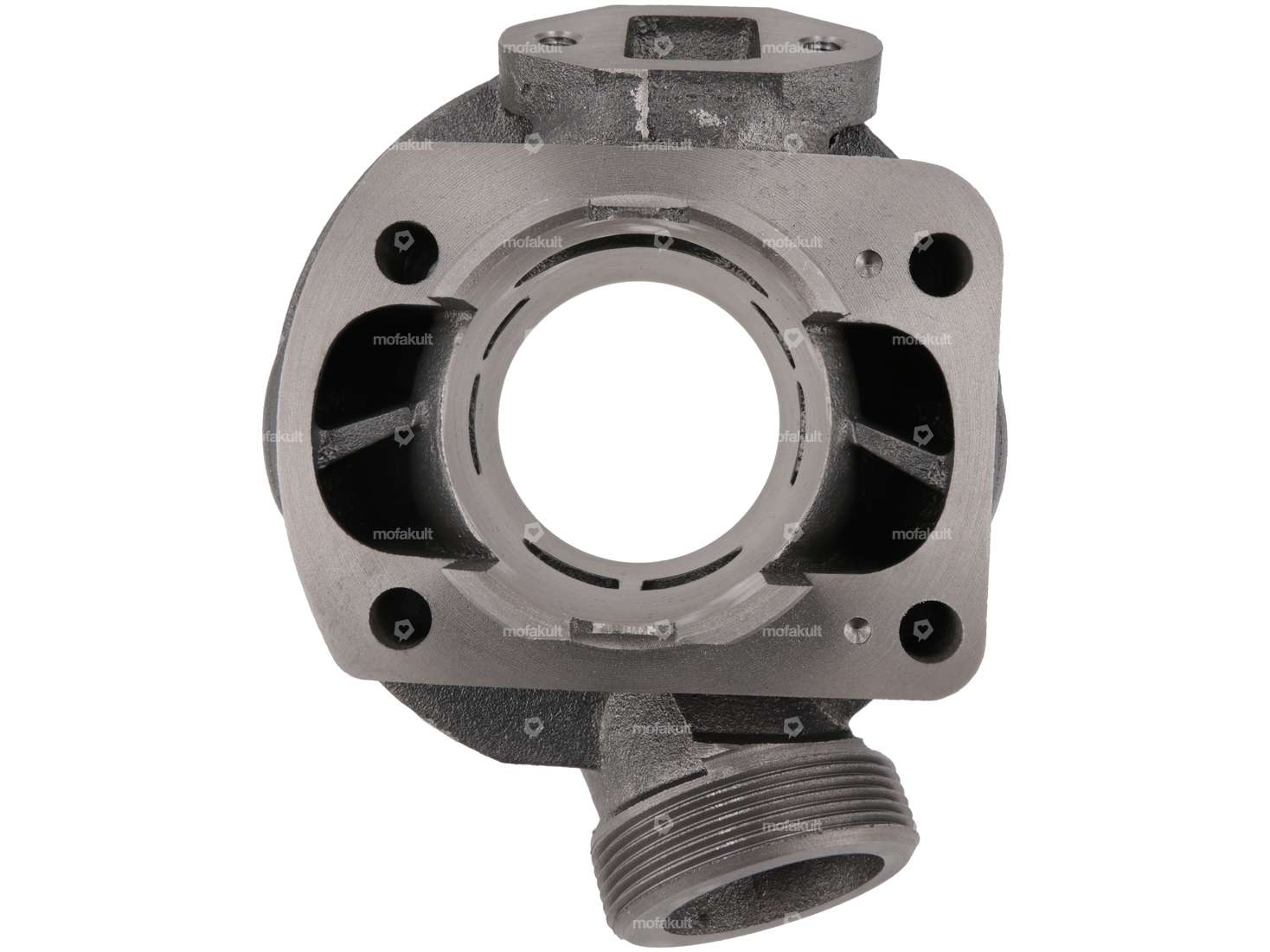

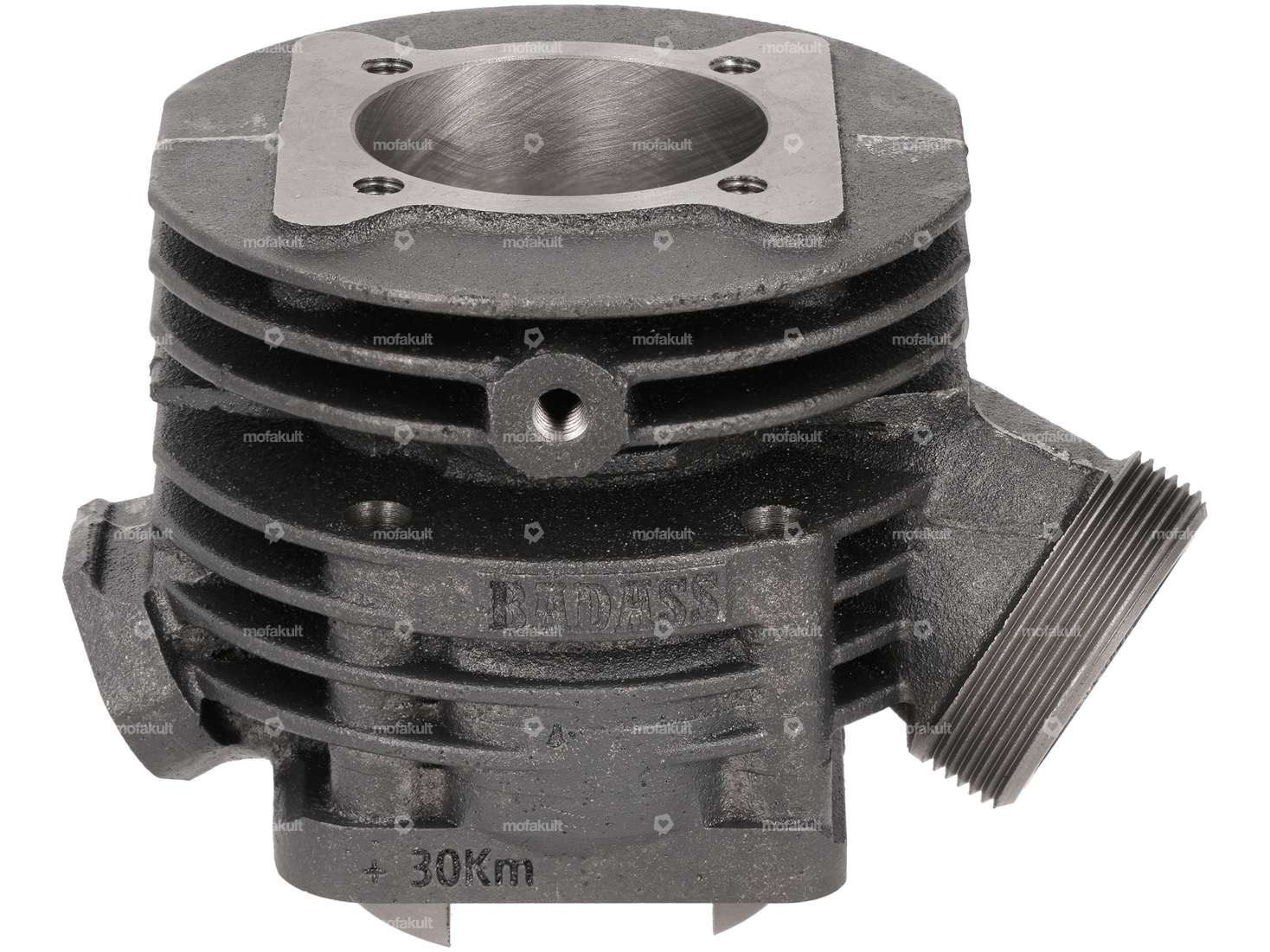

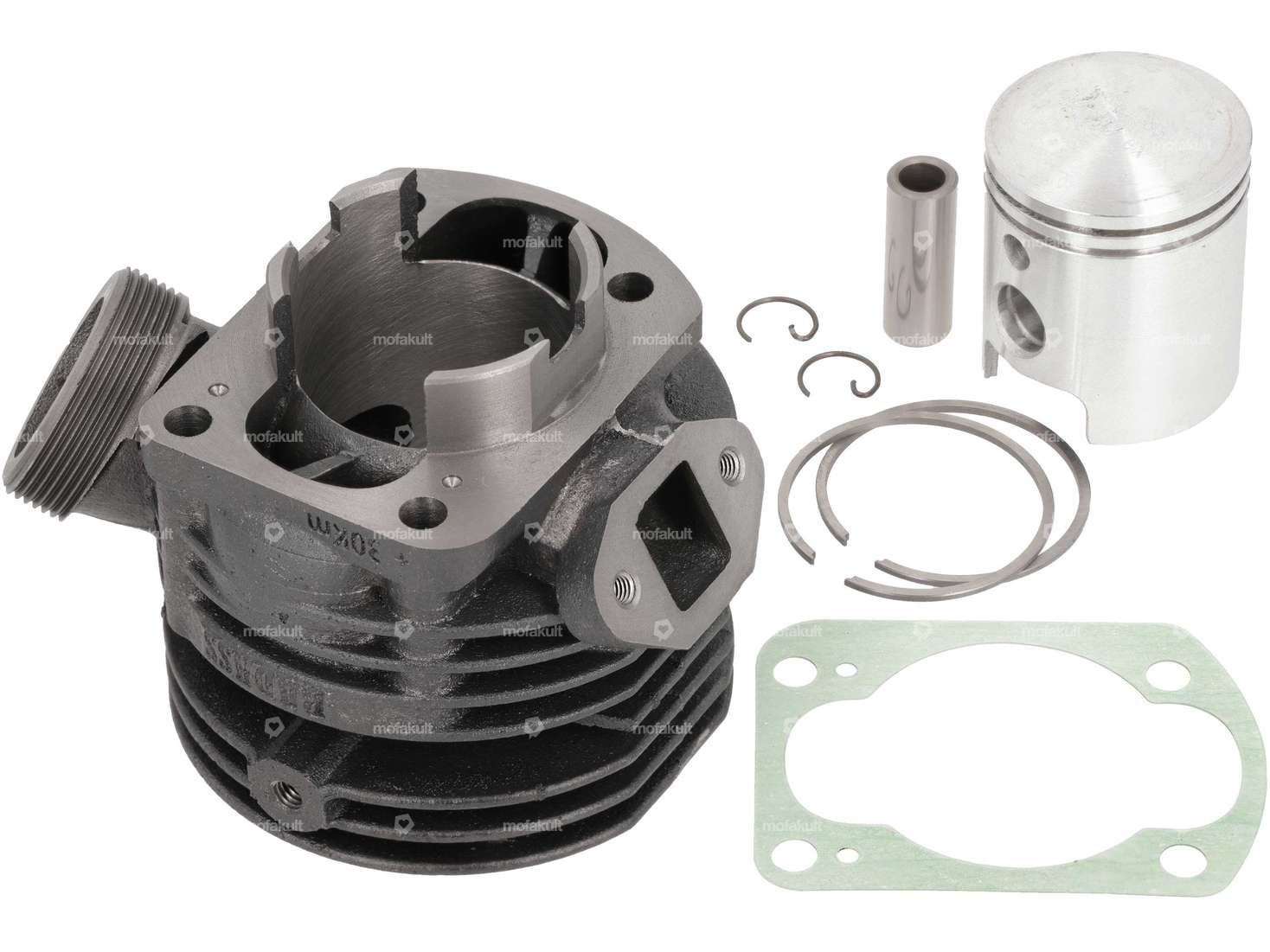

Blade-cooled 43 mm (61 cc) cylinder kit with 12 mm piston pin, suitable for your Sachs 50, 502, 50/2, 50/3, 50/4 moped / moped.
The timing of the cylinder was kept rather low, which is characterized by a very nice torque in the lower speed range.
The racing cylinder kit without sealing includes cylinder & piston kit without gaskets.
- Grey cast iron tuning cylinder with & 43.0 mm bore
- Slot-controlled
- 17x15 mm intake, 31 mm stud spacing
- Optimized overflow channels
- 2-piece outlet
- Improved control times
- No spindling of the engine housing necessary (Ø cylinder neck 46.0 mm)
- Exhaust thread: M40 x 1.5 mm
- Hole pattern for stud bolts: 60 x 40 mm for CH engines
- Pre-drilled hole pattern for stud bolts: 51 x 40 mm for DE engines
- Cylinder head hole pattern: 37 x 37 mm
- Incl. Ø 43 mm piston from the Italian manufacturer -GOL-
Note: 60 mm long M6 stud bolts must be used to install the cylinder.
Full installation instructions are included.
Corresponding accessories such as gaskets, cylinder head, exhaust system etc. can be found in the accessories section.
Made by the BADASS brand.
Details
| Nominal diameter | 43 mm |
| Manufacturer | BAD ASS |
| Material | Gray cast iron |
| Displacement | 61 ccm |
| Crankshaft stroke | 42 mm |
| Ø cylinder neck | 46 mm |
| Ø Outlet outside | 40 mm |
| Ø outlet inside | 28 mm |
| Inlet window | 17 x 15 mm |
| Thread inlet | M5x0.8 (standard thread) |
| Number of fixing points | 4 pcs |
| Area of application | Tuning |
| Hole spacing inlet | 31 mm |
| Ø piston pin (B) | 12 mm |
| Outlet type | Union nut |
| Thread outlet | MF40x1.5 (fine pitch thread) |
| Hole pattern [mm] | 60 x 40 / 51 x 40 / 37 x 37 |
| Camouflaged | No |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) |
Accessories & related products
swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Thread length: 6 mm · Thread length: 12 mm · Total length: 23 mm · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102
EUR 2.20
swiing® revival bolt set cylinder head galvanized | Sachs 503 / 50/2 / 50/3 / 50/4
Total length: 34 mm · Manufacturer: swiing® revival parts · Area of application: Standard · Material: Steel · Surface: galvanized (blue) · Color: silver · Drive: External hexagon · Thread type: M6x1 (standard thread) · Number of components: 12 pcs · Thread length: 22 mm · Screw head: Hexagon · Width across flats SW: 10 mm · Shank: Yes · Shank length: 8 mm · Ø shaft: 5.85 mm · Strength class: 10.9
EUR 5.90
swiing® ingenious gasket cylinder head 41 mm | Sachs 503, 502, 50/2, 50/3, 50/4
Material: Aluminum · Manufacturer: swiing® ingenious parts · Place of use: Cylinder head · Area of application: Standard · Ø cylinder: 41 mm · Nominal diameter: 41 mm · Ø inside: 41.7 mm · Thickness: 0.3 mm · Hole pattern [mm]: 37 x 37
EUR 5.90

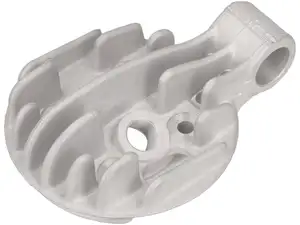

swiing® ingenious cylinder head 41 mm tuning | Sachs 50/2, 50/3, 50/4
Material: Aluminum · Surface: sandblasted · Manufacturer: swiing® ingenious parts · Height: 50 mm · Width: 95 mm · Total length: 127 mm · Area of application: Standard · Ø cylinder: 41 mm · Ø screw holder: 19 mm · Ø outside: 98 mm · Candle thread: long · Number of fixing points: 4 pcs · Hole pattern [mm]: 37 x 37 · Decompressor: M10x1.5
EUR 82.40

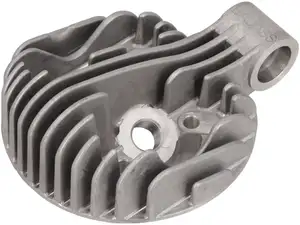

BAD ASS cylinder head L Ø 41-43 mm | Sachs 502, 50/2, 50/3, 50/4
