For: Sachs · Hercules · KTM

36817

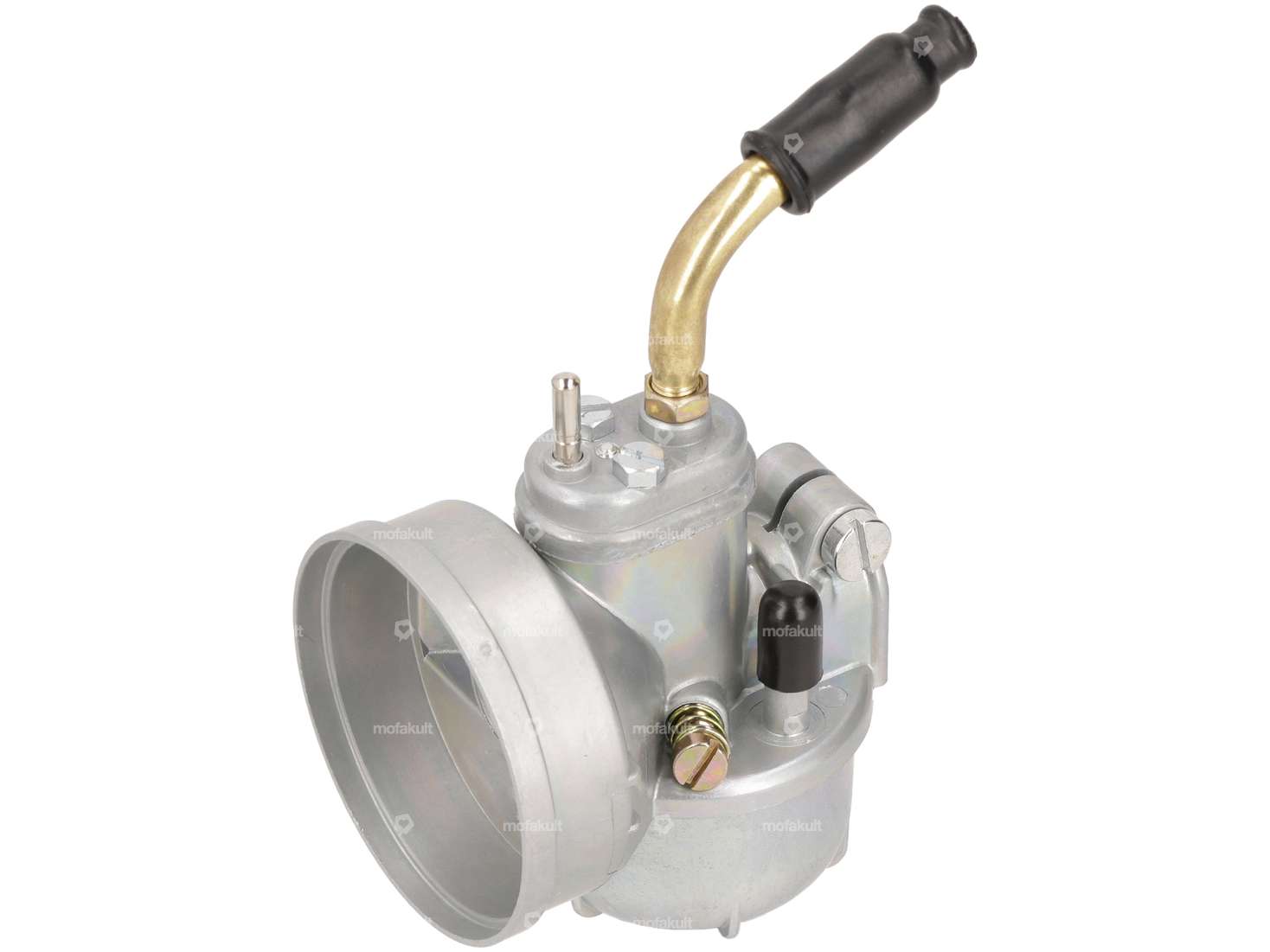

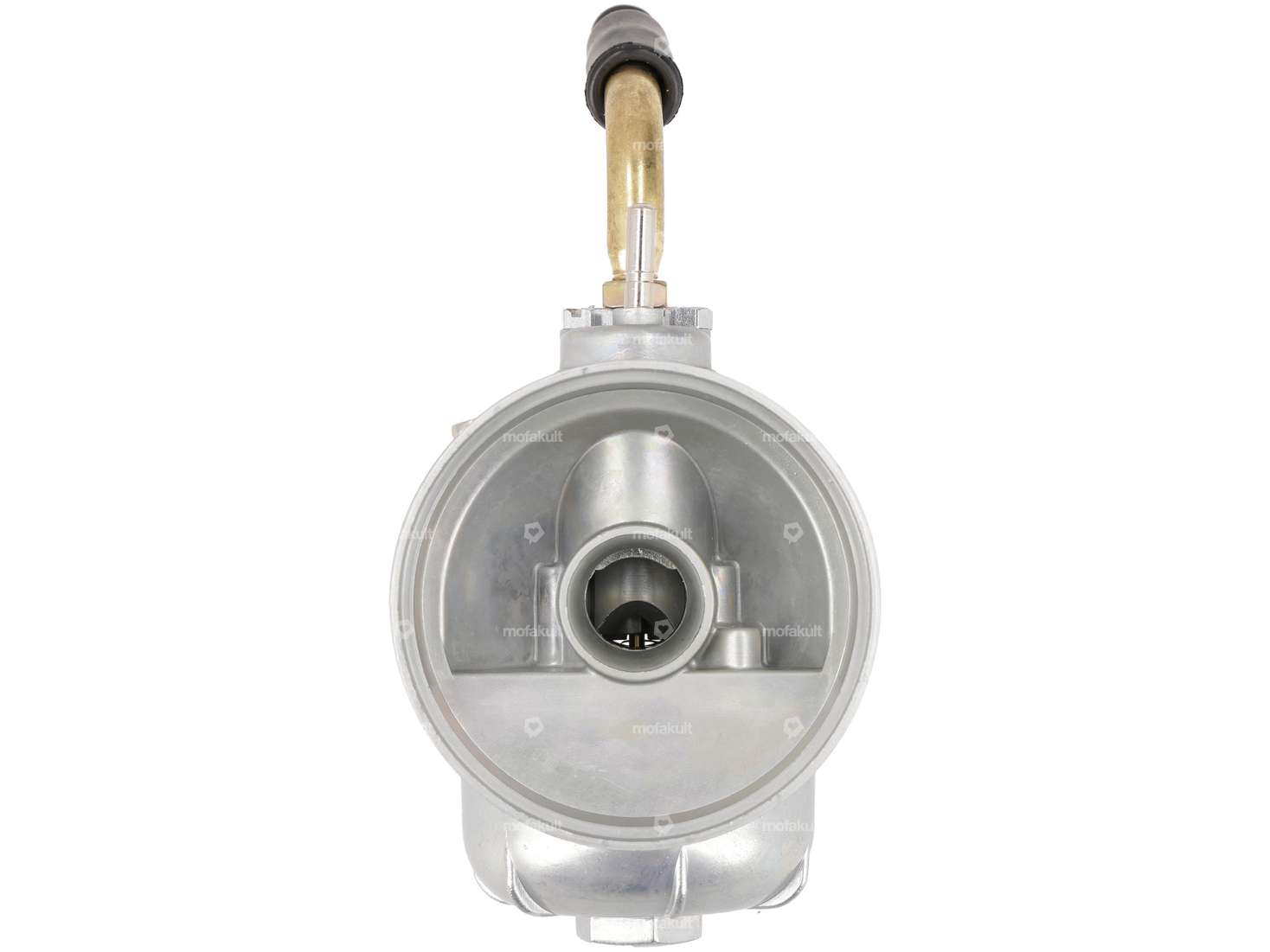

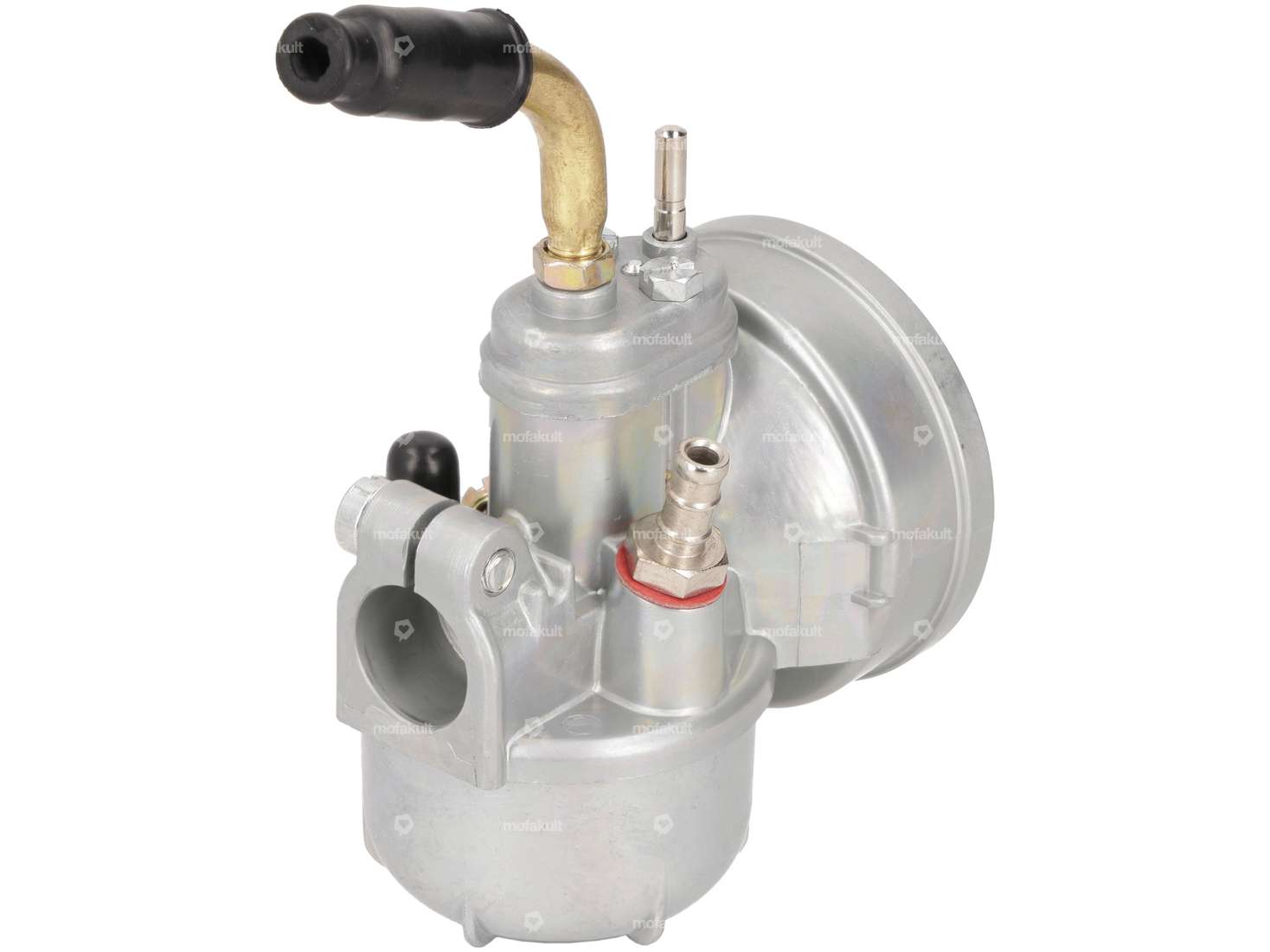

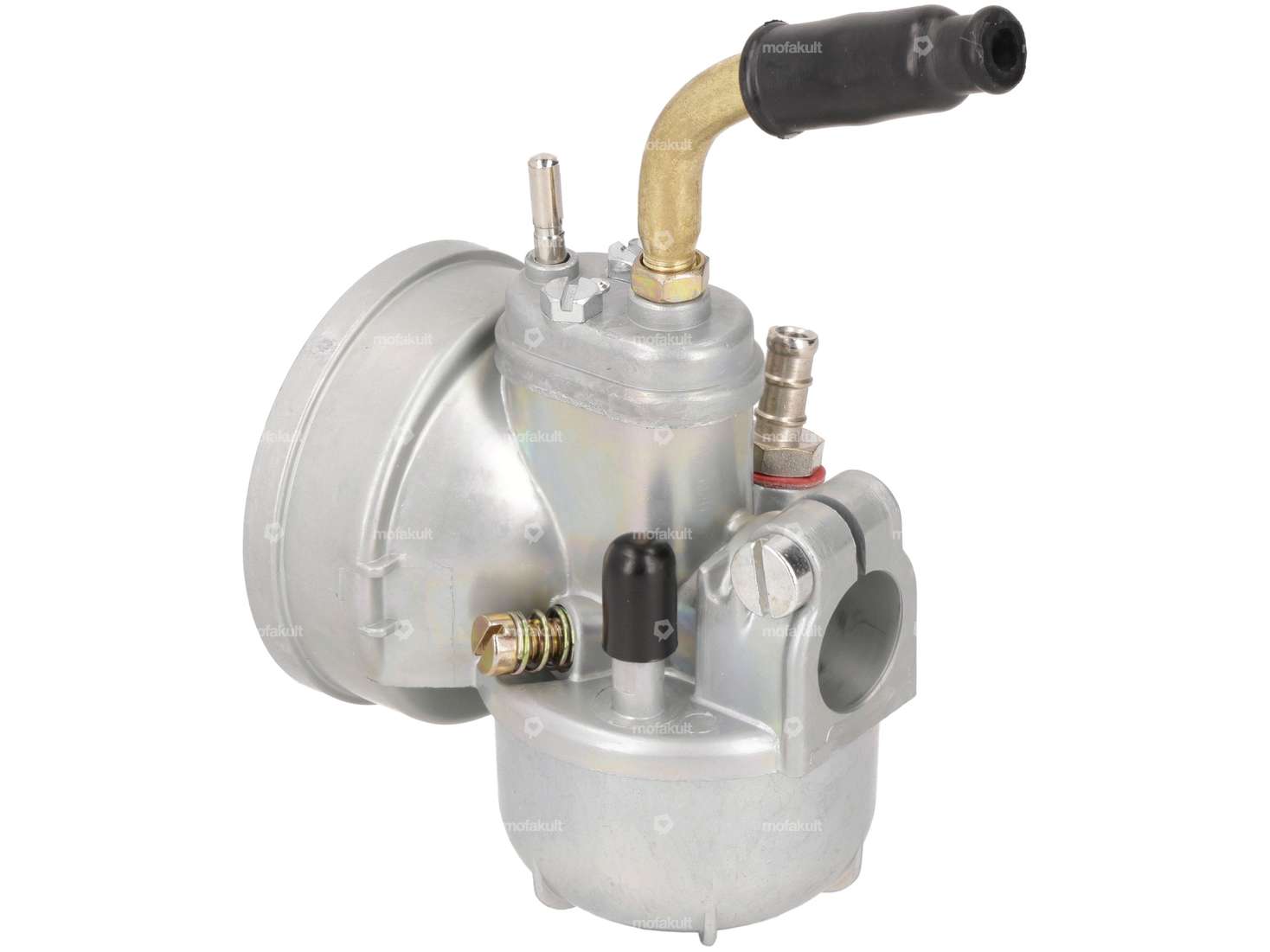

Carburetor Bing 1/12/182 (replica) | Sachs 502 1A, 1B

rating iconrating iconrating iconrating iconrating icon
No reviews
EUR 103.10

Incl. 23% VAT.

Description

12 mm replica carburetor for mopeds, mopeds and small motorcycles;with Sachs 502/1 A, 502/1 B, 502/1 AX, 502/1 AX, 502/1 A CH, 502/1 A DK, 502/1 A NL, 502/1 A S and 502/1 A SF engine (colloquially often called torpedo or rocket engine) which are equipped with a Bing 1/12/182, 1/12/194, 1/12/215 or 1/12/237 carburetor.

The 12 mm carburetor is intended for the 40 - 45 km/h versions.

The carburetor fits the following models, among others:

  • Hercules CB1 City Bike, L50, MF1, MF2, MP1
  • Rex Miniped, Miniped MK2
  • Sparta Happy
  • Motograziella
  • Pony City
  • KTM Hobby 1968 - 1972

The smaller 10 mm version, which is used for 25 - 30 km/h versions, can be found in the accessories section.

Nominal diameter12 mm
Total length65 mm
MaterialAluminum
Component group CarburetorCarburetor complete
Ø fuel hose connection6 mm
Ø Internal connection16 mm
Ø Air filter connection54.5 mm
Sachs

502 1A / 1B (torpedo)

Hercules
KTM
