Power starts down low.
If the engine is to run smoothly, the crankshaft has to do its bit.

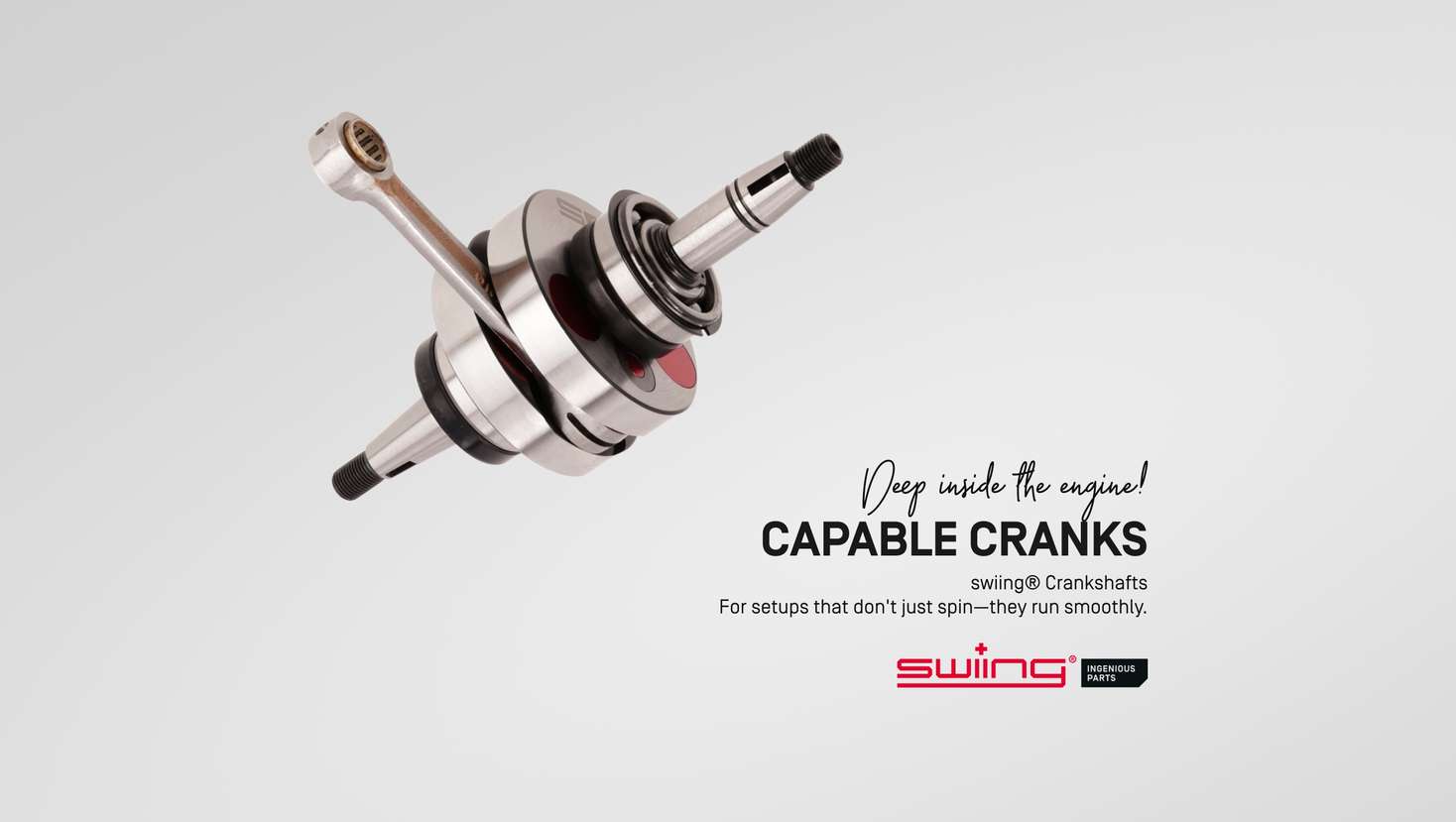

swiing® crankshafts
Hot
swiing® ingenious crankshaft "High End" with mounted bearings | Puch E50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Thread length: 11 mm · Thread length: 15 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 968 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs
EUR 217.00
swiing® revival crankshaft "original" | Puch X30 Velux
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Thread type: MF8x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 57 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 842 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Length 1st paragraph: 20 mm · Length 2nd paragraph: 19 mm · Area of application: Standard · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 2 pcs
EUR 156.70
swiing® revival crankshaft "original" | Puch E50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Thread type: MF8x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 873 g · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Area of application: Standard · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm
EUR 108.40
swiing® revival crankshaft "original" 9.5 mm journal | Puch ZA50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® revival parts · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 44 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 117.8 mm · Total length crankpin ignition side: 79.5 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 1062 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 20 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Area of application: Standard · Ø 1st step (on the coupling side): 20 mm · Ø 2nd shoulder (on the clutch side): 16.4 mm · Ø 3rd step (on the clutch side): 9.5 mm · Puch OEM number: 321.1.10.615.0
EUR 180.80
swiing® ingenious crankshaft "High End" | Puch E50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Thread length: 11 mm · Thread length: 15 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 968 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Number of gears: 1 pcs
EUR 165.10
swiing® revival crankshaft "original" | Puch Sport X30 NS, NL / Maxi S2
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 2 pcs · Total length of crankpin on clutch side: 57 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 892 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 7 mm · Thread length: 13 mm · Wide crank webs: 34 mm · Length 1st paragraph: 20 mm · Length 2nd paragraph: 19 mm · Area of application: Standard · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm
EUR 156.70
swiing® revival crankshaft "original" with mounted bearings | Puch E50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Thread length: 11 mm · Thread length: 15 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 873 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Area of application: Standard · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs · Puch OEM number: 349.1.10.115.0 · Puch OEM number: 900.6203 · Puch OEM number: 900.6233 · Puch OEM number: 901.3801 · Puch OEM number: 902.3835
EUR 168.70
Hot
swiing® ingenious crankshaft "Wolfram-Edition" | Sachs 503 2AL, 2BL
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Number of gears: 2 pcs · Total length of crankpin on clutch side: 43.1 mm · Total length crankpin ignition side: 63.4 mm · Ø crank webs: 85 mm · Ø Connecting rod eye: 15 mm · Weight: 901 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 8 mm · Thread length: 12 mm · Wide crank webs: 30 mm · Length 1st paragraph: 21 mm · Length 2nd paragraph: 14 mm · Area of application: High End · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Length of shoulder (ignition side): 34 mm
EUR 204.90
Not in stock
swiing® ingenious crankshaft "High End" | Tomos Classic, Quadro, Sprint, Fun Sport'R
Manufacturer: swiing® ingenious parts · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 93 mm · Total length crankpin ignition side: 64 mm · Ø crank webs: 70 mm · Ø piston pin (B): 12 mm · Wide crank webs: 34 mm · Area of application: Racing · Tomos OEM number: 223421
EUR 162.70
Not in stock
swiing® revival crankshaft "original" | Sachs 50/2, 50/3
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® revival parts · Material: Steel · Cheek type: standard · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 42 mm · Connecting rod length center-center: 85 mm · Number of gears: 1 pcs · Number of gears: 3 pcs · Total length of crankpin on clutch side: 40.6 mm · Total length crankpin ignition side: 63.2 mm · Ø crank webs: 30 mm · Ø Connecting rod eye: 15 mm · Weight: 901 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread length: 8 mm · Thread length: 11 mm · Length 1st paragraph: 18.7 mm · Length 2nd paragraph: 14 mm · Area of application: Standard · Ø 1st step (on the coupling side): 15 mm · Ø 2nd shoulder (on the clutch side): 12 mm · Length of shoulder (ignition side): 34 mm · Pony OEM number: A2565 · Sachs OEM no.: 0286 139 400
EUR 136.20
Hot
swiing® ingenious crankshaft "Wolfram-Edition" | Sachs 50/2, 50/3
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Cheek type: standard · Crankshaft stroke: 42 mm · Thread type: MF10x1 (fine pitch thread) · Connecting rod length center-center: 85 mm · Total length of crankpin on clutch side: 40.7 mm · Total length crankpin ignition side: 63.4 mm · Ø crank webs: 85 mm · Ø Connecting rod eye: 15 mm · Weight: 895 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Wide crank webs: 30 mm
EUR 204.90
swiing® ingenious crankshaft "High End" | Puch X30 Velux (Z50)
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 2 pcs · Total length of crankpin on clutch side: 58 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 70 mm · Ø Connecting rod eye: 15 mm · Weight: 954 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 8 mm · Thread length: 13 mm · Length 1st paragraph: 20.3 mm · Length 2nd paragraph: 19 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm
EUR 192.90
swiing® ingenious crankshaft "High End" (+1 mm stroke) 9.5 mm journal | Puch ZA50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 44 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 117.8 mm · Total length crankpin ignition side: 79.5 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 1062 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 20 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Area of application: High End · Area of application: Racing · Ø 1st step (on the coupling side): 20 mm · Ø 2nd shoulder (on the clutch side): 16.4 mm · Ø 3rd step (on the clutch side): 9.5 mm · Puch OEM number: 321.1.10.615.0
EUR 259.20
swiing® ingenious crankshaft "High End" (+1 mm stroke) 10.2 mm journal | Puch ZA50
Manufacturer: swiing® ingenious parts · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 117.8 mm · Total length crankpin ignition side: 79.5 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 20 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Ø 1st step (on the coupling side): 20 mm · Ø 2nd shoulder (on the clutch side): 16.4 mm · Ø 3rd step (on the clutch side): 10.2 mm · Weight: 1064 g · Area of application: High End · Area of application: Racing · Puch OEM number: 321.3.10.615.0
EUR 259.20
swiing® ingenious crankshaft "High End" | Puch X30 NS / NL (Z50)
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Number of gears: 2 pcs · Total length of crankpin on clutch side: 57 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 70 mm · Ø Connecting rod eye: 15 mm · Weight: 954 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 10 mm · Thread length: 13 mm · Wide crank webs: 34 mm · Length 1st paragraph: 20 mm · Length 2nd paragraph: 19 mm · Area of application: Racing · Area of application: Tuning · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm
EUR 198.90
swiing® ingenious crankshaft "High End" (+1 mm stroke) | Puch E50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 44 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 970 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Area of application: High End · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm
EUR 179.60
swiing® ingenious crankshaft "High End" C3/4 & FPM (+1 mm stroke) | Puch E50
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Material: Steel · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 44 mm · Connecting rod length center-center: 90 mm · Number of gears: 1 pcs · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 970 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Area of application: High End · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm
EUR 277.30
Hot
swiing® ingenious crankshaft "High End" (+1 mm stroke) | Puch X30 NS / NL (Z50)
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 44 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 57 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø Connecting rod eye: 15 mm · Weight: 942 g · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Wide crank webs: 34 mm · Length 1st paragraph: 20 mm · Length 2nd paragraph: 19 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 27 mm
EUR 241.10
swiing® is taking moped parts to the next level:
Retain the original concept, tackle any weak points, and refine the fit and function. That’s exactly what matters most with crankshafts. Because if something’s not quite right there, you’ll notice it with every pedal stroke, every burst of throttle and every climb.
- Smoother running.
- A neat build.
- Less fiddling when assembling.
That’s how a part should be – one that, once fitted, you’d prefer never to have to touch again.
