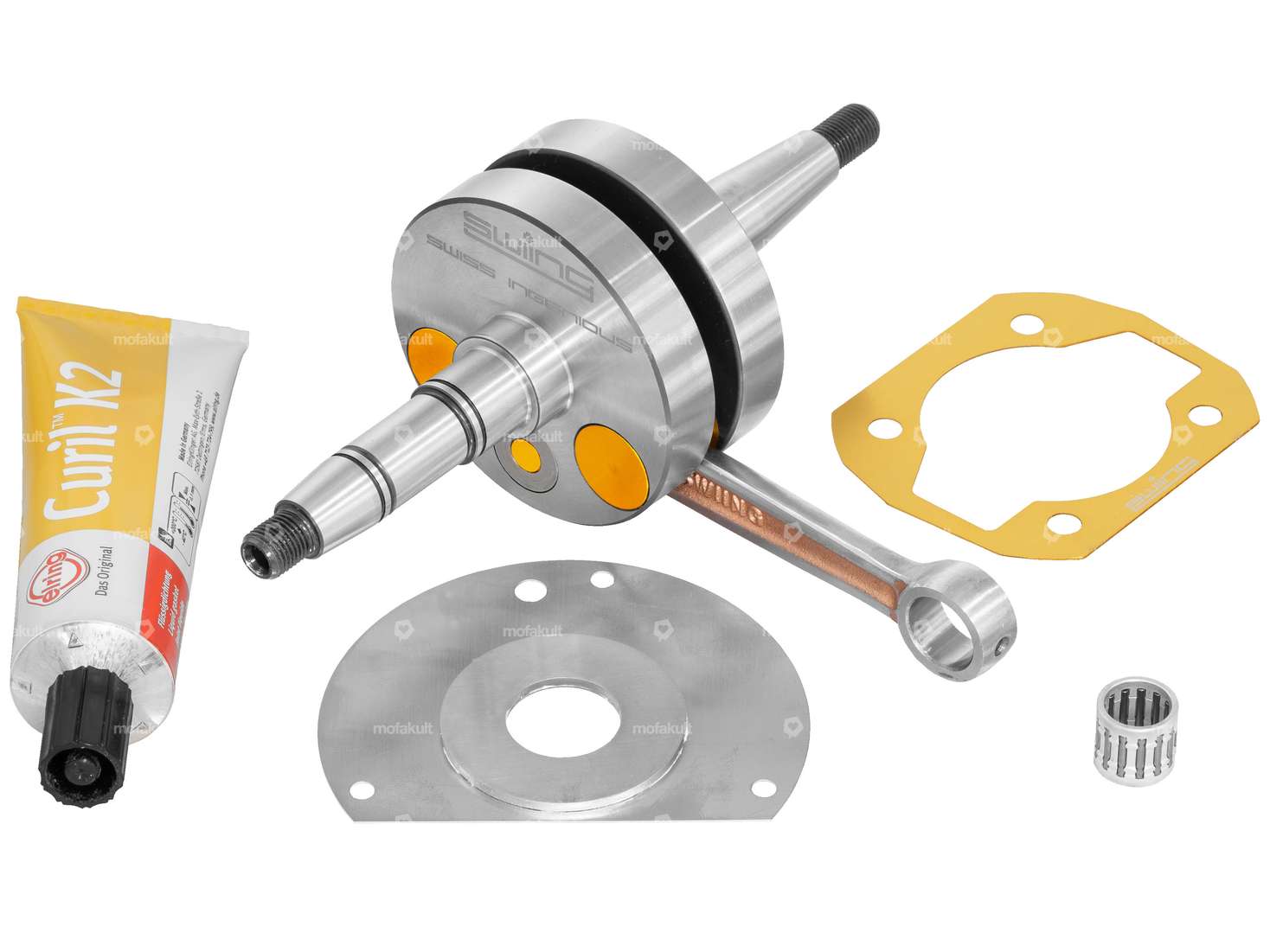

Complete set:
High-end racing crankshaft suitable for Puch Maxi S / N, as well as Supermaxi LG1 mopeds with a 1-speed E50 engine.
This special crankshaft has 1 mm more stroke, the additional stroke gives your engine more torque and compression and thus tickles the last horsepower out of the cylinder.

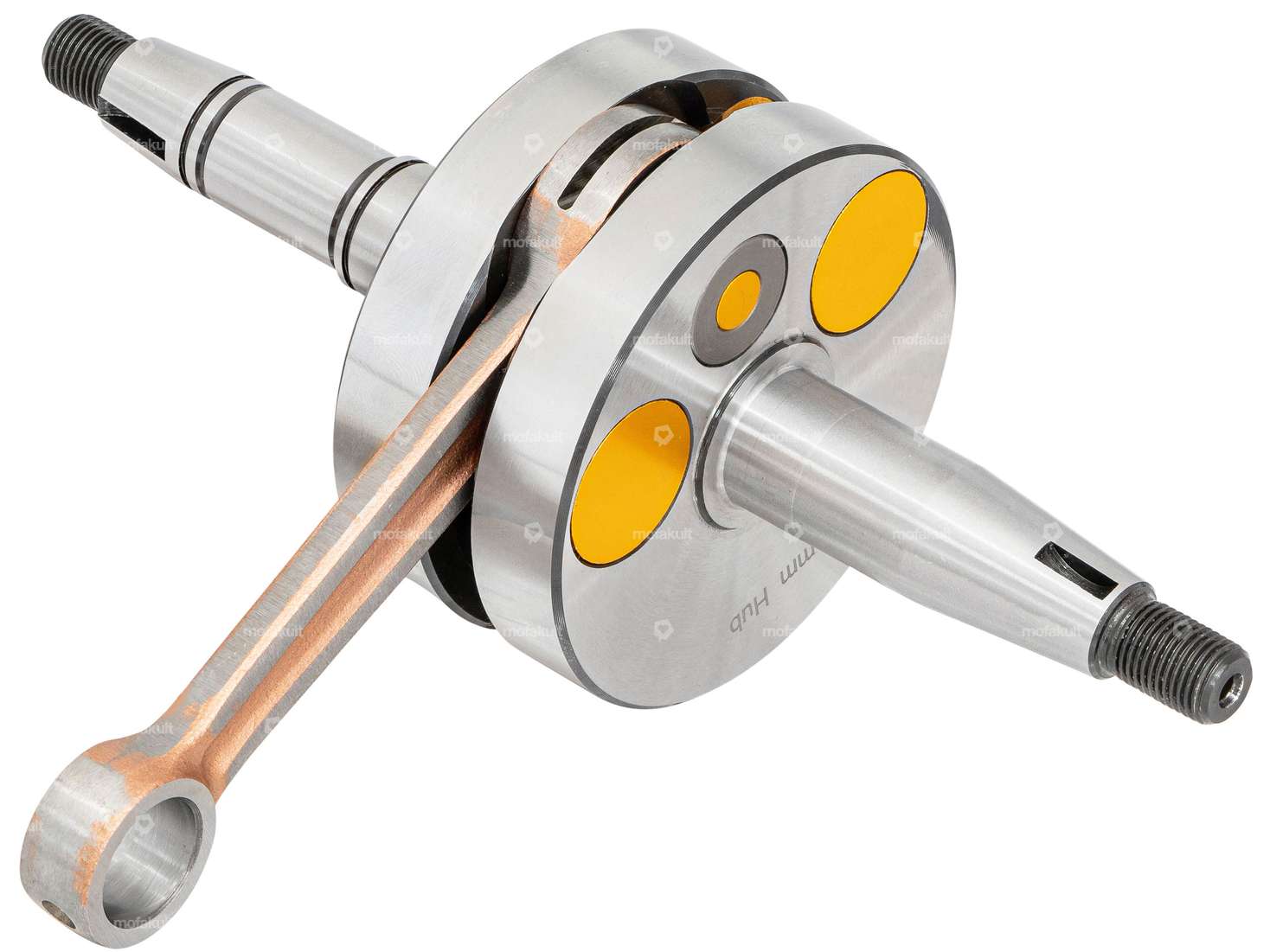

This high-quality and precisely fitting, 975 gram full-flange crankshaft, which has proven itself in a wide variety of load tests, impresses with its excellent balancing ratio and good speed stability. The shaft was designed for use in engines with a large power increase. All balancing bores in the cheeks have been sealed with aluminum inserts for maximum pre-compression. The solid connecting rod is fitted with a more stable 16 mm connecting rod pin, which is hollow on the inside for better balancing.
In addition, the connecting rod bearings are silver bearings, which have excellent emergency running properties.
Manufacturer: Wössner · Material: Chrome steel (colloquially known as stainless steel) · Place of use: Cylinder base · Thickness: 0.5 mm · Ø cylinder: 47 mm · Area of application: Tuning
Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Manufacturer: swiing® ingenious parts · Material: Steel, Aluminum · Cheek type: Full cheeks · Crankshaft stroke: 44 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread type: MF10x1 (fine pitch thread) · Thread length: 11 mm, 15 mm · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 970 g · Number of gears: 1 pcs · Area of application: High End
Manufacturer: Elring · Area of application: Chemistry · Contents: 70 ml · Color: green · Gap dimension (max.): 0.2 mm · Temperature resistance (min.): -55 - 250 °C
Manufacturer: MBR · Material: Chrome steel (colloquially known as stainless steel) · Surface: brushed · Color: silver · Ø inside: 25.3 mm · Ø outside: 89.4 mm · Number of fixing points: 4 pcs · Area of application: Tuning
| Manufacturer | swiing® ingenious parts |
| Cheek type | Full cheeks |
| Crankshaft stroke | 44 mm |
| Area of application | High End |
| Connecting rod length center-center | 90 mm |
| Total length of crankpin on clutch side | 74 mm |
| Total length crankpin ignition side | 66 mm |
| Ø crank webs | 69.9 mm |
| Ø Connecting rod eye | 15 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Dimension needle bearing | 12 / 15 x 14.2 mm (axe 12) |
| Thread type | MF10x1 (fine pitch thread) |
| Wide crank webs | 34 mm |
| Weight | 970 g |
| Number of gears | 1 pcs |
| Puch | E50 |
