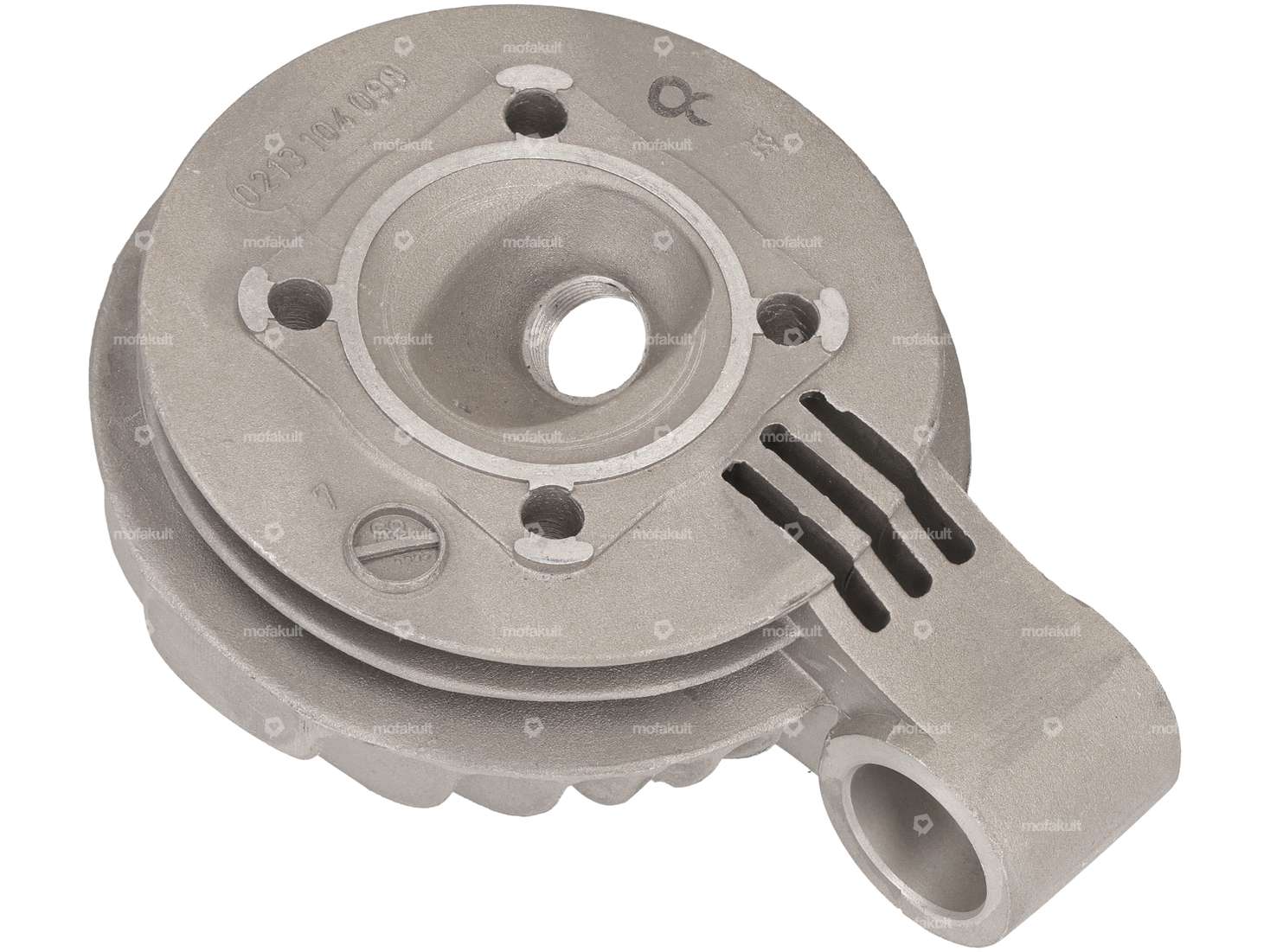

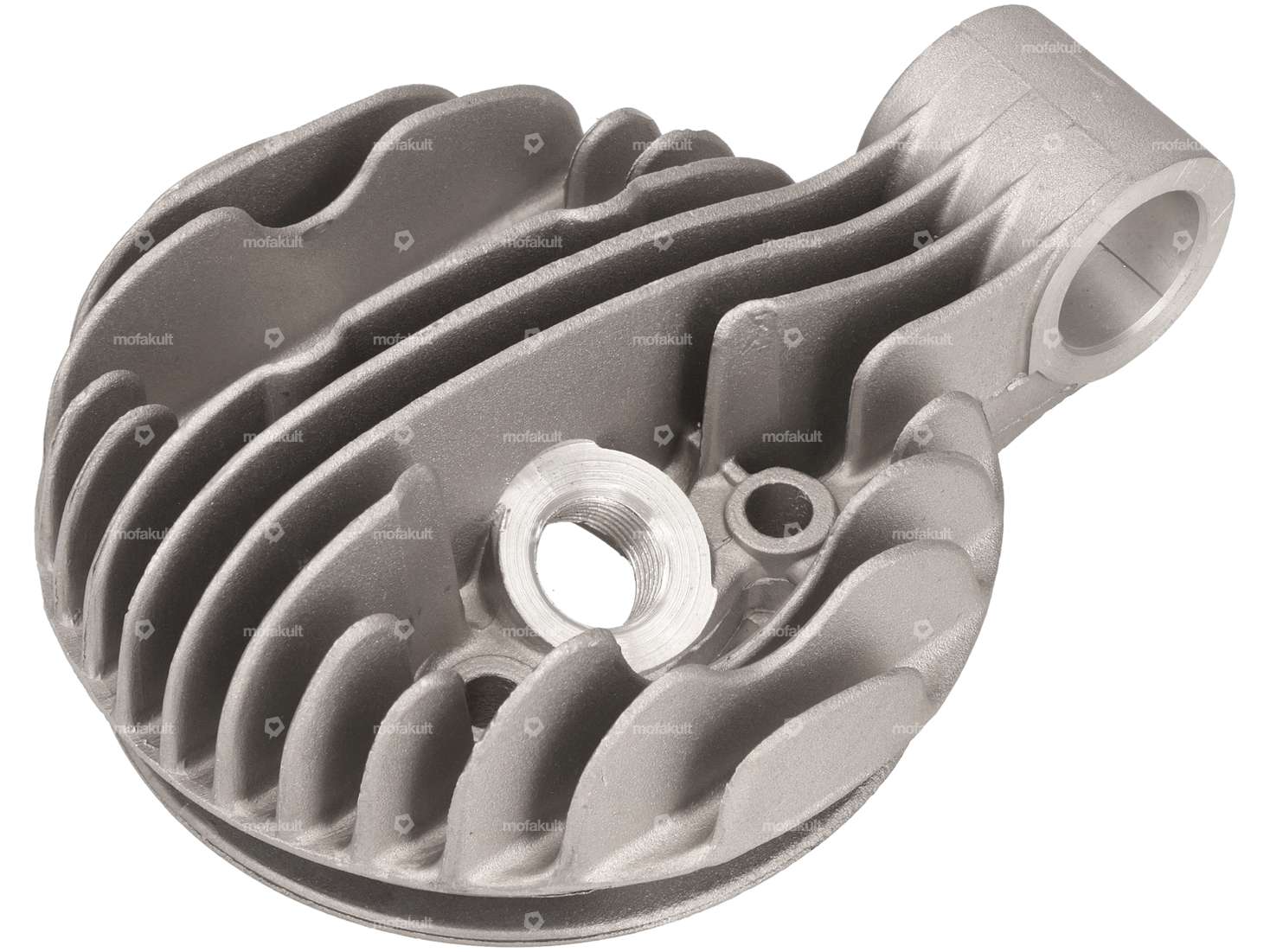

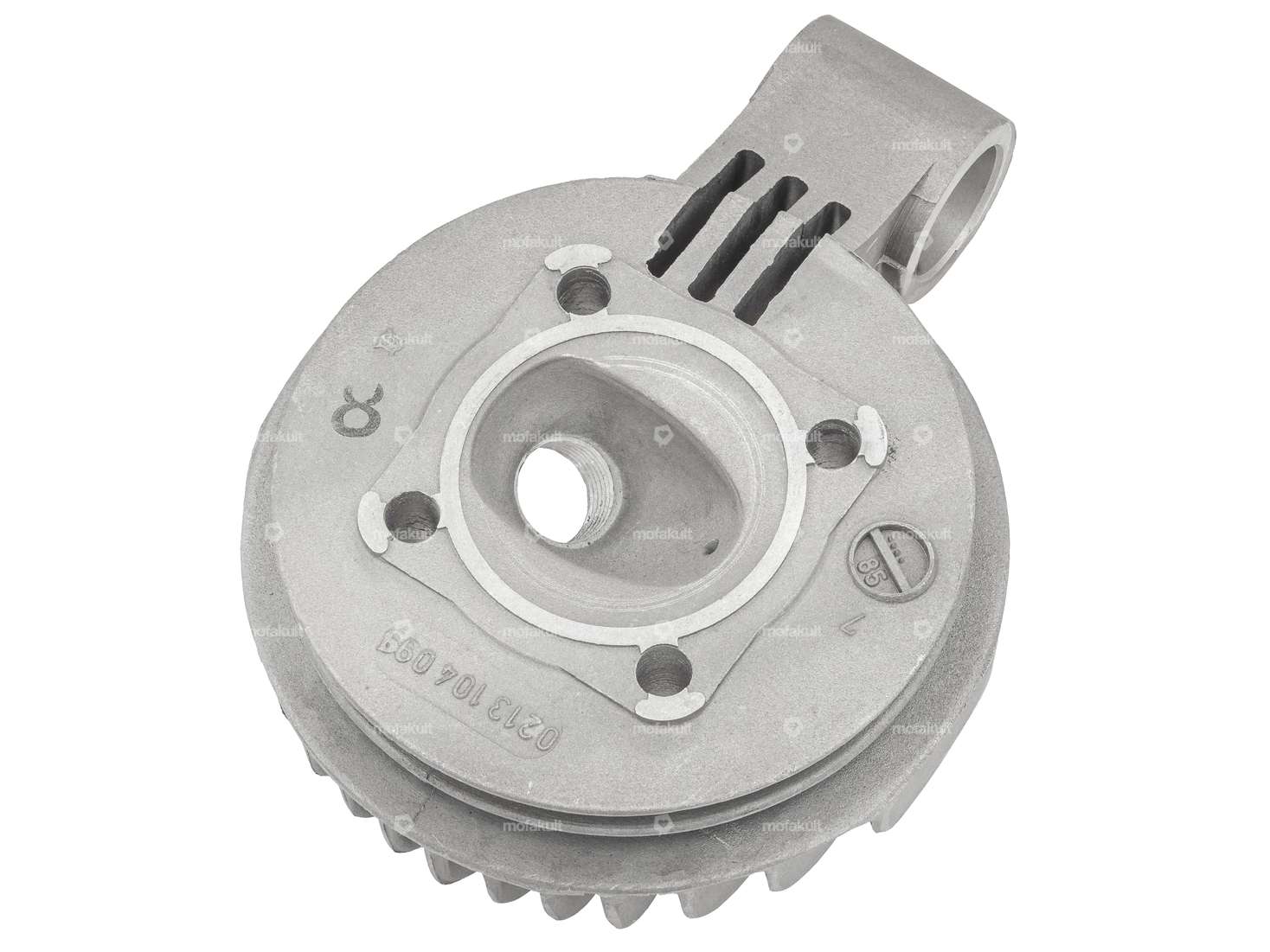

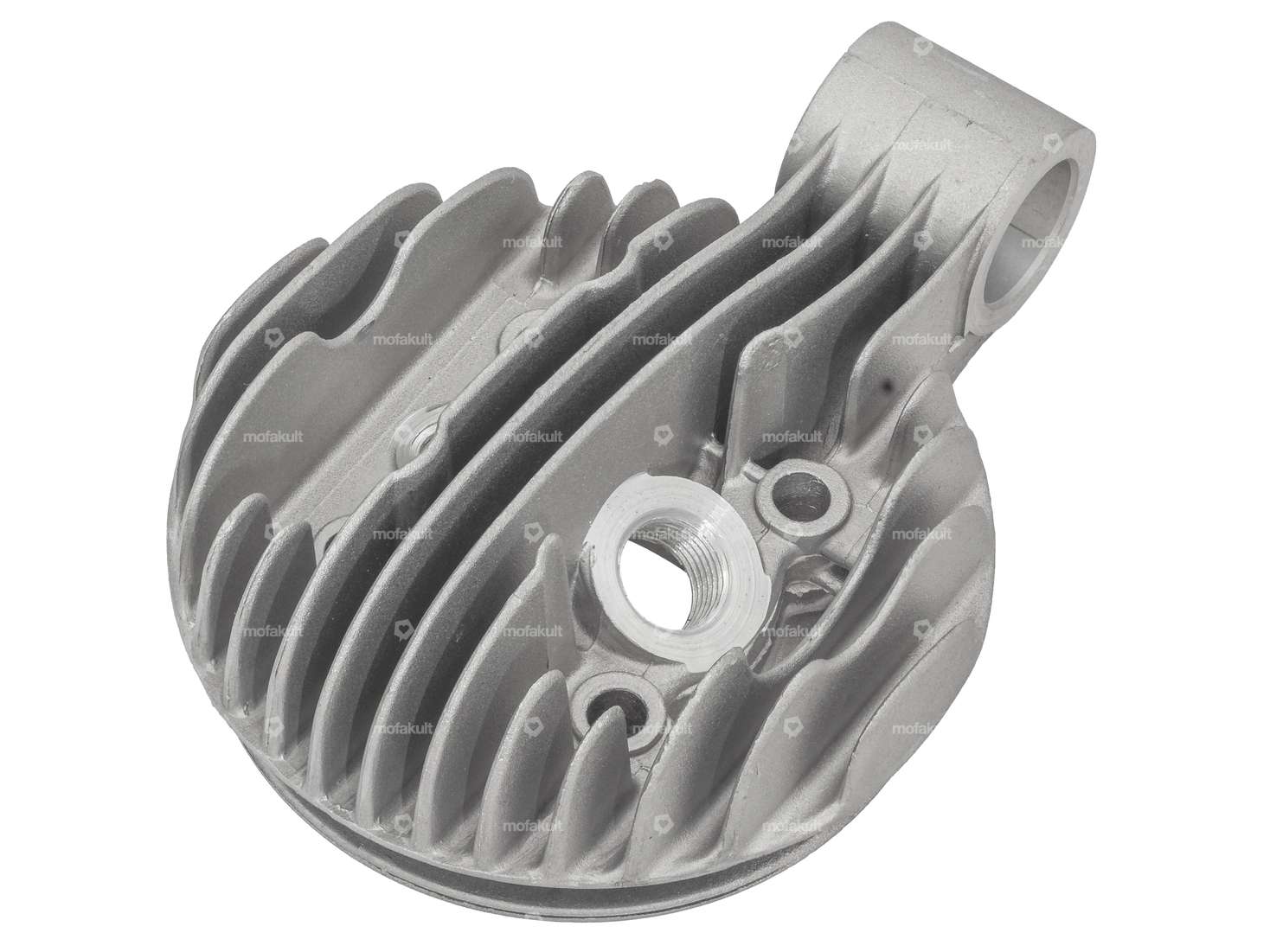

Cylinder head fan-cooled NOS | Sachs 50/2, 50/3

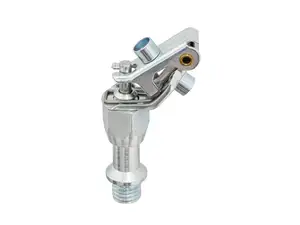

Karcoma decompressor M10x1.5 45° NOS

Manufacturer: Karcoma · Material: Steel · Surface: galvanized (blue) · Total length: 64 mm · Thread length: 9 mm · Area of application: Standard · Angle: 45 ° · Thread type: M10x1.5 (standard thread) · Width across flats SW: 14 mm

swiing® revival bolt set cylinder head galvanized | Sachs 503 / 50/2 / 50/3 / 50/4

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Color: silver · Number of components: 12 pcs · Thread type: M6x1 (standard thread) · Ø shaft: 5.85 mm · Total length: 34 mm · Screw head: Hexagon · Thread length: 22 mm · Drive: External hexagon · Shank: Yes · Width across flats SW: 10 mm · Area of application: Standard · Shank length: 8 mm · Strength class: 10.9

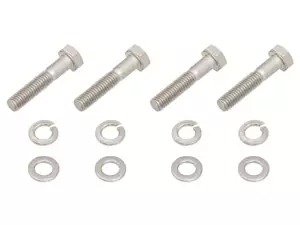

swiing® revival screw set cylinder head Inox | Sachs 503 / 50/2 / 50/3 / 50/4

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Number of components: 12 pcs · Thread type: M6x1 (standard thread) · Ø shaft: 5.85 mm · Screw head: Hexagon · Total length: 34 mm · Thread length: 22 mm · Drive: External hexagon · Shank: Yes · Width across flats SW: 10 mm · Area of application: Standard · Shank length: 8 mm

Cylinder head wind cooled NOS | Sachs 50/2

Manufacturer: Sachs · Area of application: Original · Ø outside: 105 mm · Pony OEM number: A1064 · Alternative version of the Sachs OEM number: 0213 033 003 · Sachs OEM no.: 0213 121 105

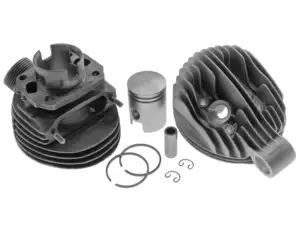

38 mm cylinder kit diaphragm 2 warts NOS | Sachs Saxonette

Nominal diameter: 38 mm · Manufacturer: Sachs · Material: Gray cast iron · Area of application: Original · Surface: sandblasted · Crankshaft stroke: 42 mm · Displacement: 50 ccm · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 51 x 40 · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Hole spacing inlet: 67 mm

GPO decompressor M10x1.5 45°

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Angle: 45 ° · Thread type: M10x1.5 (standard thread) · Thread length: 9 mm · Ø outside: 14 mm · Total length: 64 mm · Area of application: Standard

GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH

Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 38 mm · Number of fixing points: 4 pcs · Total length: 135 mm · Area of application: Standard · Candle thread: short · Width: 125 mm · Height: 55 mm · Hole pattern [mm]: 44 x 44 · Decompressor: No

Airsal gasket set 38 mm | Puch

Manufacturer: Airsal · Number of components: 4 pcs · Ø cylinder: 38 mm · Hole spacing inlet: 38 mm · Hole pattern [mm]: 44 x 44 mm · Hole spacing outlet: 42 mm · Area of application: Tuning

Inlet gasket (32 mm hole spacing) Oil paper 0.45 mm

Place of use: Admission · Material: Oiled paper · Thickness: 0.45 mm · Ø outlet inside: 14.5 mm · Hole spacing inlet: 32 mm

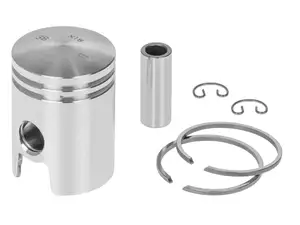

Meteor piston 38 mm | Sachs 50/2, 503 (A2772)

Manufacturer: Meteor · Thick piston ring: 1.6 mm · Ø outside piston (A): 37.95 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Nominal diameter: 38 mm · Ø piston pin (B): 12 mm · Piston ring height: 2 mm · Piston weight: 79 g · Pony OEM number: A2772 · Pony OEM number: A4358 · Sachs OEM no.: 0286 377 010 · Sachs OEM no.: 0286 378 005

swiing® revival crankshaft "Original" with mounted bearings | Puch E50

Manufacturer: swiing® revival parts · Weight: 873 g · Material: Steel · Cheek type: standard · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 74 mm · Total length crankpin ignition side: 66 mm · Ø crank webs: 69.9 mm · Ø piston pin (B): 12 mm · Thread type: MF10x1 (fine pitch thread) · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Thread length: 11 mm · Thread length: 15 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Wide crank webs: 34 mm · Length 1st paragraph: 9 mm · Length 2nd paragraph: 14.5 mm · Length 3rd paragraph: 25 mm · Area of application: Standard · Ø 1st step (on the coupling side): 22 mm · Ø 2nd shoulder (on the clutch side): 17 mm · Ø 3rd step (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Number of gears: 1 pcs · Puch OEM number: 349.1.10.115.0 · Puch OEM number: 900.6203 · Puch OEM number: 900.6233 · Puch OEM number: 901.3801 · Puch OEM number: 902.3835

swiing® revival inlet gasket 0.45 mm oil paper | Sachs 503

Manufacturer: swiing® revival parts · Material: Oiled paper · Place of use: Admission · Thickness: 0.45 mm · Ø outlet inside: 15.5 mm · Hole spacing inlet: 32 mm · Pony OEM number: A1886 · Sachs OEM no.: 0250 151 000

BAD ASS 38 mm cylinder kit, slotted | Sachs 50/2 (CH)

Nominal diameter: 38 mm · Manufacturer: BAD ASS · Material: Gray cast iron · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 / 37 x 37 · Camouflaged: Yes · Area of application: Standard · Alternative version of the Pony OEM number: A2539 · Alternative version of the Sachs OEM number: 0286 114 215

swiing® revival inlet gasket cylinder "swiing" | Sachs 503

Manufacturer: swiing® revival parts · Place of use: Admission · Ø cylinder: 38 - 40 mm · Thickness: 2 mm
