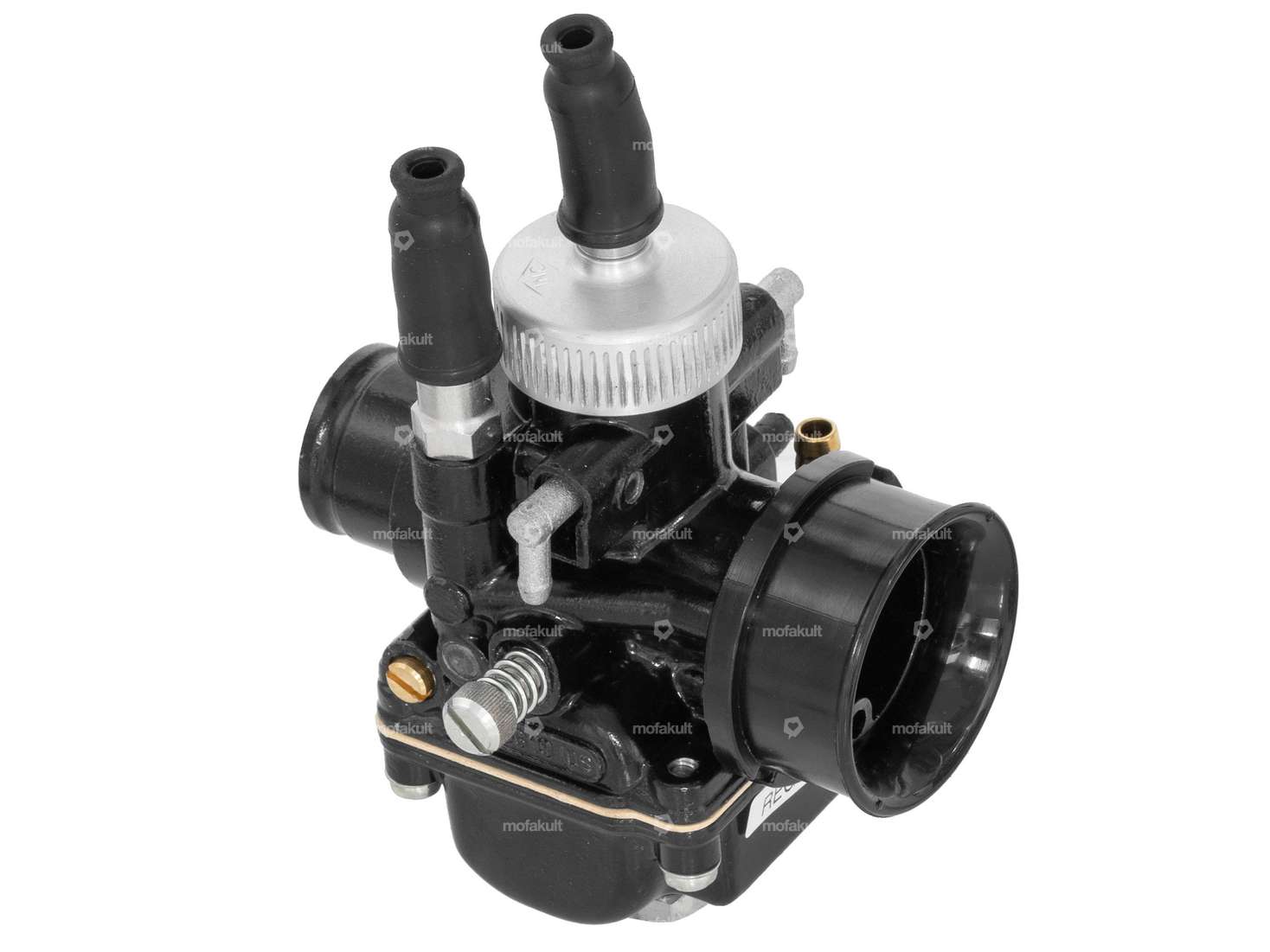

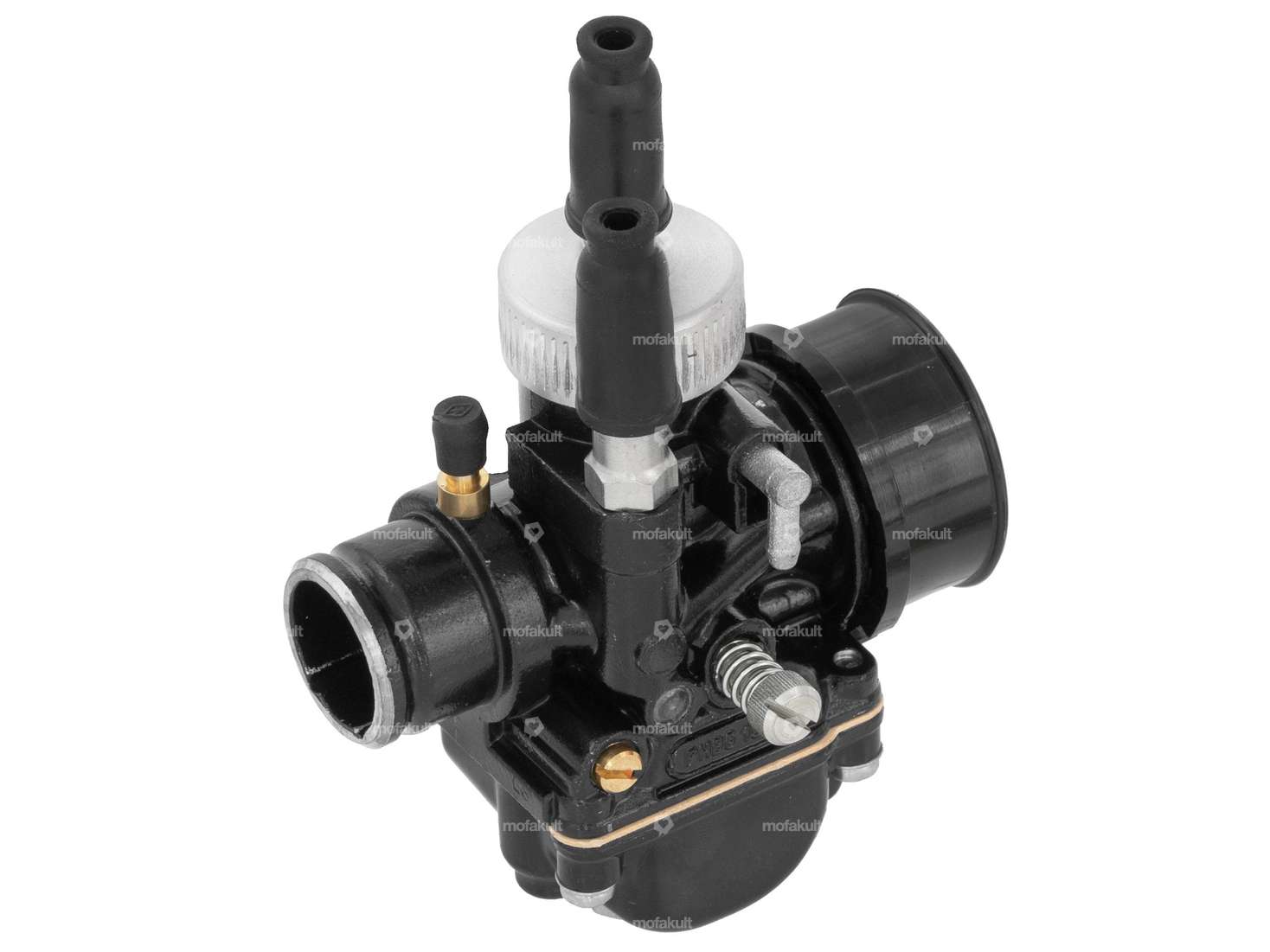

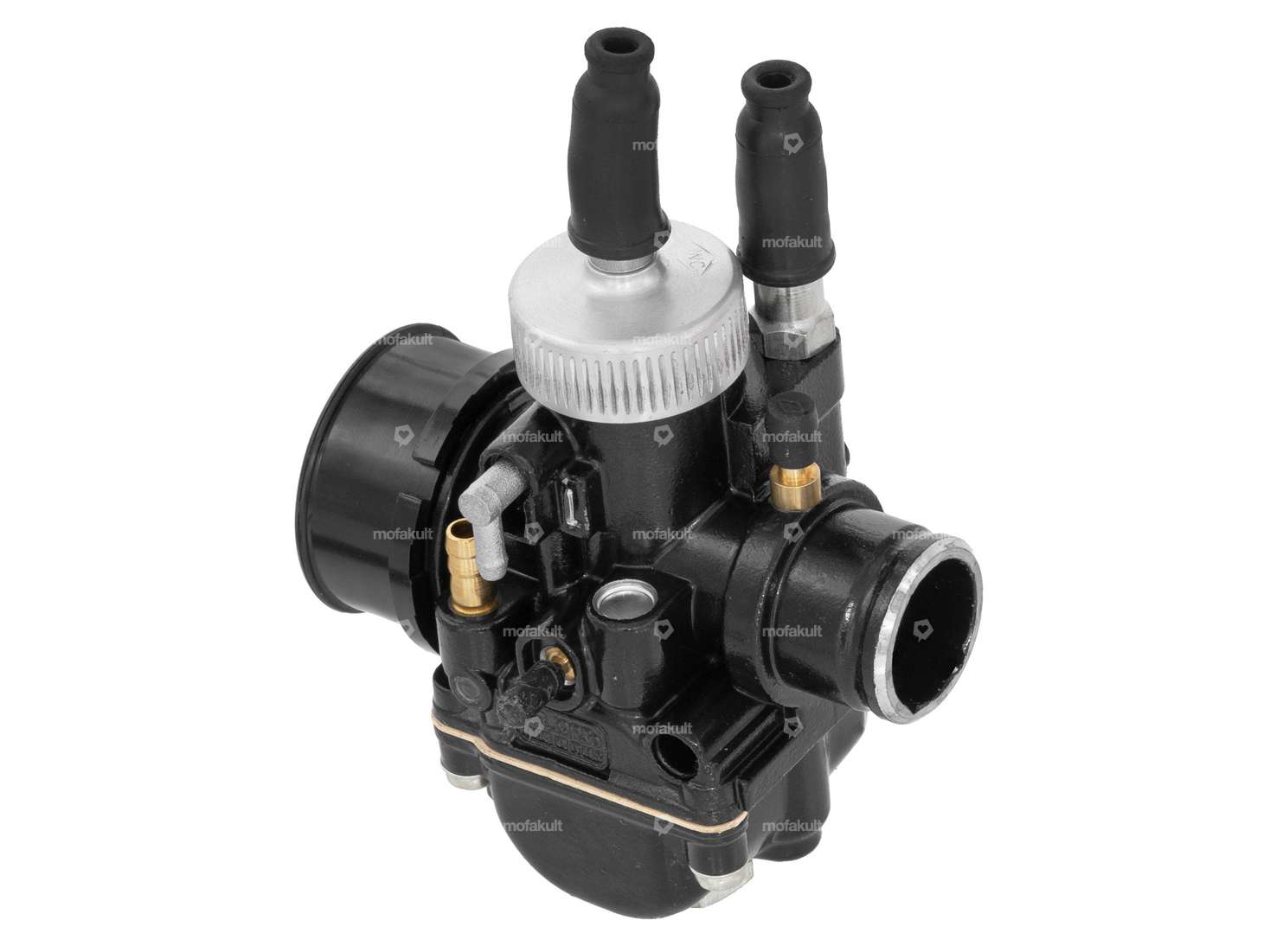

21 mm racing carburetor Dell'Orto PHBG. Ideal for 46 and 47 mm racing cylinders. This is the Black Edition.
An M32x1.25 thread is available for mounting the air filter, with the supplied ring you can thus achieve a diameter of 38 mm.
The carburetor has an oil and vacuum connection.
Connection width intake manifold: 25 mm
Main diameter: 92
Quality product from the Italian manufacturer Dell'Orto.
| Surface | varnished |
| Height | 134 mm |
| Manufacturer | Dell'Orto |
| Total length | 86.6 mm |
| Area of application | Tuning |
| Component group Carburetor | Carburetor complete |
| Color | black |
| Carburetor type | PHBG DS |
| Mounting type | Plug connection |
| Choke control | Cable choke |
| Nominal diameter | 21 mm |
| Width | 51.2 mm |
| Ø fuel hose connection | 6 mm |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 92 |
| Ø Inside entrance | 21.2 mm |
| Ø Output inside | 28.3 mm |
| Ø Air filter connection | 32 mm, 38 mm |
| Air filter connection thread | MF32x1.25 (fine pitch thread) |
| Mixed oil connection | Yes |
| Vacuum connection | Yes |
