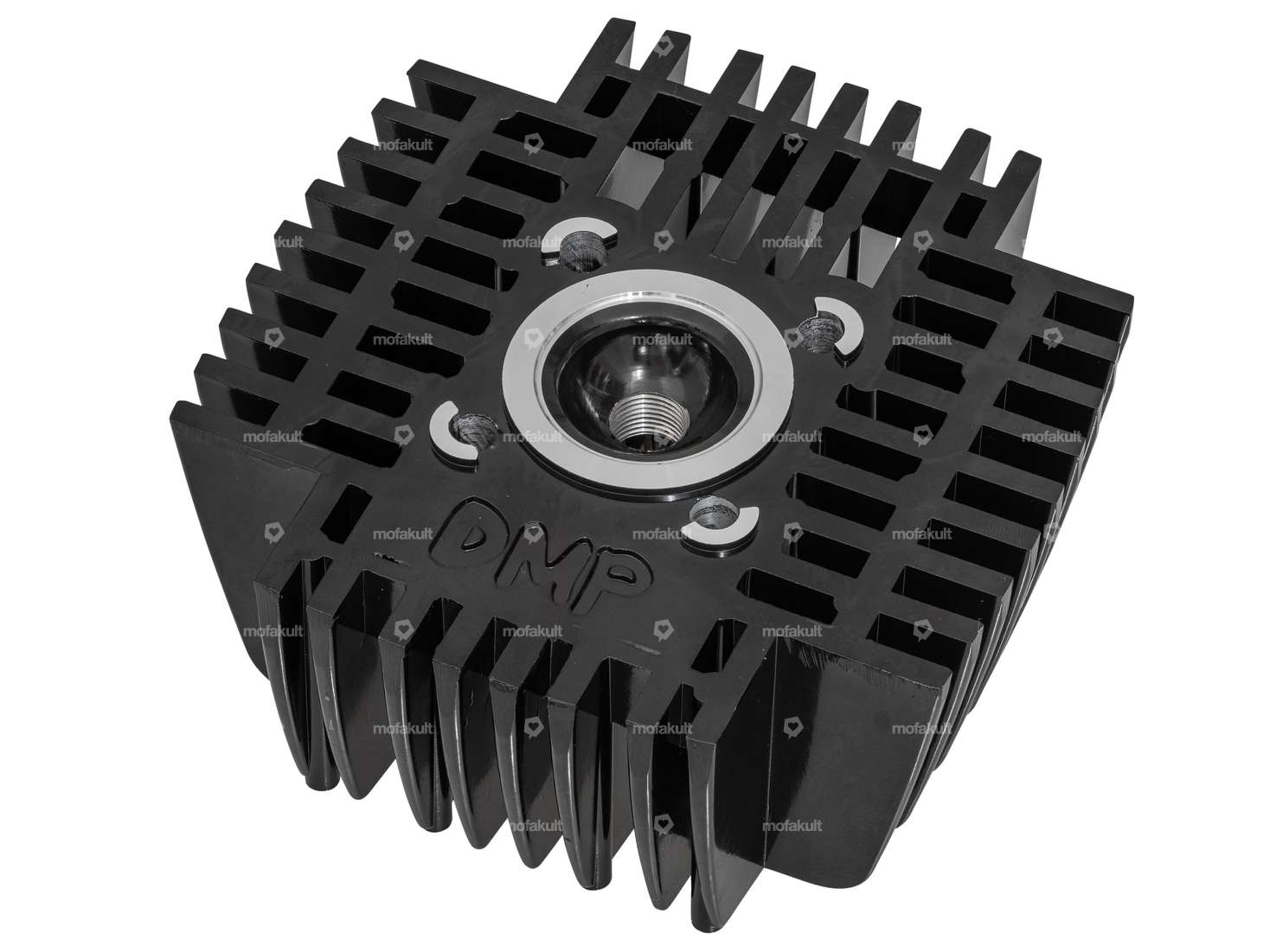

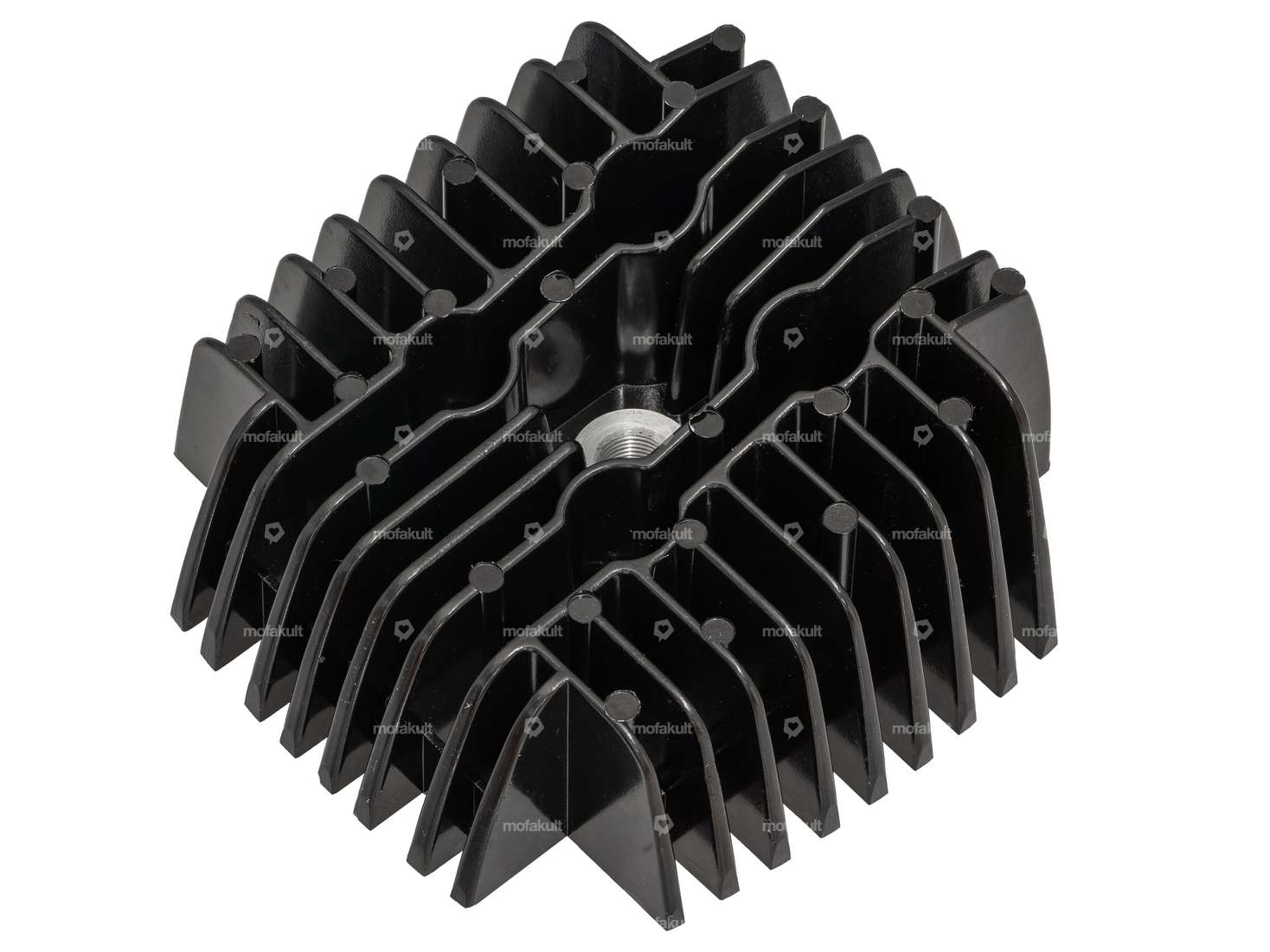

DMP 38 mm cylinder head (higher compression) black | Tomos

Elring Curil T2 sealing compound 70 ml (polyurethane) non-hardening green

Temperature resistance (min.): -55 - 250 °C · Manufacturer: Elring · Contents: 70 ml · Color: green · Area of application: Chemistry · Gap dimension (max.): 0.2 mm

Airsal 38 mm cylinder kit 12 mm KoBo | Tomos A35

Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Displacement: 50 ccm · Ø cylinder neck: 47 mm · Number of fixing points: 4 pcs · Nominal diameter: 38 mm · Ø outlet inside: 25 mm · Ø piston pin (B): 12 mm · Inlet window: 28 / 24 x 38 mm · Thread inlet: M5x0.8 (standard thread) · Area of application: Tuning · Hole spacing inlet: 32 mm · Hole spacing inlet: 35 mm · Hole spacing inlet: 38 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No

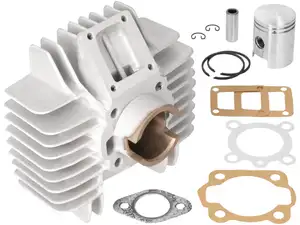

DMP 38 mm cylinder kit tuning 12 mm KoBo | Tomos A35

Manufacturer: DMP · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Number of fixing points: 4 pcs · Nominal diameter: 38 mm · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Area of application: Tuning · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44

41 mm Cylinder Head Gasket, 1.2 mm Special | Puch / Tomos

Thickness: 1.2 mm · Place of use: Cylinder head · Reinforced: Yes · Nominal diameter: 38 mm · Ø outlet inside: 41.3 mm · Ø cylinder: 38 - 41 mm · Ø screw holder: 7.9 mm · Hole pattern [mm]: 44 x 44

Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C

Temperature resistance (min.): -60 - 315 °C · Manufacturer: Elring · Material: Silicone · Contents: 70 ml · Area of application: Chemistry · Color: gray · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Gap dimension (max.): 2 mm

Elring Dirko HT sealing compound red (silicone) high temp. 70 ml elastic up to 315°C

Manufacturer: Elring · Contents: 70 ml · Color: red · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Temperature resistance (min.): -60 - 300 °C · Gap dimension (max.): 2 mm · Area of application: Chemistry

Honing brush Ø 38 - 51 mm Cylinder

Drive shank Drill chuck: round · Diameter: 38 - 51 mm · Grain size: 180 · Material: Silicon carbide · Area of application: Workshop accessories · Number of components: 1 pcs

GPO flywheel trigger M26x1.5 / M22x1.5 | Puch, Sachs, Tomos, Beta 521

Width across flats trigger: 27 mm · Width across flats Screw: 19 mm · Manufacturer: GPO · Clamping depth: 10 mm · Material: Steel · Surface: blackened · Thread type: MF22x1.5 (fine pitch thread) · Thread type: MF26x1.5 (fine pitch thread) · Total length: 55 mm · Total length: 75 mm · Number of components: 1 pcs · Area of application: (Dis)assembly tool · Strength class: 8.8

swiing® revival Stud Bolt, Inlet/Outlet M6x30 (Grade 10.9)

Total length: 30 mm · Diameter: 5.95 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Nominal diameter (thread): 6 mm · Thread length: 12 mm · Strength class: 10.9

Motorex Automatic Motor Oil (ATF) 450 ml

Temperature resistance (min.): -45 - 200 °C · Manufacturer: Motorex · Contents: 450 ml · Gearbox type: Automatic machine · Area of application: Gearbox lubrication with clutch · Pony OEM number: A2080 · Sachs OEM no.: 0263 014 002

Outlet gasket 18 - 22 mm metal ring

Manufacturer: GPO · Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Thickness: 2 mm · Ø inside: 22 mm · Number of fixing points: 2 pcs · Ø mounting hole: 6.7 mm · Hole spacing: 38 - 42.5 mm

Airsal 38 mm cylinder kit 12 mm KoBo | Tomos A35

Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Displacement: 50 ccm · Ø cylinder neck: 47 mm · Number of fixing points: 4 pcs · Nominal diameter: 38 mm · Ø outlet inside: 25 mm · Ø piston pin (B): 12 mm · Inlet window: 28 / 24 x 38 mm · Thread inlet: M5x0.8 (standard thread) · Area of application: Tuning · Hole spacing inlet: 32 mm · Hole spacing inlet: 35 mm · Hole spacing inlet: 38 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No

GPO Gear Ring, 28 Teeth, 8-Hole, Galvanized | Tomos

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Ø inside: 42.6 mm · Thickness: 4.5 mm · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Number of teeth: 28 pcs · Ø bolt circle: 60 mm · Number of fixing points: 8 pcs · Ø mounting hole: 7.5 mm

Long bench seat | Tomos

Width: 180 mm · Manufacturer: Made in Portugal · Material: Imitation leather · Color: black · Lettering: Yes · Total length: 520 mm

41 mm Cylinder Head Gasket, 1.2 mm Special | Puch / Tomos

Thickness: 1.2 mm · Place of use: Cylinder head · Reinforced: Yes · Nominal diameter: 38 mm · Ø outlet inside: 41.3 mm · Ø cylinder: 38 - 41 mm · Ø screw holder: 7.9 mm · Hole pattern [mm]: 44 x 44

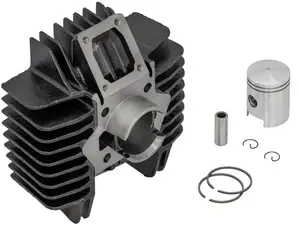

DMP 38 mm cylinder kit slanted exhaust 12 mm KoBo | Tomos Sprint, Quadro, Fun Sport'R, Classic

Manufacturer: DMP · Material: Gray cast iron · Camouflaged: Yes · Surface: varnished · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Number of fixing points: 4 pcs · Nominal diameter: 38 mm · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Area of application: Standard · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Tomos OEM number: 229402
