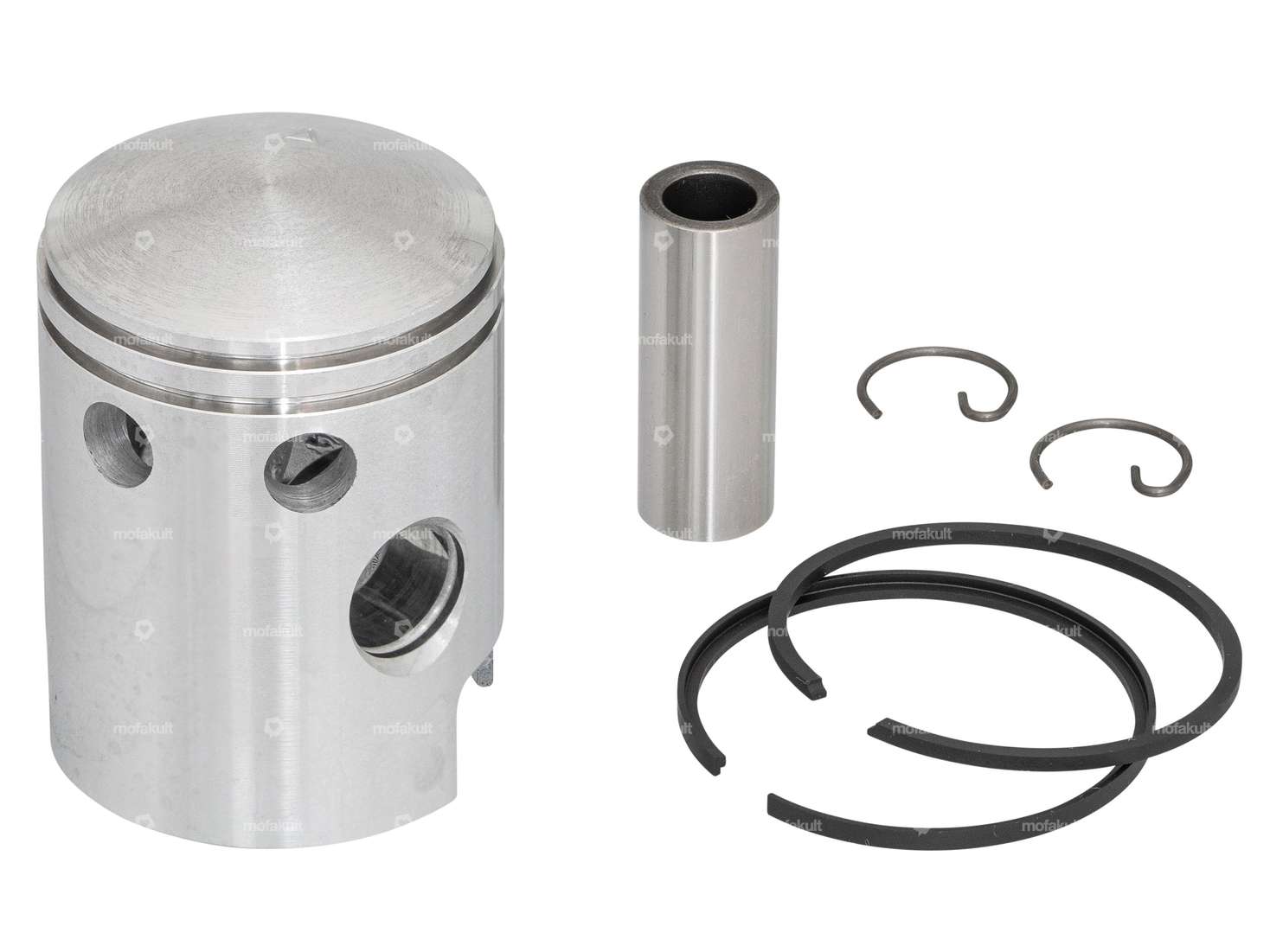

Piston kit with an L-shaped piston ring with internal circlip (IS) and a rectangular piston ring with flank circlip (FS) to fit the 38.40 mm cylinder kit from DR for all Piaggio moped / moped models.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their positions and locking types on the legend in the images.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin retainers and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer DR Racing Parts.
Details
| Nominal diameter | 38.4 mm |
| Manufacturer | DR Racing Parts |
| Ø outside piston (A) | 38.33 mm |
| Compression height (C) | 26.4 mm |
| Curvature (D) | 3.8 mm |
| Total piston height (E) | 52.3 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | L-ring, Rectangular ring |
| Piston ring impact | Internal fuse (IS), Flank safety device (FS) |
| Piston ring height | 2 mm, 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Piston weight | 79 g |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing cage: Silver cage · Width: 16.2 mm · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos OEM number: 035548
EUR 16.70
DR 38.4 mm cylinder kit 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: DR Racing Parts · Material: Gray cast iron · Surface: varnished · Area of application: Tuning · Displacement: 50 ccm · Nominal diameter: 38.4 mm · Crankshaft stroke: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.5 mm · Ø outlet inside: 17 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No
EUR 156.30
Meteor piston pin Ø 12 mm (length: 31 - 40 mm)
Manufacturer: Meteor · Material: Steel · Surface: Hardened · Ø piston pin (B): 12 mm · Total length: 31 mm · Total length: 31.5 mm · Total length: 33 mm · Total length: 35.5 mm · Total length: 37 mm · Total length: 38 mm · Total length: 40 mm · Pony OEM number: A1112 · Sachs OEM no.: 0216 003 105
EUR 8.30
