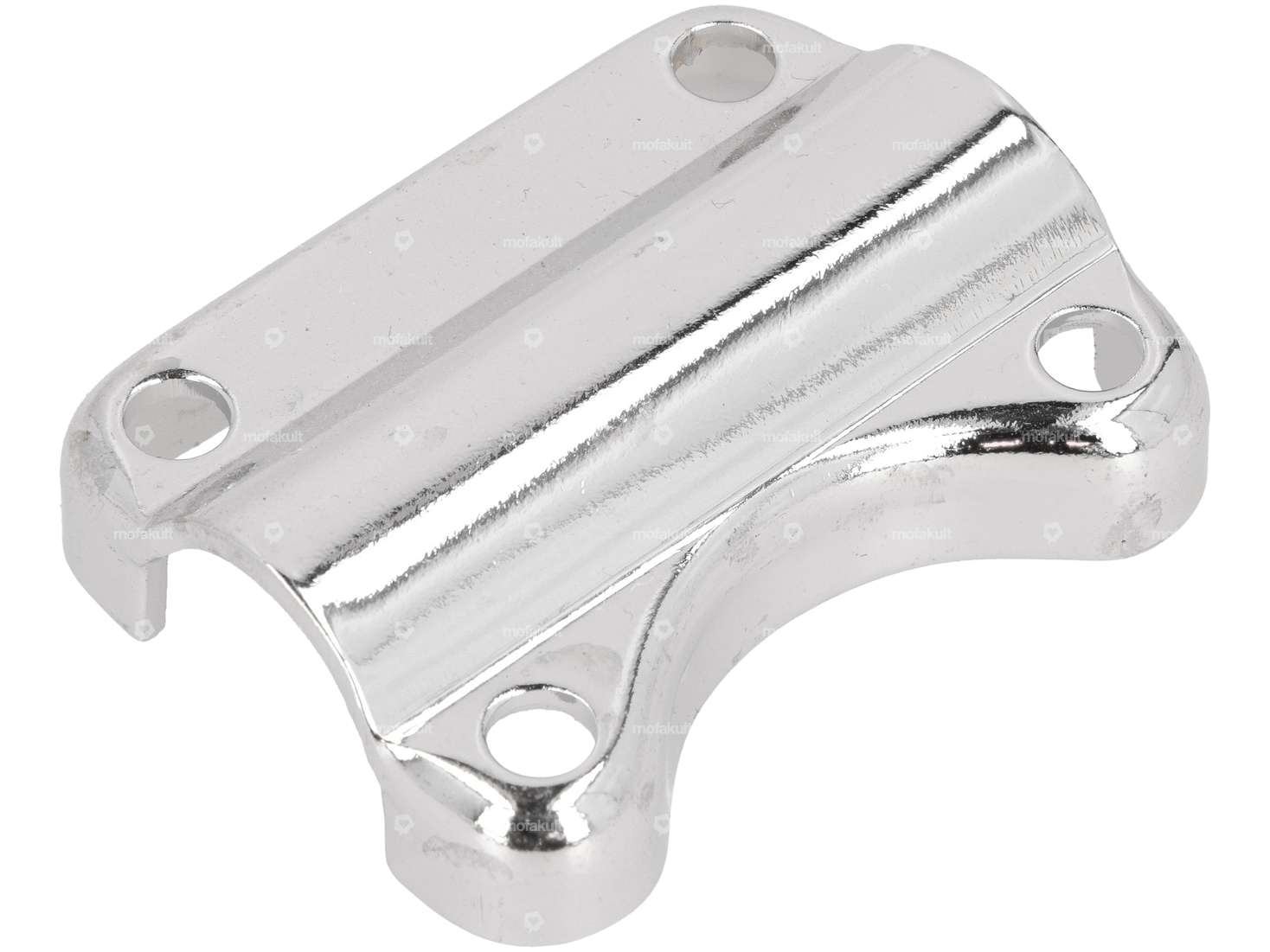

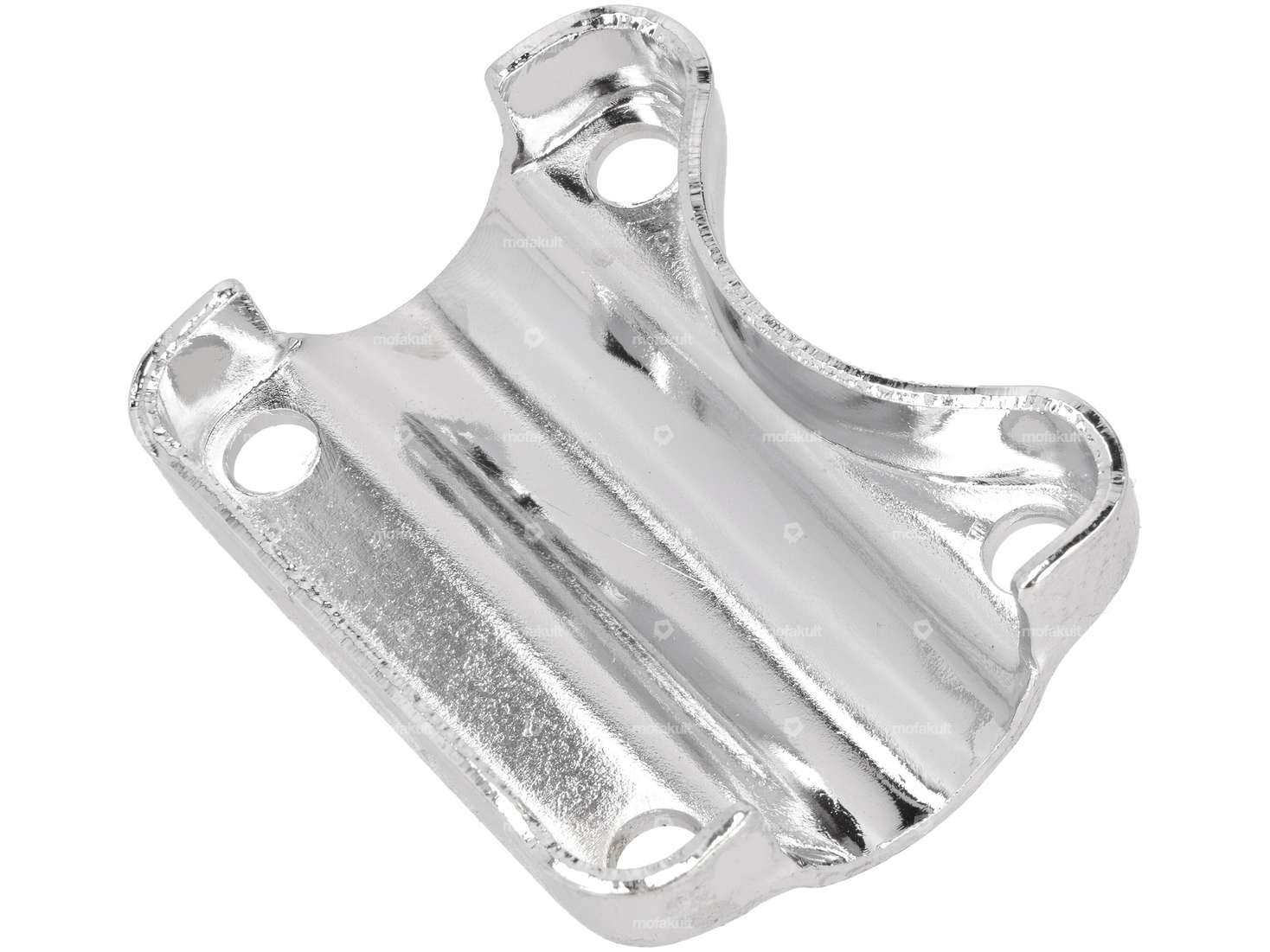

Chrome-plated clamping shell for fixing the handlebars to the fork plate of reinforced EBR forks (note hole spacing).
The mounting bracket is made of sheet steel, an exception is formed for the steerer tube nut.
Hole spacing parallel to the handlebar: 45 mm
Hole spacing over the handlebar: 33 mm
Ø handlebar tube: 22 mm
Outer dimensions: 61 x 49 x 17 mm
Branded product from the Italian manufacturer EBR.
| Manufacturer | EWC |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Width | 49 mm |
| Clamping diameter | 22 mm |
| Height | 17 mm |
| Total length | 61 mm |
| Number of fixing points | 4 pcs |
| Hole spacing | 45 mm, 33 mm |
| Universal |
| Puch |
| Sachs |
| Piaggio |
| Zündapp Belmondo |
