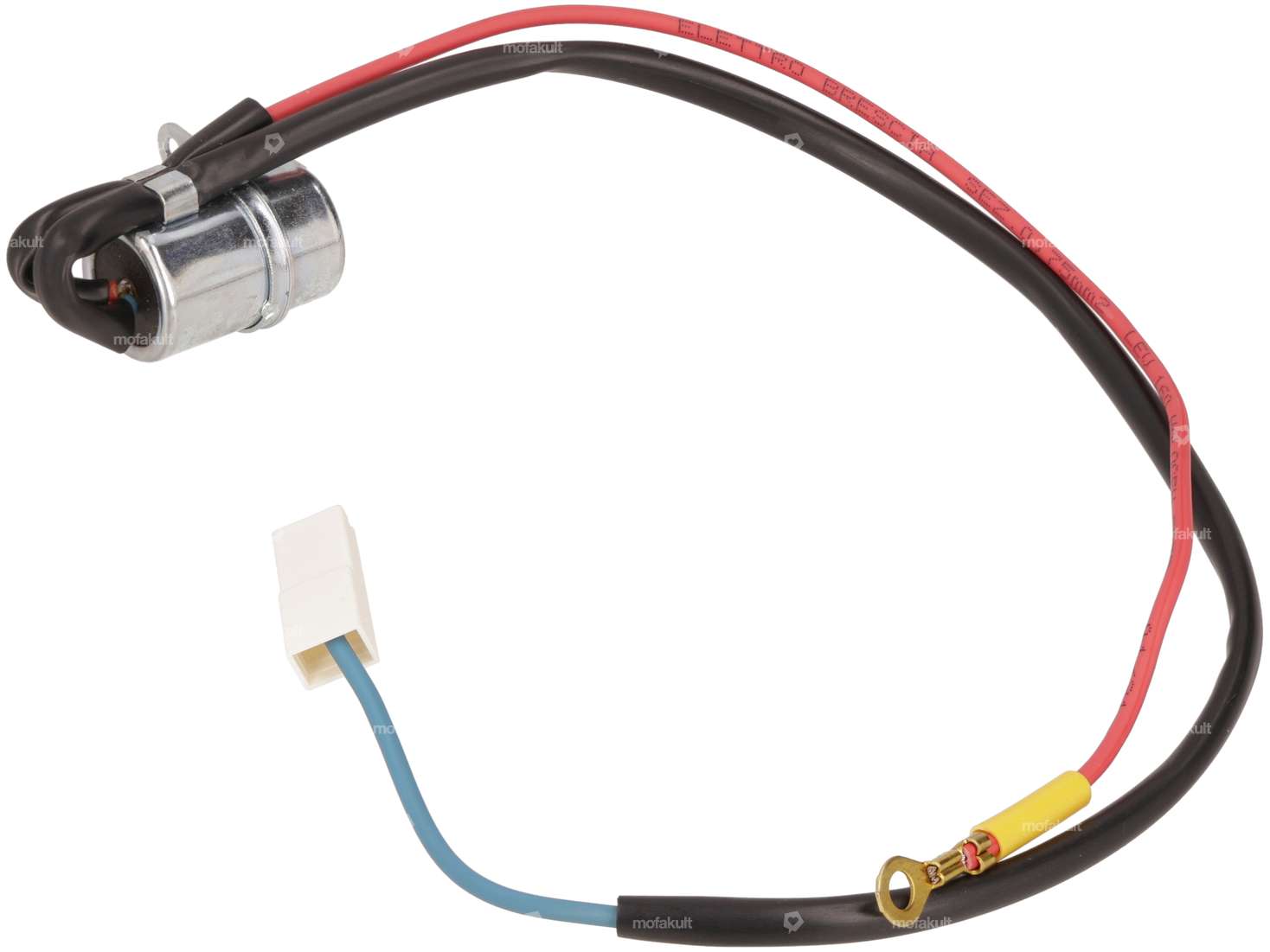

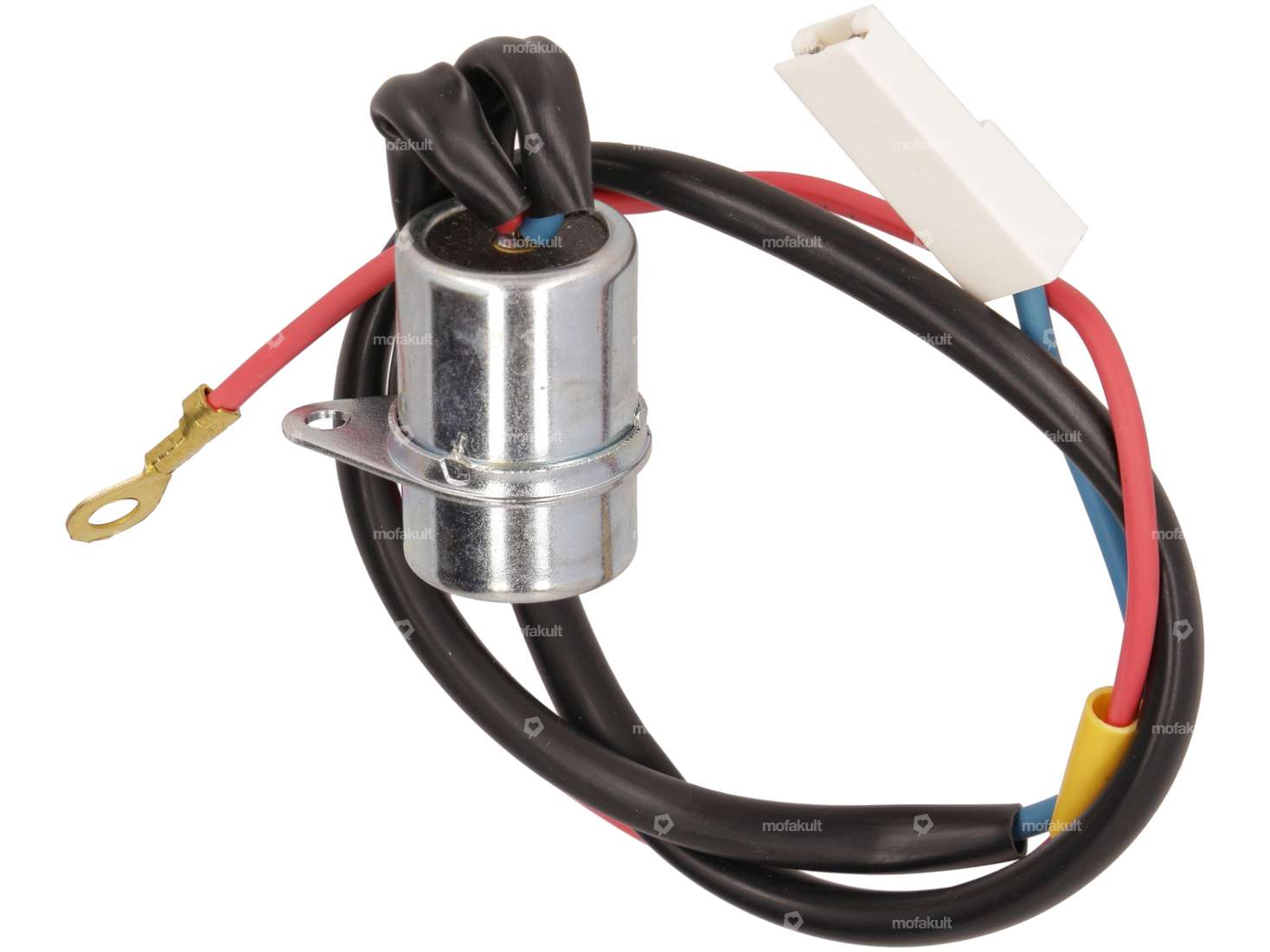

Capacitor with two cables suitable for Piaggio Bravo and SI mopeds / mopeds with breaker ignition and indicator system.
Models that were equipped with indicators as standard (e.g. DE) do not have the condenser mounted under the pole wheel as usual, on these vehicles the condenser is screwed on from the outside with the corresponding engine housing.
Notes:
The red cable with the &p>wire goes to the breaker, the blue cable with the flat plug goes to the ignition coil.

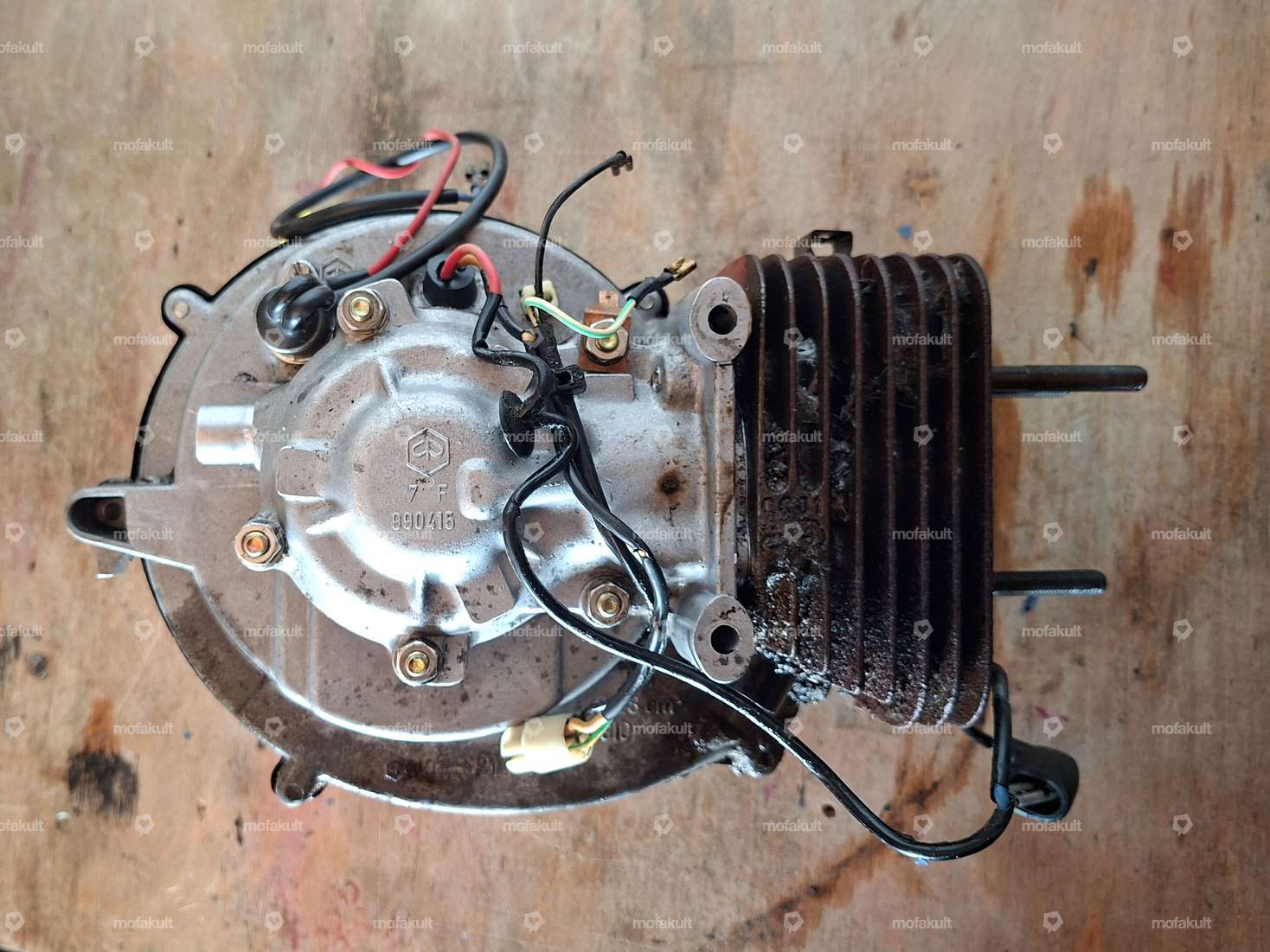

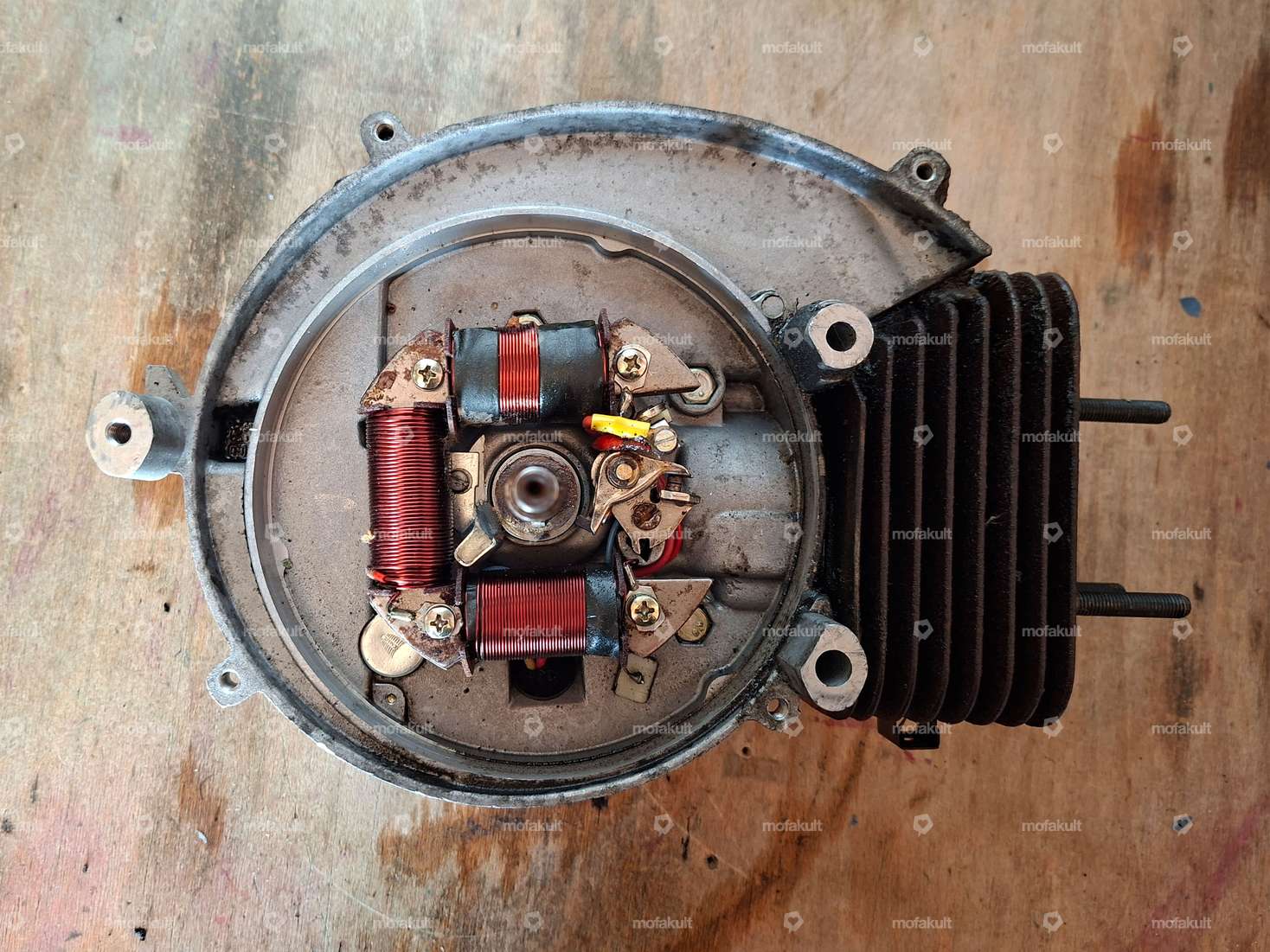

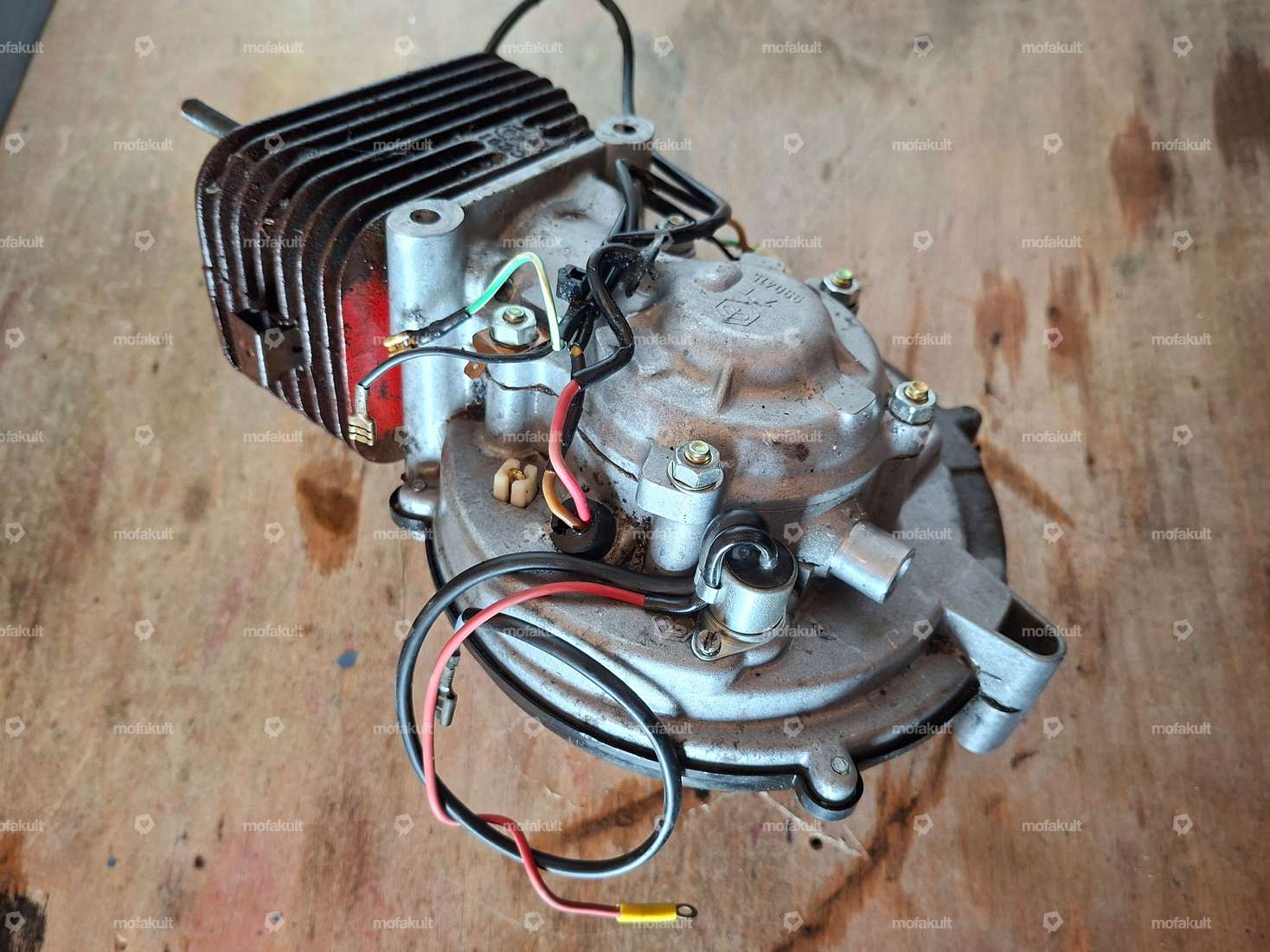

Figure 3 shows you for which ignition the capacitor is required. Figures 4 and 5 show you where the capacitor is located on the motor housing.
| Manufacturer | EFFE |
| Capacity | 0.28 µF |
| Mounting type | Tab for screwing |
| Connection type | Cable for screwing |
| Ø outside | 18 mm |
| Ø mounting hole | 4.4 mm |
| Total height | 27 mm |
| Area of application | Standard |
| Piaggio OEM number | 187555 |
| Piaggio | Si Bravo / Super Bravo |
