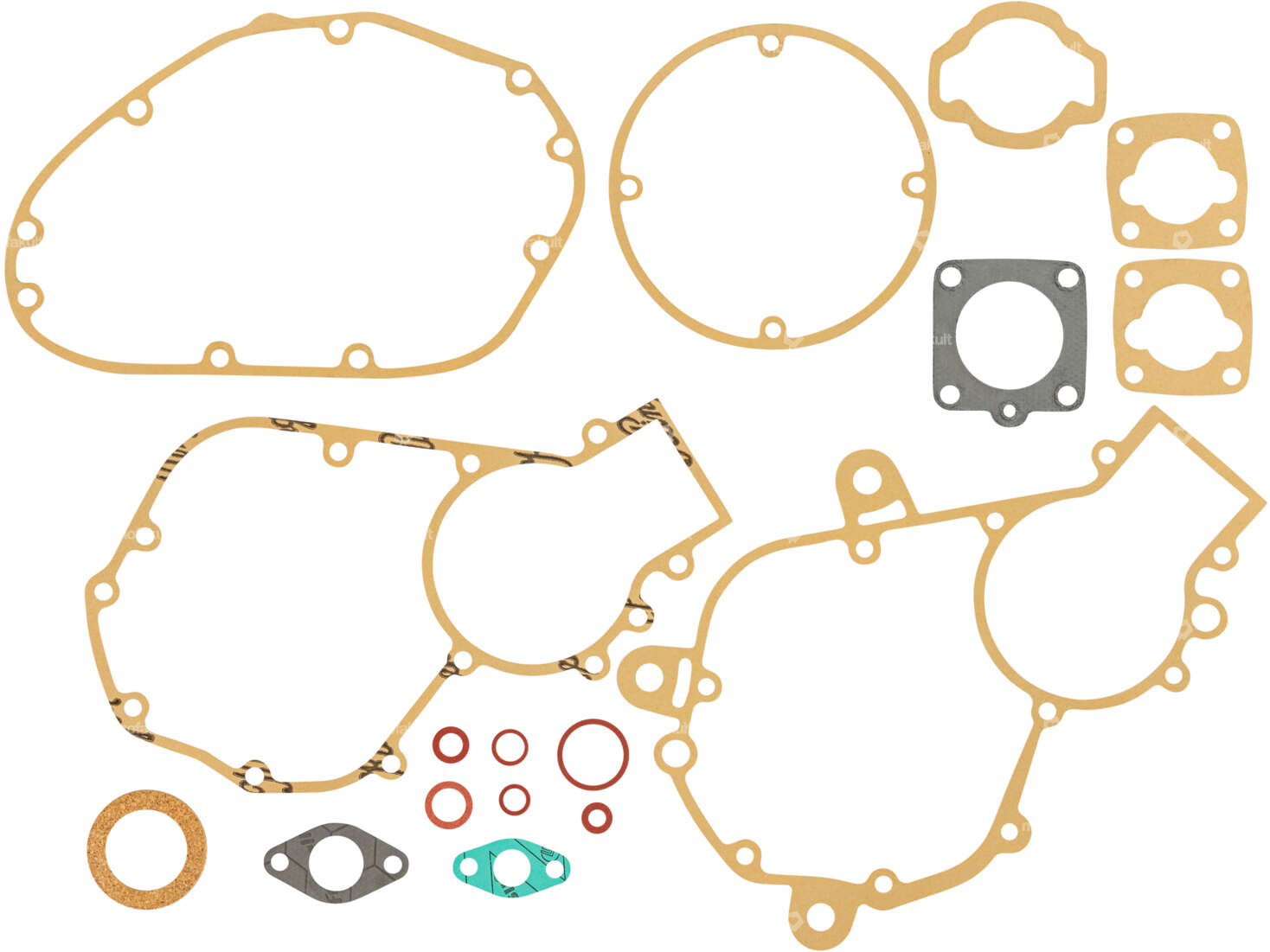

Gasket set Moped | Puch MS / VS / DS 50

Sealing paper set 4 pcs.

Manufacturer: Made in Spain · Material: Sealing carton · Material: Sealing paper · Place of use: Universal · Thickness: 0.25 mm · Thickness: 0.4 mm · Thickness: 0.5 mm · Thickness: 1.2 mm

Engine gasket set | Puch MS, VS, DS, MV, M

Number of components: 8 pcs · Area of application: Standard

Elring Dirko HT sealing compound red (silicone) high temp. 70 ml elastic up to 315°C

Manufacturer: Elring · Contents: 70 ml · Color: red · Hazard warning: Causes serious eye irritation · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Gap dimension (max.): 2 mm · Temperature resistance (min.): -60 - 300 °C · Area of application: Chemistry

Sealing paper 1 mm (oiled paper) A4 sheet (1A quality)

Manufacturer: Made in Spain · Material: Sealing paper · Place of use: Universal · Thickness: 1 mm

Sealing paper 0.5 mm A4 sheet 250 °C (1A quality)

Manufacturer: Made in Spain · Material: Sealing paper · Place of use: Universal · Thickness: 0.5 mm

Gasket set moped 4-speed | Puch VZ50-4, MS50SE, S, R / KTM Comet

Manufacturer: Made in Austria · Material: Aluminum · Material: Sealing paper · Number of components: 29 pcs

Gasket set moped 4-speed | Puch DS50, R50V, VZ / KTM Comet 500, Pony

Manufacturer: Made in Austria · Material: Aluminum · Material: Sealing paper · Number of components: 24 pcs

Magura cable holder

Ø Nipple hole: 6.2 mm · Manufacturer: Magura · Ø Bundle: 10 mm · Material: Brass · Surface: nickel-plated · Color: silver · Ø Cable bushing: 4 mm · Ø outside: 8 mm · Total length: 14.5 mm · Area of application: Standard

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Manufacturer: GPO · Possible lever positions: open / closed / reserve · Thread type: MF12x1 (fine pitch thread) · Material lever: Metal · Mounting type: Union nut · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Ø fuel hose connection: 6 mm · Reserve level: 70 mm

swiing® revival nozzle set M3.5 (64 - 74) Bing SRE, SRA, SRC, SRF

Manufacturer: swiing® revival parts · Material: Brass · Component group Carburetor: Spraying · Quantity: 6 pcs · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 64 · Nozzle size: 66 · Nozzle size: 68 · Nozzle size: 70 · Nozzle size: 72 · Nozzle size: 74 · Total length: 6 mm

Motorex engine oil (gear oil) manual 450 ml

Manufacturer: Motorex · Viscosity (SAE): 80W · Oil type: GL4 · Contents: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C · Area of application: Gearbox lubrication with clutch

Oil seal NBR 17/35/7 A DUO

Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Material: NBR · Ø outside: 35 mm · Ø inside: 17 mm · Width: 7 mm · Temperature resistance (min.): -30 - 100 °C

swiing® revival Ø 9 mm wedge 3.5° pedal crank galvanized

Manufacturer: swiing® revival parts · Material: Steel · Color: silver · Total length: 43 mm · Surface: galvanized (blue) · Angle crank wedge: 3.5° · Ø outside: 9 mm · Thread type: M7x1 (standard thread)

Oil seal NBR 17/28/7 A DUO gearbox shaft | Puch Z50

Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Material: NBR · Ø outside: 28 mm · Ø inside: 17 mm · Width: 7 mm · Temperature resistance (min.): -30 - 100 °C

swiing® ingenious 15 mm carburetor camouflaged | Puch

Manufacturer: swiing® ingenious parts · Material: Aluminum · Component group Carburetor: Carburetor complete · Mounting type: Plug connection clamped · Carburetor type: SRE · Nominal diameter: 15 mm · Ø Internal connection: 20 mm · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Height: 95 mm · Ø Air filter connection: 20 mm · Width: 50 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle block: 2.17 · Camouflaged: Yes · Nozzle size: 62 · Clamping screw torque (max.): 4 N/m · Total length: 66 mm · Area of application: Tuning · Alternative version of the Puch OEM number: 349.1.15.100.0 · Alternative version of the Puch OEM number: 349.2.15.800.0 · Alternative version of the Puch OEM number: 349.4.15.500.0 · Alternative version of the Puch OEM number: 349.4.15.000.0 · Alternative version of the Puch OEM number: 349.4.15.300.0 · Alternative version of the Puch OEM number: 349.6.15.400.0 · Alternative version of the Puch OEM number: 349.7.15.700.0 · Alternative version of the Puch OEM number: 349.8.15.400.0 · Alternative version of the Puch OEM number: 349.9.15.300.0

swiing® revival Ø 9.5 mm wedge 3.5° crank handle Inox

Manufacturer: swiing® revival parts · Material: Chrome steel (colloquially known as stainless steel) · Thread type: M7x1 (standard thread) · Angle crank wedge: 3.5° · Ø outside: 9.5 mm · Total length: 44 mm

Oil seal NBR 17/35/7 A DUO crankshaft | Puch Z50

Place of use: Crankshaft · Temperature resistance (min.): -30 - 100 °C · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Width: 7 mm · Manufacturer: Puch · Material: NBR
