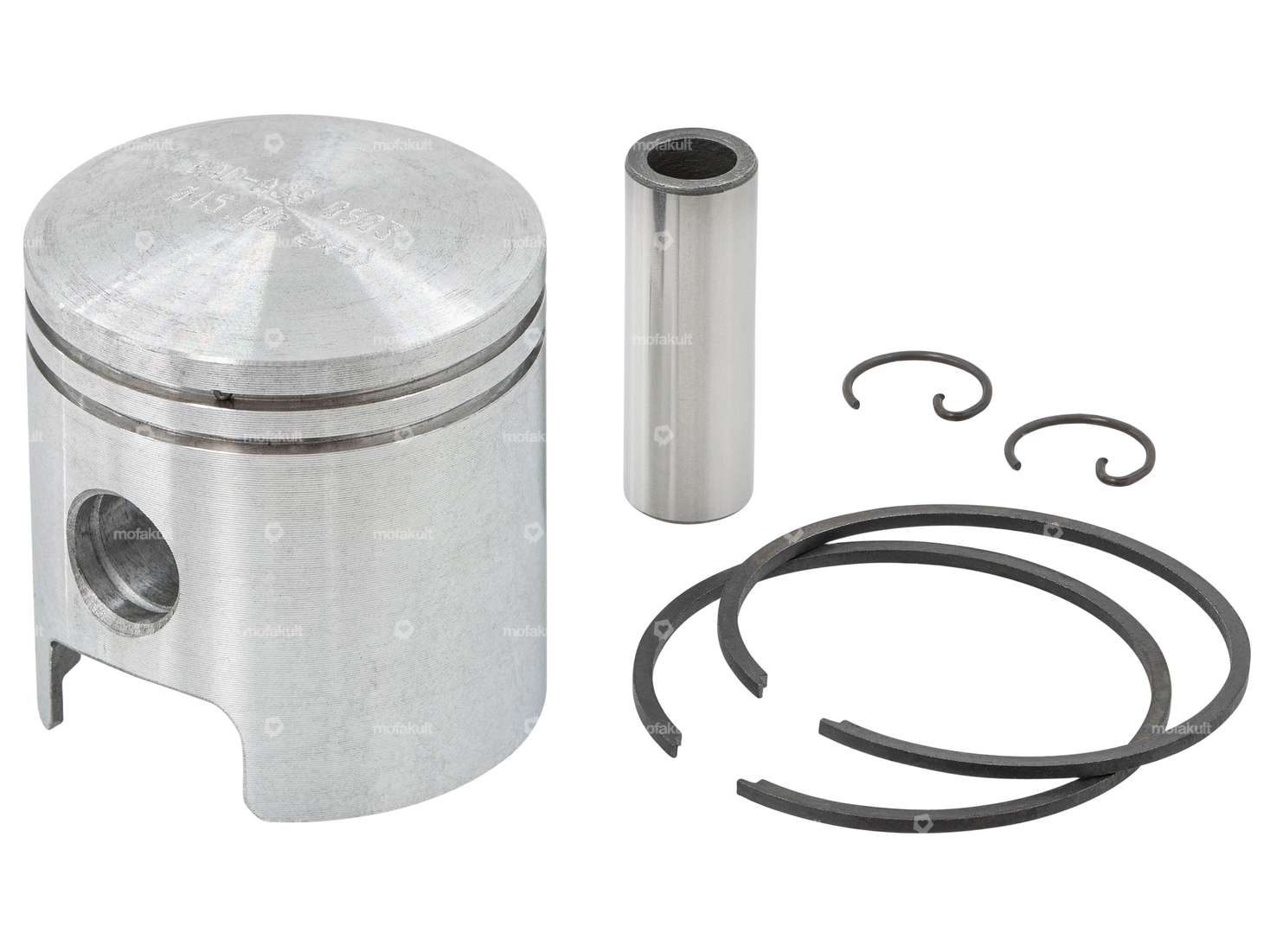

45.0 mm piston with two 1.5 mm rectangular piston rings with internal circlips (IS) for your moped / moped with blown BAD ASS Lucifer 45.00 mm cylinder on Puch X30 Velux and Puch X30 NG-2AH engines. The piston kit is used for the 45 mm cylinder variant.

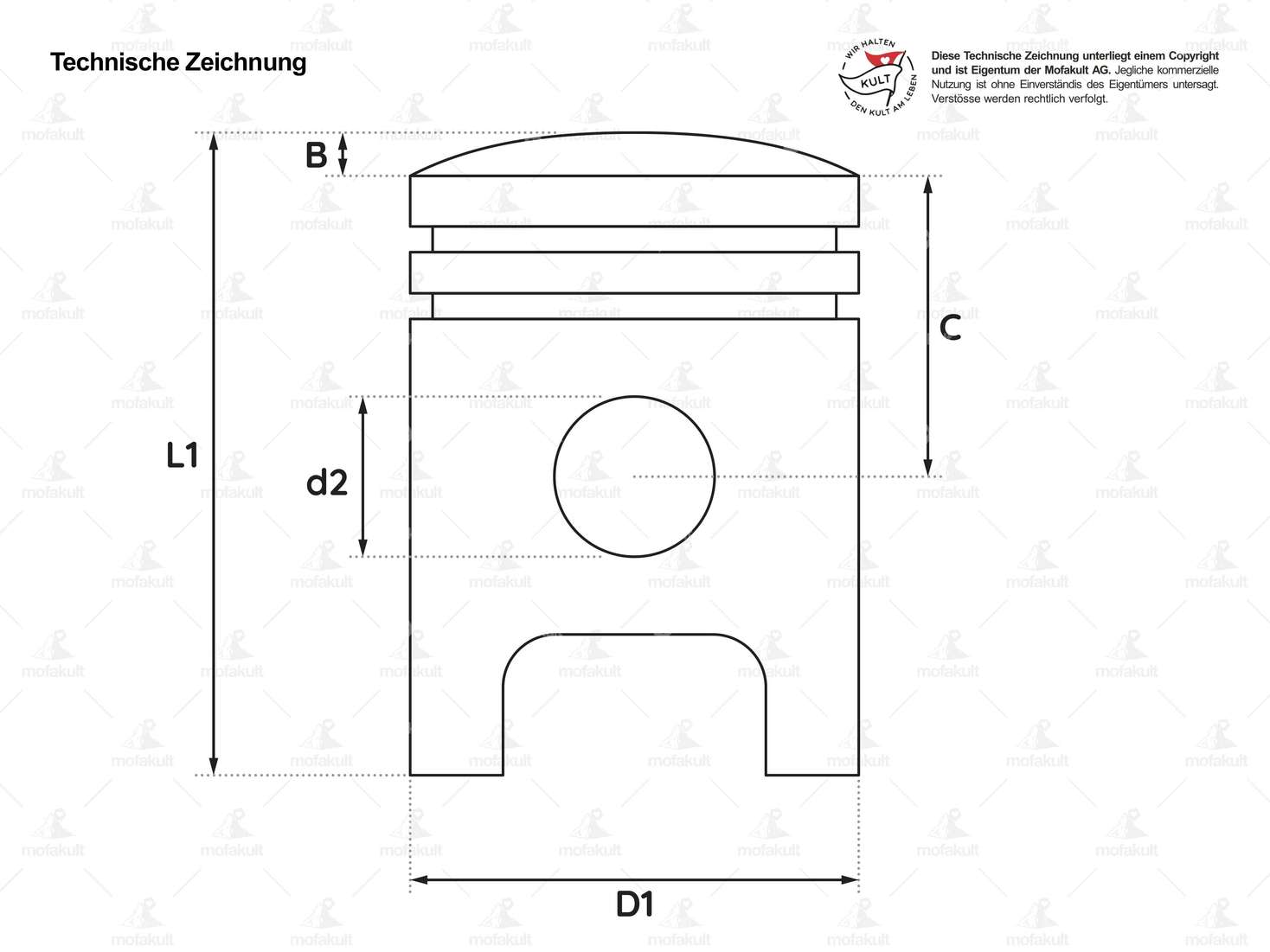

The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Quality product from the Italian manufacturer GOL.
| Nominal diameter | 45 mm |
| Manufacturer | BAD ASS |
| Ø outside piston (A) | 44.94 mm |
| Compression height (C) | 22.4 mm |
| Curvature (D) | 2.4 mm |
| Total piston height (E) | 48.3 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Ø piston pin (B) | 12 mm |
| Piston weight | 105 g |
| Puch | ZA50 (fan-cooled) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
Accessories & related products
swiing® ingenious 15 mm carburetor set camouflaged | Puch X30 Velux
Carburetor type: SRE · Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Component group Carburetor: Carburetor complete · Area of application: Tuning · Mounting type: Flange · Mounting type: Plug connection clamped · Hole spacing inlet: 32 mm · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø Air filter connection: 23 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 62
EUR 147.70
swiing resonance exhaust set Ø 28 / 70 mm | Puch X30 Velux
Manufacturer: swiing · Material: Steel · Surface: chrome-plated · Ø outside: 70 mm · Total length: 730 mm · Color: Chrome · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp · Flame tube attachment: Flange
EUR 154.40
EUR 171.70
swiing® revival stud bolt set M6x30 (strength 10.9) galvanized
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 6 mm · Thread type: M6x1 (standard thread) · Total length: 30 mm · Thread length: 12 mm · Width across flats SW: 10 mm · Strength class: 8 · Strength class: 10.9 · Drive: External hexagon
EUR 12.90
BAD ASS Lucifer BigBore cylinder kit Ø 45 mm | Puch X30 Velux, NG-2AH
Nominal diameter: 45 mm · Manufacturer: BAD ASS · Material: Gray cast iron · Displacement: 70 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 49 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 25 mm · Ø Inlet inside: 19 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Ø piston pin (B): 12 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Area of application: Tuning
EUR 300.30

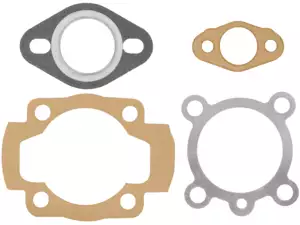

GPO cylinder gasket set BAD ASS Lucifer 45 mm | Puch X30 Velux, NG-2AH
