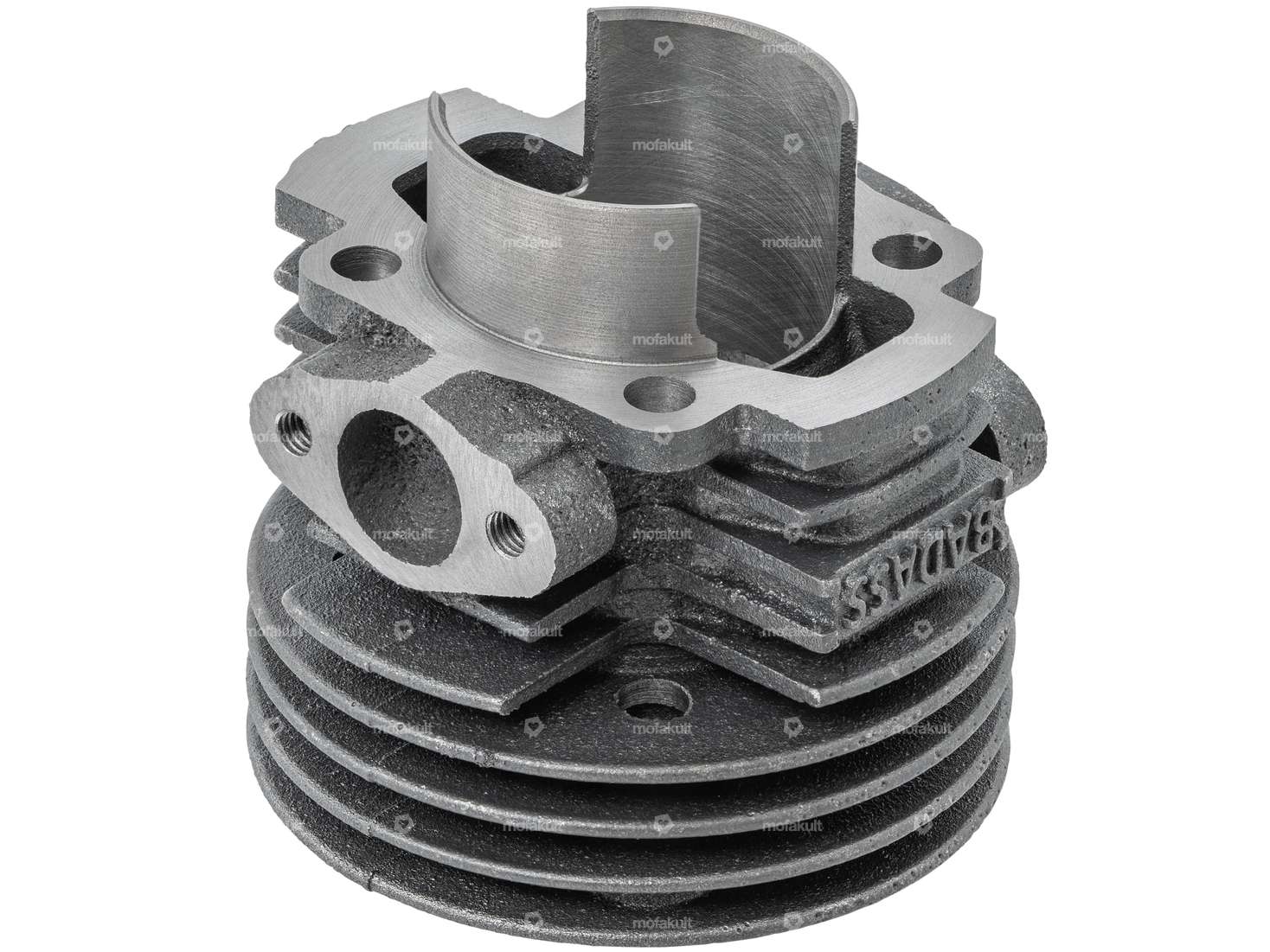

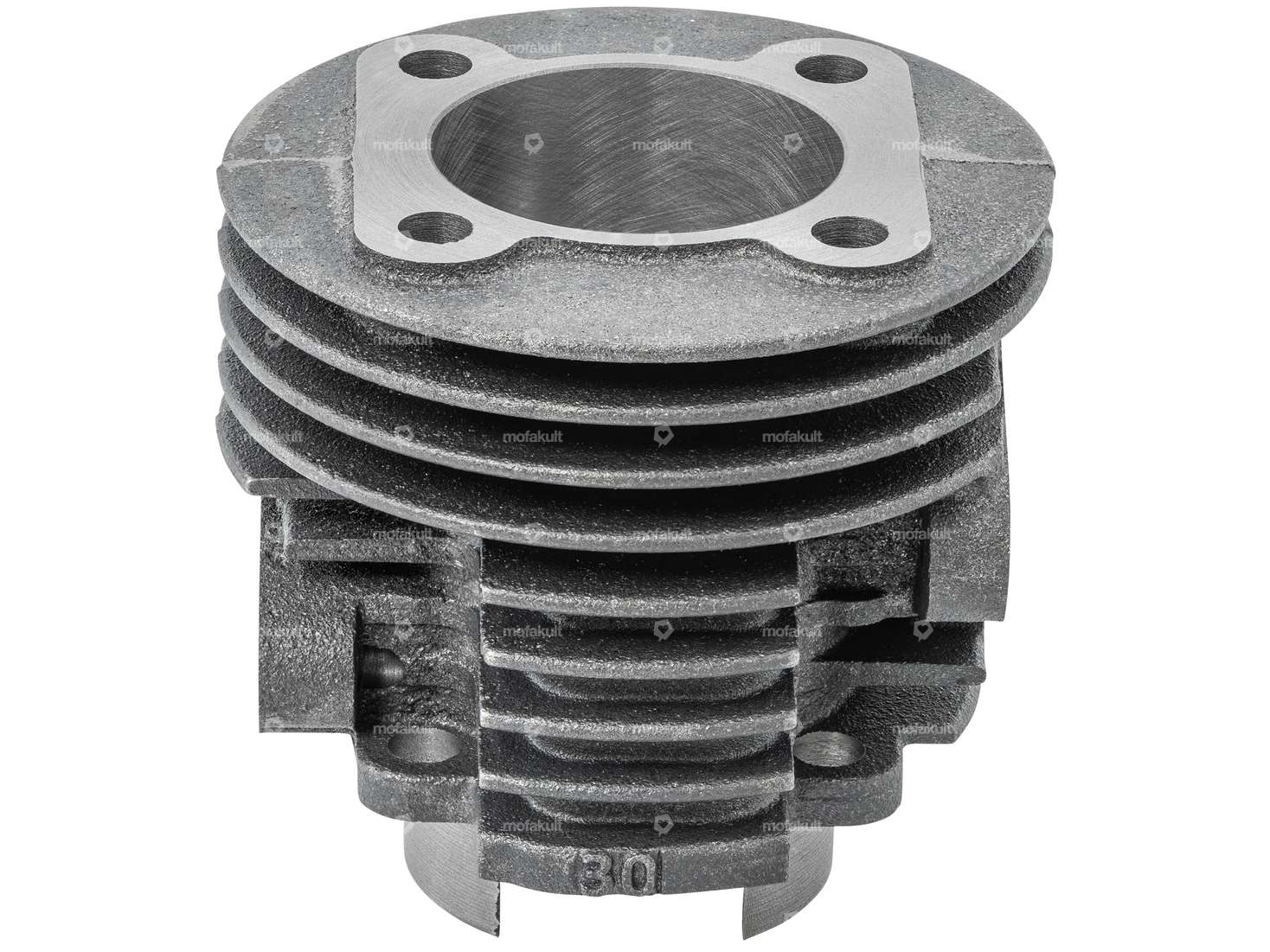

Bladed 45 mm (70 cc) cylinder kit with 12 mm piston pin, suitable for your Puch X30 Velux and on your Puch X30 NG-2AH moped / moped.
The timing of the cylinder was kept rather low, which is characterized by a very nice torque in the lower speed range.
The racing cylinder kit without sealing includes cylinder & piston kit.
- Grey cast iron reproduction cylinder with & 45.0 mm bore
- Slot-controlled
- Ø 19 mm intake, 32 mm stud spacing
- Optimized overflow channels
- Improved timing
- Spindling of the engine gearbox necessary (Ø cylinder neck 49.0 mm)
- Ø 25 mm outlet, 42 mm stud bolt spacing
- Hole pattern for stud bolts: 44 x 44 mm
- Incl. Ø 45 mm piston from the Italian manufacturer GOL

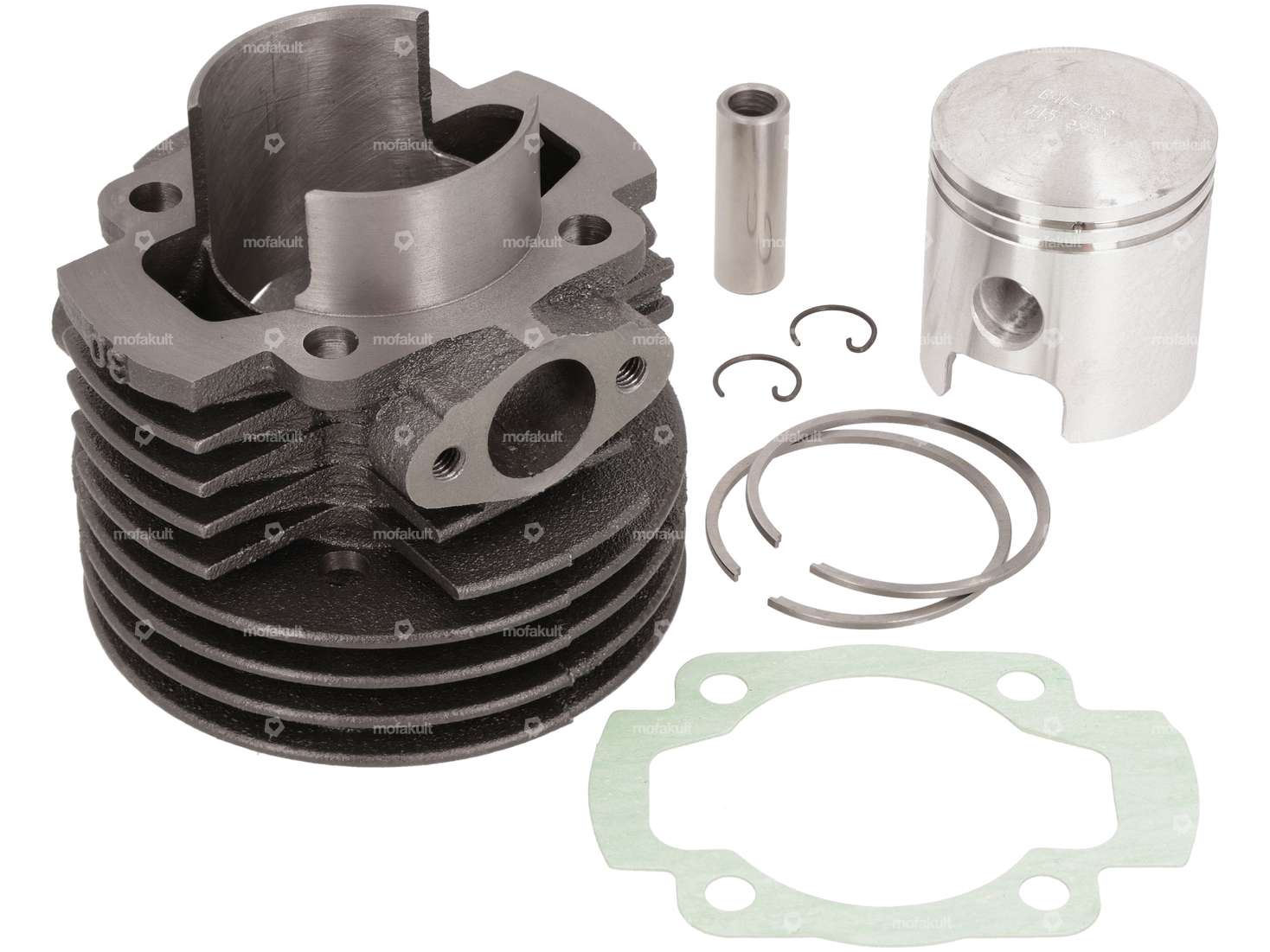

Scope of delivery according to illustrations
Notes:
For Puch Velux engines, the slot on the housing no longer needs to be cast on thanks to the large sealing surface.
For ZA50-G engines, the housing may need to be spindled on.
The cylinder kit can also be used on DS, MV, MS, VZ (EX50) engines, provided the housing is spindled on.
Full assembly instructions are enclosed. Please note the installation direction when assembling. The piston is inserted with the arrow pointing towards the outlet on the exhaust side.
| Nominal diameter | 45 mm |
| Manufacturer | BAD ASS |
| Material | Gray cast iron |
| Area of application | Tuning |
| Displacement | 70 ccm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 49 mm |
| Ø Outlet outside | 26 mm |
| Ø outlet inside | 25 mm |
| Ø Inlet inside | 19 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing inlet | 32 mm |
| Number of fixing points | 4 pcs |
| Ø piston pin (B) | 12 mm |
| Hole pattern [mm] | 44 x 44 |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Puch | ZA50 (fan-cooled) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
Accessories & related products
swiing® ingenious 15 mm carburetor set camouflaged | Puch X30 Velux
Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Area of application: Tuning · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Mounting type: Flange · Mounting type: Plug connection clamped · Nozzle size: 62 · Ø Inside entrance: 15 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø Air filter connection: 23 mm · Hole spacing inlet: 32 mm · Ø Internal connection: 20 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Nozzle thread: M3.5x0.6 (standard thread)
EUR 148.20
swiing® ingenious resonance exhaust set Ø 28 / 70 mm | Puch X30 Velux
Manufacturer: swiing® ingenious parts · Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 730 mm · Mounting type: Screwed clamp · Exhaust type: Cigar · Ø Internal connection: 28 mm · Ø outside: 70 mm · Flame tube attachment: Flange
EUR 172.40
swiing® revival stud bolt set M6x30 (10.9 strength) galvanized
Surface: galvanized (blue) · Manufacturer: swiing® revival parts · Material: Steel · Diameter: 6 mm · Thread type: M6x1 (standard thread) · Drive: External hexagon · Nominal diameter (thread): 6 mm · Total length: 30 mm · Thread length: 12 mm · Width across flats: 10 mm · Strength class: 8 · Strength class: 10.9
EUR 12.90
GOL Piston 45 mm BAD ASS Lucifer BigBore | Puch X30 Velux, NG-2AH
Manufacturer: BAD ASS · Ø outside piston (A): 44.94 mm · Compression height (C): 22.4 mm · Curvature (D): 2.4 mm · Total piston height (E): 48.3 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 45 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Weight piston kit: 105 g
EUR 84.30
GPO cylinder gasket set BAD ASS Lucifer 45 mm | Puch X30 Velux, NG-2AH
Manufacturer: GPO · Material: Aluminum · Material: Sealing paper · Ø cylinder: 45 mm · Number of components: 4 pcs · Ø outlet inside: 27 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Thickness: 0.4 mm · Thickness: 0.45 mm · Area of application: Tuning · Hole spacing inlet: 32 mm
EUR 24.00

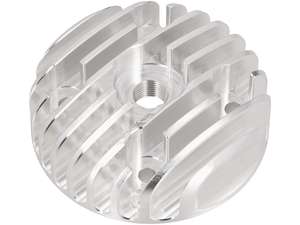

swiing® ingenious 45 mm cylinder head | Puch EX30 (Z50), ZA50 (fan-cooled)
