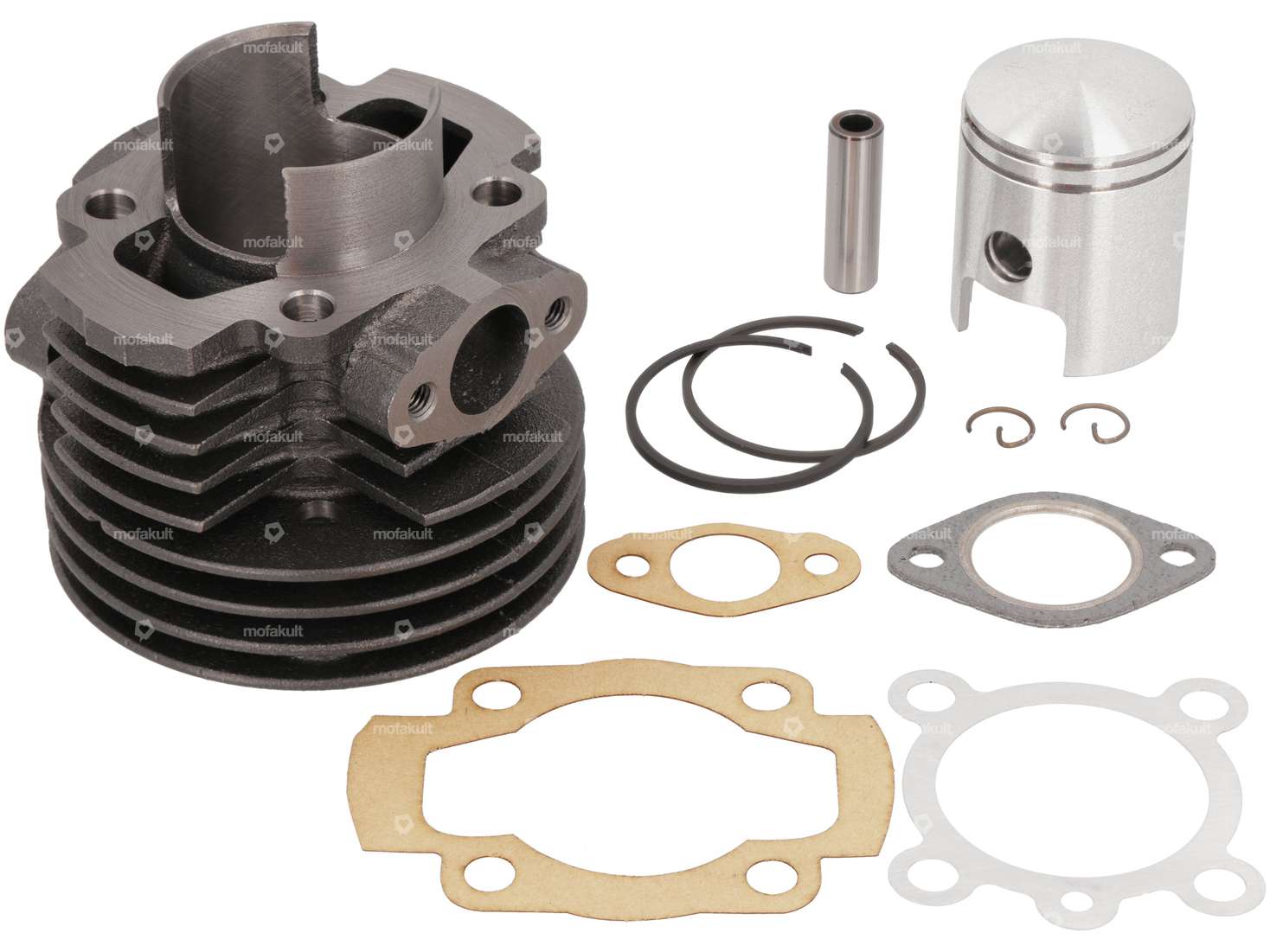

GPO Ø 41 mm "Sombrero" cylinder kit | Puch X30 Velux, NG-2AH

swiing® ingenious 15 mm carburetor set camouflaged | Puch X30 Velux

Nominal diameter: 15 mm · Manufacturer: swiing® ingenious parts · Component group Carburetor: Carburetor complete · Carburetor type: SRE · Ø Inside entrance: 15 mm · Ø Internal connection: 20 mm · Ø Output inside: 15 mm · Ø Air filter connection: 20 mm · Ø Air filter connection: 23 mm · Hole spacing inlet: 32 mm · Ø fuel hose connection: 6 mm · Choke control: Hand choke · Mounting type: Flange · Nozzle thread: M3.5x0.6 (standard thread) · Mounting type: Plug connection clamped · Nozzle size: 62 · Area of application: Tuning

NGK B7HS spark plug short thread

Manufacturer: NGK · Candle thread type: short · Spark plug socket: M4 · Spark plug socket: SAE · Suppressed: No · Thread type: MF14x1.25 (fine pitch thread) · Width across flats SW: 21 mm

swiing crankshaft High End | Puch X30 Velux (Z50)

Manufacturer: swiing® ingenious parts · Material: Aluminum · Material: Steel · Cheek type: Full cheeks · Thread type: MF10x1 (fine pitch thread) · Crankshaft stroke: 43 mm · Connecting rod length center-center: 90 mm · Total length of crankpin on clutch side: 58 mm · Total length crankpin ignition side: 67 mm · Ø crank webs: 70 mm · Thread length: 8 mm · Thread length: 13 mm · Ø Connecting rod eye: 15 mm · Ø piston pin (B): 12 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Dimension needle bearing: 12 / 15 x 14.2 mm (axe 12) · Length 1st paragraph: 20.3 mm · Length 2nd paragraph: 19 mm · Area of application: High End · Area of application: Racing · Area of application: Tuning · Ø 1st step (on the coupling side): 17 mm · Ø 2nd shoulder (on the clutch side): 15 mm · Length of shoulder (ignition side): 26.3 mm · Weight: 954 g · Number of gears: 2 pcs

swiing resonance exhaust set Ø 28 / 70 mm | Puch X30 Velux

Manufacturer: swiing · Material: Steel · Surface: chrome-plated · Ø outside: 70 mm · Total length: 730 mm · Color: Chrome · Flame tube attachment: Flange · Ø Internal connection: 28 mm · Exhaust type: Cigar · Mounting type: Screwed clamp

swiing® revival air filter (without insert) black | Puch X30 Velux

Material: Plastic · Color: black · Manufacturer: swiing® revival parts · Mounting type: Plug connection clamped · Camouflaged: Yes · Filter type: Box · Area of application: Standard · Ø Internal connection: 23 mm

swiing® revival air filter (without insert) gray | Puch X30 Velux

Material: Plastic · Color: gray · Manufacturer: swiing® revival parts · Mounting type: Plug connection clamped · Camouflaged: Yes · Filter type: Box · Area of application: Standard · Ø Internal connection: 23 mm

swiing® ingenious cylinder head tuning (38 - 41 mm of your choice) | Puch X30 Velux

Manufacturer: swiing® ingenious parts · Ø cylinder: 38 - 41 mm · Ø outside: 90 mm · Number of fixing points: 4 pcs · Decompressor: No · Height: 35 mm · Area of application: Tuning

swiing® ingenious cylinder head "Racing" with O-ring (38 - 41 mm of your choice) | Puch X30 Velux

Manufacturer: swiing® ingenious parts · Area of application: Racing · Ø outside: 90 mm · Ø cylinder: 38 - 41 mm · Number of fixing points: 4 pcs · Height: 35 mm · Decompressor: No

GPO 41 mm "Sombrero" cylinder kit | Puch M50, MS50, VS50, DS50, VZ50

Nominal diameter: 41 mm · Manufacturer: GPO · Material: Gray cast iron · Area of application: Tuning · Crankshaft stroke: 43 mm · Displacement: 57 ccm · Ø cylinder neck: 43 mm · Ø outlet inside: 25 mm · Ø Inlet inside: 19 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 10 mm · Ø piston pin (B): 12 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 42 mm · Decompressor: No · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Camouflaged: No

GPO piston 41 mm (12 mm KoBo) | Puch X30 Velux, M50, MS50, VS50, DS50, VZ50

Nominal diameter: 41 mm · Manufacturer: GPO · Ø outside piston (A): 40.94 mm · Compression height (C): 23.2 mm · Curvature (D): 3.7 mm · Total piston height (E): 49.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston weight: 85 g

Piston 41 mm (10 mm KoBo) | Puch X30 Velux, M50, MS50, VS50, DS50, VZ50

Nominal diameter: 41 mm · Ø outside piston (A): 40.94 mm · Compression height (C): 23.25 mm · Curvature (D): 3.65 mm · Total piston height (E): 49.35 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 10 mm · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Piston weight: 85 g

swiing® revival special nut M6 SW8 (sprocket ref. back pedal / intake manifold)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Drive: External hexagon · Thread type: M6x1 (standard thread) · Height: 6 mm · Width across flats SW: 8 mm

swiing centering sleeves cylinder head (M7 stud bolt) | Puch X30 Velux

Manufacturer: swiing · Material: Aluminum · Ø inside: 7.1 mm · Ø outside: 8 mm · Total length: 17 mm · Nominal diameter inside: 7 mm

swiing centering sleeves cylinder head (M6 stud bolt) | Puch X30 NG, DS, MV

Manufacturer: swiing · Material: Aluminum · Ø inside: 6.25 mm · Ø outside: 8 mm · Total length: 26 mm · Nominal diameter inside: 6 mm

swiing® revival stud bolt cylinder base M6x26 - 10.9 strength | Sachs

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.8 mm · Total length: 26 mm · Thread length: 9 mm · Thread length: 13 mm · Thread type: M6x1 (standard thread) · Strength class: 10.9

GPO cylinder gasket set BAD ASS Lucifer / GPO Sombrero 41 mm | Puch X30 Velux, M50, MS

Manufacturer: GPO · Thickness: 0.4 mm · Thickness: 0.45 mm · Material: Aluminum · Material: Sealing paper · Area of application: Tuning · Ø cylinder: 41 mm · Ø outlet inside: 27 mm · Hole spacing inlet: 32 mm · Decompressor: Yes · Hole spacing outlet: 32 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm
