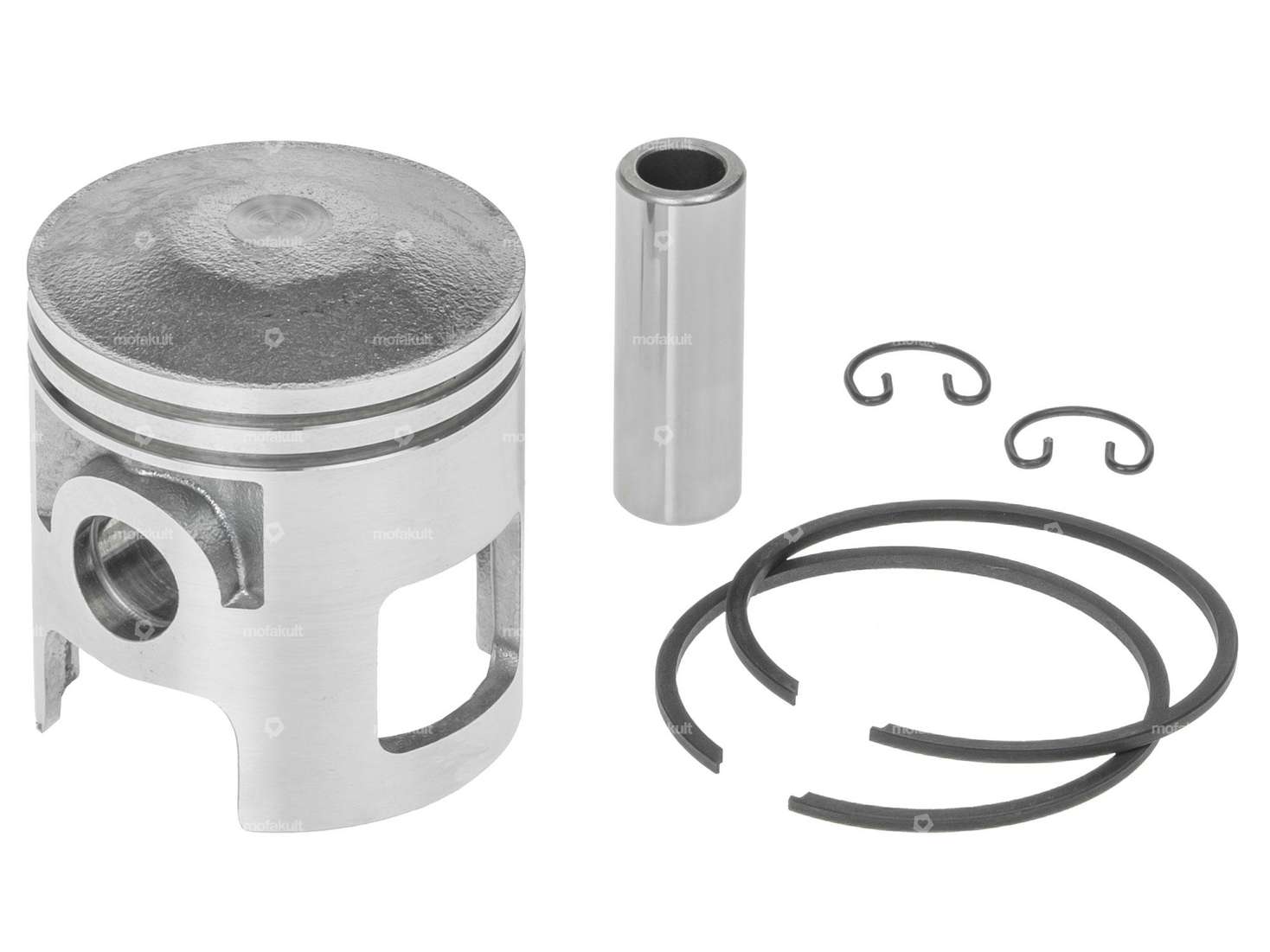

44.0 mm replacement piston with two 1.5 mm rectangular piston rings with internal fuse (IS) for the 44 mm racing cylinder for your Tomos S25/2, A38B and A35 moped / moped.
The detailed dimensions of the piston according to the technical drawing can be found in the details. In addition, you can find out about the relevant piston rings, their positions and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You will find the corresponding assembly tool, piston pin locks and, if necessary, the corresponding cylinder in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
| Manufacturer | GPO |
| Ø outside piston (A) | 43.96 mm |
| Compression height (C) | 21.9 mm |
| Curvature (D) | 4.15 mm |
| Total piston height (E) | 49.55 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Nominal diameter | 44 mm |
| Piston ring impact | Internal fuse (IS) |
| Piston ring height | 1.5 mm |
| Ø piston pin (B) | 12 mm |
| Tomos |
Ratings
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Material: Steel · Surface: burnished · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Number of components: 7 pcs · Total length: 130 mm · Width across flats: 10 mm · Width across flats: 17 mm · Area of application: (Dis)assembly tool
EUR 23.30
GPO 44 mm cylinder kit tuning 12 mm KoBo | Tomos A35
Nominal diameter: 44 mm · Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 43 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 22.8 mm · Inlet window: 35.5 x 29.5 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 36 mm · Hole spacing inlet: 39 mm · Ø piston pin (B): 12 mm · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Decompressor: No · Camouflaged: No · Area of application: Tuning
EUR 105.40
Explore categories from Piston
Moped fans also bought
NTN 6203 C3 Ball bearing 17/40/12
Bearing cage: Sheet steel cage ball-guided · Inner ring width: 12 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: No · Area of application: Standard · Material: Steel · Surface: blank · Stock number: 6203 · Bearing type: Deep groove ball bearing · Width: 12 mm · Ø inside: 17 mm · Ball bearing closed: No · Ø outside: 40 mm
EUR 10.40
Motorex engine oil (gear oil) manual 450 ml
Manufacturer: Motorex · Oil type: GL4 · Viscosity (SAE): 80W · Area of application: Gearbox lubrication with clutch · Contents: 450 ml · Gearbox type: Foot control · Gearbox type: Manual gearshift · Temperature resistance (min.): -30 - 220 °C
EUR 11.60
EUR 10.40
EUR 23.11/l
Airsal gasket set 44 - 45 mm
Manufacturer: Airsal · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Area of application: Tuning · Ø cylinder: 44 mm · Ø cylinder: 45 mm · Hole spacing inlet: 38 mm · Number of components: 4 pcs · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes
EUR 11.60

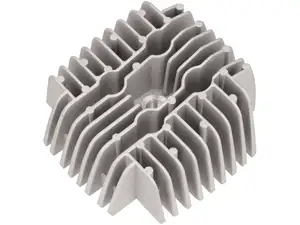

DMP 44 mm cylinder head (higher compression) | Tomos
