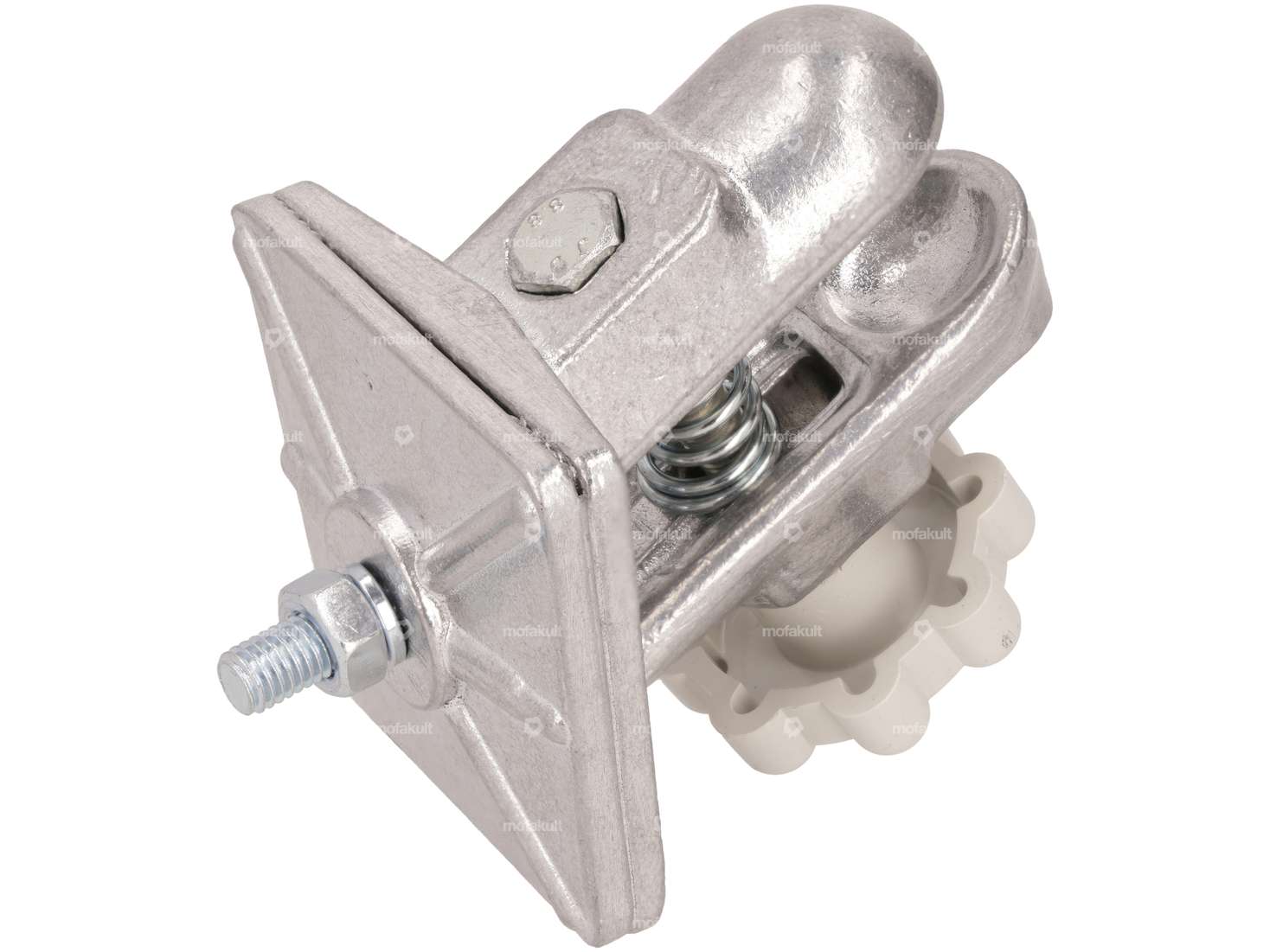

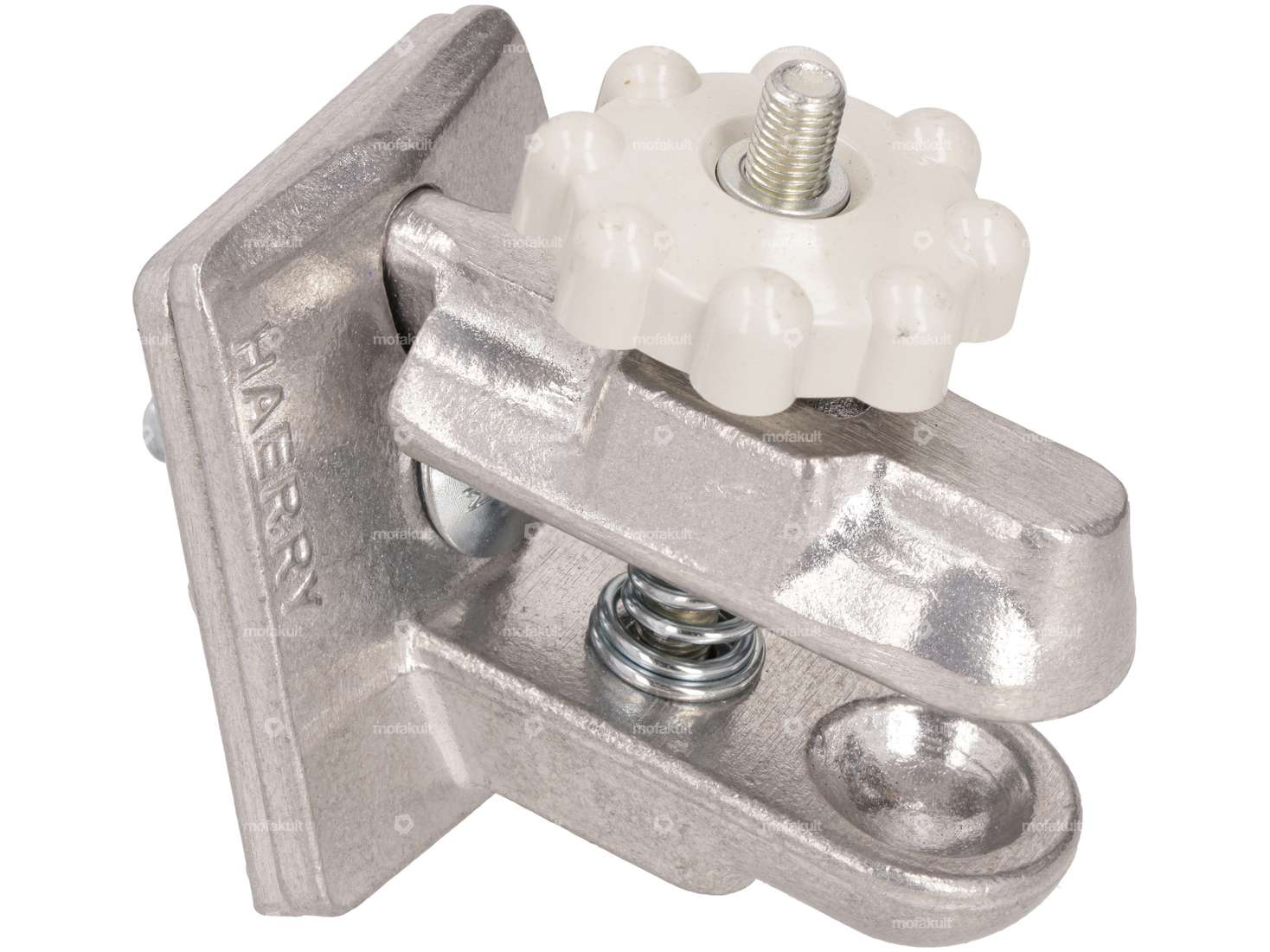

HAERRY trailer coupling attachment to the rear frame

swiing® revival nozzle set M3.5 (54 - 64) Bing SRE, SRA, SRC, SRF

Manufacturer: swiing® revival parts · Quantity: 6 pcs · Component group Carburetor: Spraying · Material: Brass · Carburetor type: SRA (1/11/31) Velux · Carburetor type: SRA (1/11/35) Velux · Carburetor type: SRC · Carburetor type: SRE · Carburetor type: SRF · Nozzle type: Main nozzle · Drive: Slot · Total length: 6 mm · Nozzle thread: M3.5x0.6 (standard thread) · Nozzle size: 54 · Nozzle size: 56 · Nozzle size: 58 · Nozzle size: 60 · Nozzle size: 62 · Nozzle size: 64

Magura angle piece clutch lever

Manufacturer: Magura · Material: Steel · Surface: galvanized (blue) · Color: silver · Total length: 21.3 mm · Width: 19.5 mm · Height: 9.7 mm

Union pedals plastic standard

Manufacturer: Union · Surface: rubberized · Color: black · Material: Plastic · Material: Steel · Drive: Hexagon socket · Drive: Outer edge · Total length: 129 mm · Width: 77 mm · Height: 29 mm · Thread type: FG14.3 (9/16" 20G) · Reflectors: Yes · Width across flats SW: 15 mm

Bumm mirror round Inox

Manufacturer: Bumm · Surface: chrome-plated · Color: Chrome · Material: Chrome steel (known as Nirosta®) · Thread size: M8 · Material: Steel · Clamping diameter: 22 mm · Ø mirror surface: 107 mm · Ø mirror rod: 8 mm · Mirror rod length: 300 mm · Thread type: M8x1.25 (standard thread) · Total length: 360 mm

swiing® revival ball for trailer coupling (weld-on)

Manufacturer: swiing® revival parts · Ø ball: 30 mm · Material: Steel · Surface: raw · Total length: 63 mm · Wide intake: 16 mm

Loctite 243 medium-strength threadlocker 10 ml

Manufacturer: Loctite · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Type of application: 1K · Contents [ml]: 10 ml · Area of application: Chemistry · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Color: blue · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Temperature resistance (min.): -75 - 200 °C · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m

swiing® revival bulb speedometer / cockpit 6V - 1.2W (BA7s) 1-filament

Manufacturer: swiing® revival parts · Color: white · Bulb holder: BA7s · Ø base: 7 mm · Tension: 6 V · Total length: 19 mm · Performance: 1 W · Test mark: none · Ø Lamp head: 6 mm · LED: No

Exhaust clamp 60 mm chrome (1A quality)

Material: Steel · Surface: chrome-plated · Color: Chrome · Nominal diameter: 60 mm · Width: 20 mm · Thickness: 2.3 mm · Manufacturer: Made in Portugal · Number of fixing points: 1 pcs · Ø mounting hole: 8.2 mm · Clamping diameter: 56 - 60 mm

GPO piston 38 mm | Sachs 50/3, 50/4 fan-cooled

Nominal diameter: 38 mm · Manufacturer: GPO · Thick piston ring: 2 mm · Ø outside piston (A): 37.94 mm · Compression height (C): 27.5 mm · Curvature (D): 3.5 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.7 mm · Ø piston pin (B): 12 mm · Piston weight: 78 g · Alternative version of the Sachs OEM number: 0290 058 025

swiing® revival flame tube 22 mm | Puch Maxi S, N

Manufacturer: swiing® revival parts · Material: Steel · Surface: chrome-plated · Ø inside: 20 mm · Ø outside: 22 mm · Total length: 895 mm · Color: Chrome · Number of fixing points: 2 pcs · Thread type: M7x1 (standard thread) · Nominal diameter (thread): 7 mm · Mounting type: Stud bolts & nuts · Hole spacing outlet: 42 mm · Puch OEM number: 349.3.16.001.2 · Puch OEM number: 349.4.16.001.2
