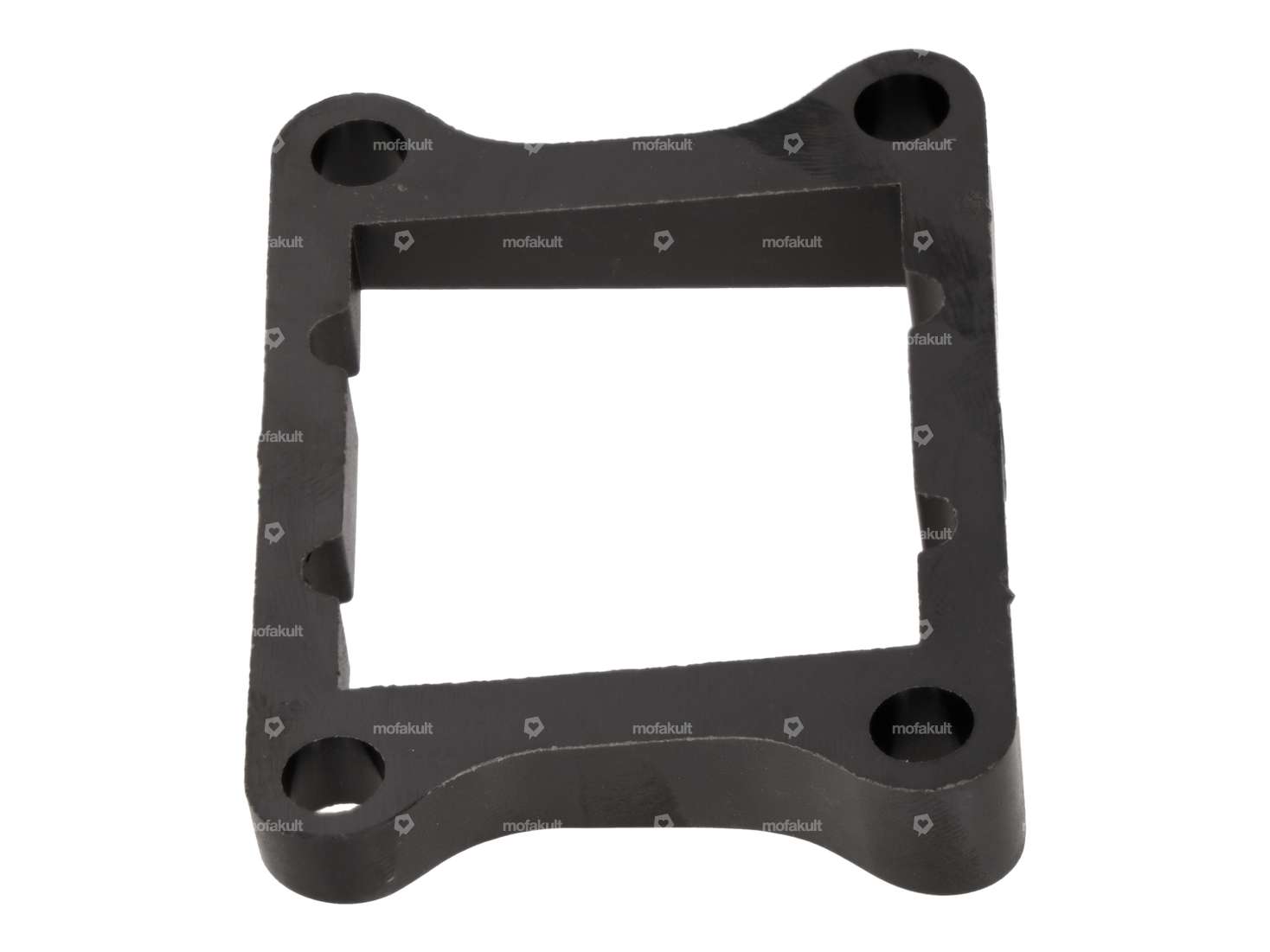

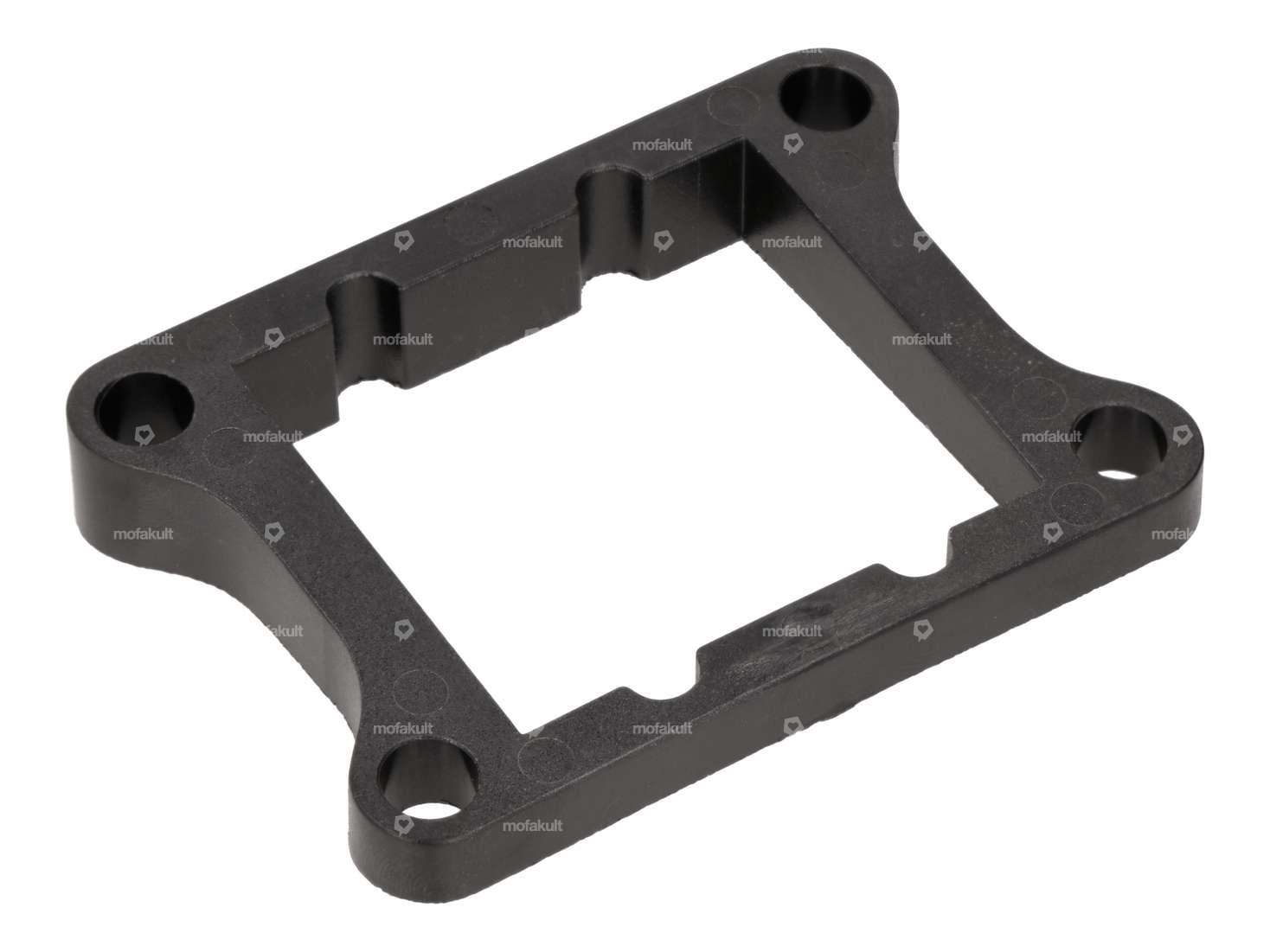

Intermediate flange cylinder Athena AJH Puch

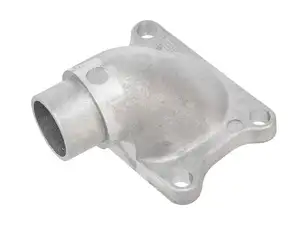

Athena 22 mm intake manifold Diaphragm Dell'Orto PHBG | Puch

Manufacturer: Athena · Material: Aluminum · Ø inside: 22 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Ø External connection: 26 mm · Hole pattern [mm]: 60 x 40 · Area of application: Tuning

Parmakit 2-folding diaphragm insert carbon

Manufacturer: Parmakit · Number of flaps: 2 pcs · Membrane material: Carbon · Number of fixing points: 4 pcs · Hole pattern [mm]: 60 x 40 mm · Mounting type: Screws · Area of application: Tuning

Athena 45 mm cylinder kit incl. diaphragm AJH | Puch

Nominal diameter: 45 mm · Manufacturer: Athena · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 70 ccm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 16 mm · Hole spacing inlet: 40 mm · Hole spacing inlet: 60 mm · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Inlet window: 38 x 25 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Hole spacing outlet: 42 mm · Outlet type: straight · Thread outlet: M6x1 (standard thread) · Decompressor: No · Area of application: Tuning

Athena diaphragm seal AJH

Manufacturer: Athena · Material: Oiled paper · Ø screw holder: 6.7 mm · Place of use: Admission · Hole pattern [mm]: 40 x 62 · Thickness: 0.5 mm · Area of application: Tuning

GPO 45 mm cylinder head tuning new version | Puch (AT)

Total length: 135 mm · Manufacturer: GPO · Material: Aluminum · Ø cylinder: 45 mm · Height: 55 mm · Width: 140 mm · Area of application: Tuning · Decompressor: No · Number of fixing points: 4 pcs

Large outlet seal with metal ring

Material: Sealing carton · Material: Sheet metal (steel) · Place of use: Outlet · Reinforced: Yes · Ø outlet inside: 27 mm · Thickness: 2.1 mm · Ø screw holder: 6.3 mm · Hole spacing outlet: 42.5 mm · Area of application: Tuning

Gas cable Ø 1.25 mm x 220 cm (cylindrical nipple) Bing

Ø Stranded wire: 1.25 mm · Nipple shape: Cylinder · Ø nipple: 3 mm · Nipple length: 5 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Cable length: 2200 mm · Number of components: 1 pcs

Brake cable Ø 1.8 mm x 220 cm (pear-shaped nipple)

Ø Stranded wire: 1.8 mm · Nipple shape: Pears · Ø nipple: 3.5 mm · Ø nipple: 6 mm · Nipple length: 10 mm · Manufacturer: Made in Germany · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Cable length: 2200 mm · Number of components: 1 pcs

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Ø outside: 5 mm · Thread type: M4x0.7 (standard thread) · Total length: 6 mm · Ø Cable bushing: 1.6 mm · Drive: Slot · Screw head: Lens head · Number of components: 2 pcs · Thread length: 4 mm

swiing® revival centering screw M22x1 galvanized | Puch Z50

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Hexagon nut · Thread type: MF22x1 (fine pitch thread) · Drive: External hexagon · Width across flats: 27 mm · Puch OEM number: 050.1.1233

Athena gasket set 45 mm AJH diaphragm

Manufacturer: Athena · Ø cylinder: 45 mm · Hole pattern [mm]: 44 x 44 mm / 60 x 40 mm · Hole spacing outlet: 42 mm · Number of components: 5 pcs · Area of application: Tuning

Athena 22 mm intake manifold Diaphragm Dell'Orto PHBG | Puch

Manufacturer: Athena · Material: Aluminum · Ø inside: 22 mm · Mounting type: Screws · Number of fixing points: 4 pcs · Ø External connection: 26 mm · Hole pattern [mm]: 60 x 40 · Area of application: Tuning

Athena diaphragm seal AJH

Manufacturer: Athena · Material: Oiled paper · Ø screw holder: 6.7 mm · Place of use: Admission · Hole pattern [mm]: 40 x 62 · Thickness: 0.5 mm · Area of application: Tuning
