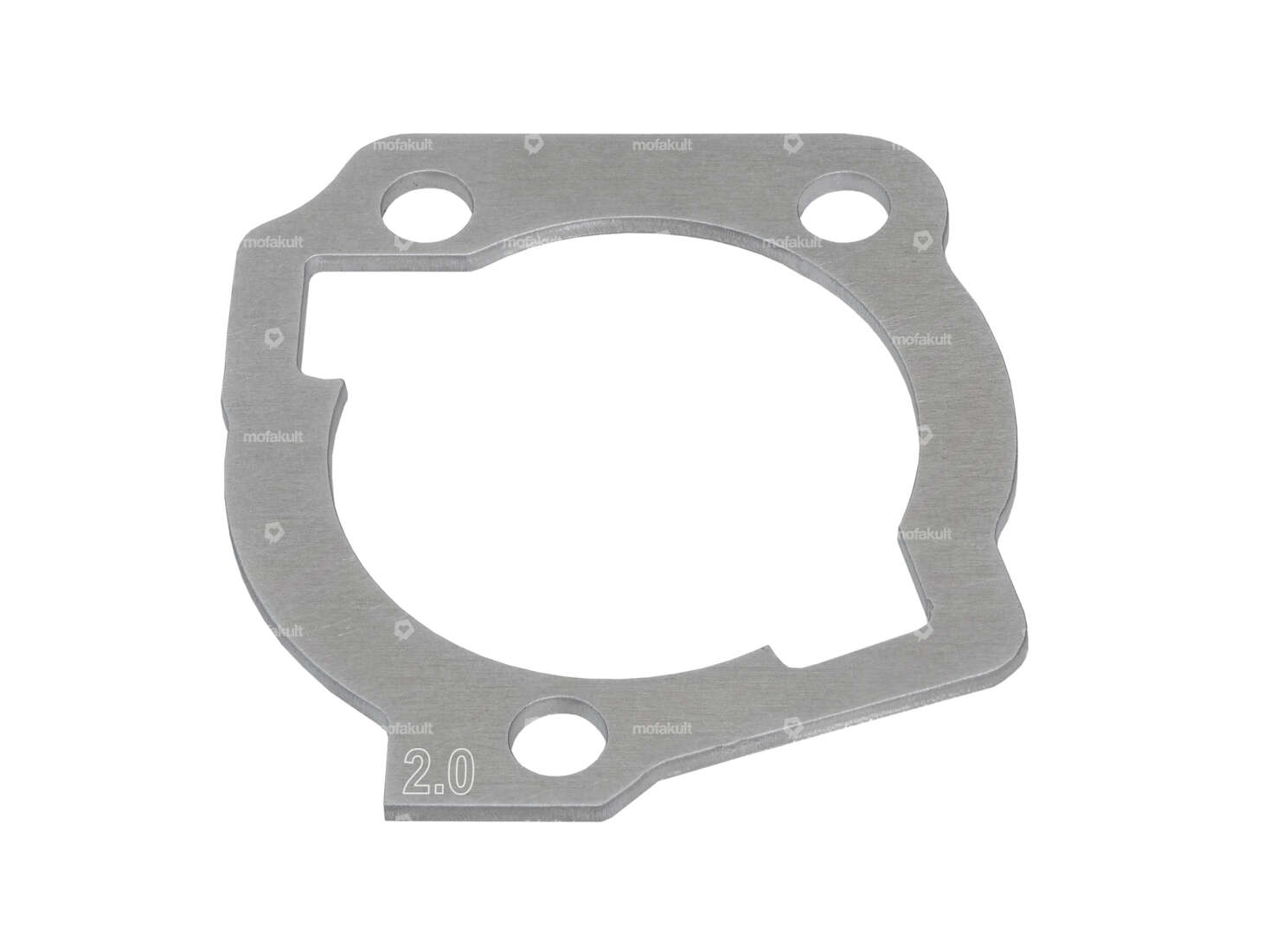

Aluminum stroke plate for your Piaggio Ciao, Si, Bravo, Boxer, Boss, Grillo and Gilera moped / moped.
The spacer is mounted under the cylinder base. The "lifting" of the cylinder increases the intake and exhaust timing. Accordingly, the same distance of the spacer should be turned down at the top of the cylinder
so that the original crushing edge dimension and compression are maintained.
Material thickness: 2 mm
Material: aluminum
We recommend using Dirko silicone sealant for sealing. You can find this in the accessories
.
Details
| Material | Aluminum |
| Thickness | 2 mm |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products
Malossi 43 mm cylinder kit 10 mm KoBo new version | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Area of application: Tuning · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.5 mm · Number of fixing points: 3 pcs · Ø outlet inside: 18.3 mm · Ø piston pin (B): 10 mm · Outlet type: clamped · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No
EUR 174.40
Malossi 43 mm cylinder kit 12 mm KoBo new version | Piaggio Ciao, SI, Boxer, Bravo
Manufacturer: Malossi · Material: Gray cast iron · Surface: sandblasted · Area of application: Tuning · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45.6 mm · Ø Outlet outside: 22.4 mm · Number of fixing points: 3 pcs · Ø outlet inside: 18.3 mm · Ø piston pin (B): 12 mm · Outlet type: clamped · Hole pattern [mm]: 55 x 34 · Decompressor: Yes · Camouflaged: No
EUR 174.40
Not in stock
Not so nice
Olympia 43 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Olympia · Material: Gray cast iron · Surface: varnished · Area of application: Tuning · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 22.3 mm · Number of fixing points: 3 pcs · Ø outlet inside: 17.8 mm · Ø piston pin (B): 10 mm · Outlet type: clamped · Hole pattern [mm]: 35 x 55 · Decompressor: Yes · Camouflaged: No
EUR 159.90
Not so nice
Olympia 43 mm cylinder kit 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Olympia · Material: Gray cast iron · Surface: varnished · Area of application: Tuning · Displacement: 63 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 46 mm · Ø Outlet outside: 22.3 mm · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Outlet type: clamped · Decompressor: Yes · Camouflaged: No
EUR 159.90
Elring Dirko HT sealing compound gray (silicone) 70 ml permanently elastic up to 315°C
Temperature resistance (min.): -60 - 315 °C · Manufacturer: Elring · Material: Silicone · Color: gray · Contents [ml]: 70 ml · Area of application: Chemistry · Hazard warning: Causes damage to organs through prolonged or repeated exposure · Gap dimension (max.): 2 mm
EUR 24.00
EUR 342.86/l
