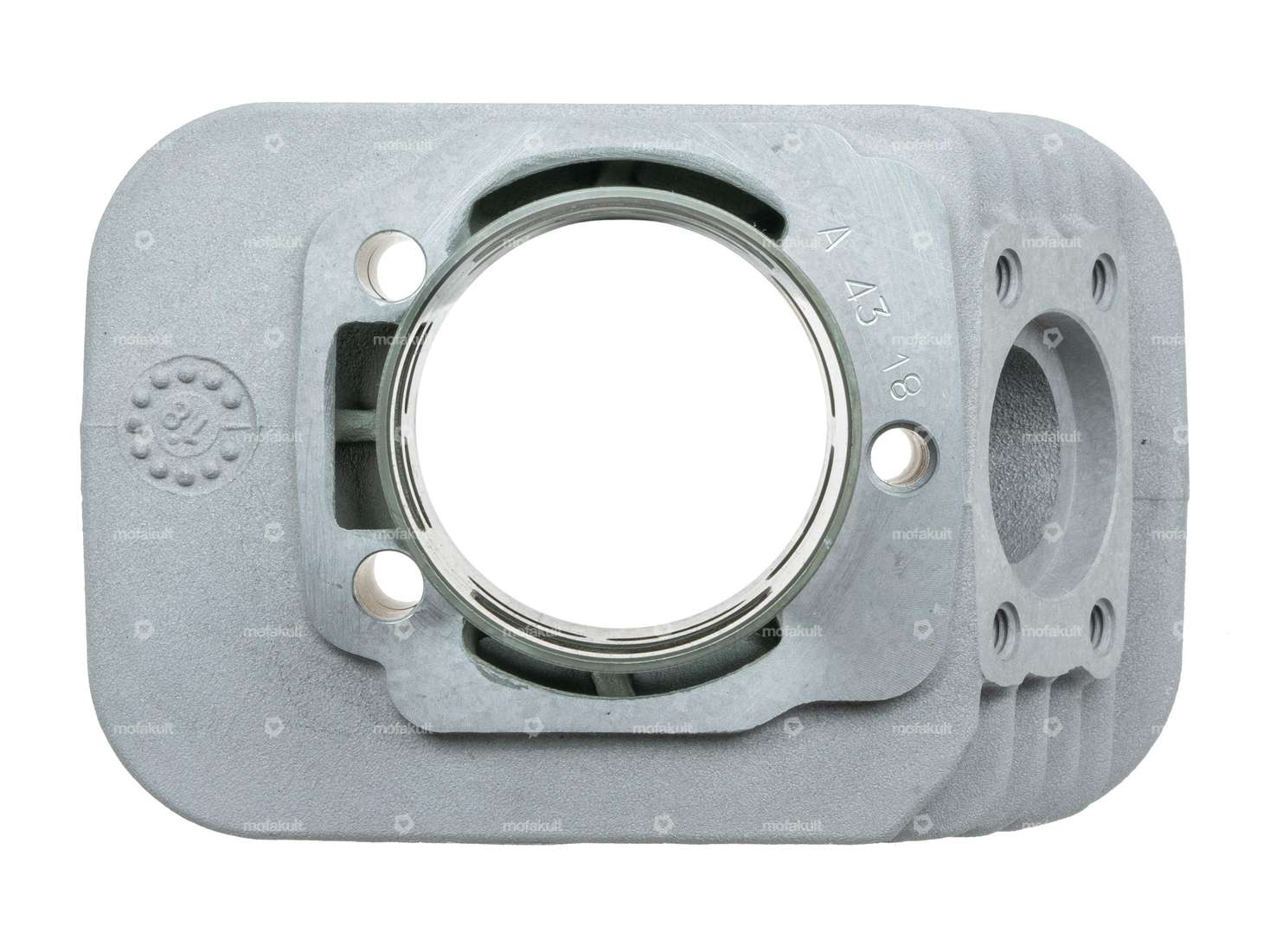

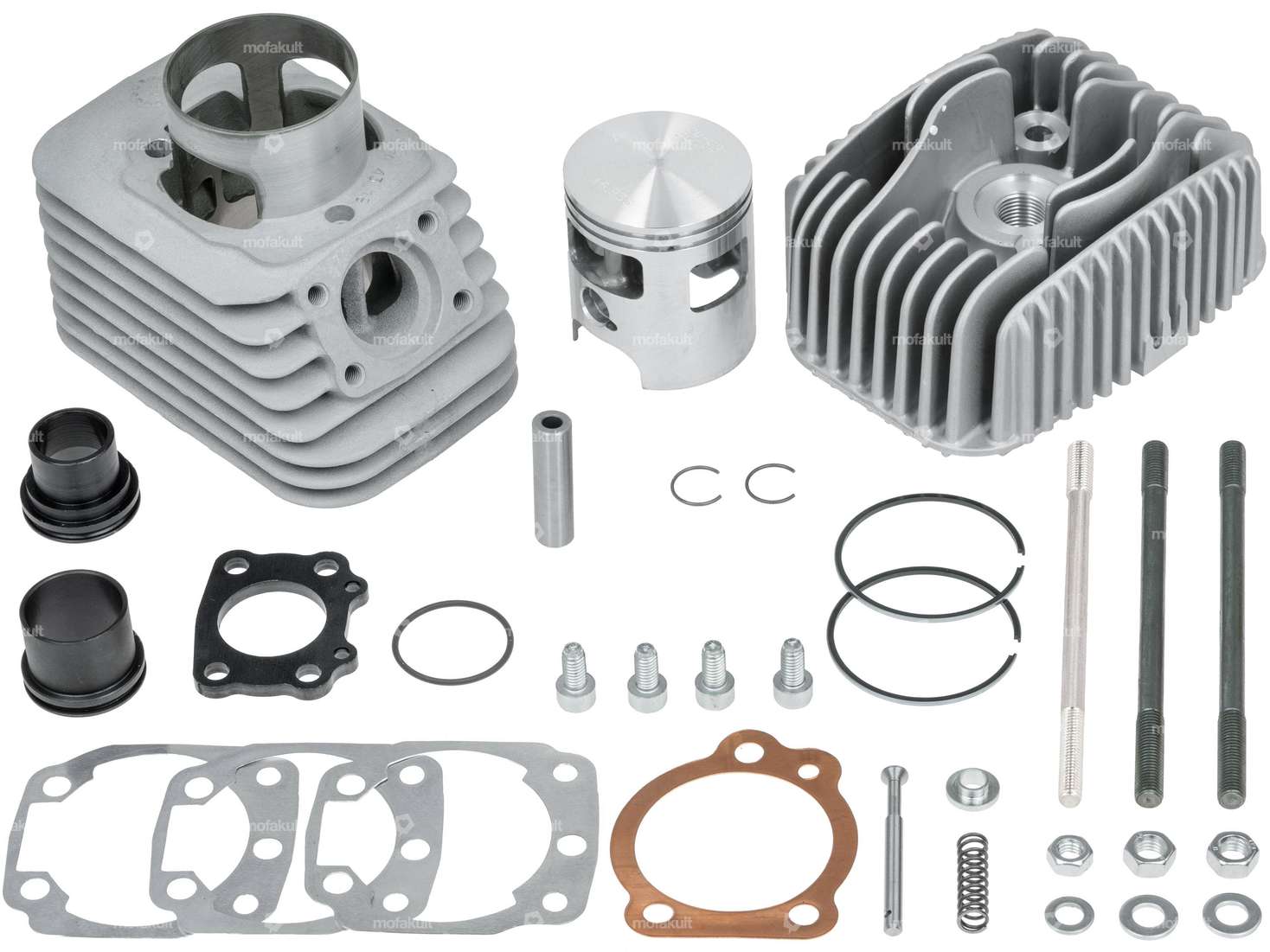

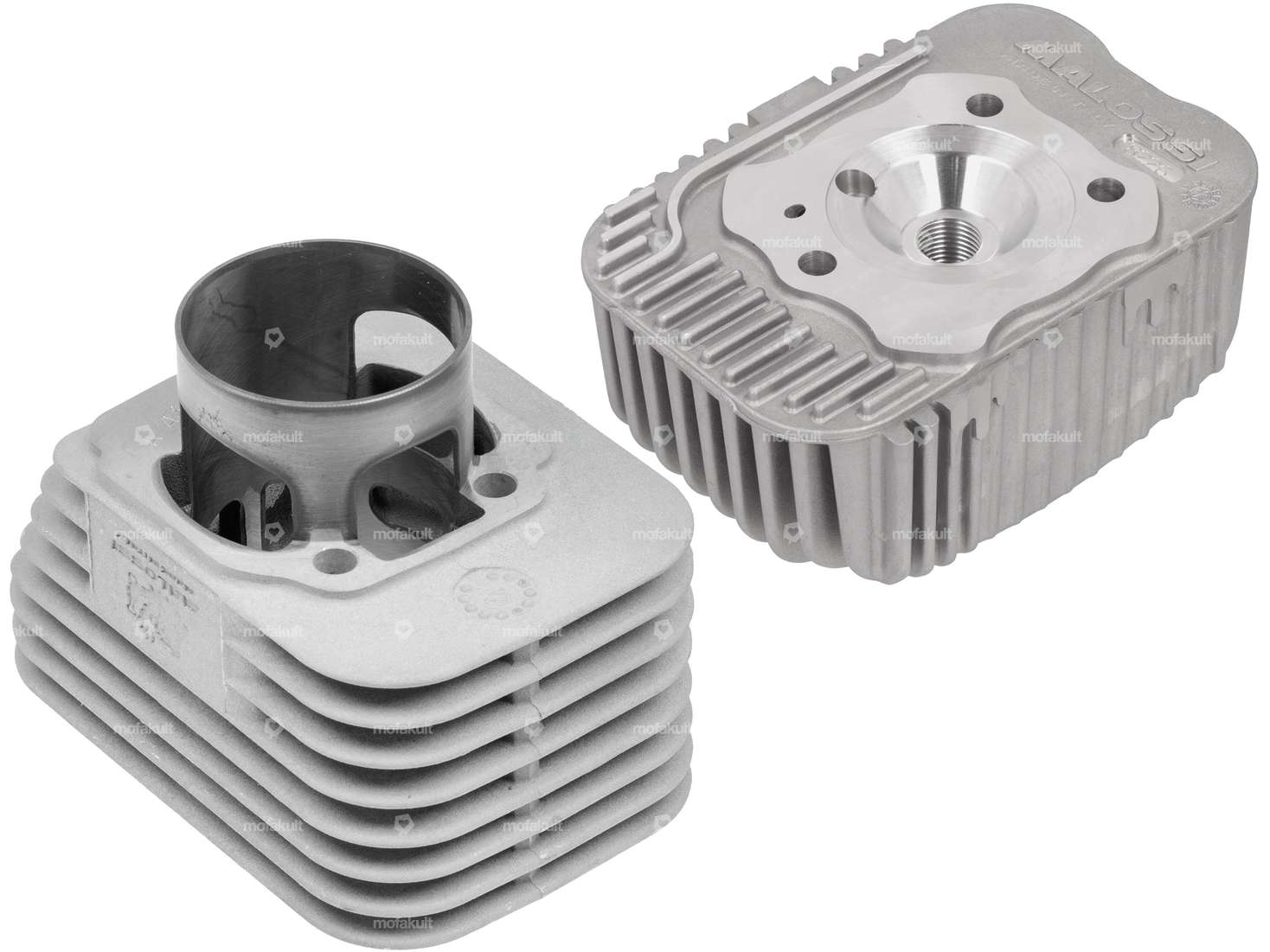

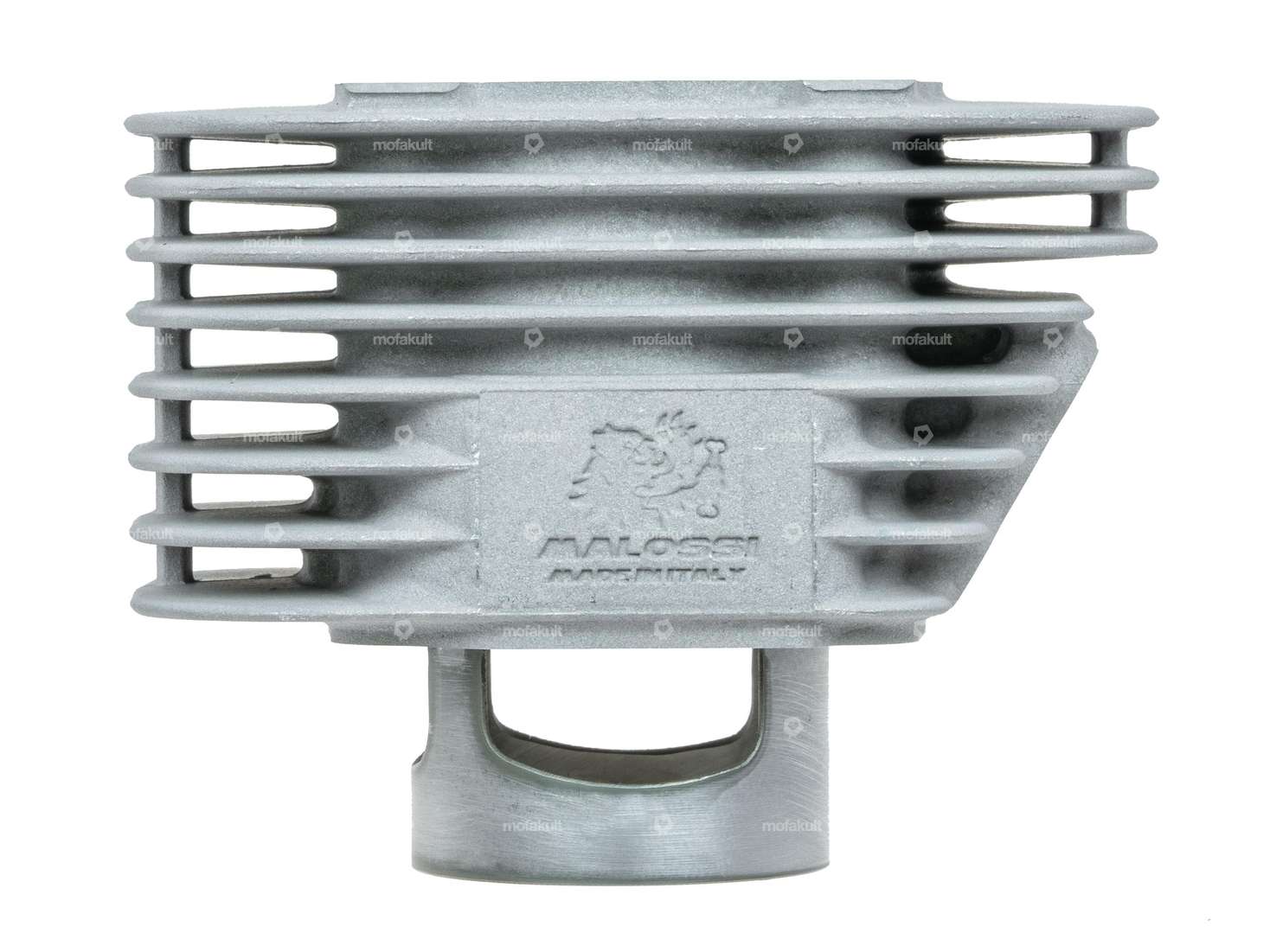

The new Malossi aluminum cylinder BIG D.E.P.S, which is supplied with the matching cylinder head, is the must have for your Piaggio Ciao!
The 47 mm racing cylinder from Malossi with the specially developed double exhaust port system is probably the most powerful cylinder for Piaggio mopeds.
This cylinder can only be fitted to one of the two Malossi engine cases: Art. 18968 / 18967.

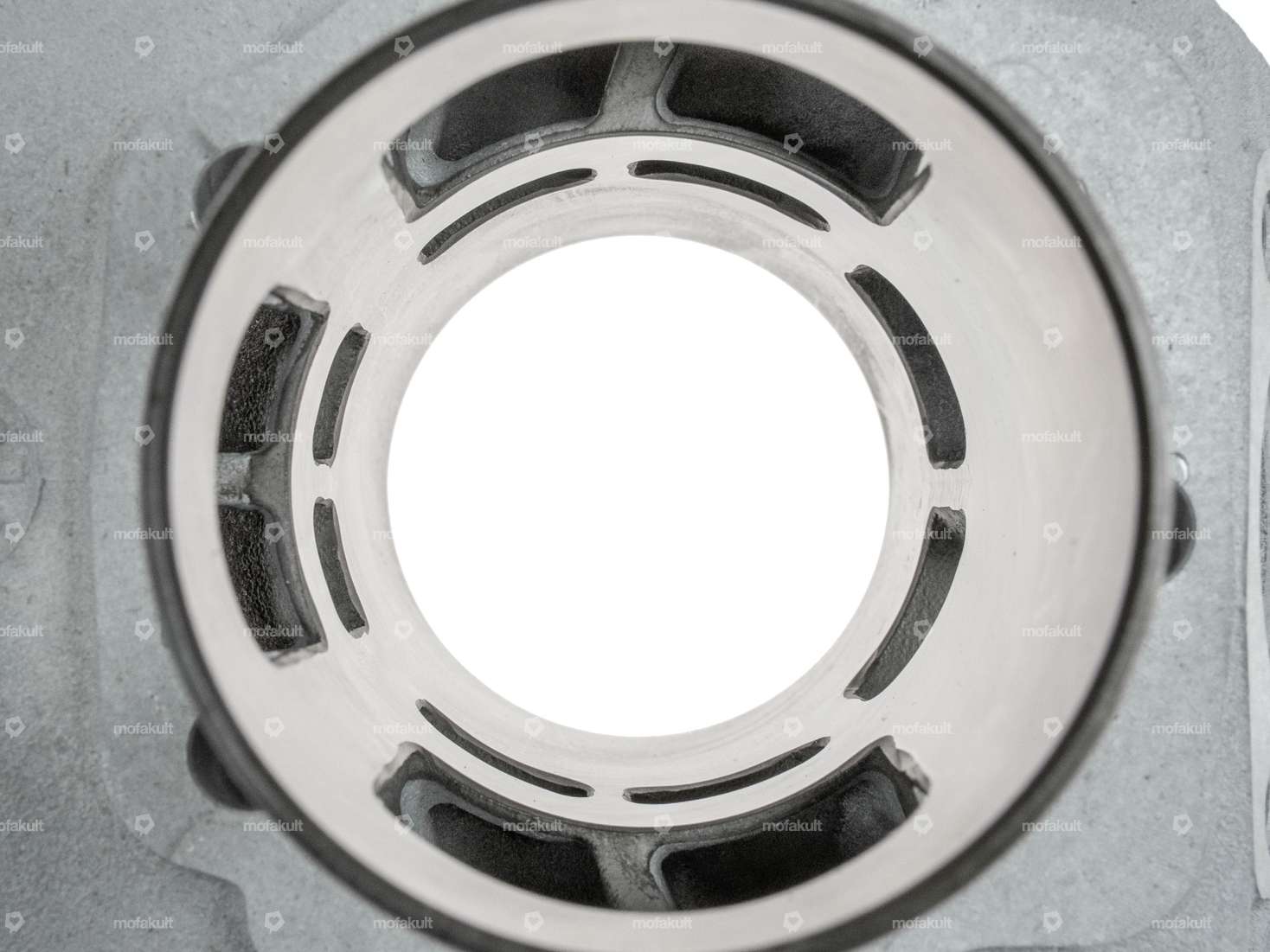

The new model is equipped with, among other things, adapted and larger overflow channels and an open boost port.
The exhaust flange is no longer screwed on, but securely bolted on using a flange plate and four bolts.
| Manufacturer | Malossi |
| Camouflaged | No |
| Area of application | Tuning |
| Material | Aluminum |
| Surface | sandblasted |
| Displacement | 75 ccm |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 10 mm |
| Nominal diameter | 47 mm |
| Ø cylinder neck | 49.9 mm |
| Ø Outlet outside | 22 mm, 27 mm |
| Ø outlet inside | 18 mm, 24 mm |
| Number of fixing points | 3 pcs |
| Decompressor | Yes |
| Hole pattern [mm] | 55 x 34 |
| Outlet type | clamped, slanted |
| Hole spacing outlet | 38.5 mm, 23 mm |
| Thread outlet | M6x1 (standard thread) |
| Piaggio | Ciao - P , SC , PX , C24 |
