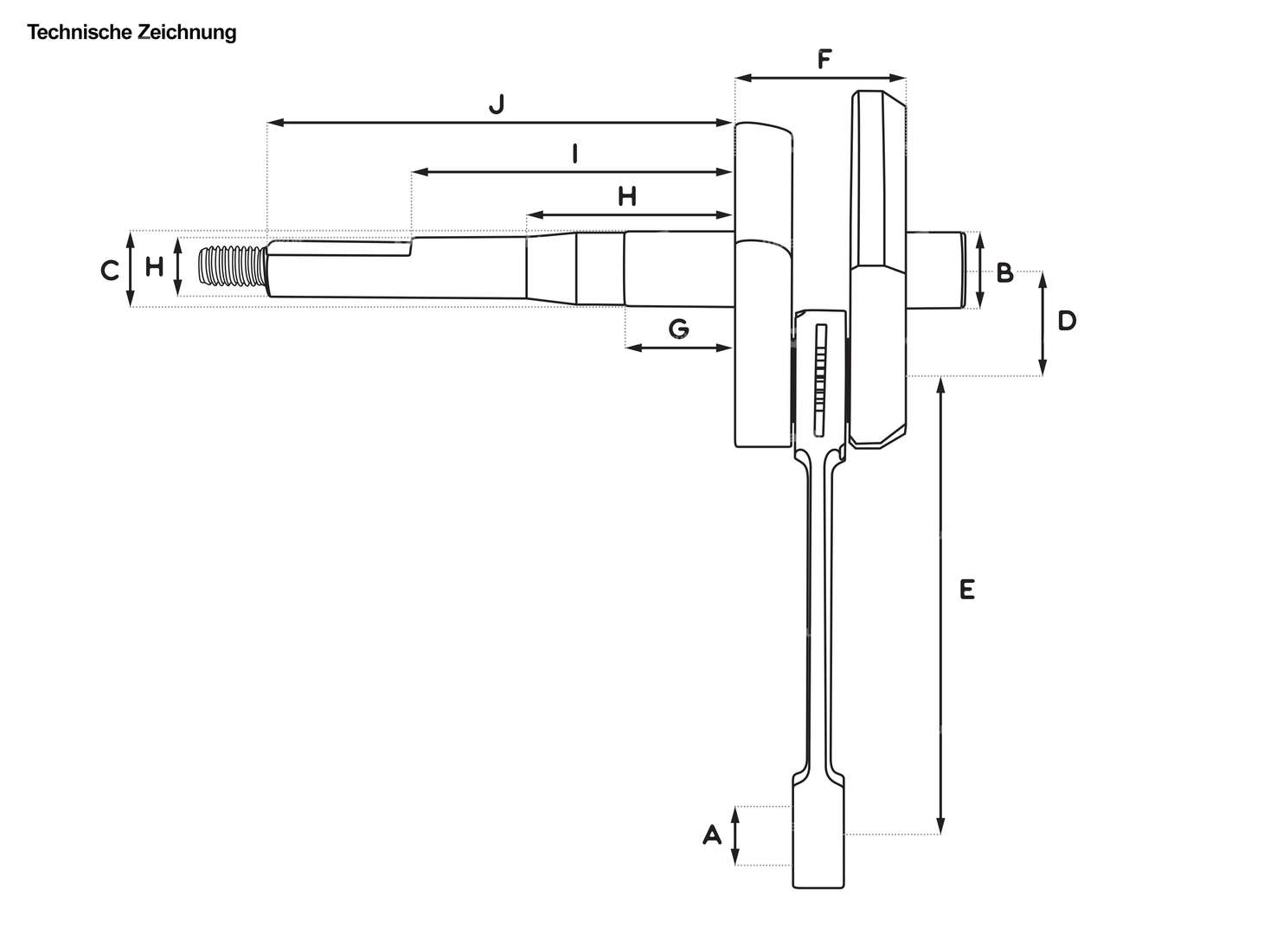

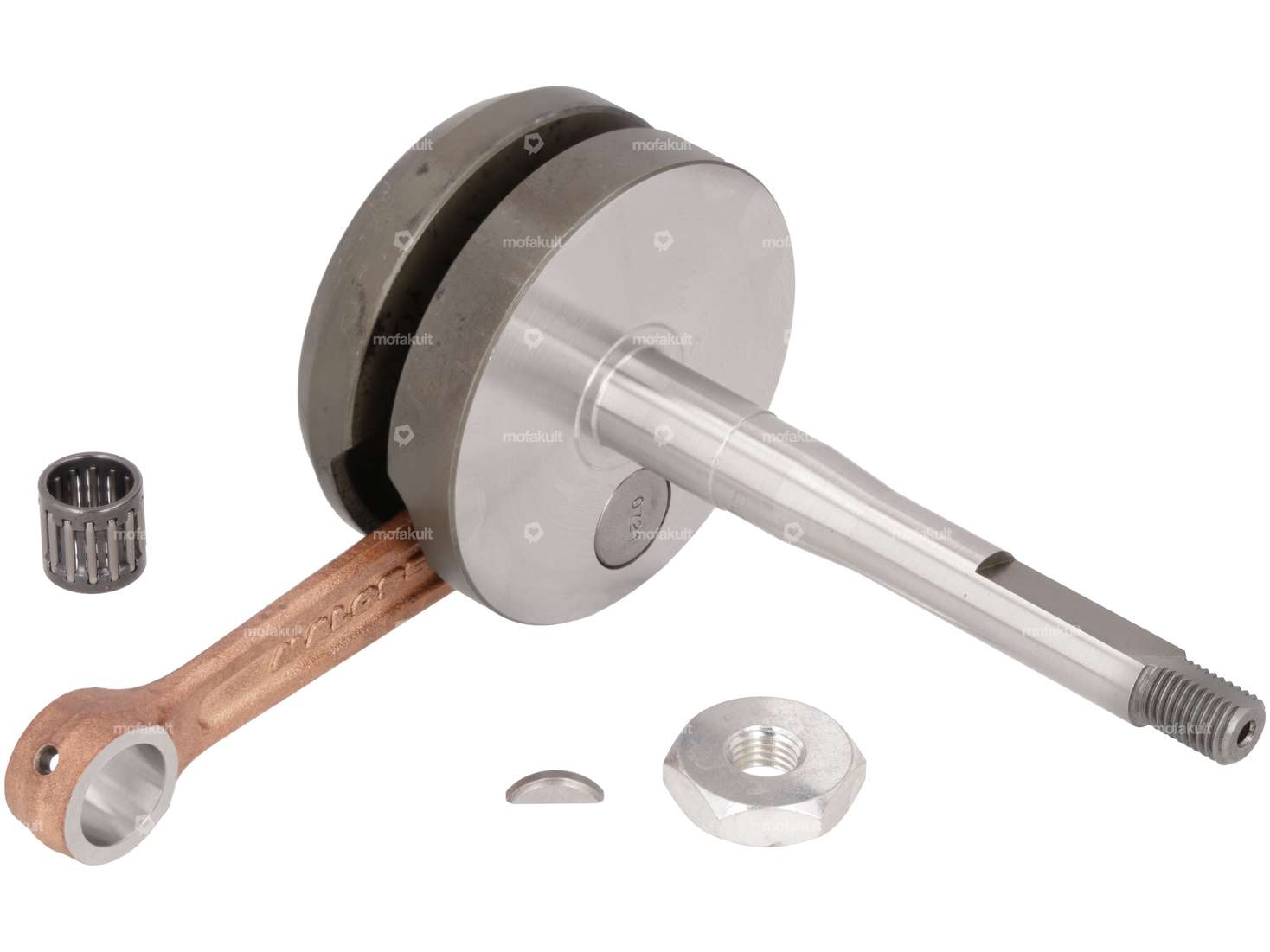

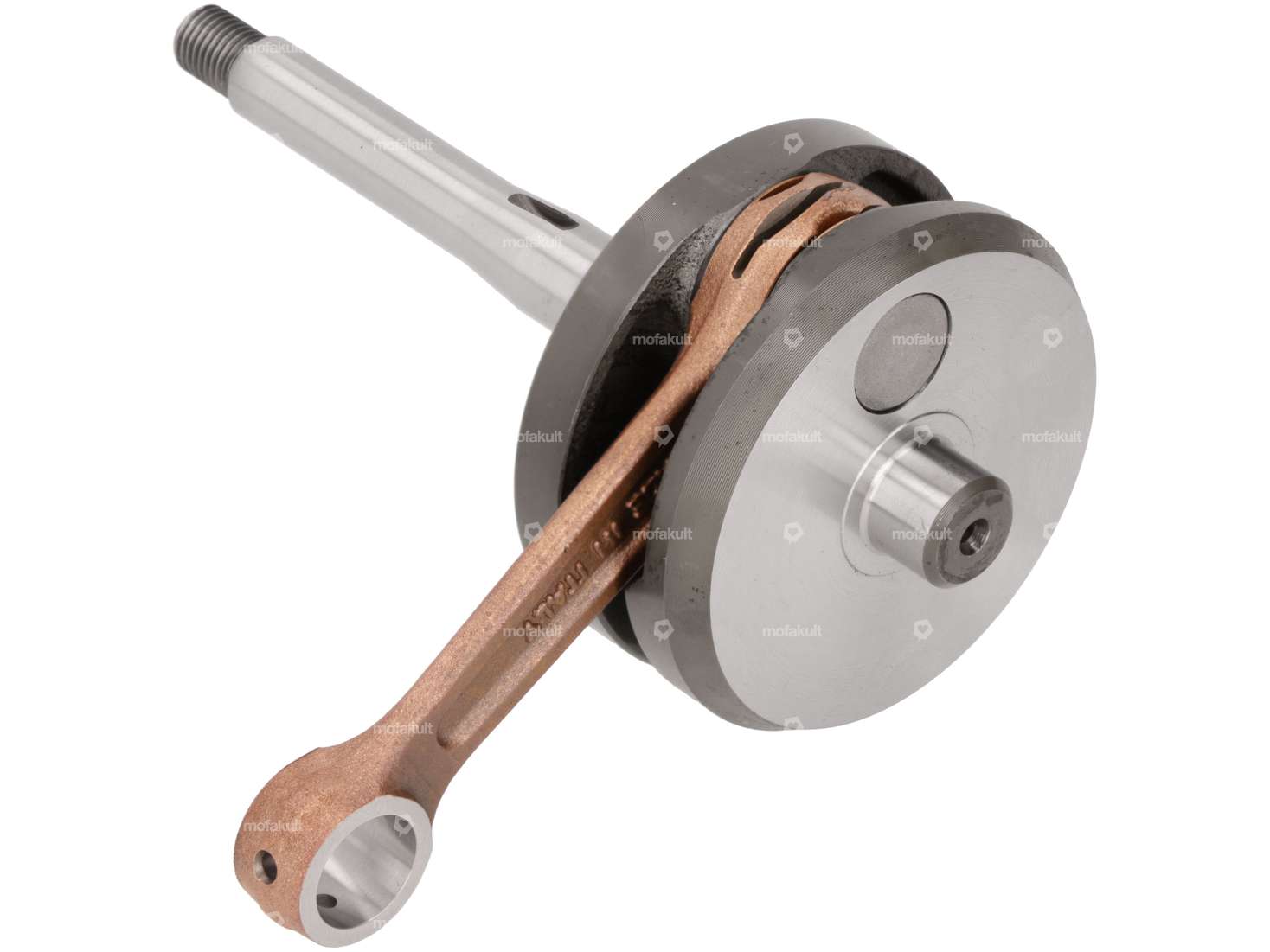

Malossi crankshaft 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage

Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Dimension needle bearing: 12/15 x 16.2 · Manufacturer: swiing® ingenious parts · Ø inside: 12 mm · Width: 16.2 mm · Ø outside: 15 mm · Tomos OEM number: 035548

SKF Bearing Set & Oil Seal Engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: SKF · Material: Plastic · Area of application: Standard · Material: Steel · Number of components: 3 pcs

swiing® ingenious Flywheel Puller M17x1 | Piaggio Ciao, SI, Bravo, Boxer

Width across flats trigger: 10 mm · Width across flats trigger: 17 mm · Width across flats Screw: 19 mm · Total length: 100 mm · Manufacturer: swiing® ingenious parts · Material: Steel · Surface: blackened · Surface: galvanized (blue) · Number of components: 3 pcs · Diameter: 12 mm · Diameter: 24 mm · Thread type: MF12x1.5 (fine pitch thread) · Thread type: MF17x1 (fine pitch thread) · Area of application: (Dis)assembly tool

Normio Wedge 12.1 x 4.9 x 3 mm

Manufacturer: Normio · Material: Steel · Height: 4.9 mm · Total length: 12.5 mm · Width: 3 mm

Oil seal NBR 15/24/5 AS

Temperature resistance (min.): -30 - 100 °C · Shaft seal type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Ø inside: 15 mm · Width: 5 mm · Ø outside: 24 mm · Material: NBR

Malossi nut M10x1.25 crankshaft HPC | Piaggio Ciao, SI, Bravo, Boxer

Height: 7 mm · Manufacturer: Malossi · Nut type: Hexagon nut · Thread type: MF10x1.25 (fine pitch thread) · Nominal diameter (thread): 10 mm · Drive: External hexagon · Width across flats: 24 mm

Malossi key crankshaft HPC | Piaggio Ciao, SI, Bravo, Boxer

Width: 3 mm · Height: 4 mm · Manufacturer: Malossi · Material: Steel · Total length: 13.5 mm

Spacer washer 16/22/0.5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter inside: 16 mm · Manufacturer: Piaggio · Thickness: 0.5 mm · Material: Steel · Surface: blank / oiled · Ø outside: 22 mm · Ø inside: 16 mm

swiing® revival Spacer for Flywheel / Clutch Bell | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 12.4 mm · Nominal diameter inside: 12.5 mm · Ø outside: 22.9 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Ø Bundle: 16 mm · Total length: 5.6 mm · Piaggio OEM number: 104040

SKF Bearing Set & Oil Seal Engine | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: SKF · Material: Plastic · Area of application: Standard · Material: Steel · Number of components: 3 pcs

Spacer washer 16/22/0.5

Nominal diameter inside: 16 mm · Material: Steel · Surface: blank / oiled · Thickness: 0.5 mm · Ø inside: 16 mm · Ø outside: 21 mm

Malossi MP-One engine case electronic ignition | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 24 mm · Width: 104 mm · Ø outside: 140 mm · Height: 174 mm · Manufacturer: Malossi · Material: Aluminum · Surface: sandblasted · Color: silver · Ignition type: Electronic · Total length: 220 mm

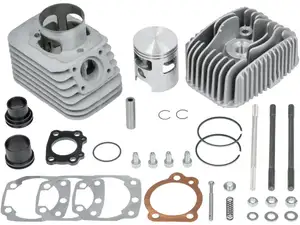

Malossi 47 mm cylinder kit BIG DEPS incl. head 12 mm KoBo | Piaggio Ciao, Bravo, Boxer

Manufacturer: Malossi · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 75 ccm · Ø cylinder neck: 49.9 mm · Number of fixing points: 3 pcs · Ø Outlet outside: 22 mm · Ø Outlet outside: 27 mm · Nominal diameter: 47 mm · Ø outlet inside: 18 mm · Ø outlet inside: 24 mm · Ø piston pin (B): 12 mm · Area of application: Tuning · Outlet type: clamped · Outlet type: slanted · Hole spacing outlet: 23 mm · Hole spacing outlet: 38.5 mm · Thread outlet: M6x1 (standard thread) · Hole pattern [mm]: 55 x 34 · Decompressor: Yes

Malossi carburetor set Dellorto 19/19 racing case | Piaggio Ciao, SI, Bravo, Boxer

Width: 65 mm · Height: 110 mm · Manufacturer: Dell'Orto · Manufacturer: Malossi · Material: Aluminum · Camouflaged: No · Component group Carburetor: Carburetor complete · Color: black · Carburetor type: PHBG · Nominal diameter: 19 mm · Ø Inside entrance: 19 mm · Area of application: Racing · Area of application: Tuning · Ø Output inside: 19 mm · Ø Air filter connection: 32 mm · Hole spacing inlet: 35 mm · Ø fuel hose connection: 6 mm · Total length: 60 mm · Mixed oil connection: Yes · Mounting type: Flange · Vacuum connection: Yes · Choke control: Cable choke · Choke nozzle size: 60 · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 85 · Size of secondary nozzle: 45

Malossi gasket set racing case | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Number of components: 3 pcs · Area of application: Tuning

Malossi racing ignition 12V | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Steel · Light coil voltage: 12 V · Weight: 804 g · Weight: 890 g · Direction of rotation: right · Number of fixing points: 2 pcs · Ø Internal flywheel: 80.5 mm · Ø Flywheel outside: 105 mm · Ø Flywheel outside: 139.5 mm · Ø cable: 7 mm · Performance: 90 W · Area of application: High End · Area of application: Performance · Area of application: Racing · Area of application: Tuning · Mounting type: Screws

Spacer washer 16/22/0.5 crankshaft original | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter inside: 16 mm · Manufacturer: Piaggio · Thickness: 0.5 mm · Material: Steel · Surface: blank / oiled · Ø outside: 22 mm · Ø inside: 16 mm

Malossi 47 mm cylinder kit BIG DEPS 4 MHR incl. head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 75 ccm · Number of fixing points: 4 pcs · Ø Outlet outside: 22 mm · Ø Outlet outside: 27 mm · Nominal diameter: 47 mm · Ø piston pin (B): 12 mm · Area of application: High End · Outlet type: clamped · Decompressor: Yes
