Hot

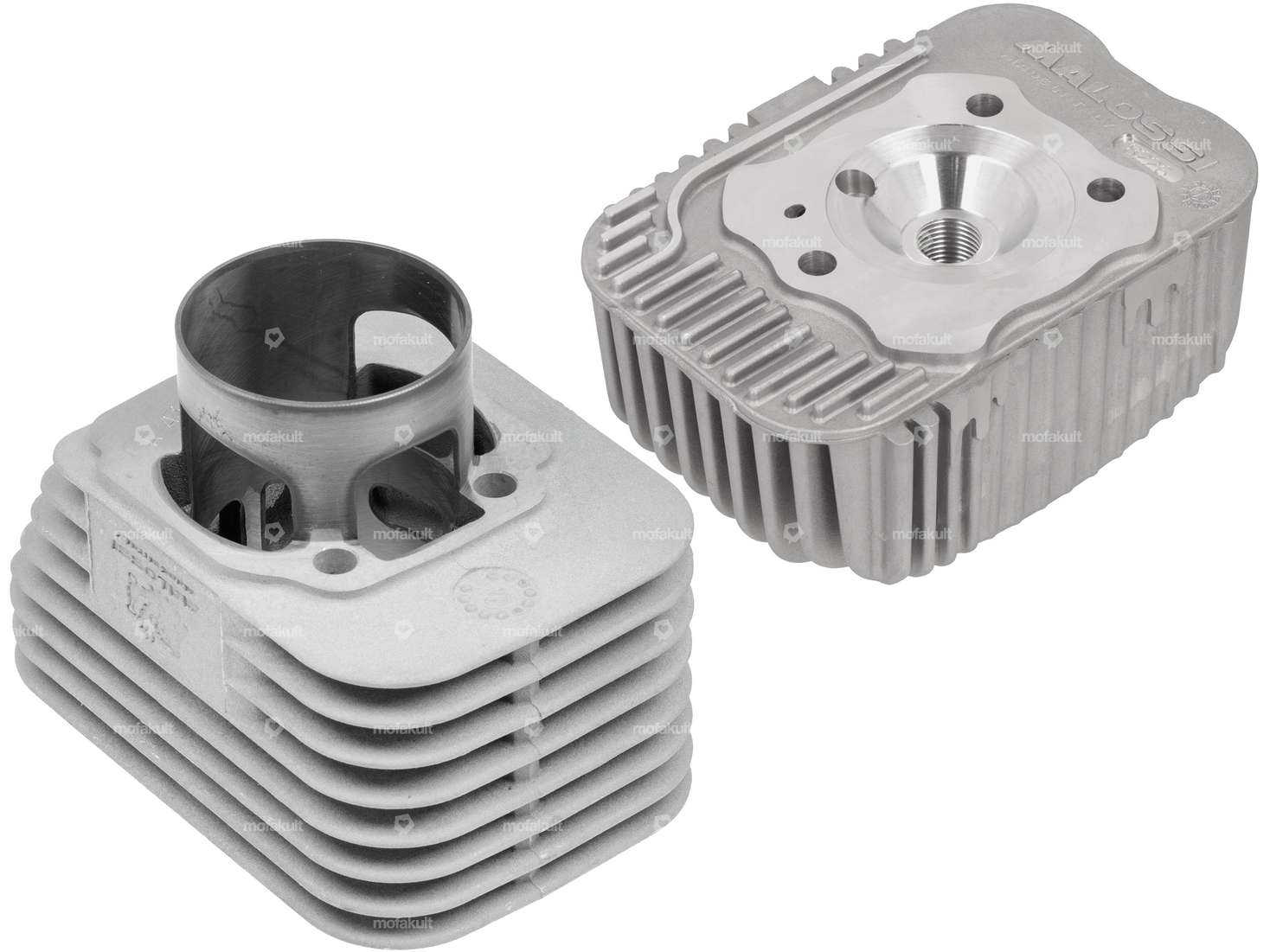

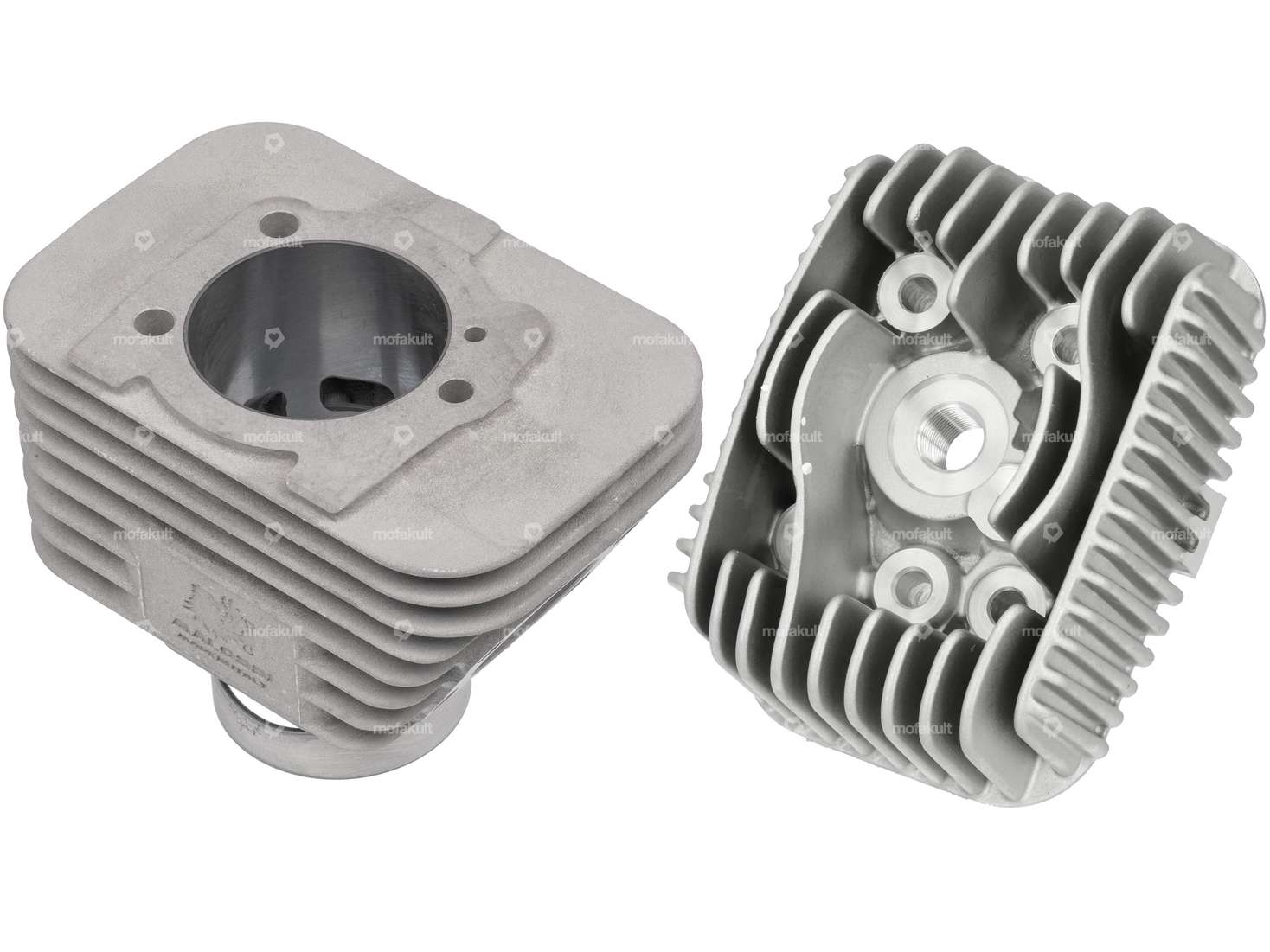

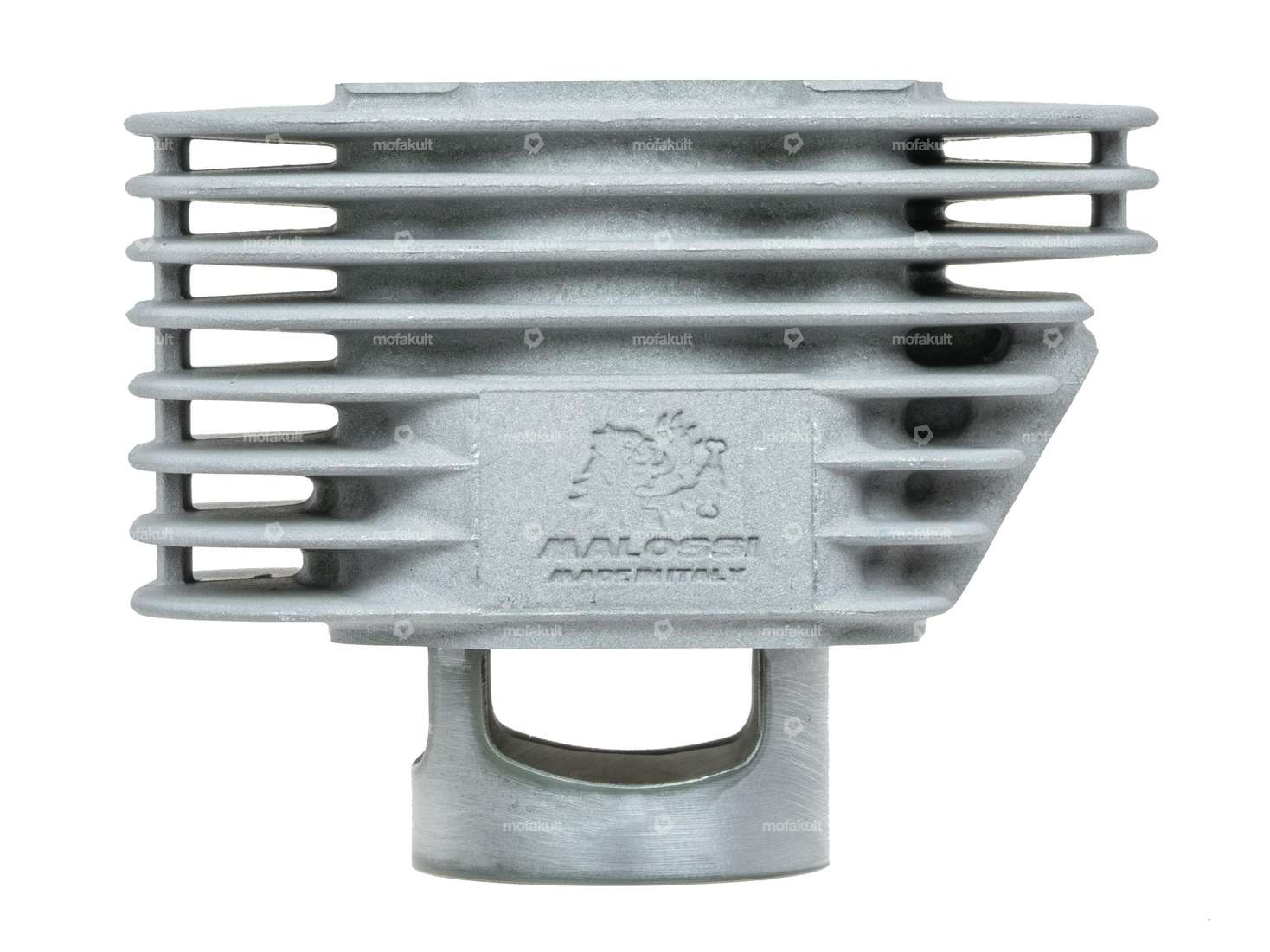

The new Malossi aluminum cylinder BIG D.E.P.S, which comes with the matching cylinder head, is the must-have for your Piaggio Ciao, Bravo or Boxer moped / moped.
The 47 mm racing cylinder from Malossi with the specially developed double exhaust port system is probably the most powerful cylinder for Piaggio mopeds ever.
This cylinder can only be fitted to one of the two Malossi engine cases: Art. 18968 / 18967.

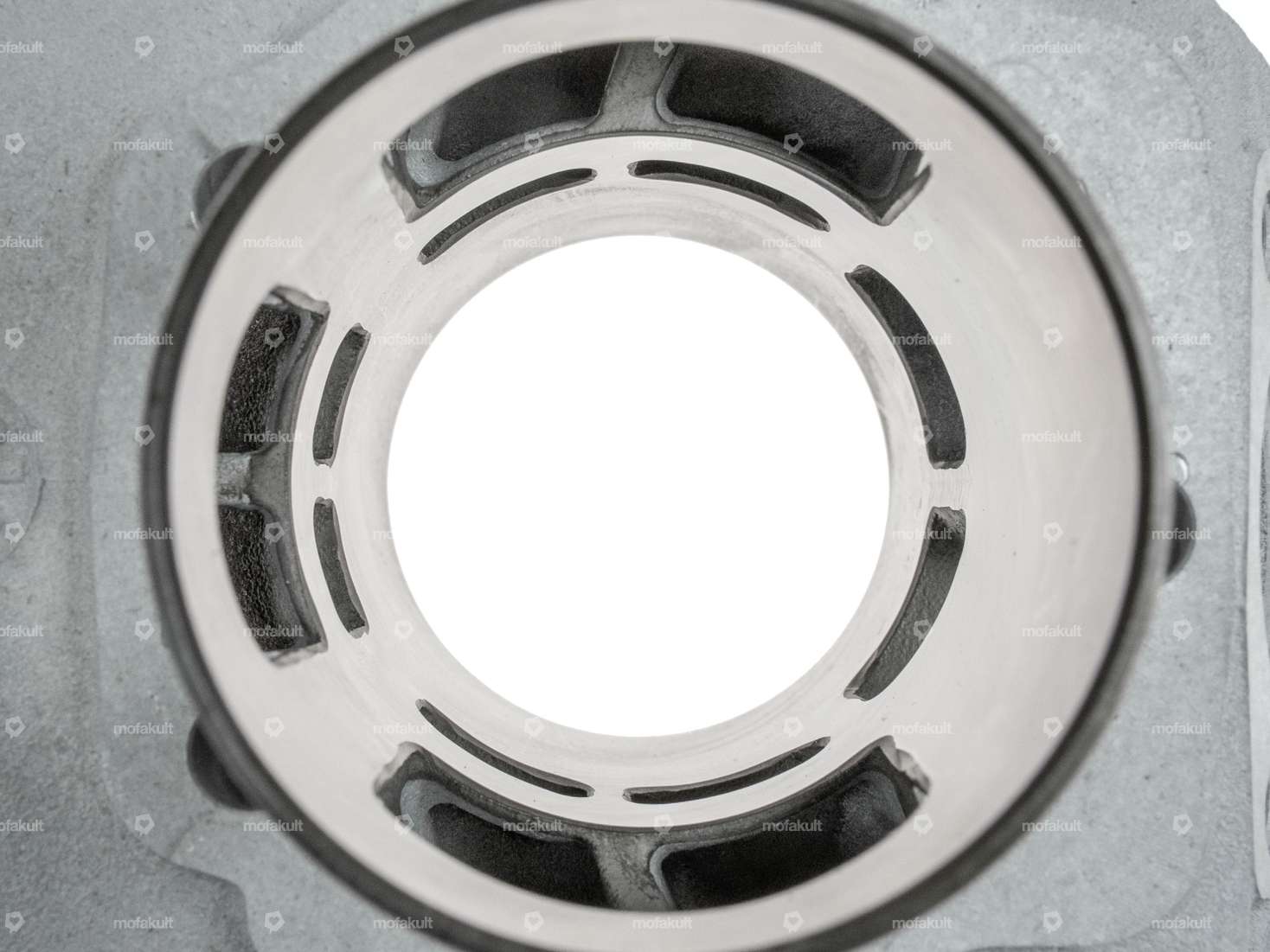

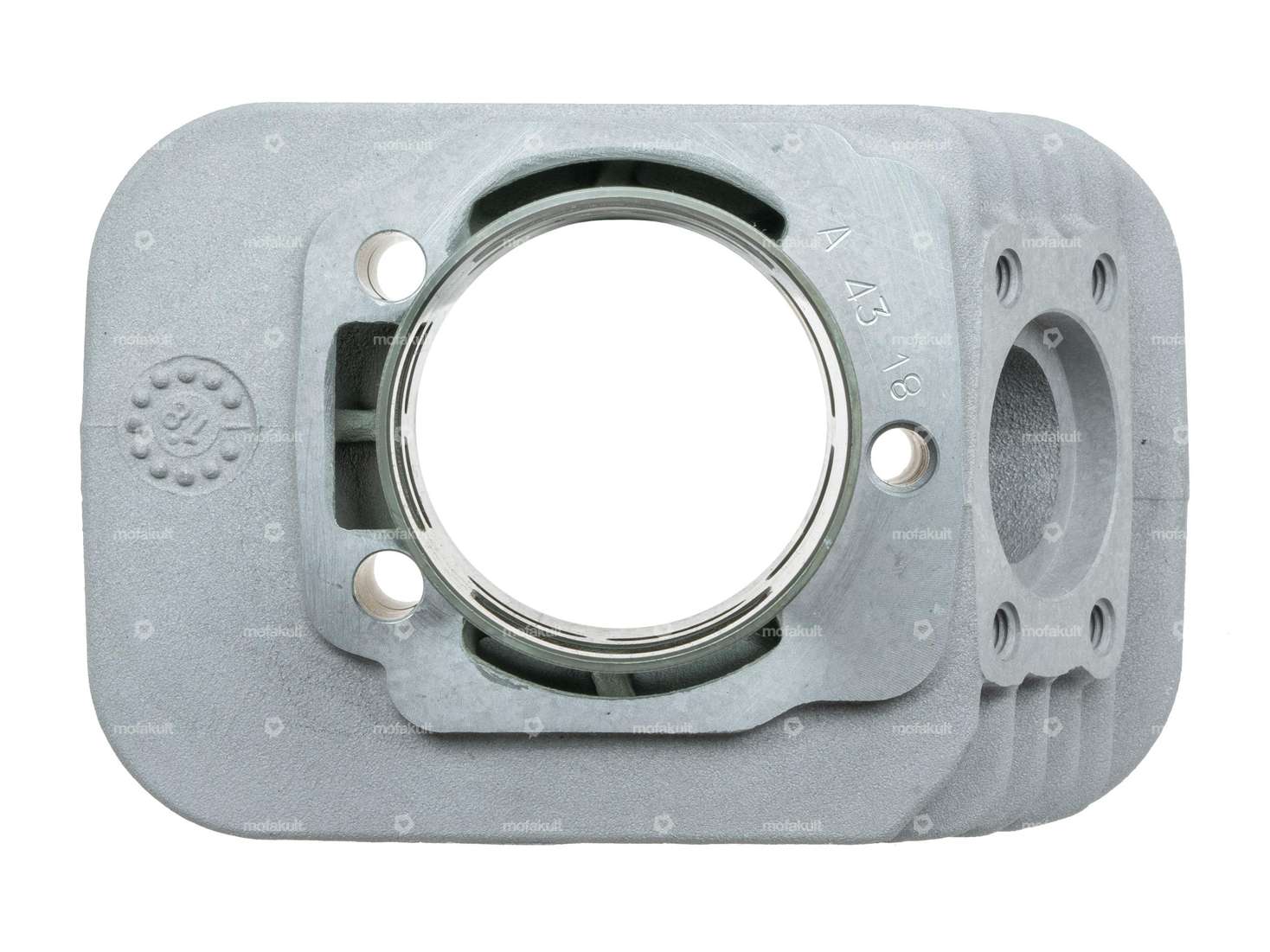

The new model is equipped with, among other things, adapted and larger transfer ports and an open boost port.
The exhaust flange is no longer screwed on, but securely bolted on using a flange plate and four screws.

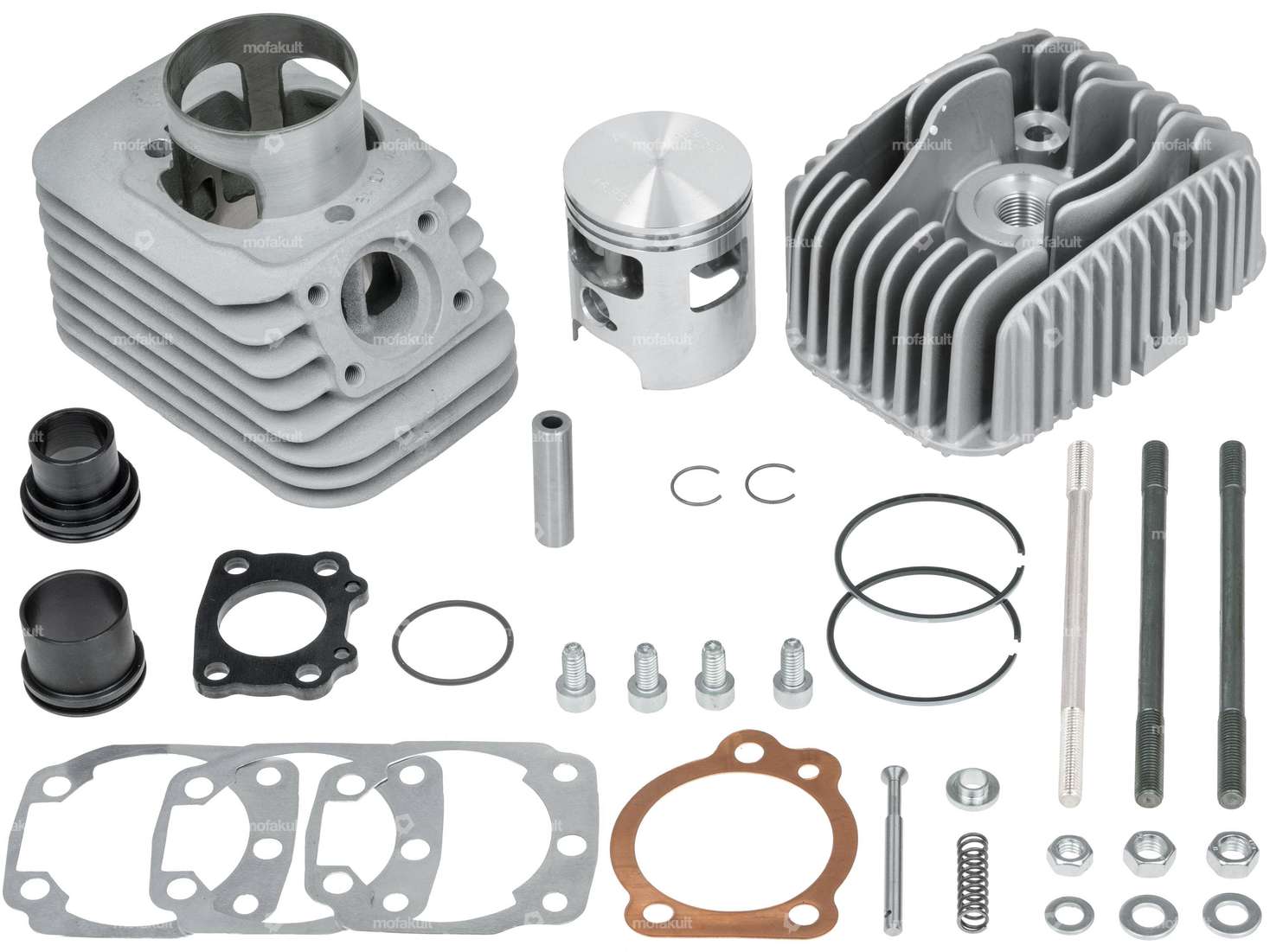

All parts shown are included in the scope of delivery.
The piston pin has a diameter of 12 mm.
Ø Exhaust connection: 22 & 27 mm
Quality product from the Italian manufacturer Malossi.
Details
| Manufacturer | Malossi |
| Material | Aluminum |
| Surface | sandblasted |
| Displacement | 75 ccm |
| Area of application | Tuning |
| Nominal diameter | 47 mm |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 49.9 mm |
| Ø Outlet outside | 22 mm, 27 mm |
| Ø outlet inside | 18 mm, 24 mm |
| Number of fixing points | 3 pcs |
| Ø piston pin (B) | 12 mm |
| Hole spacing outlet | 38.5 mm, 23 mm |
| Outlet type | slanted, clamped |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 55 x 34 |
| Decompressor | Yes |
| Camouflaged | No |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Bravo / Super Bravo Boxer |
