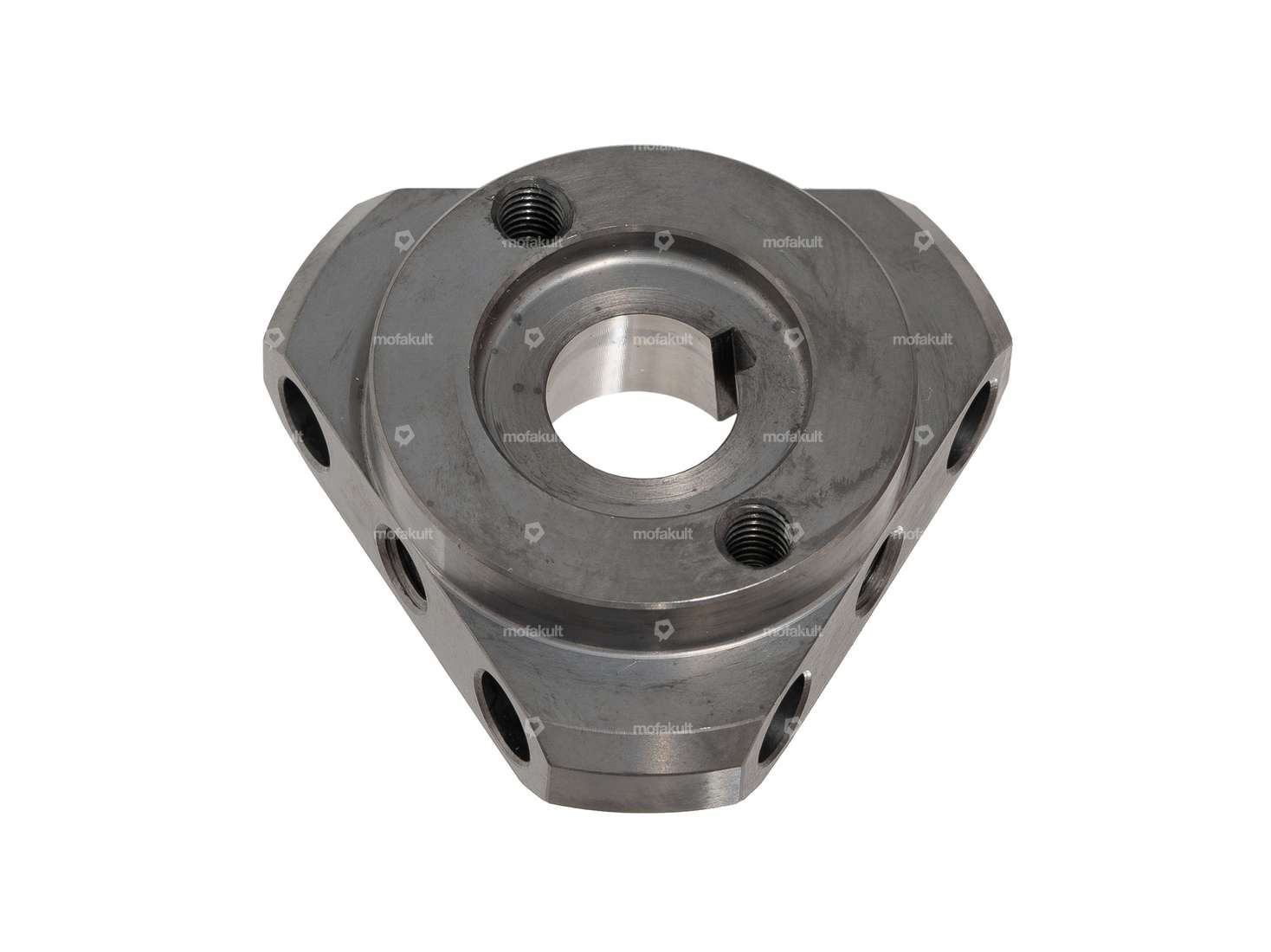

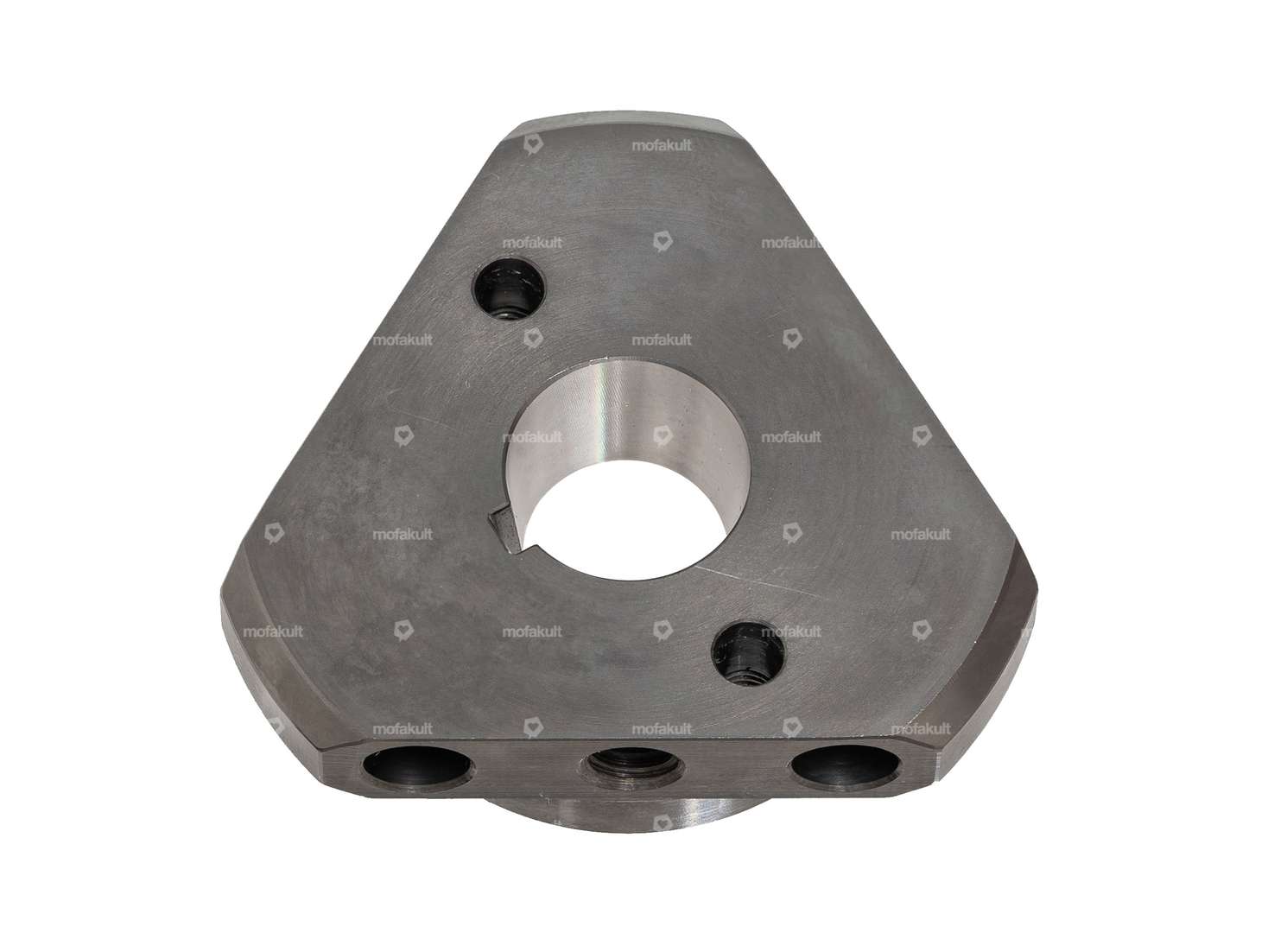

MBR clutch hub KTM SX50 clutch | Puch E50

NTN 6203 NR C3 ball bearing 17/40/12(11) with outer ring (new model) | Puch E50

Bearing cage: Sheet steel cage ball-guided · Stock number: 6203 · Inner ring width: 11 mm · Manufacturer: NTN · Bearing clearance: C3 · Groove ring: Yes · Bearing type: Deep groove ball bearing · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm

swiing® revival nut / spring washer clutch E50 | Puch Maxi

Material: Steel · Manufacturer: swiing® revival parts · Surface: galvanized (blue) · Nut type: Hexagon nut 0.8D · Drive: External hexagon · Width across flats: 17 mm · Thread type: MF10x1 (fine pitch thread) · Height: 8 mm

Karcoma hose nipple 90° plastic

Manufacturer: Karcoma · Material: Plastic · Color: gray · Ø outside: 6 mm · Ø outside: 7.8 mm · Ø outside: 10.5 mm

swiing® revival stud bolts M6 x 116 mm galvanized (strength 10.9)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Total length: 116 mm · Thread length: 15 mm · Thread length: 23 mm

MBR spacer sleeve KTM SX50 clutch hardened

Manufacturer: MBR · Material: Steel · Surface: galvanized (blue) · Nominal diameter inside: 6 mm · Ø outside: 7.9 mm · Total length: 19 mm · Ø inside: 6.1 mm

Oil seal FPM 17/40/7 DUO | Puch E50

Temperature resistance (min.): -30 - 200 °C · Material: FPM - Fluororubber · Shaft seal type: A DUO - With rubberized outer casing / two sealing lips. · Manufacturer: Puch · Surface: rubberized · Ø inside: 17 mm · Ø outside: 40 mm · Width: 7 mm · Area of application: Standard

MBR Spacer ring clutch KTM SX50 original Puch E50

Manufacturer: MBR · Material: Steel · Surface: galvanized (blue) · Ø inside: 12.55 mm · Nominal diameter inside: 12.5 mm · Ø outside: 20 mm · Total length: 4.7 mm

SKF 6203 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Inner ring width: 12 mm · Ball bearing closed: No · Manufacturer: SKF · Bearing clearance: CN (standard) · Bearing cage: Sheet steel cage ball-guided · Area of application: Standard · Pony OEM number: A4503 · Sachs OEM no.: 0932 035 006

SKF 6203 C4 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Stock number: 6203 · Ø inside: 17 mm · Ø outside: 40 mm · Width: 12 mm · Inner ring width: 12 mm · Manufacturer: SKF · Bearing clearance: C4 · Bearing cage: Sheet steel cage ball-guided

Stud bolt M6x116 galvanized - Strength 10.9 | Pony Beta 521 (A8108)

Manufacturer: Pony · Material: Steel · Surface: galvanized (blue) · Thread type: M6x1 (standard thread) · Total length: 116 mm · Thread length: 14 mm · Thread length: 22 mm · Strength class: 10.9
