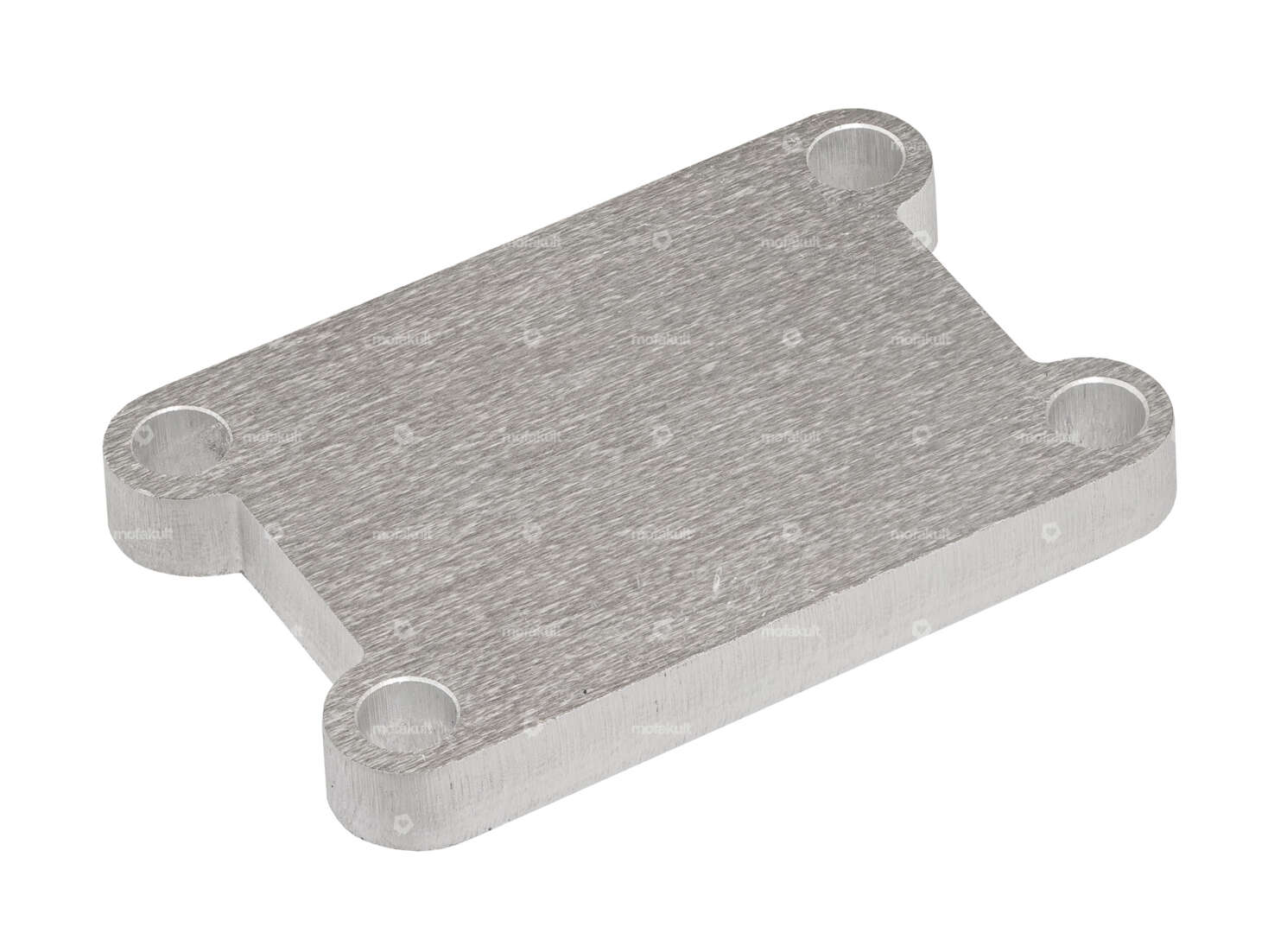

Aluminum cover plate for the reed valve inlet of the 47 mm Gilardoni italkit Puch cylinder kit.
The reed valve cover is used to close the reed valve system and convert the cylinder kit to a housing inlet (GME).
Outer dimensions: 72.5 x 48 mm
Hole pattern: 60 x 35 mm
Material thickness: 8 mm
Material: aluminum
You can find corresponding additional material such as seals, sealing compound etc. in the accessories section.
Details
| Total length | 72.5 mm |
| Manufacturer | MBR |
| Area of application | Tuning |
| Material | Aluminum |
| Width | 48 mm |
| Thickness | 8 mm |
| Mounting type | Screws |
| Number of fixing points | 4 pcs |
| Hole pattern [mm] | 60 x 35 mm |
Suitable for the following models
| Puch |
